X-AXIS TRAVEL ............................ 20"
Y-AXIS TRAVEL ............................ 16"
Z-AXIS TRAVEL ............................ 20"
RAPID TRAVERSE RATE [INCHES/MINUTE] ...... 710
CUTTING FEED RATES [INCHES/MINUTE] ....... 630
MINIMUM SPINDLE NOSE TO TABLE DISTANCE ... 4"
MAXIMUM SPINDLE NOSE TO TABLE DISTANCE... 24"

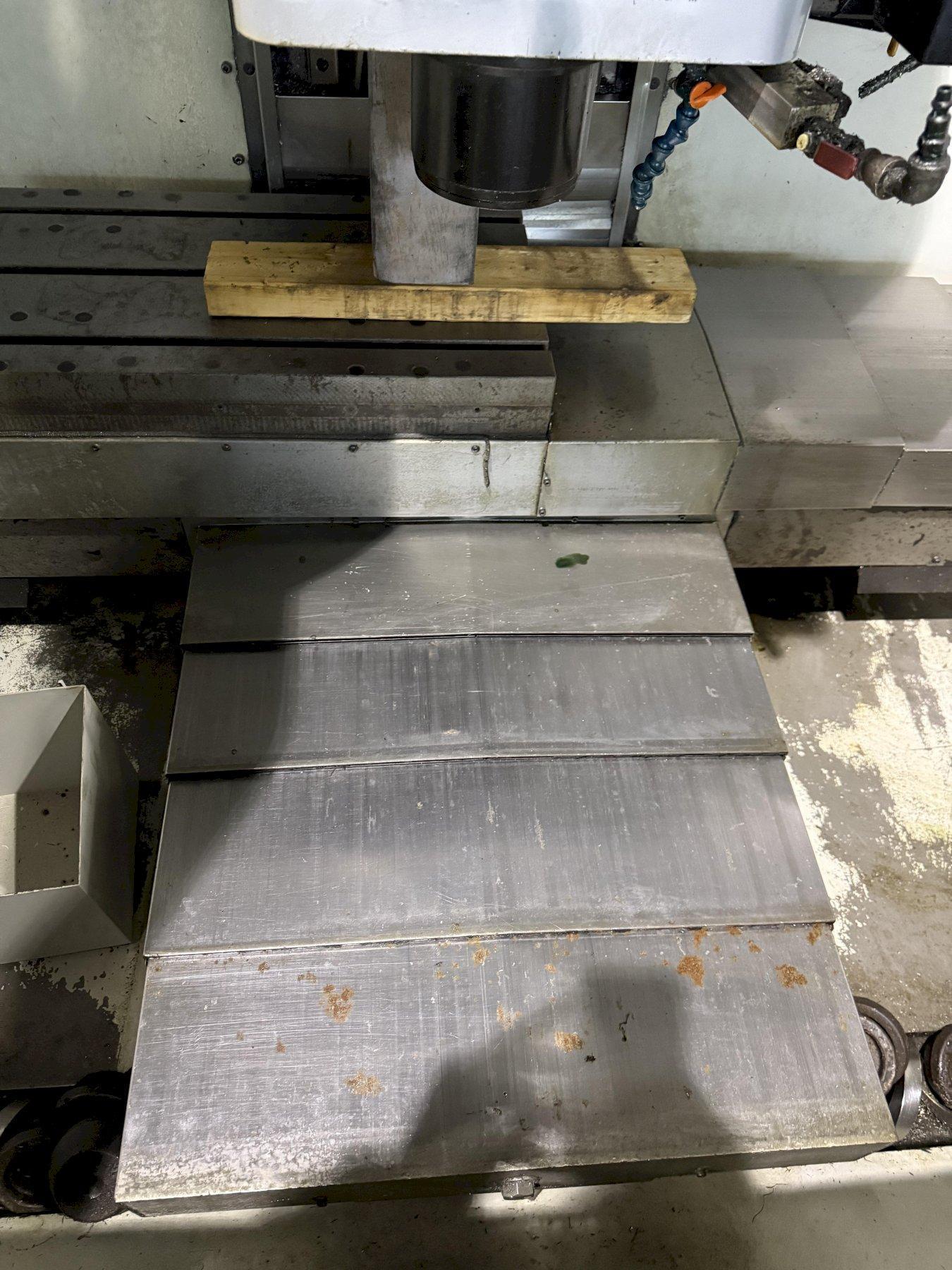

TABLE LENGTH ............................. 26"
TABLE WIDTH .............................. 14"
T-SLOT WIDTH ............................. 5/8"
NUMBER OF STD T-SLOTS .................... 3
MAX WEIGHT ON TABLE ...................... 1800 LBS.
SPINDLE TAPER SIZE ....................... CAT-40
SPINDLE SPEED RANGE ...................... 7500 RPM
SPINDLE POWER ............................ 20 HP

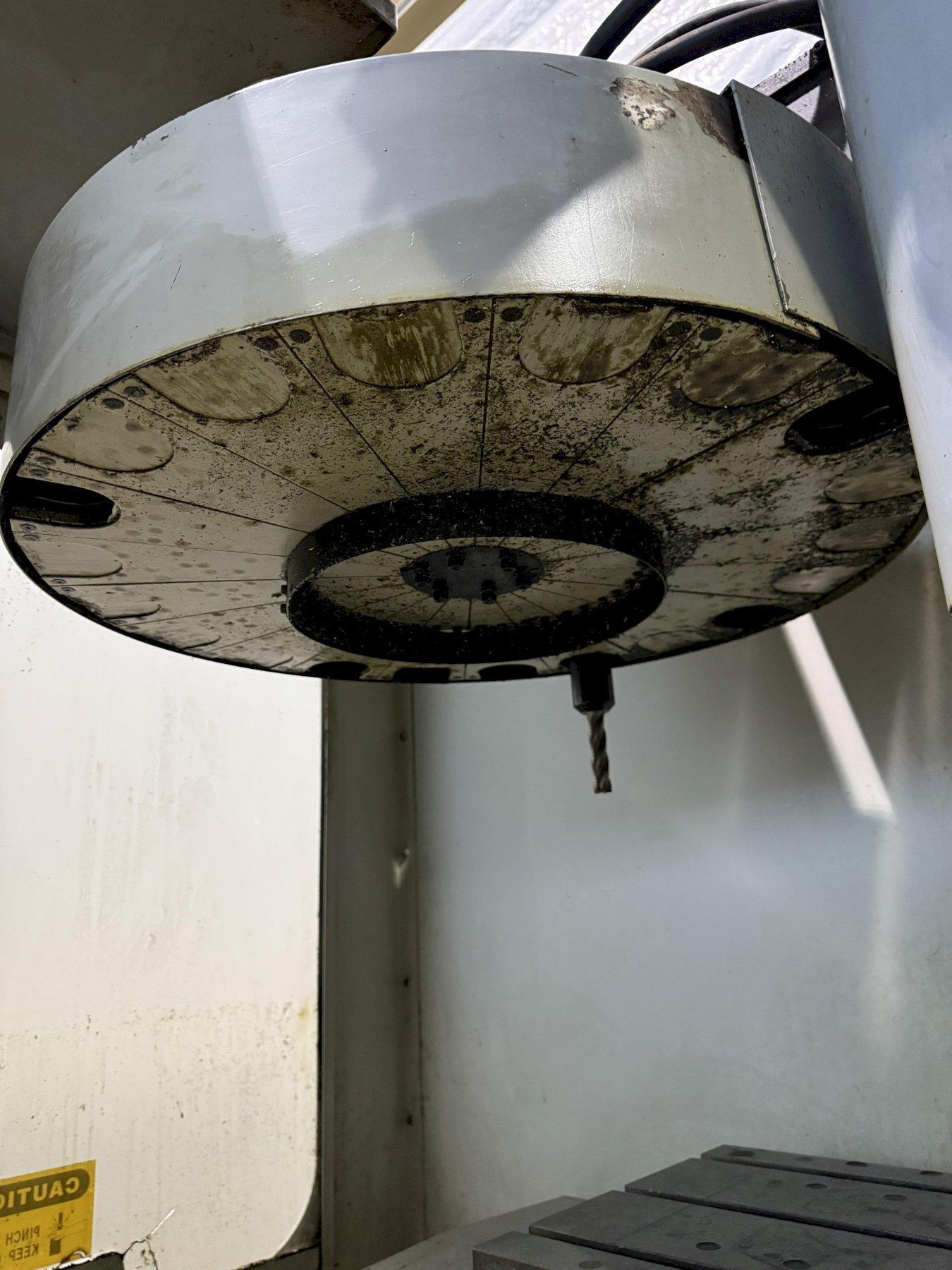

AUTOMATIC TOOL CHANGER CAPACITY .......... 20+1
MAXIMUM TOOL WEIGHT ...................... 12 LBS.
MAXIMUM TOOL DIAMETER .................... 3.6"
MAXIMUM TOOL LENGTH ...................... 11"
AIR REQUIRED ............................. 100 PSI
VOLTAGE .................................. 220
PHASE .................................... 3
DIMENSIONS ............................... 90" X 80" X 100"
WEIGHT.................................... 8,000 LBS.

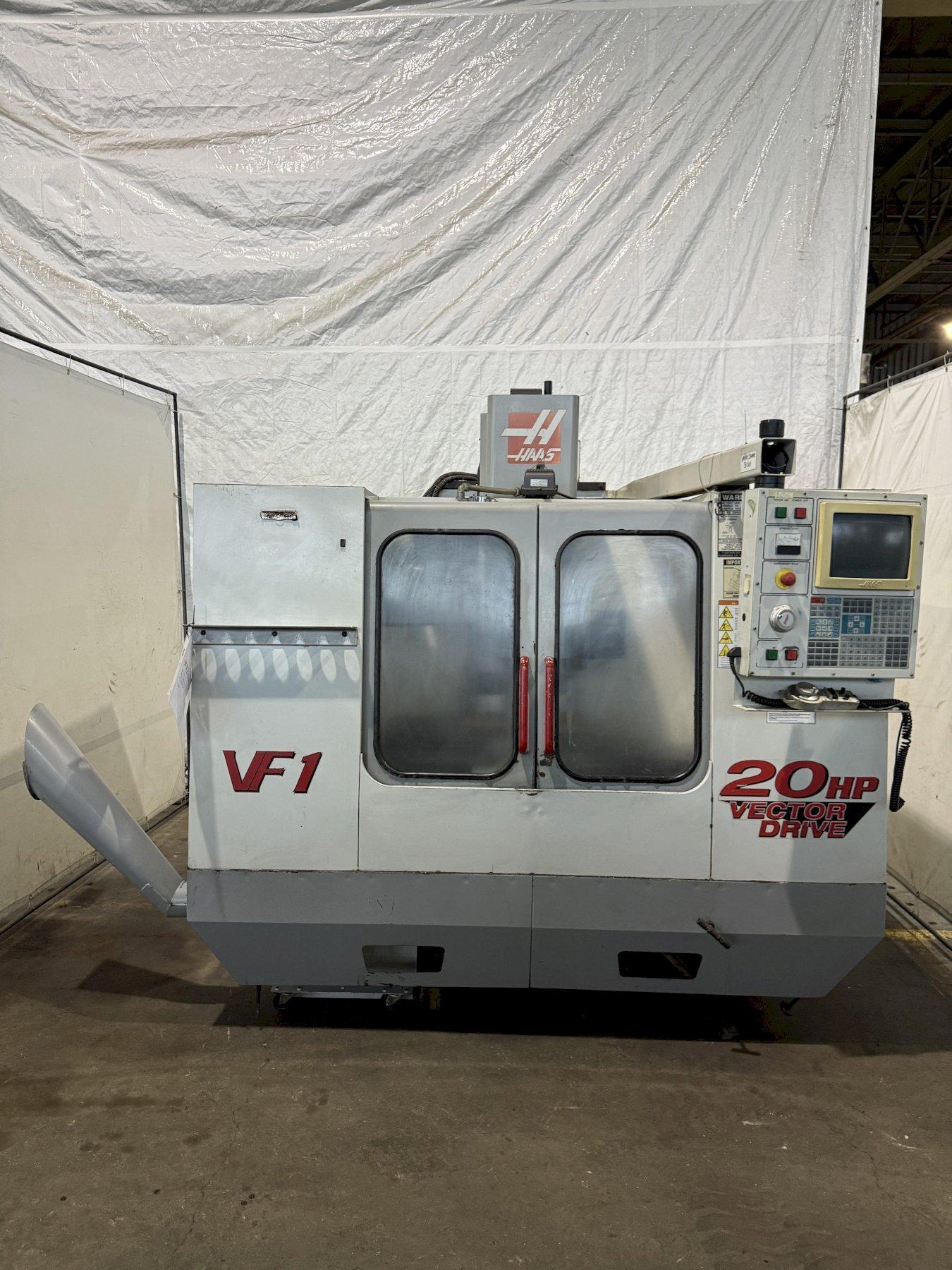

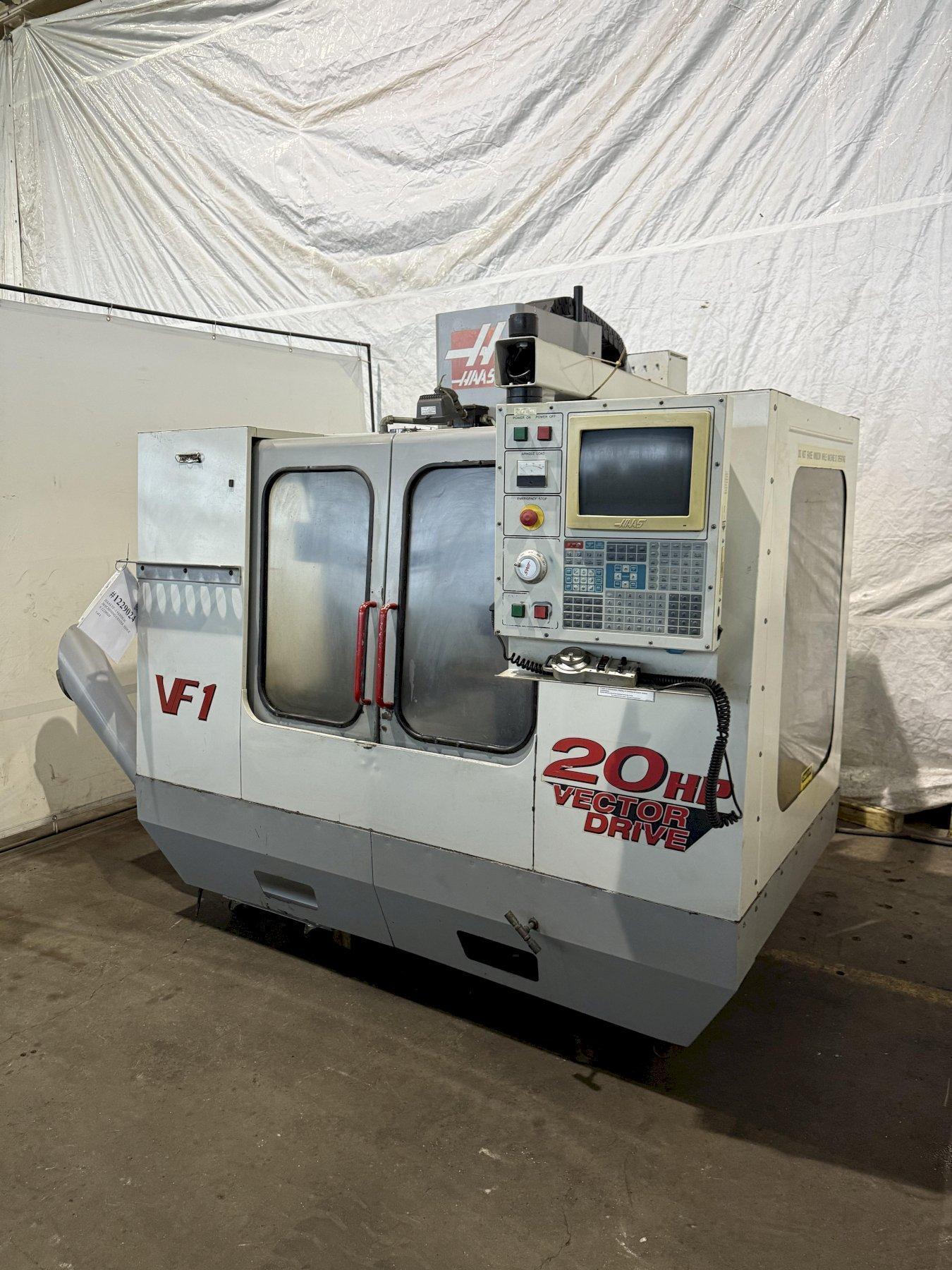

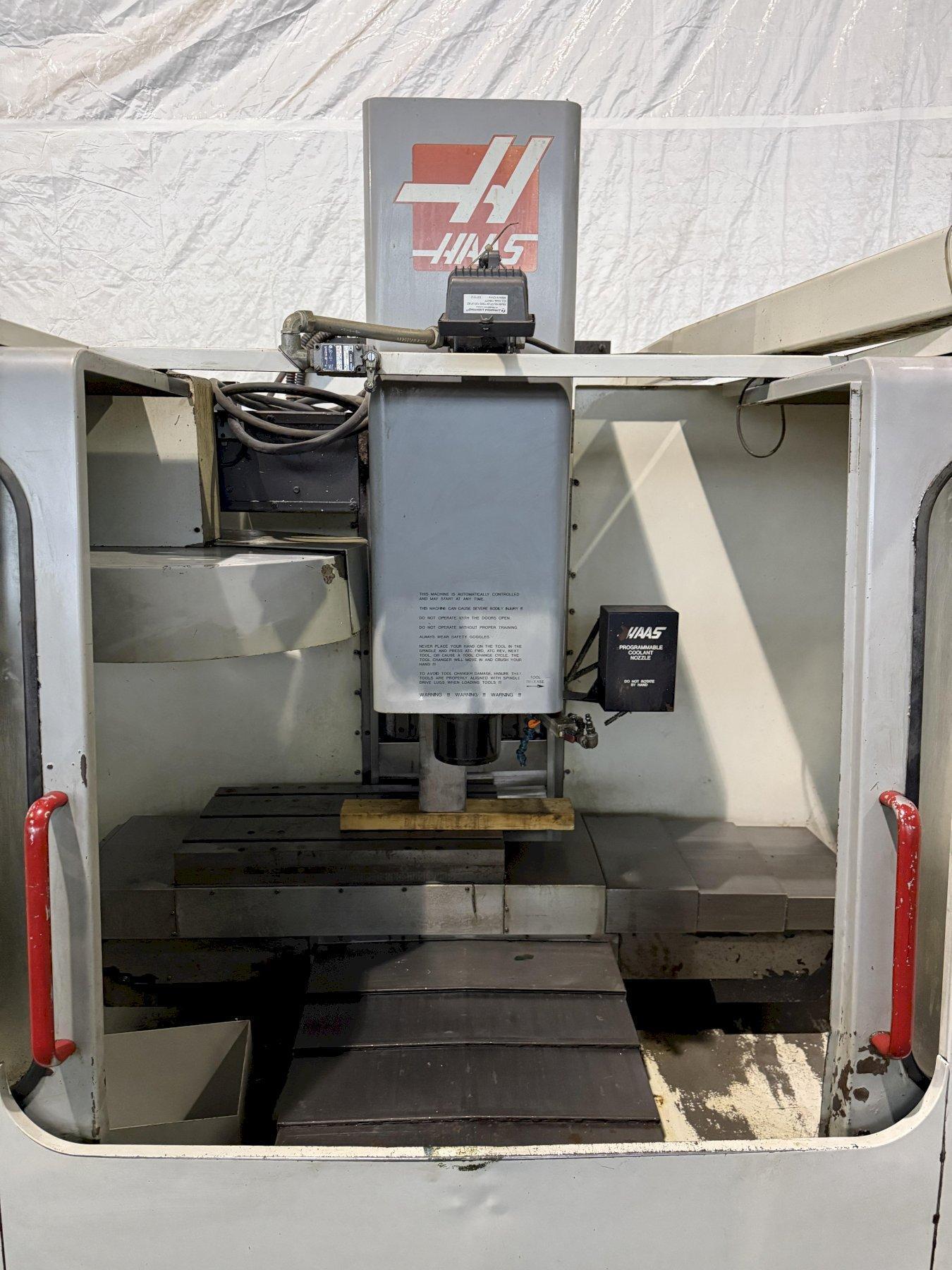

Brand
HAAS
Type
Machining Centers, Vertical
Stock No.
22416
 |
