SERIAL .......................... T0801249
| Specifications | ||
|---|---|---|
| Dimensions | 163" x 90" x 93" | |
| Weight | 7030 pounds | |
Brand
HYD-MECH
Type
Saws, Band, Horizontal
Stock No.
15663
 |
419-269-2000 |

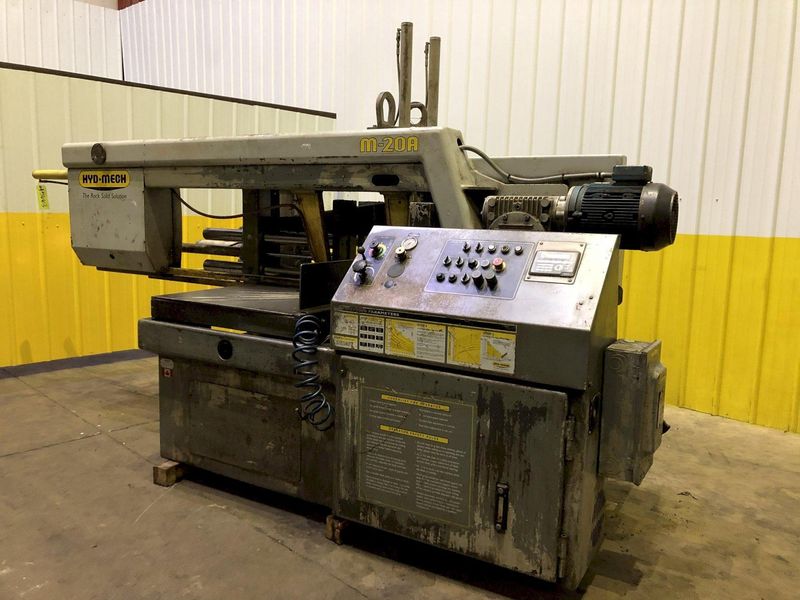

Stock #: 15663
SERIAL .......................... T0801249MODEL ........................... M20AYEAR NEW ........................ 2001CAPACITY @ 90 DEGREES ........... 20" W X 30" HCAPACITY @ 45 DEGREES ........... 18" W X 20" HBLADE SPEEDS (VARIABLE) ......... 50 TO 350 SFPMBLADE SIZE ...................... 20'6" X 1-1/2"CUTTING FORCE ................... 0 TO 500 LBS.CLAMPING FORCE (VARIABLE) ....... 150 TO 900 PSIMAXIMUM WORK LOAD ............... 8000 LBS.SHUTTLE STROKE .................. 0 TO 33" (220" MAXIMUM)OPERATOR'S CONSOLE .............. DIGITAL ANGLE DISPLAYVISE & BLADE TENSION ............ HYDRAULICCHIP AUGER CONVEYOR ............. HYDRAULICMITERING ........................ POWERBUDDLE CUTTING .................. NESTINGPLC CONTROL ..................... 200COOLANT ......................... YESHYDRAULIC MOTOR ................. 3 HORSEPOWERBLADE MOTOR ..................... 10 HORSEPOWER
