| Specifications | ||
|---|---|---|
| Dimensions | 96" X 140" X 94" HIGH | |
| Weight | 13500 pounds | |
Brand
HYD-MECH
Type
Saws, Band, Horizontal
Stock No.
15804
 |
419-269-2000 |

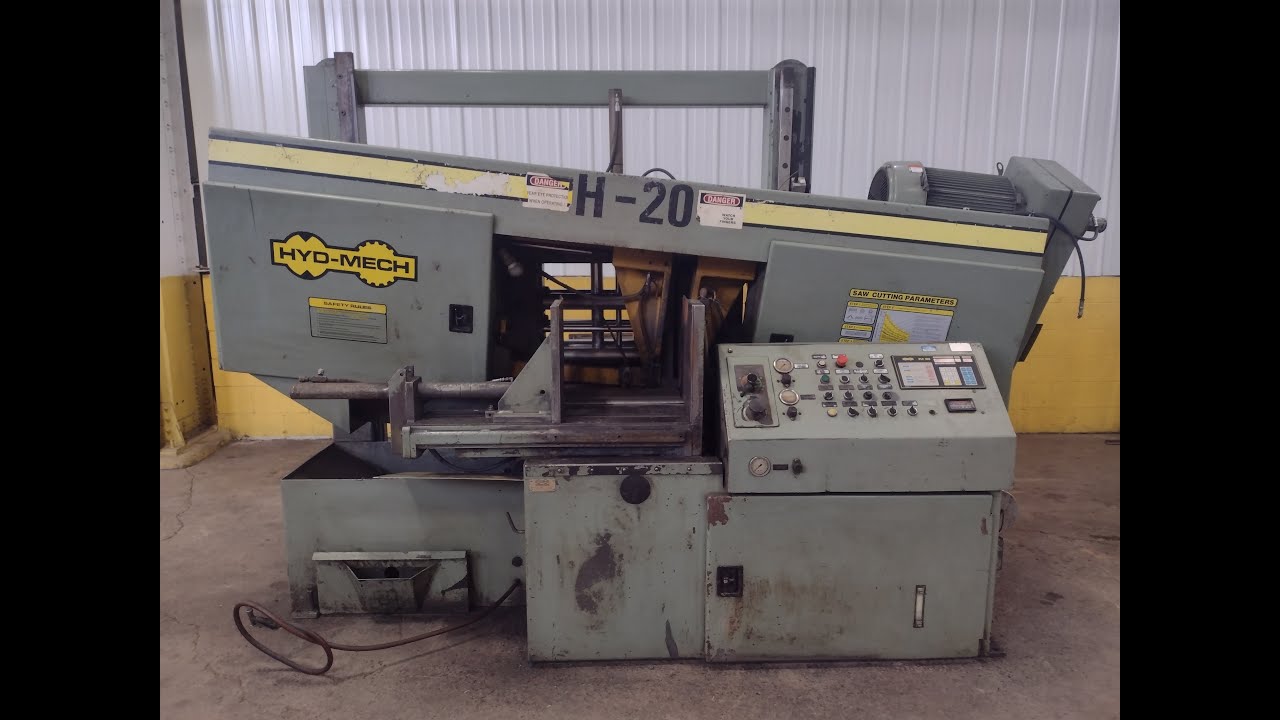

Stock #: 15804
SERIAL ........................ CO897084HMODEL ......................... H-20YEAR NEW ...................... 1997
PROGRAMMABLE CONTROLLER ....... YES, PLC 100CUTTING CAPACITY (SQUARE) ..... 20" W X 20" HCUTTING CAPACITY (ROUND) ...... 20" DIAMETER
WORKLOAD WEIGHT CAPACITY ...... 8,000 LBSBLADE SPEEDS (VARIABLE) ....... 45 TO 265 SFPMBLADE SIZE .................... 22'2" X 2" X .050"CUTTING FORCE ................. 0 TO 500 LBS
SHUTTLE STROKE ................ 0 TO 33" (220" MAXIMUM)CLAMPING FORCE (VARIABLE) ..... 150 TO 900 PSIVERTICAL "BUNDLING" VISES ..... YESHYDRAULIC VISES ............... YES
HYDRAULIC BLADE TENSION ....... YESHYDRAULIC CHIP AUGER .......... YESPOWER BLADE BRUSH ............. YESHYDRAULIC BLADE GUIDE ARM ..... YES
DIGITAL DISPLAY COUNTER ....... YESCOOLANT ....................... YESHYDRAULIC MOTOR ............... 3 HPBLADE MOTOR ................... 10 HP
