SERIAL ...................... 4A6V5EE-1
MODEL ....................... 6V
Brand
Cincinnati
Type

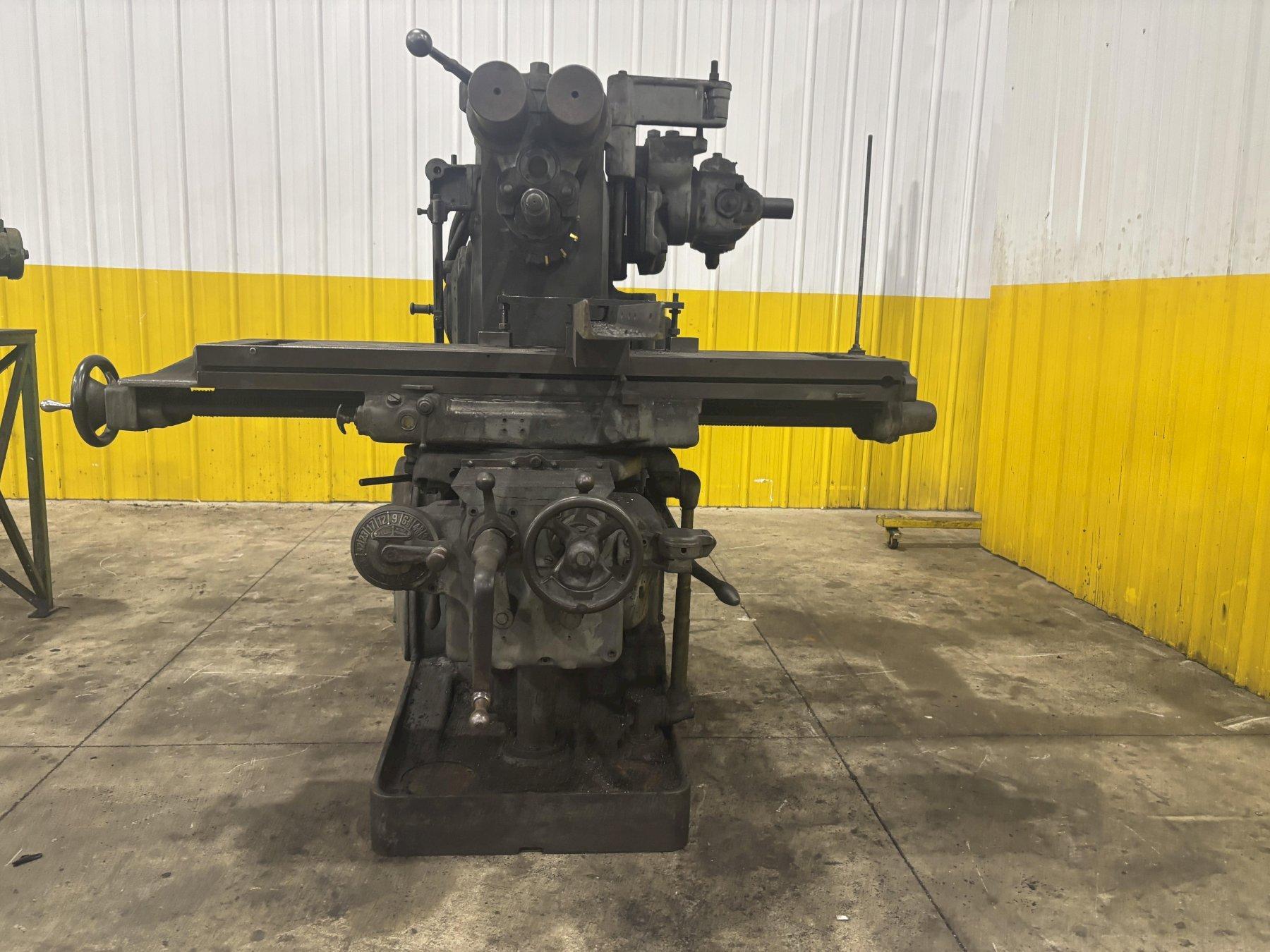

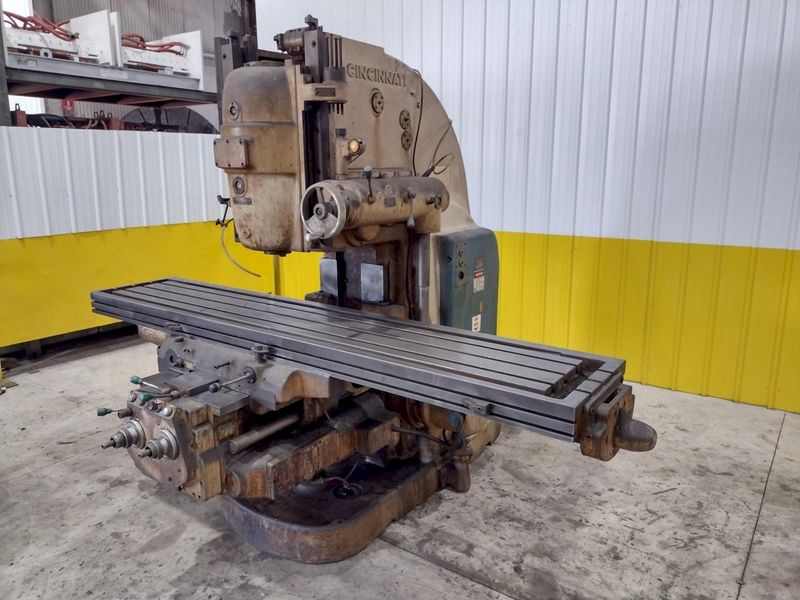

Milling & Drilling Machines (Combo)
Stock No.
21703
 |
419-269-2000 |
Stock #: 21703
SERIAL ...................... 4A6V5EE-1
MODEL ....................... 6V
AREA OF TABLE ............... 104" X 20"SPINDLE SPEEDS .............. (24) 14 TO 1400 RPMLONGITUDINAL & CROSS FEEDS .. (32) 3/8 TO 90 IPMVERTICAL HEAD & KNEE FEEDS .. (32) 3/16 TO 45 IPMLONGITUDINAL TABLE TRAVEL ... 60"CROSS TABLE TRAVEL .......... 18"VERTICAL TRAVEL OF KNEE ..... 16"VERTICAL TRAVEL OF HEAD ..... 8"DISTANCE SPINDLE TO TABLE ... 0" MINIMUM TO 22" MAXIMUMSPINDLE TAPER ............... #50NSRAPID TRAVERSE .............. 150 IPMDUAL CONTROLS ............... YESCOOLANT ..................... YESSPINDLE MOTOR, HORSEPOWER ... 40FEED MOTOR, HORSEPOWER ...... 7-1/2
