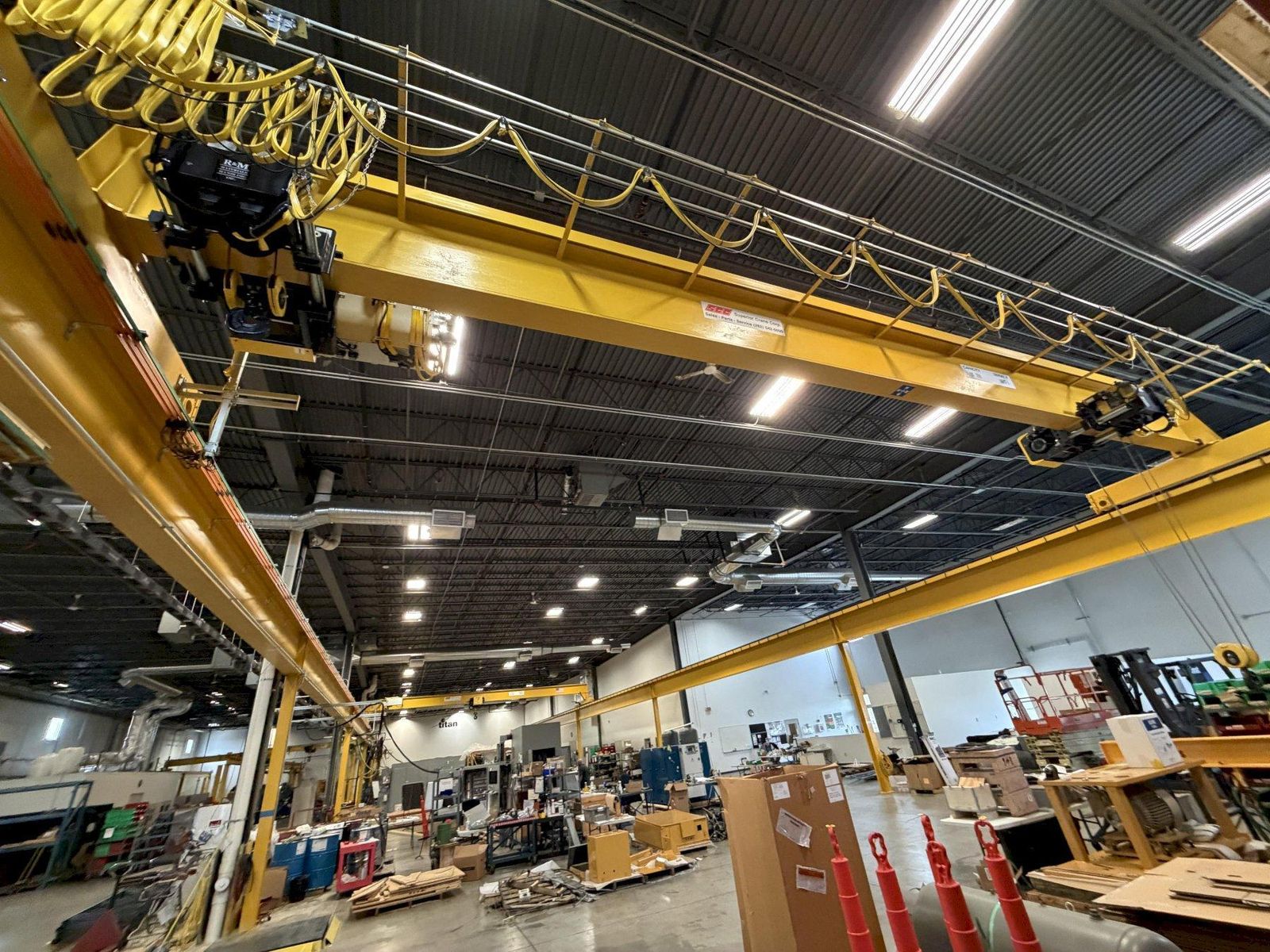

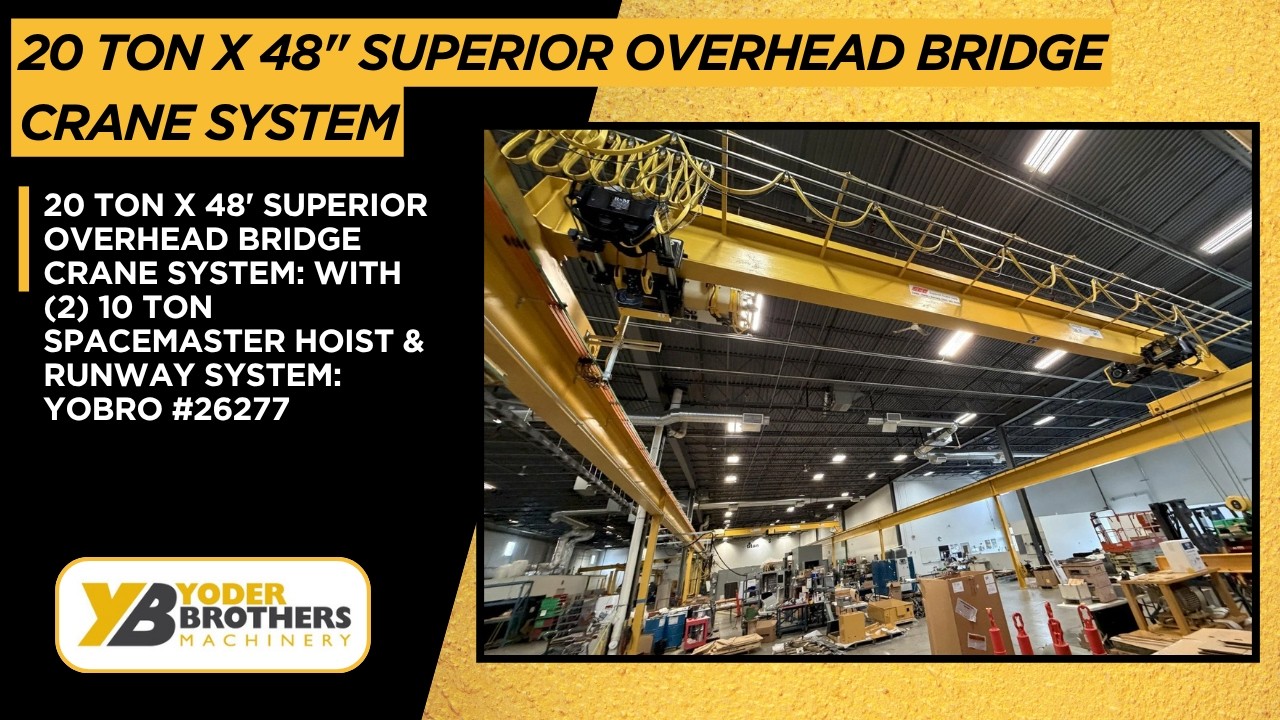

20 TON x 48' SUPERIOR OVERHEAD BRIDGE CRANE SYSTEM: WITH (2) 10 TON SPACEMASTER HOIST & RUNWAY SYSTEM: YOBRO #26277

Overview

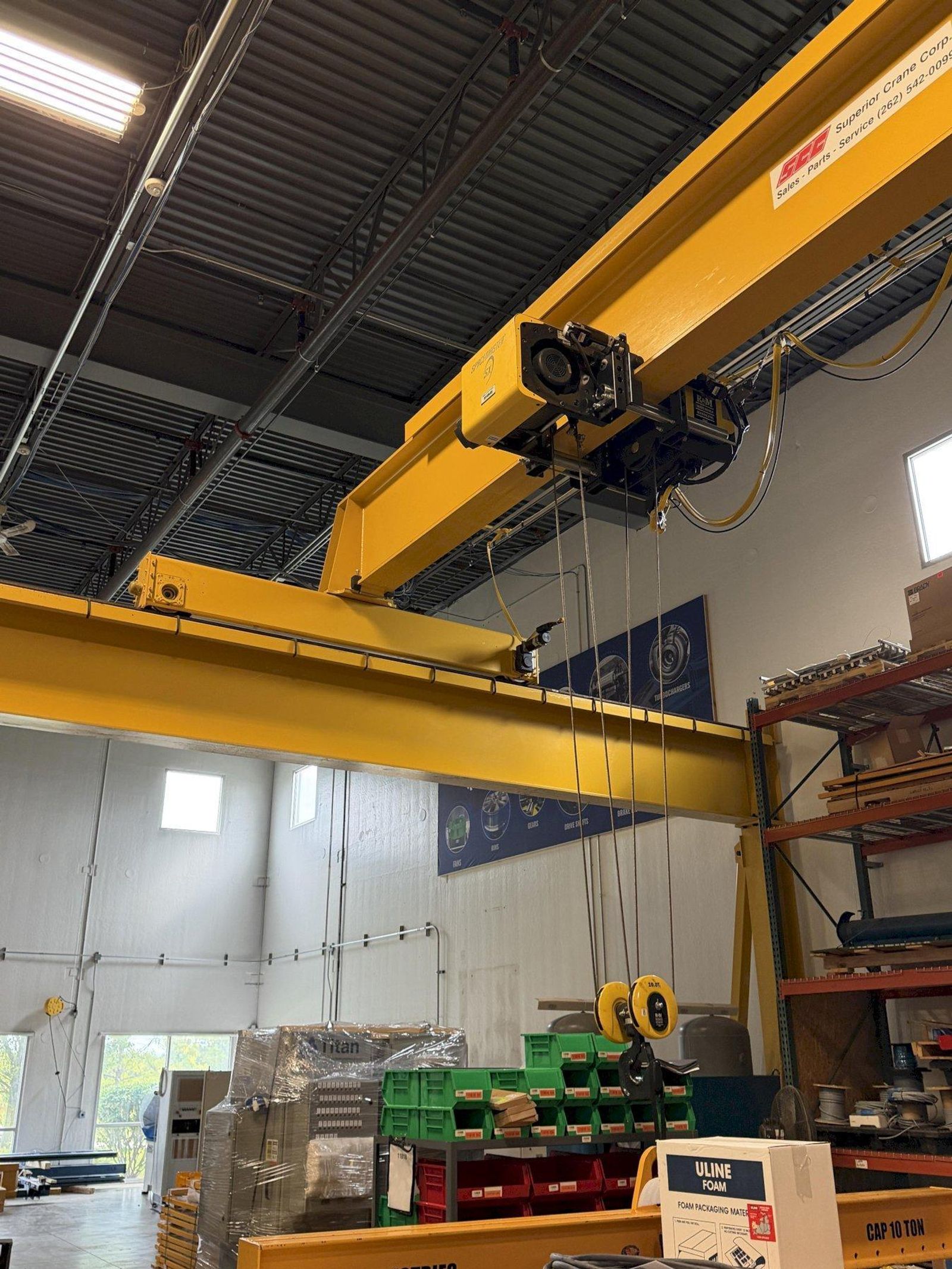

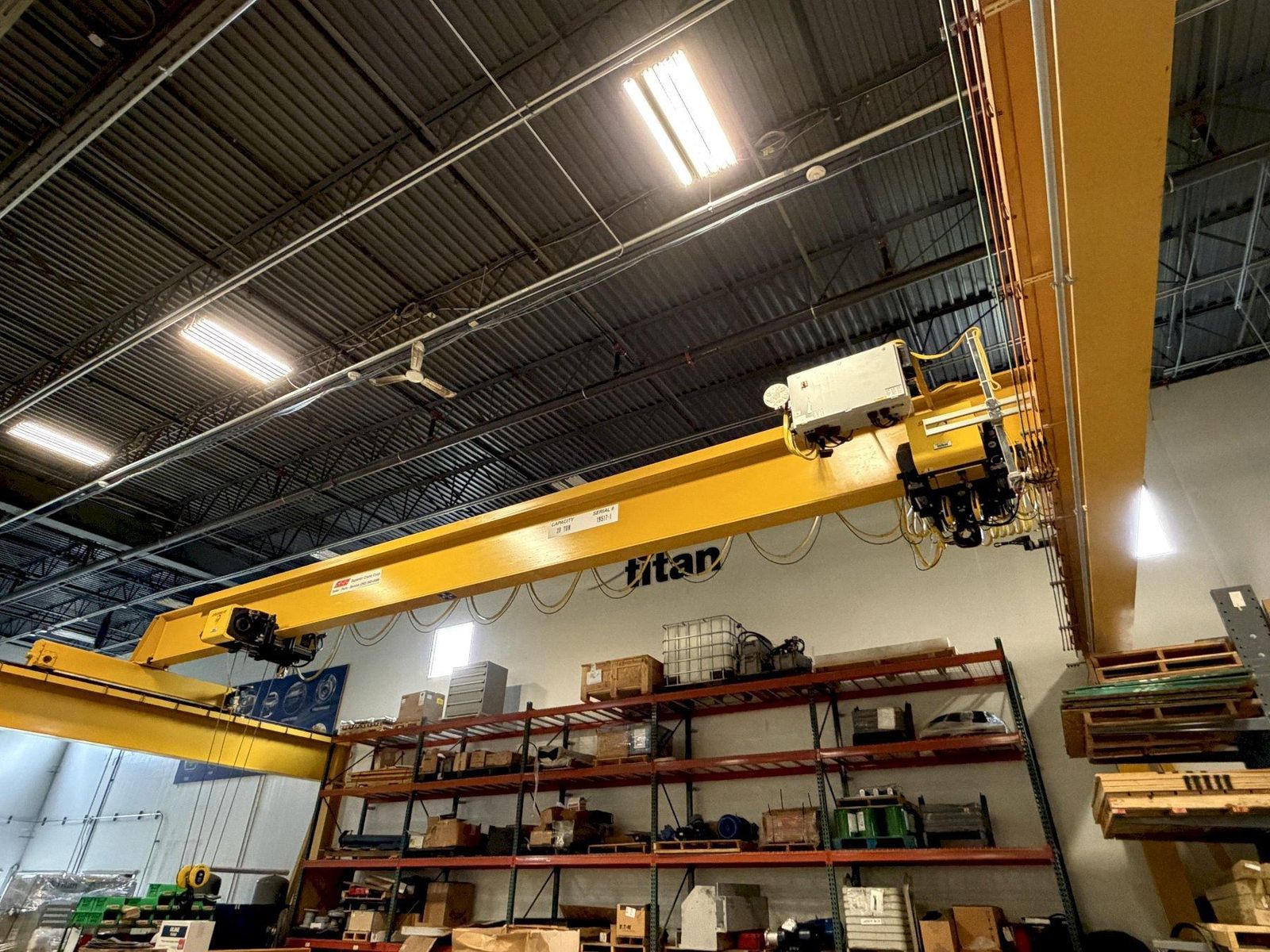

CRANE:

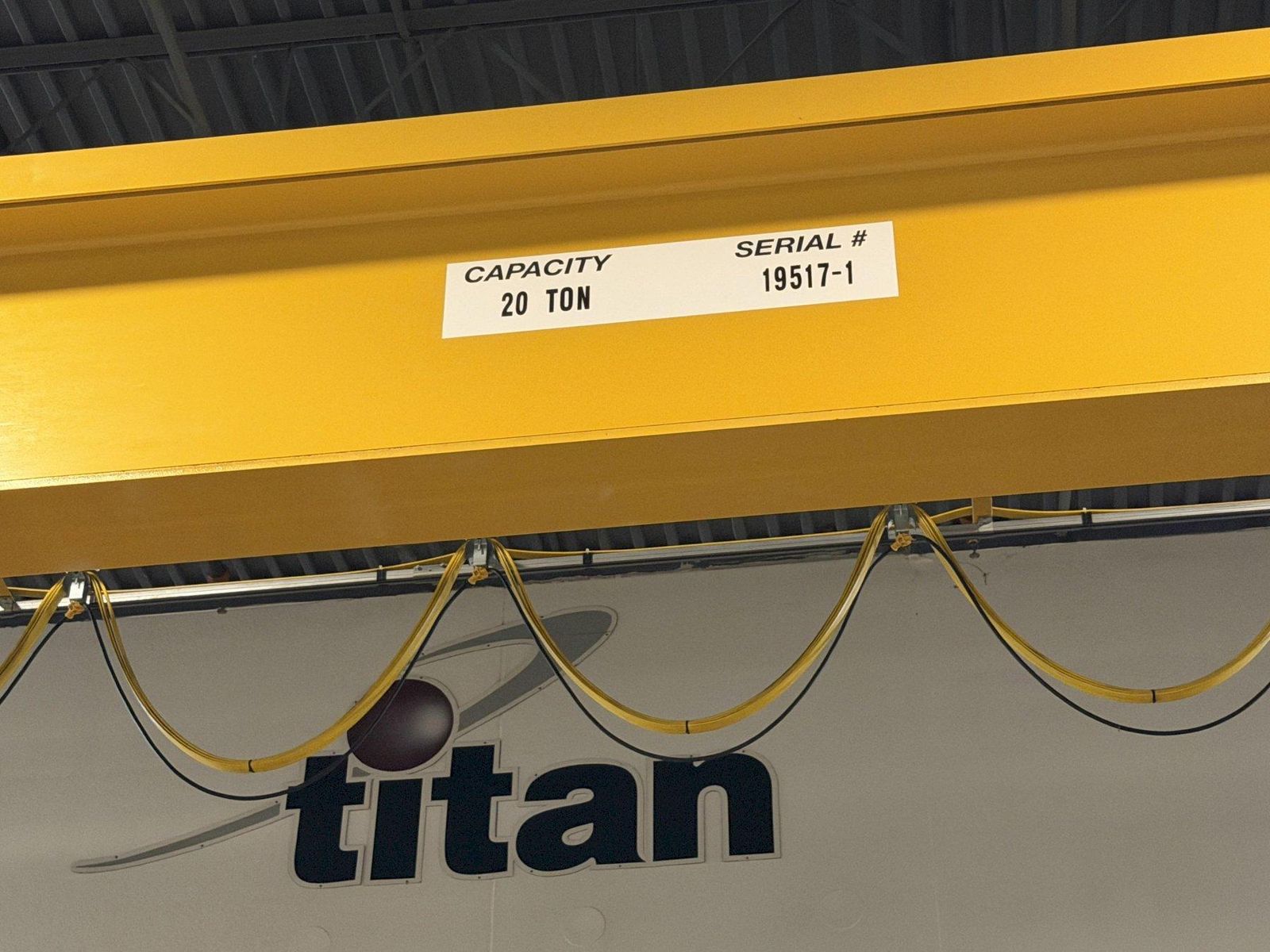

SERIAL ....................... 19517-1
NEW .......................... 2018
CLASS ........................ C
CAPACITY ..................... 20 TON
NUMBER OF HOIST .............. (2) 10 TON HOISTS
SPAN ......................... 48'
SINGLE GIRDER ................ YES
BRIDGE ....................... TOP RUNNING
BRIDGE SPEEDS ................ 100 FPM VARIABLE
TOP OF RAIL TO TOP OF CRANE .. 3' 3-1/2"
END TRUCK LENGTH ............. 12' 5/8"
END TRUCK WHEEL CENTER ....... 10' 4"
OVERALL LENGTH OF CRANE ...... 53' 11-7/8"
REMOTE CONTROL ............... YES

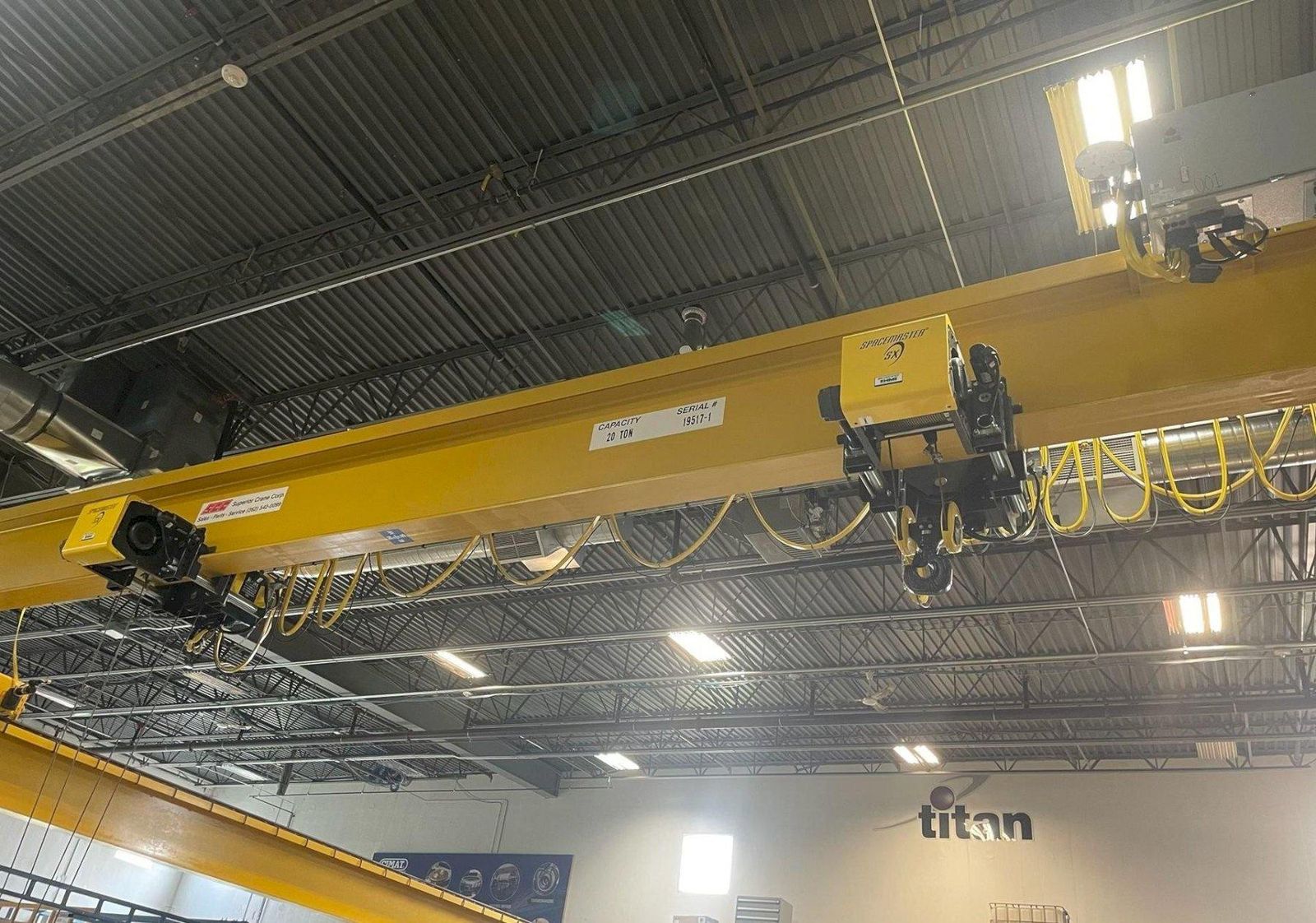

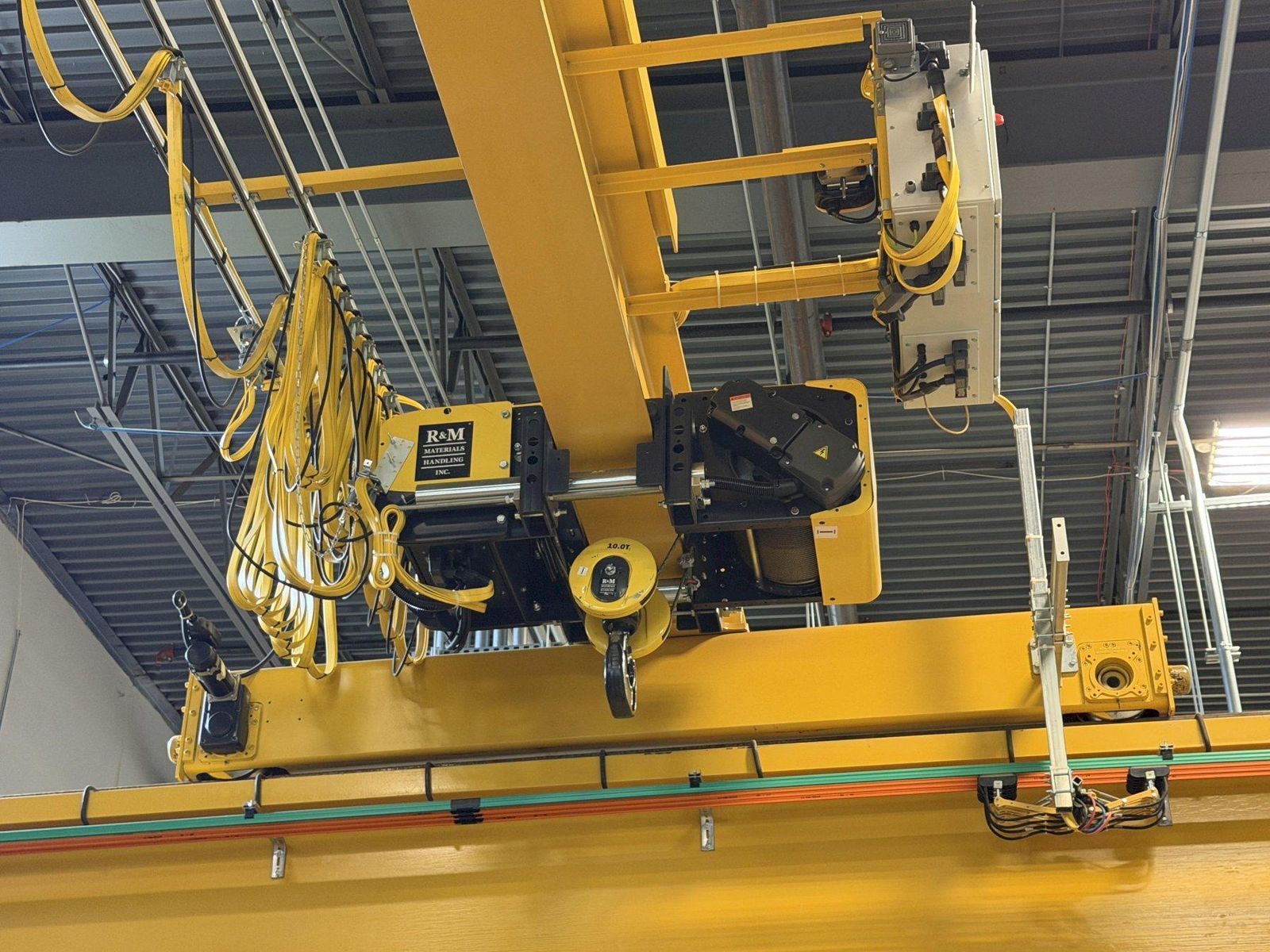

HOISTS:
MAKE ......................... R & M
MODEL ........................ SX - SPACEMASTER
LIFTING HEIGHT ............... 29' 6-5/16"
HOIST SPEEDS ................. 20.0 / 3.2 FPM
TROLLEY SPEEDS ............... 65 / 10 FPM VARIABLE

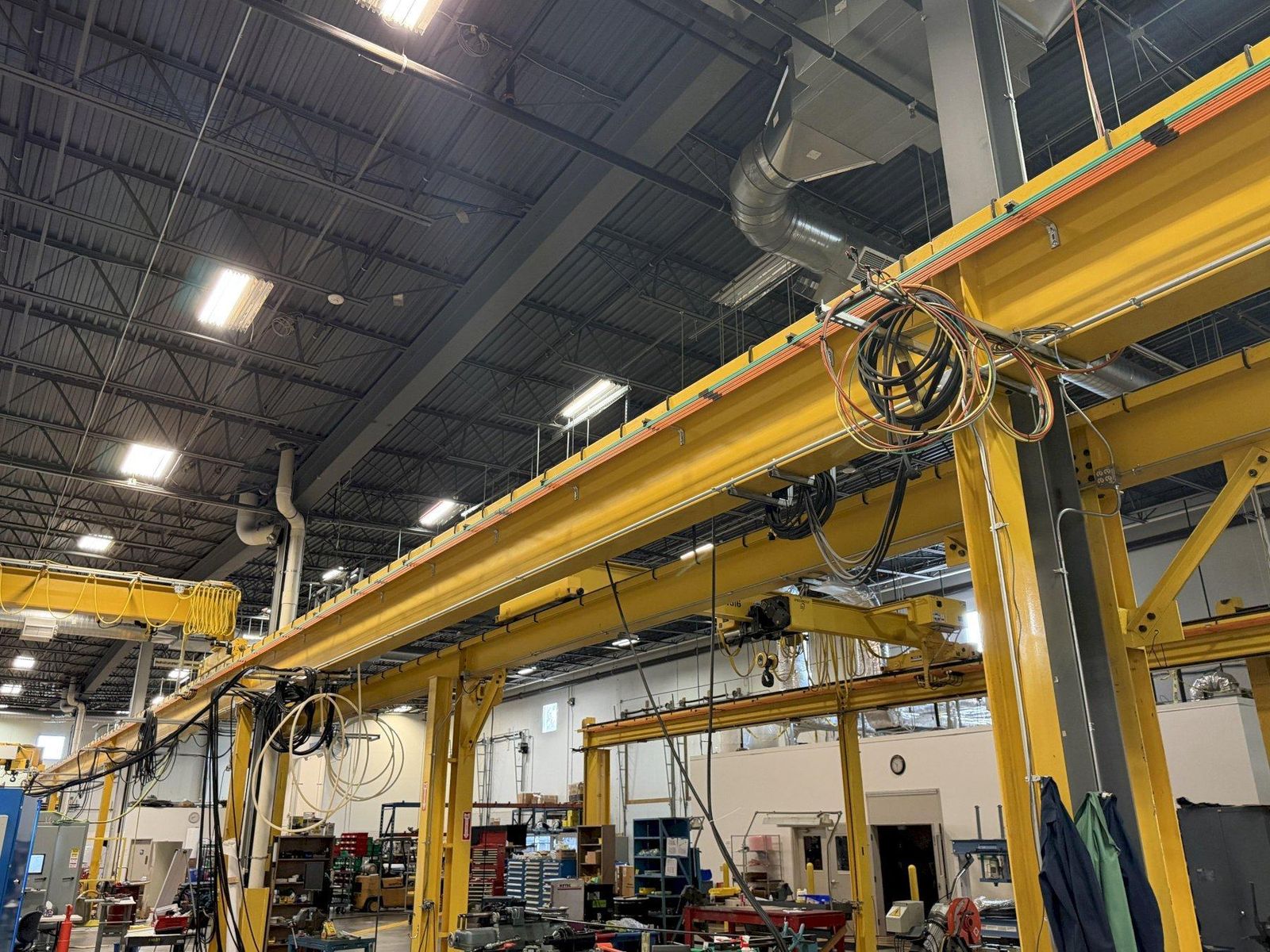

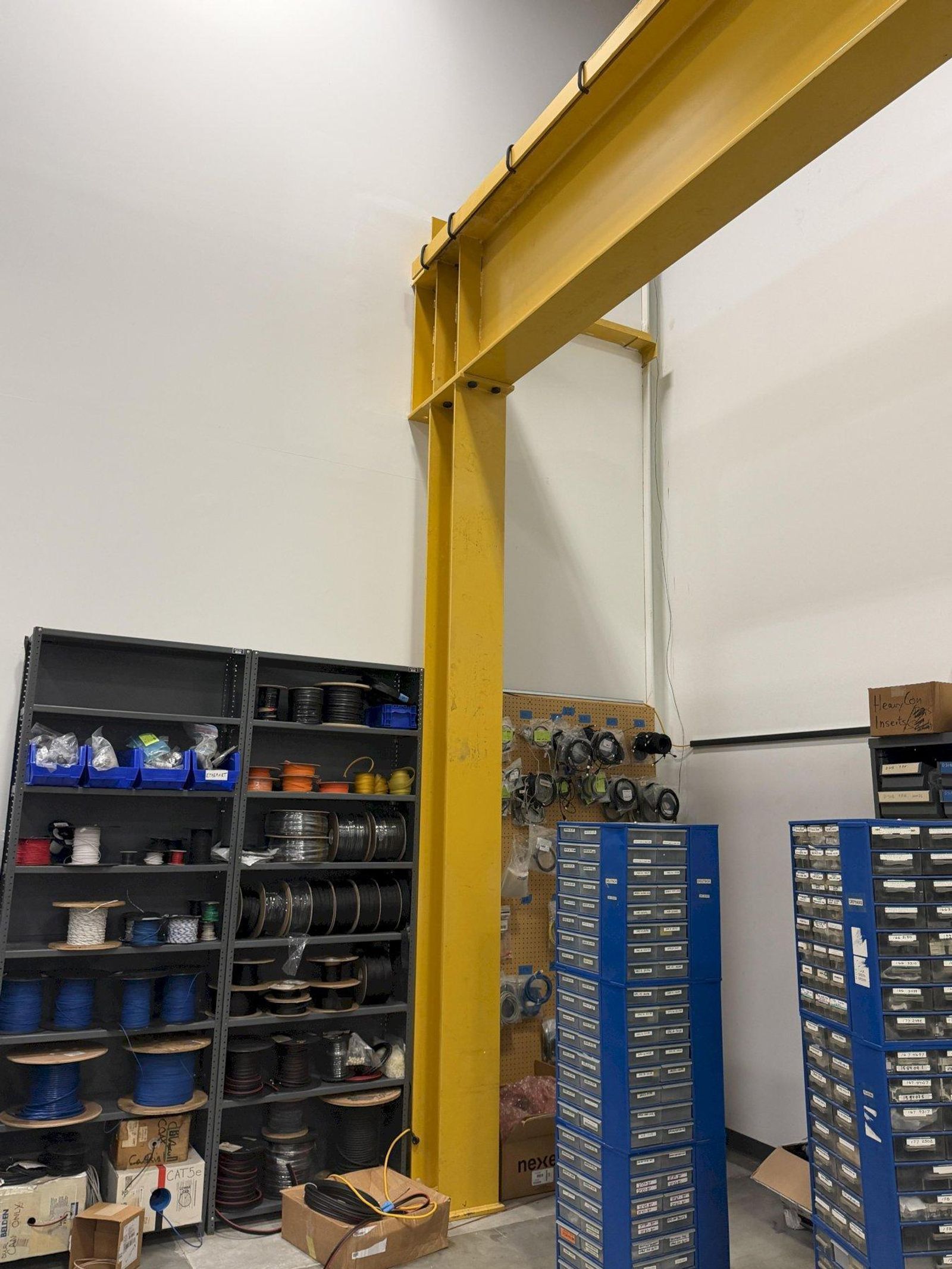

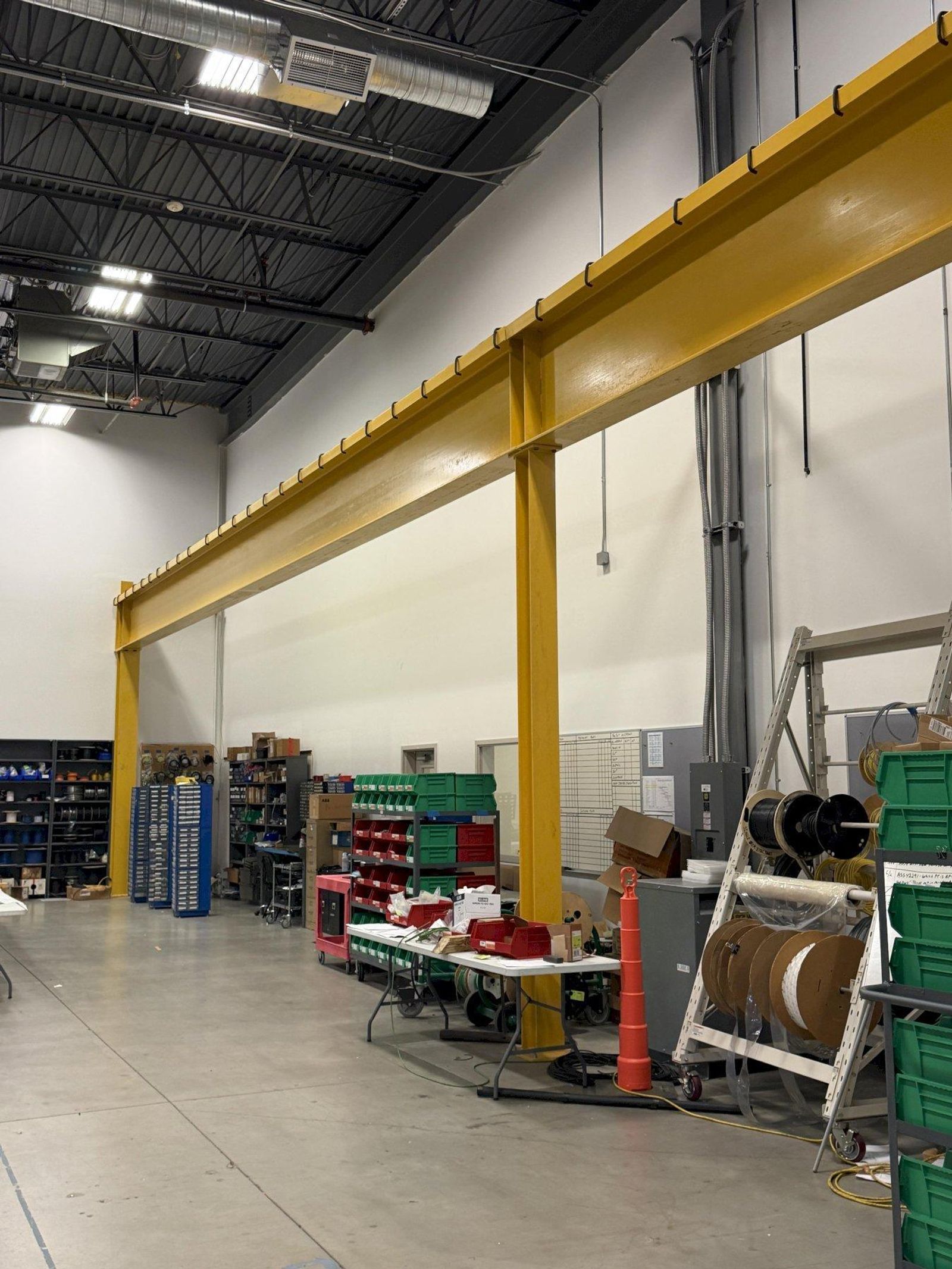

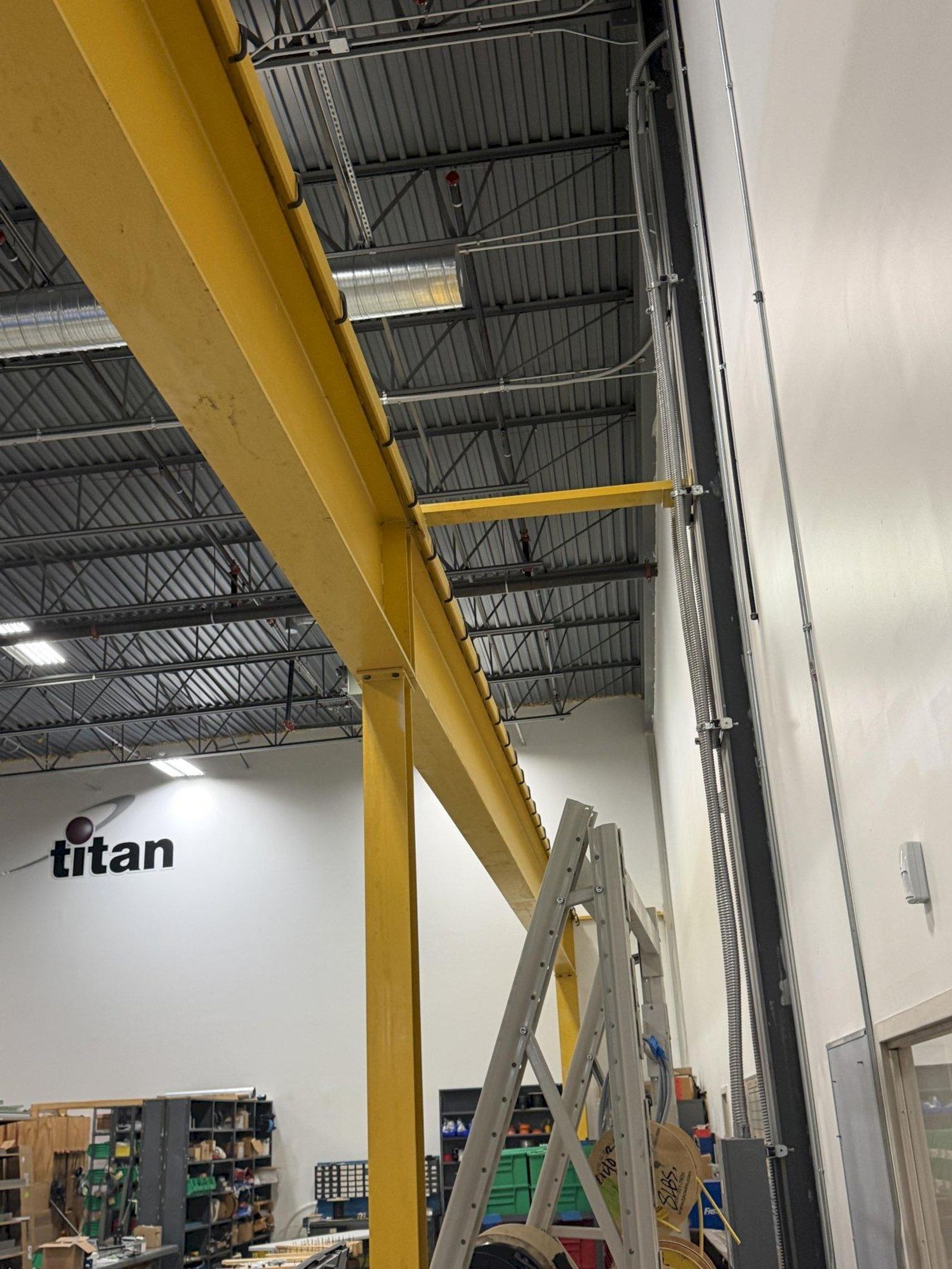

RUNWAY SYSTEM:

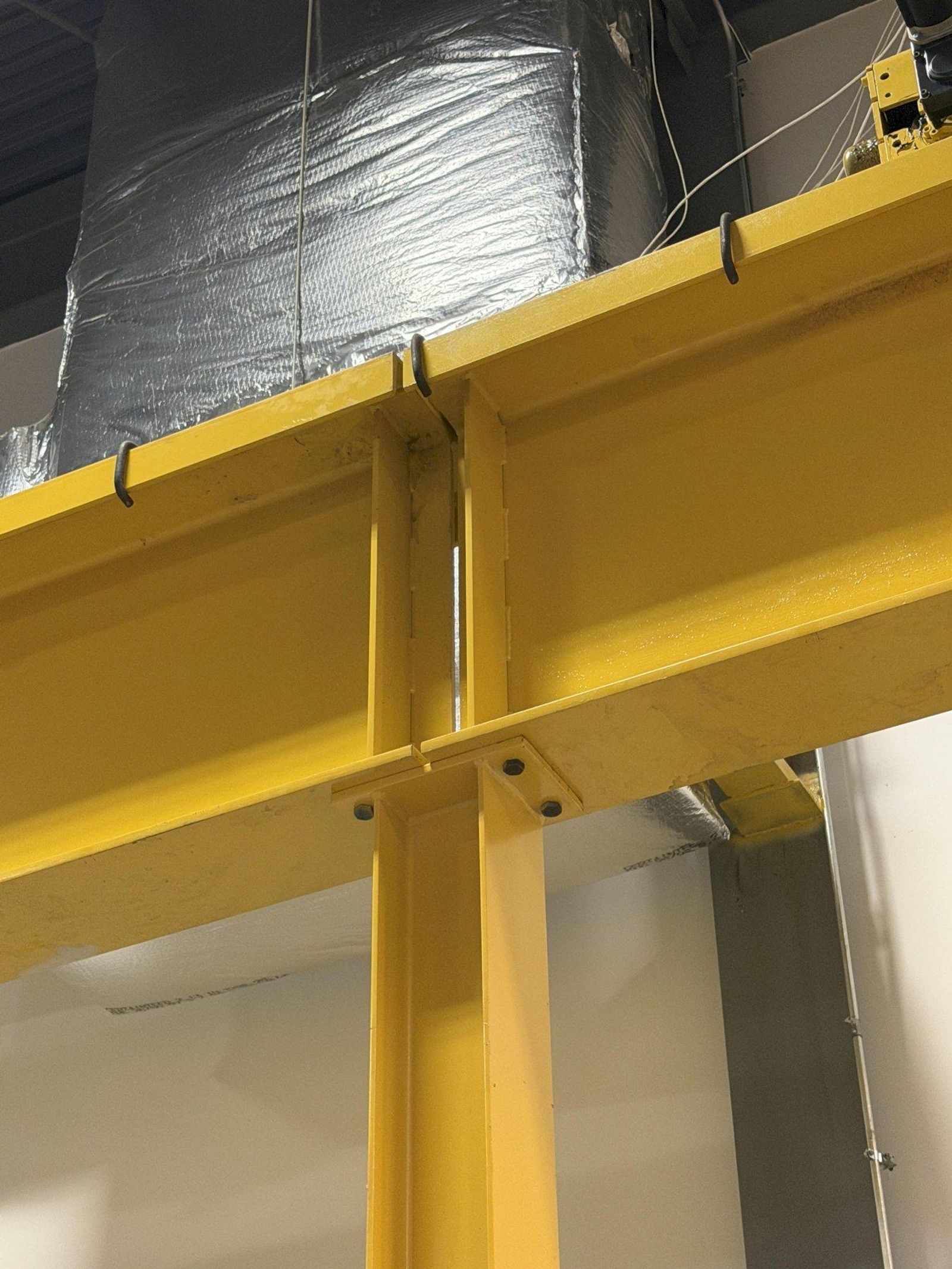

RUNWAY BEAM .................. X33 X 130
RUNWAY BEAM HEIGHT ........... 3'-1 3/16"
RUNWAY CHANNEL ............... MC18 X 42.7
CRANE RAIL ................... 60# ASCE

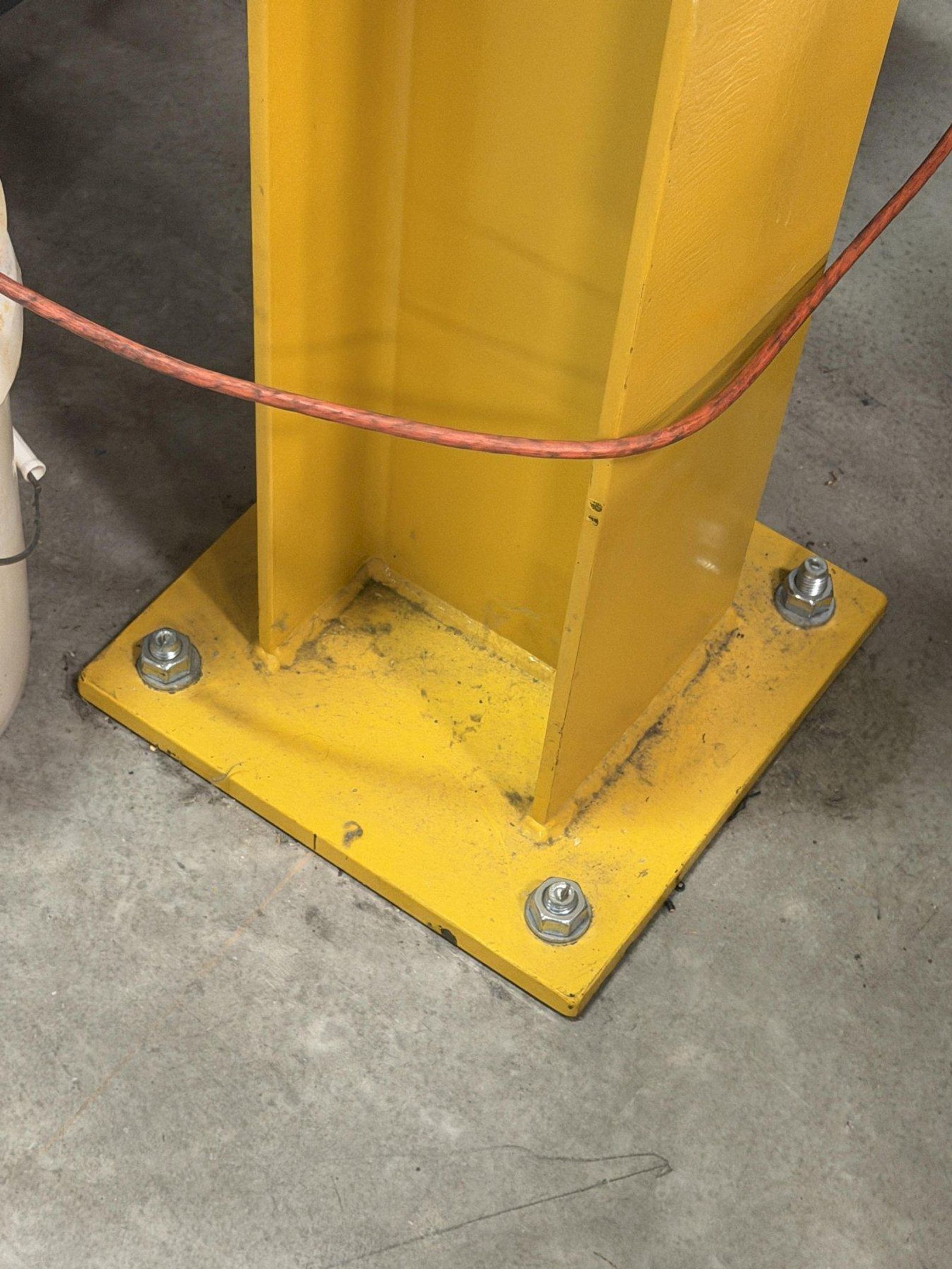

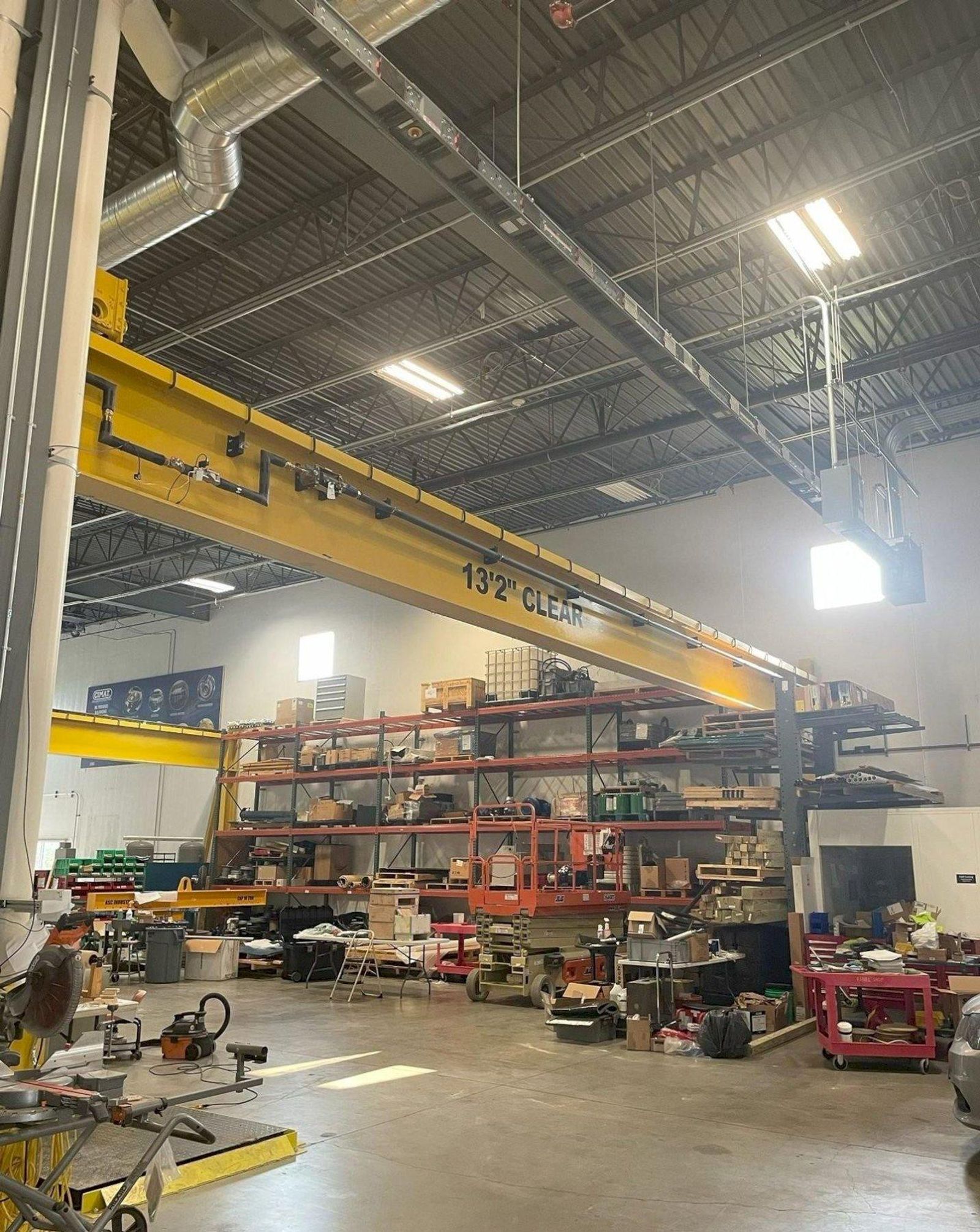

UPRIGHT HEIGHT ............... 13'-2 5/16"
TOP OF RAIL HEIGHT ........... 16'-1-1/8"
OVERALL HEIGHT OF SYSTEM ..... 21' APPROX

TROLLEY WEIGHT ............... 2 @ 1,400 LBS
BRIDGE WEIGHT ................ 14,720 LBS

20 TON x 48' SUPERIOR OVERHEAD BRIDGE CRANE SYSTEM: WITH (2) 10 TON SPACEMASTER HOIST & RUNWAY SYSTEM: YOBRO #26277

Brand

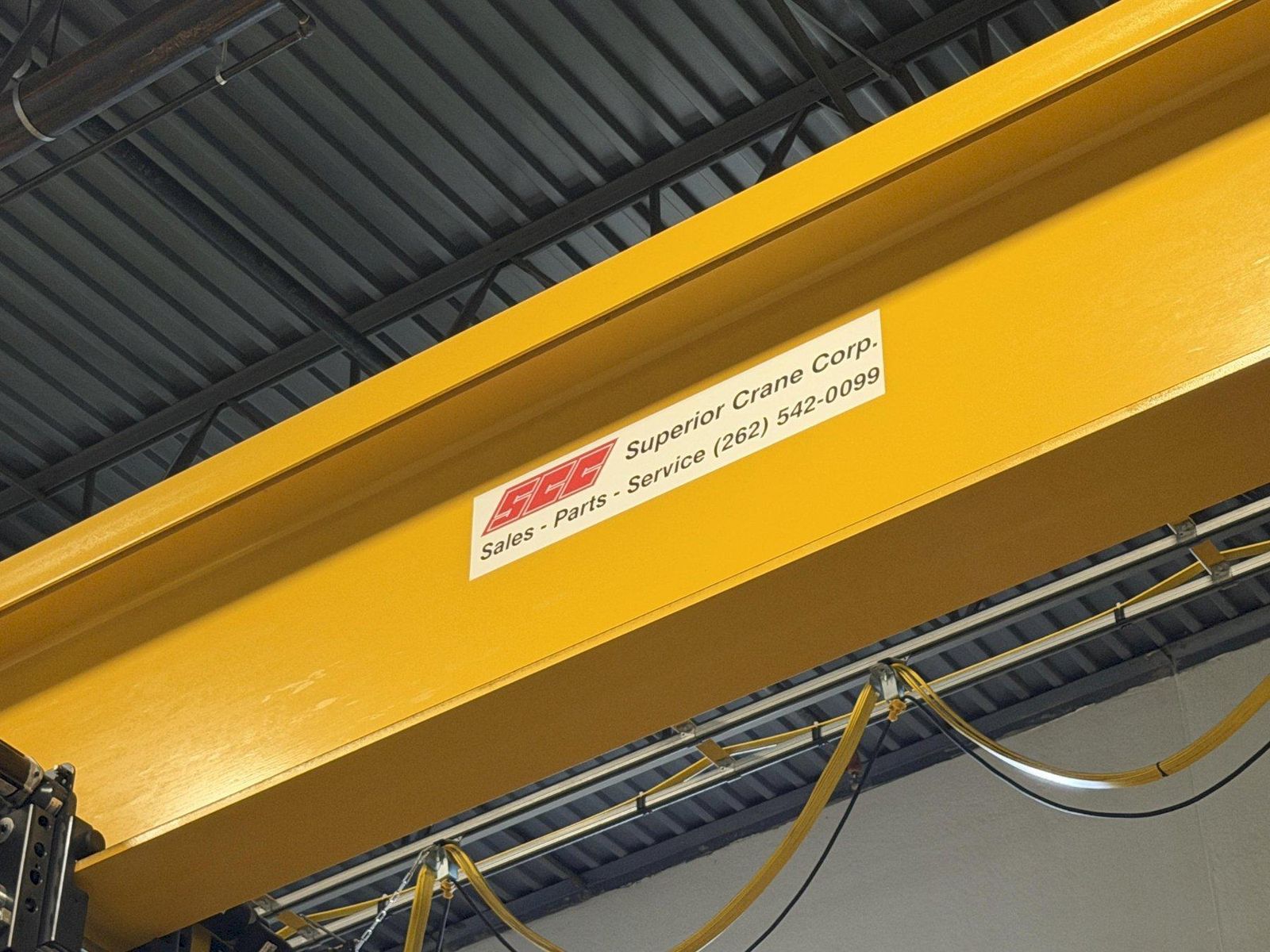

SUPERIOR

Type
Cranes, Bridge & Overhead

Stock No.
26277

Make an Offer
Request a Quote
Print Details

Contact Us

Files

2cb3343eb85c0847ed80.pdf
