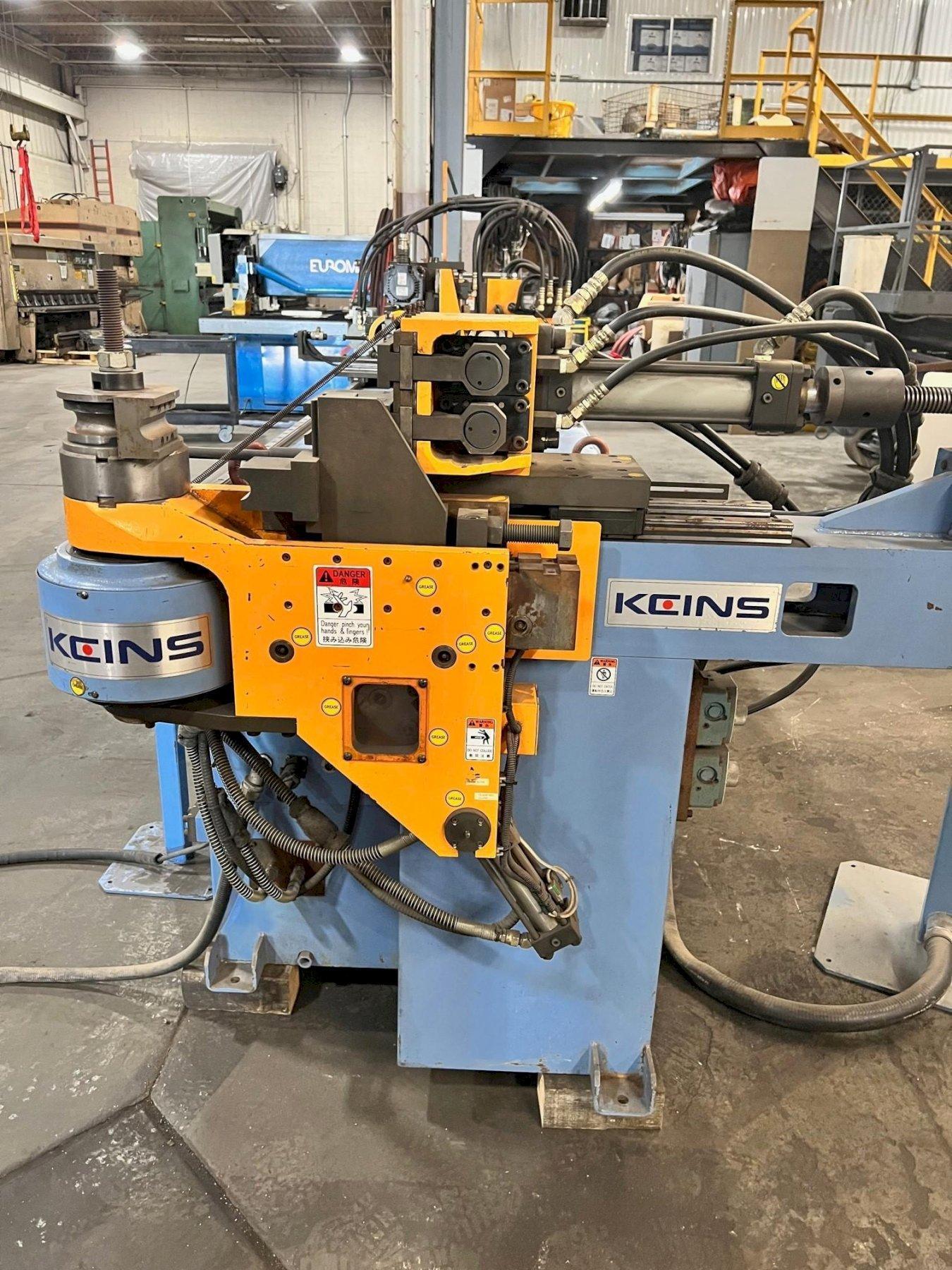

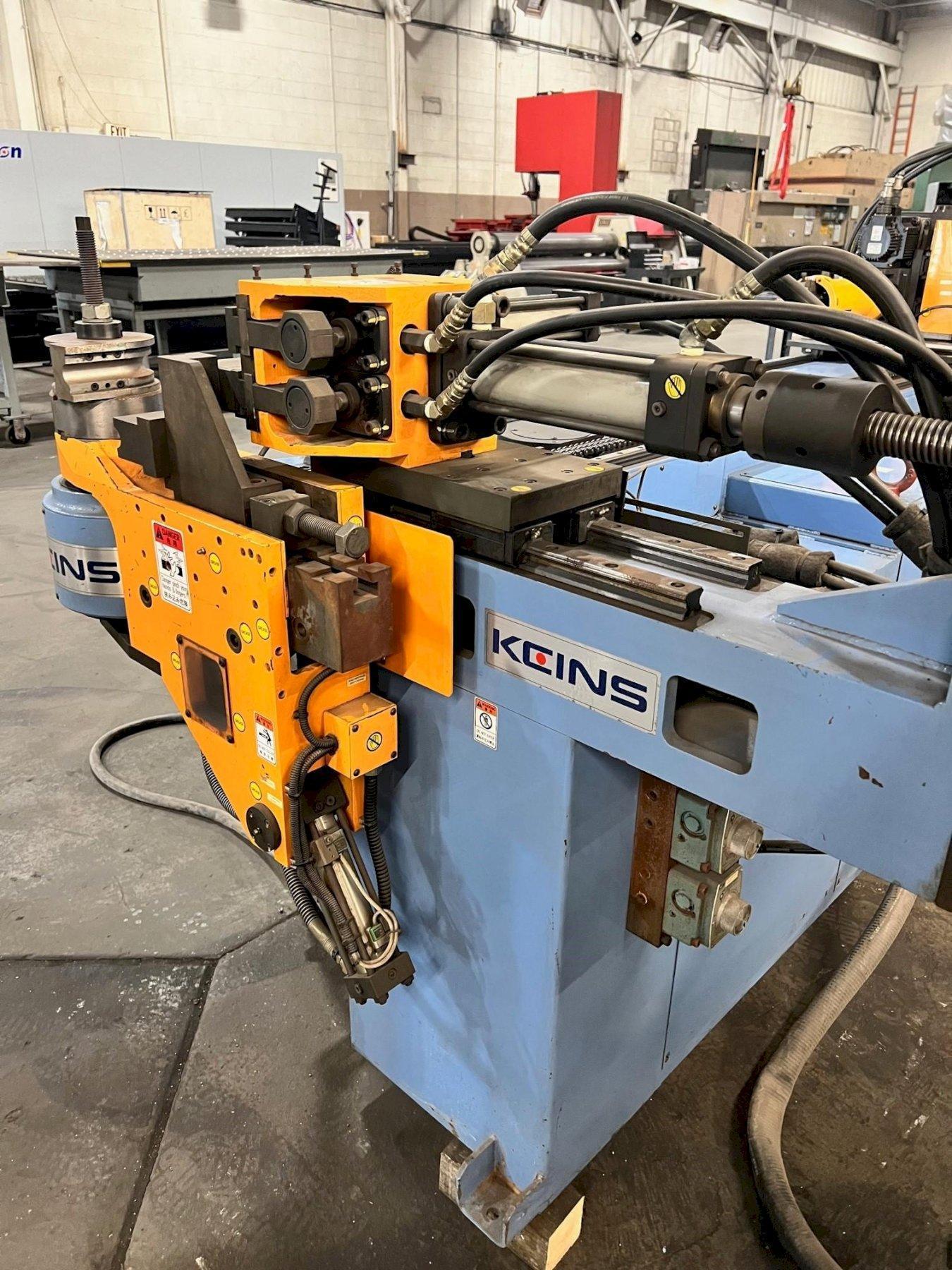

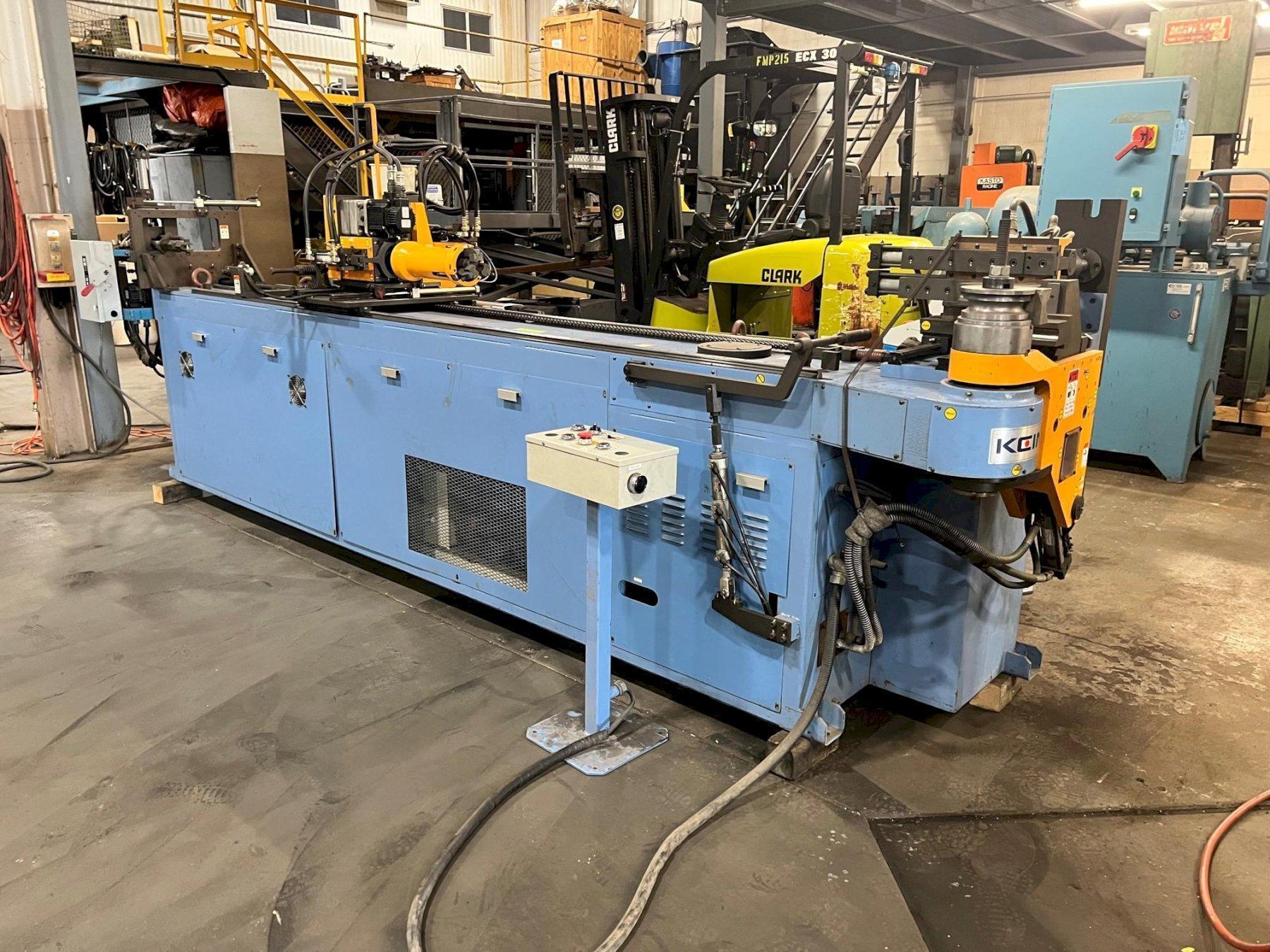

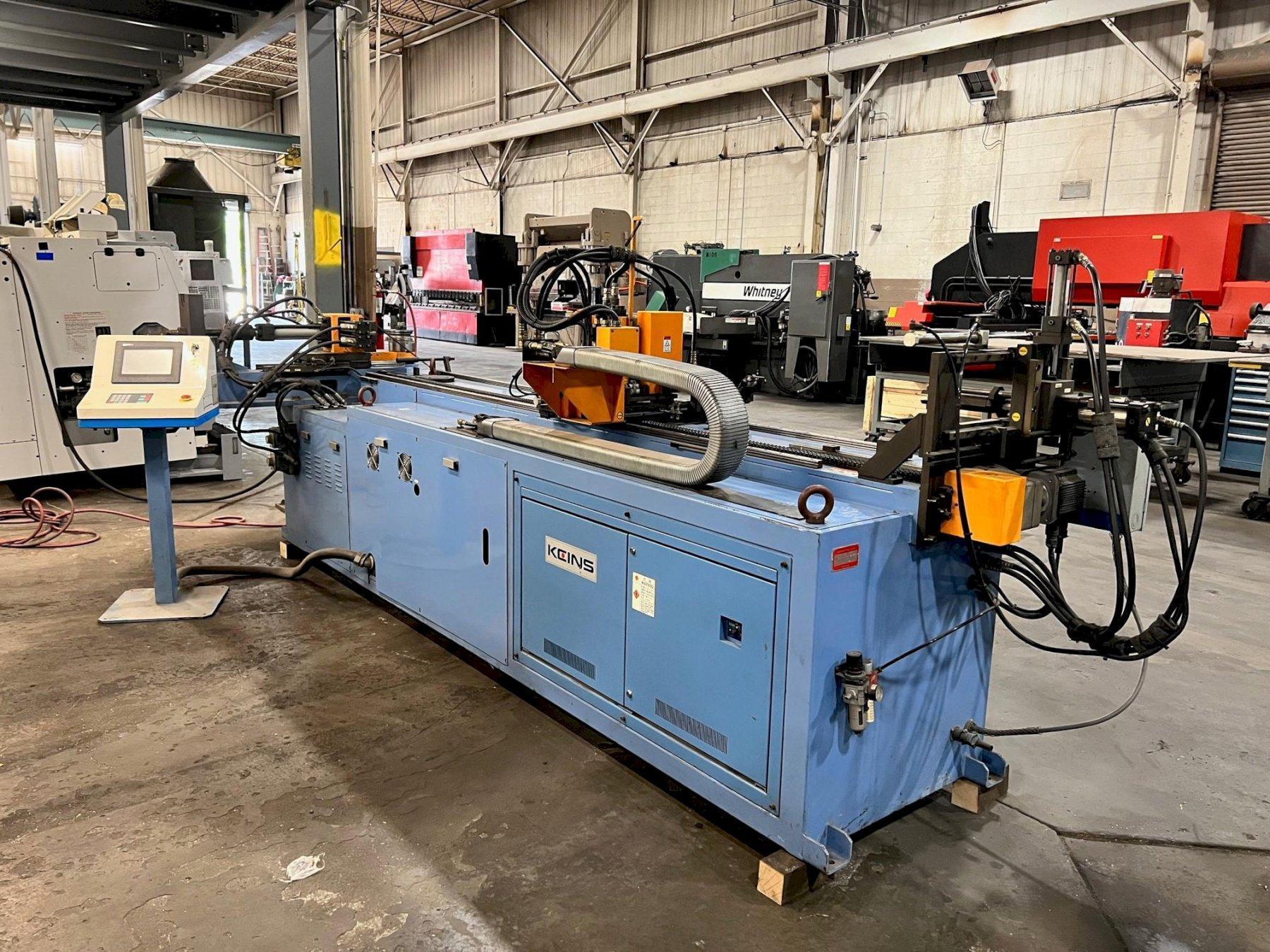

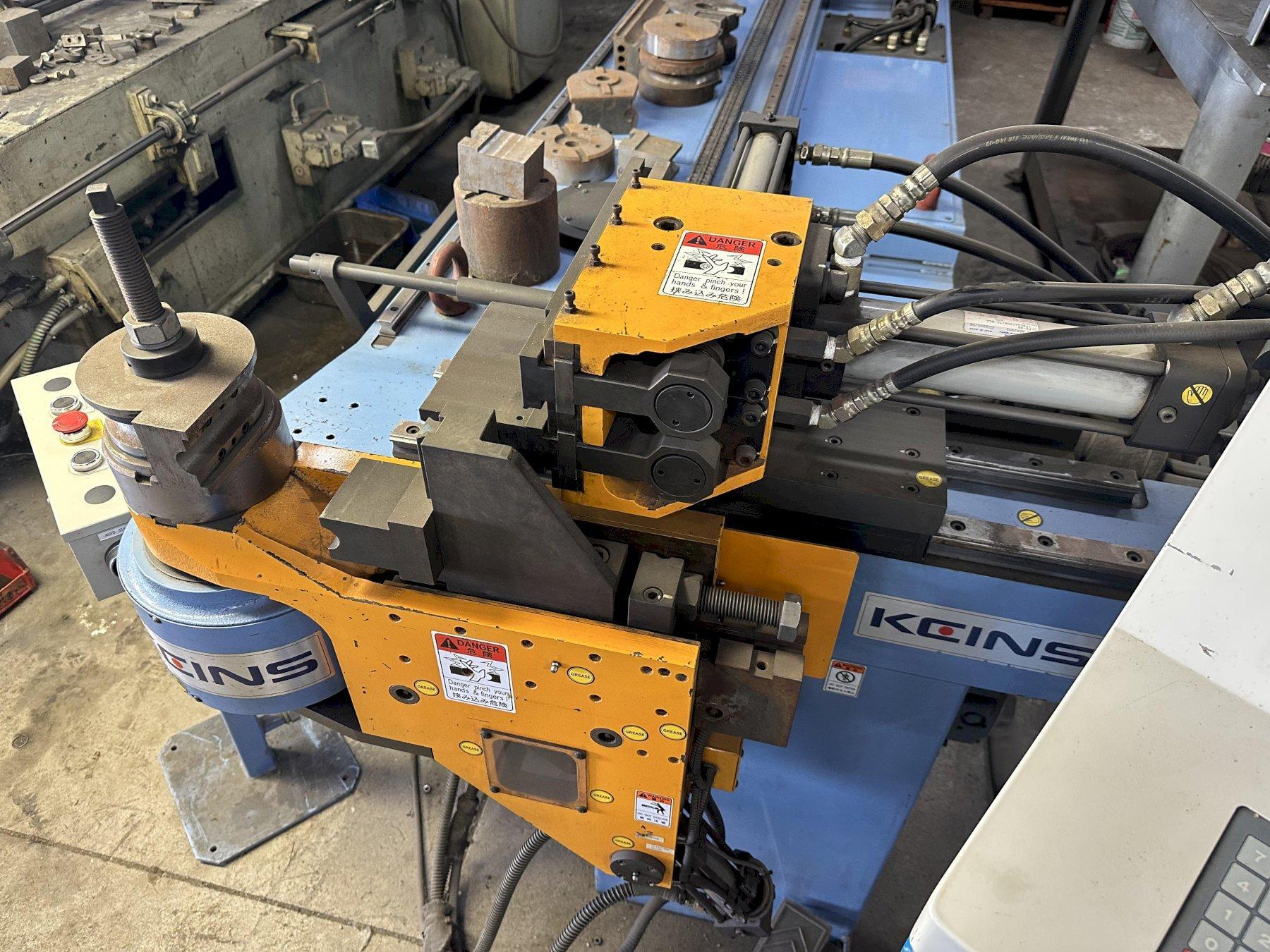

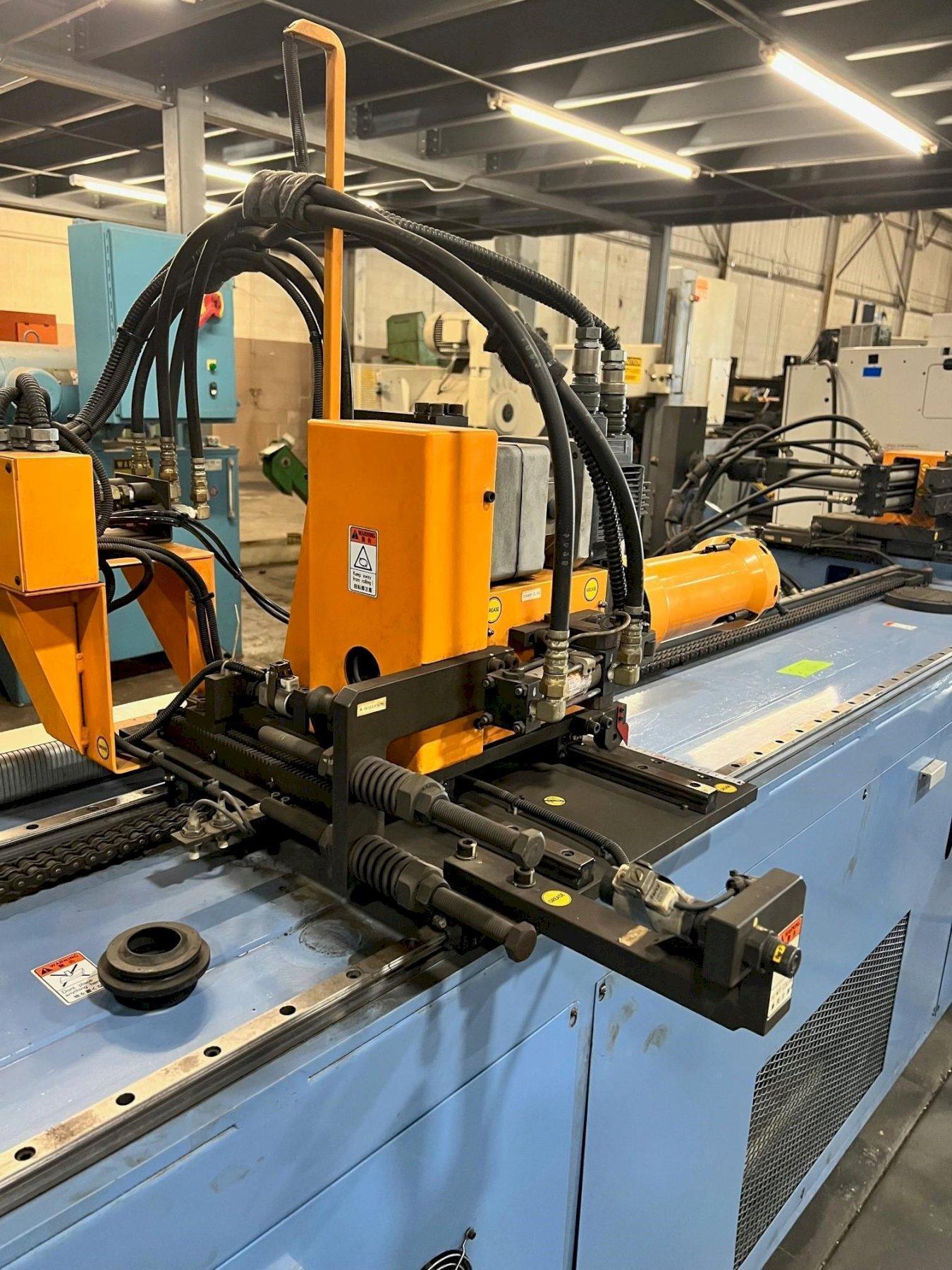

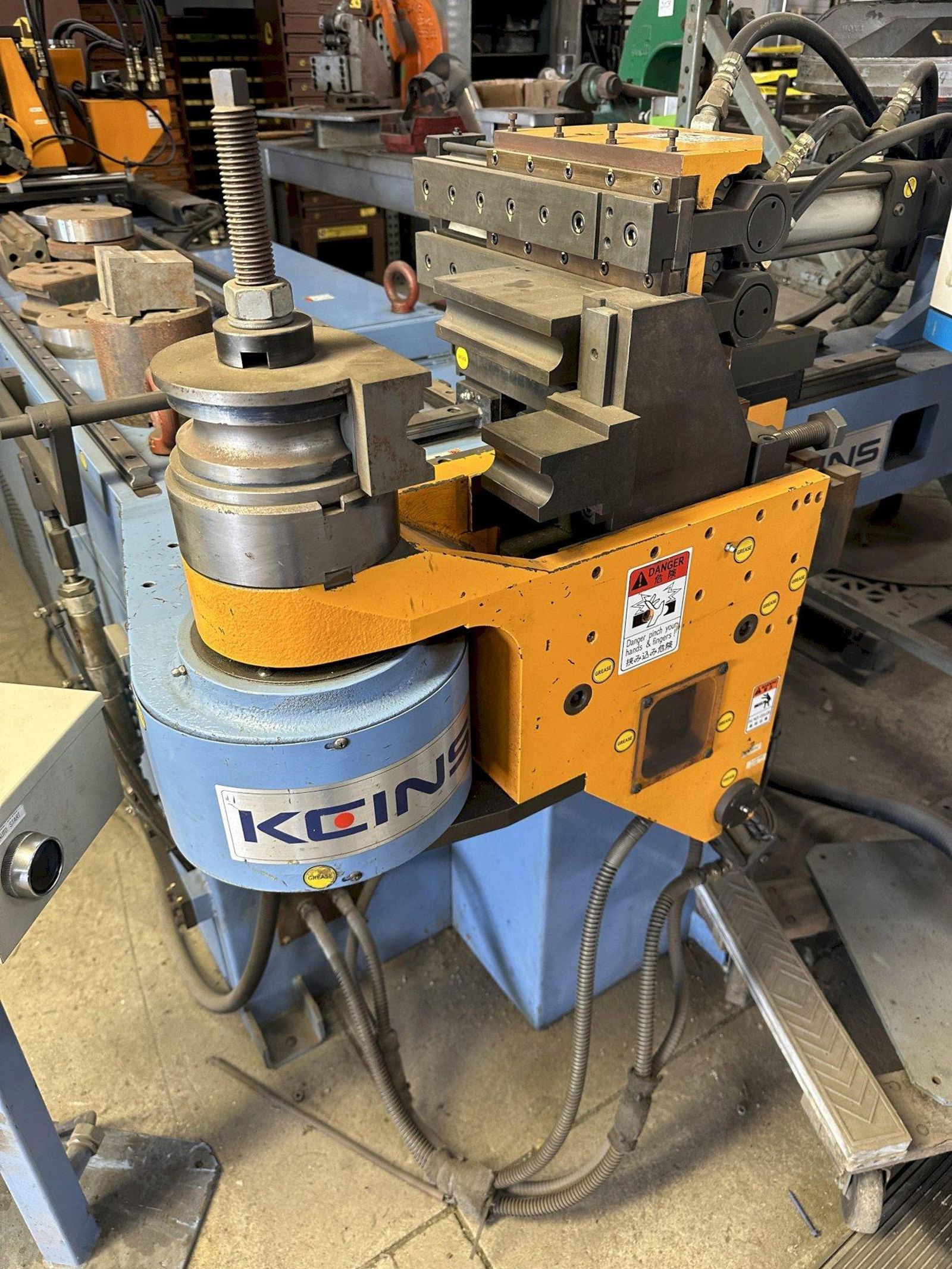

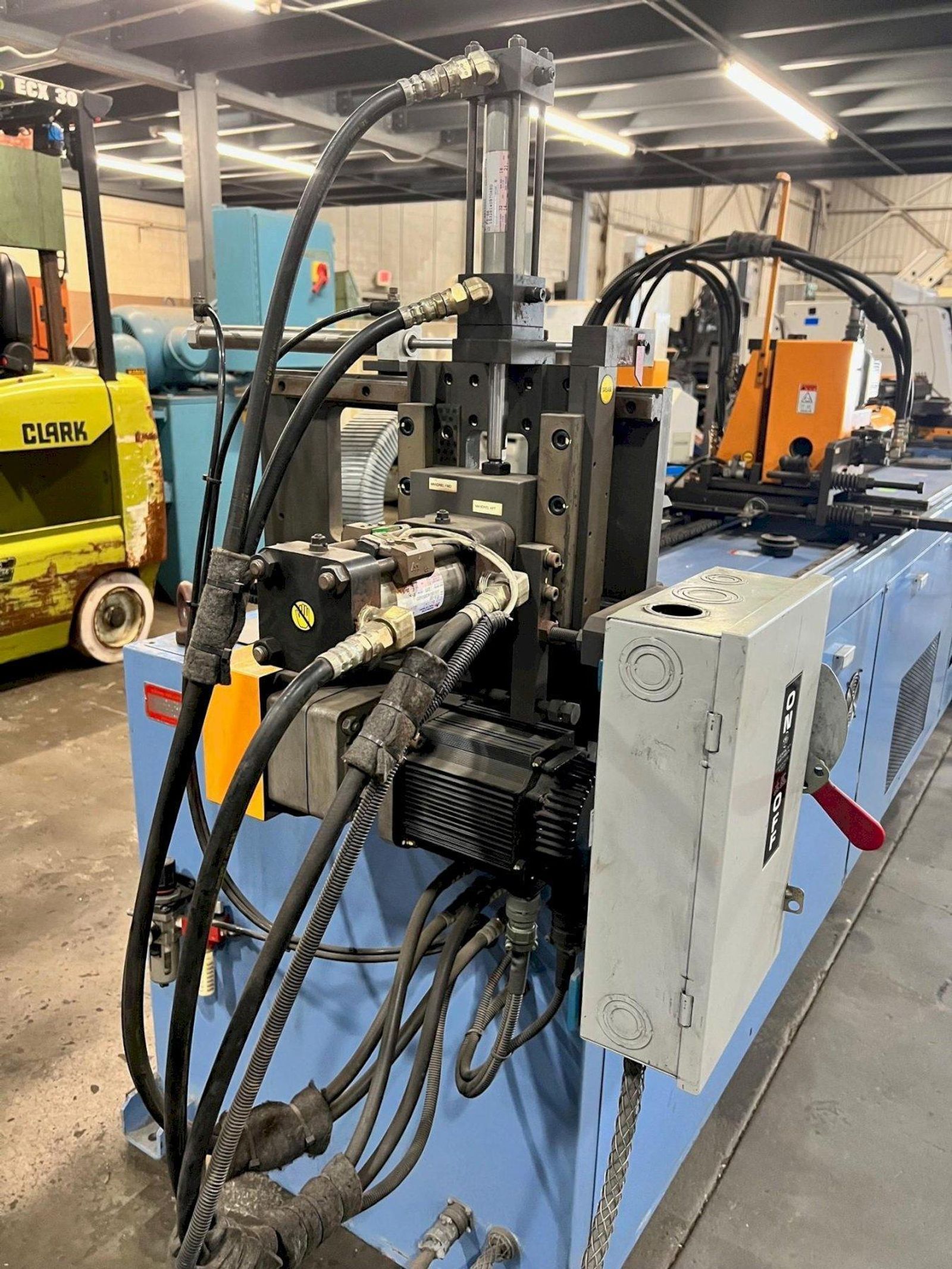

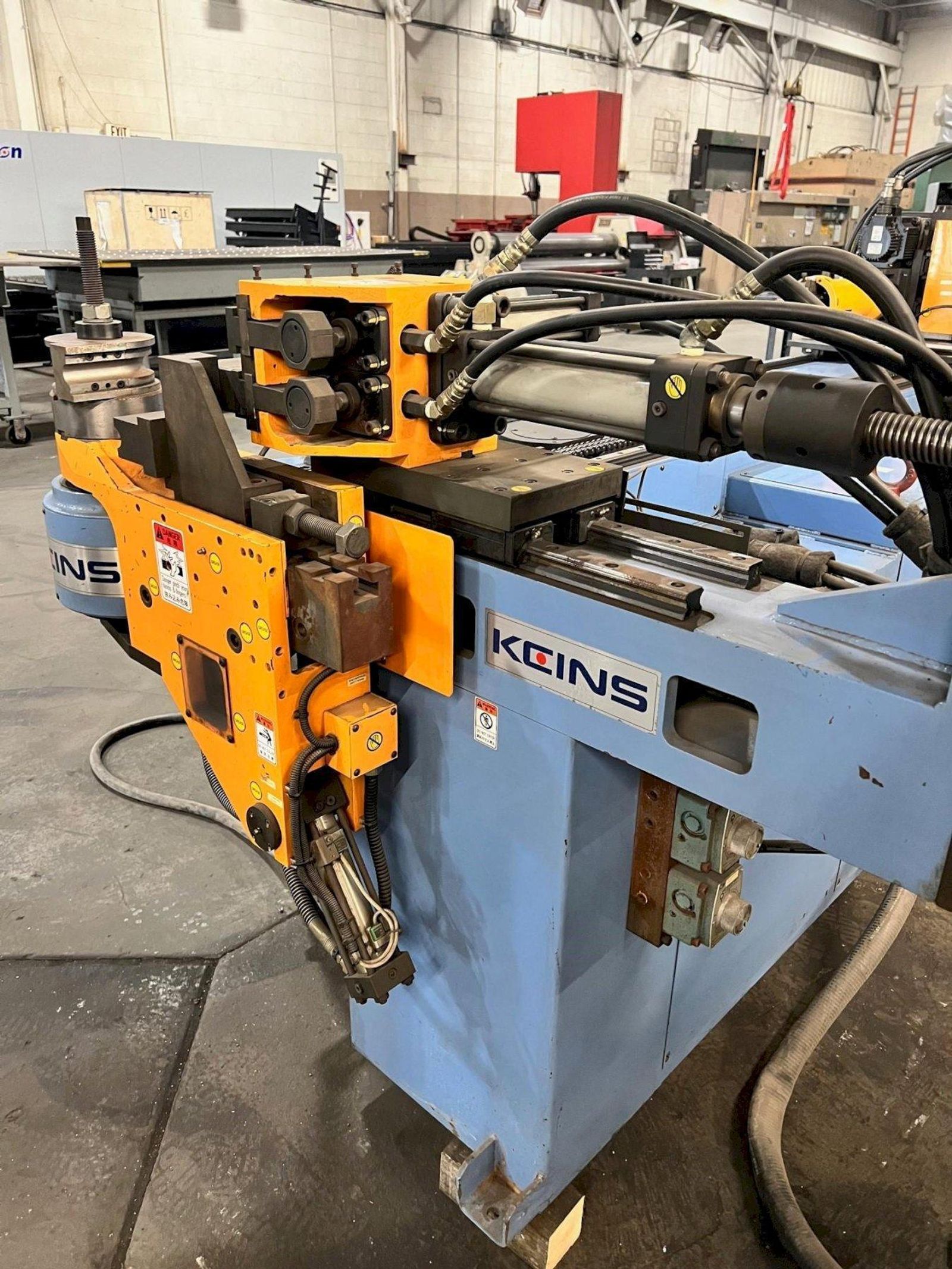

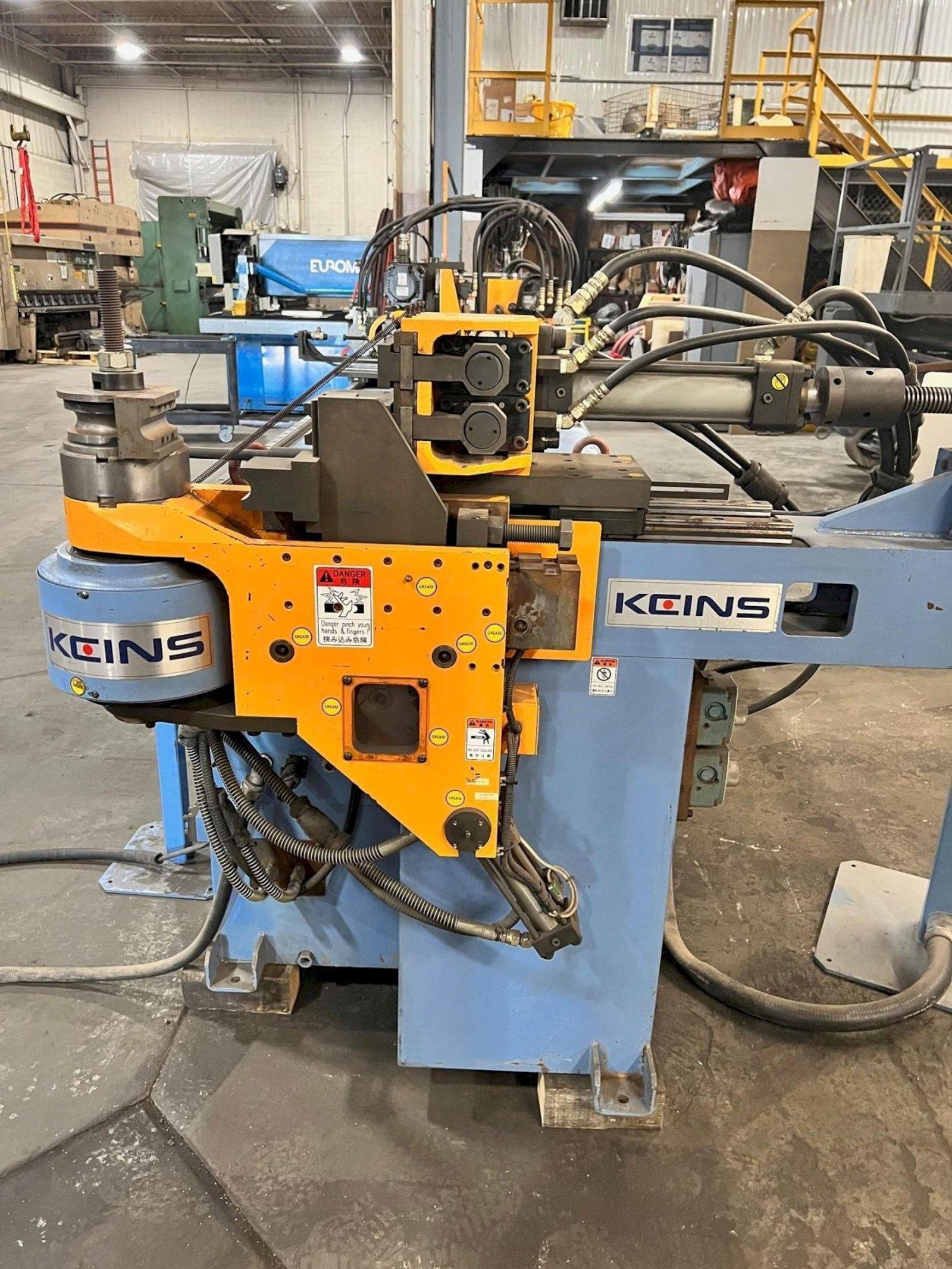

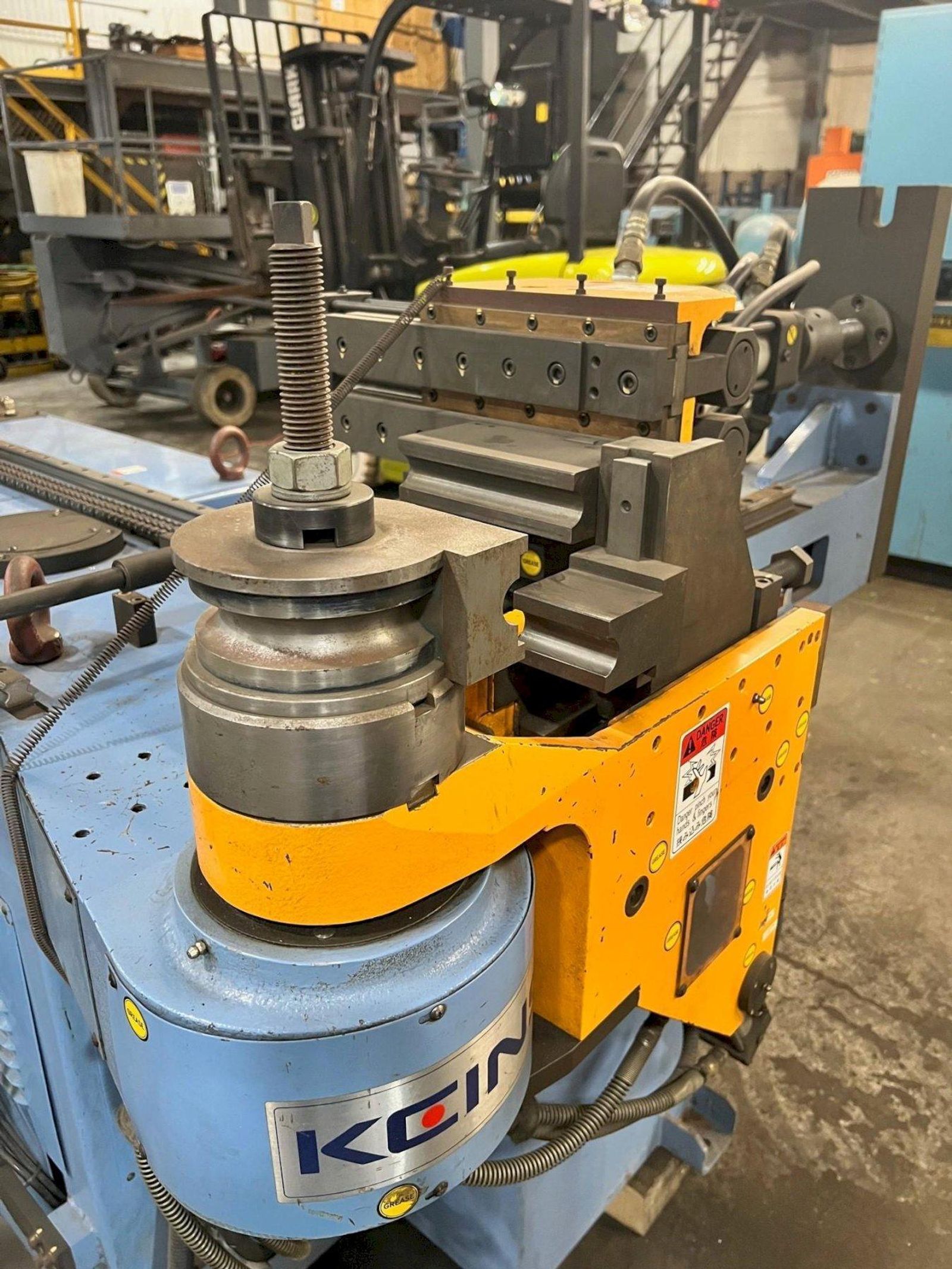

2" KEINS MODEL #KB-45ND HORIZONTAL HYDRAULIC CNC TUBE BENDER, NEW 2001:
YODER BROTHERS MACHINERY STOCK #18818
SERIAL ....................... K-8612
YEAR NEW ..................... JAN 2001
MODEL ........................ KB-45ND
CAPACITY ..................... 2"
Brand
KEINS
Type
Benders, Pipe, Tube & Bar
Stock No.
18818
 |
419-269-2000 |
Stock #: 18818
2" KEINS MODEL #KB-45ND HORIZONTAL HYDRAULIC CNC TUBE BENDER, NEW 2001:
YODER BROTHERS MACHINERY STOCK #18818
SERIAL ....................... K-8612
YEAR NEW ..................... JAN 2001
MODEL ........................ KB-45ND
CAPACITY ..................... 2"
Thin wall metal capacity: 1.77" x .07" wall (45mm x 2mm)Thick wall metal capacity: 1.68" x .1" wall (42.7mm x 2.6mm)Aluminum capacity: 2" x .07" wall (50.8mm x 2mm)Stainless capacity: 1.5" x .07" wall (38.1mm x 2mm)Steel bar capacity: .70" (18mm)Square pipe capacity: 1.18" x 1.18" x 06" wall (30mm x 30mm x 1.5mm)Maximum bending radius: 7.87" (200mm)Maximum bend radius differential: 2" (50mm)Maximum tube length: 98" (2500mm)Number of axis: 3Feed speed: 4.72 - 47.2 IPS (120 - 1200 mm/sec)Plane speed: 36 - 360 degrees per secondBending speed: 25 - 125 degrees per second
DUAL RADIUS BENDING .......... YES
AC SERVO DRIVES .............. YES

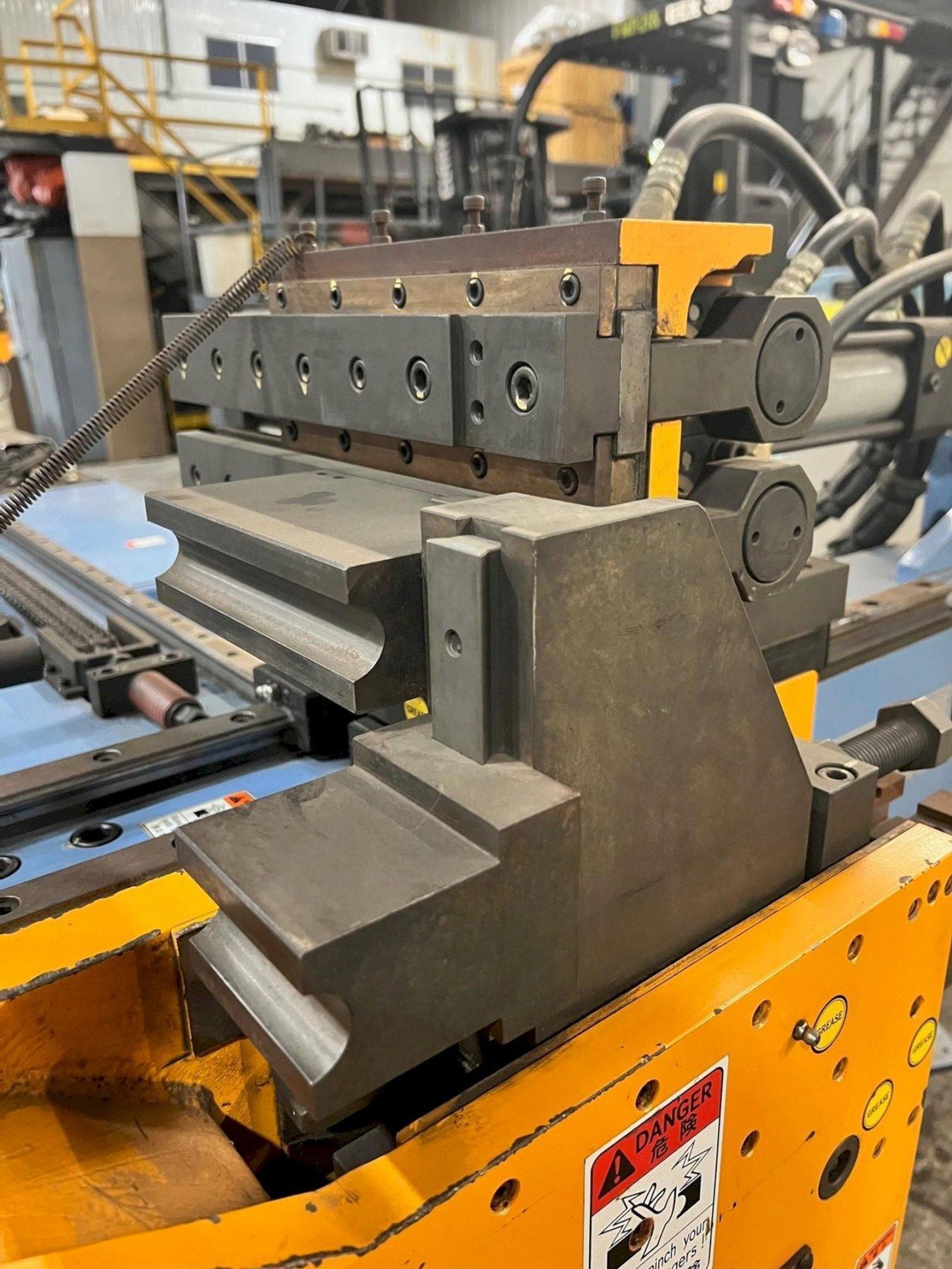

PRESSURE DIE ASSIST .......... YES, HYDRAULIC
MANDREL EXTRACTOR ............ YES

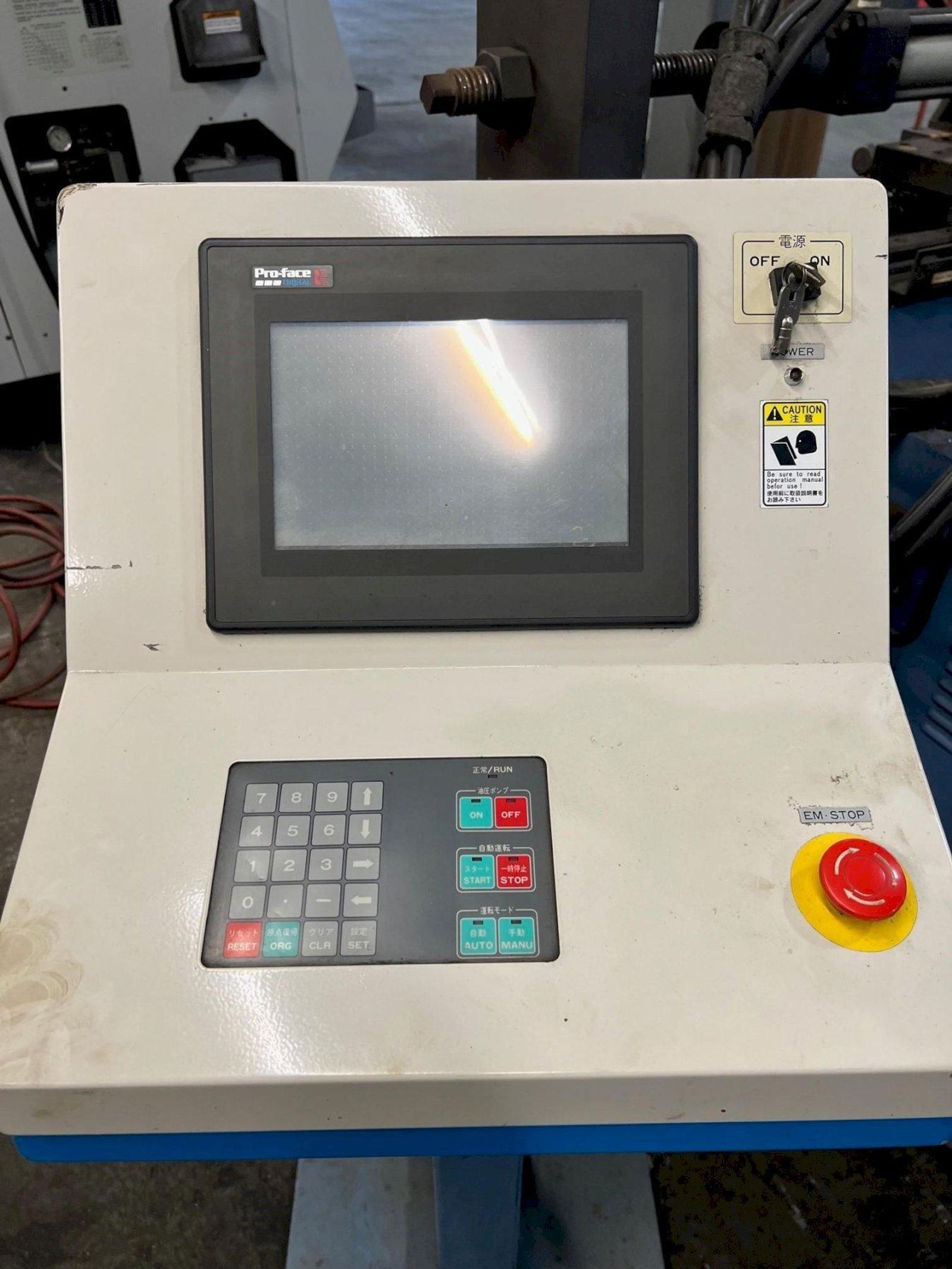

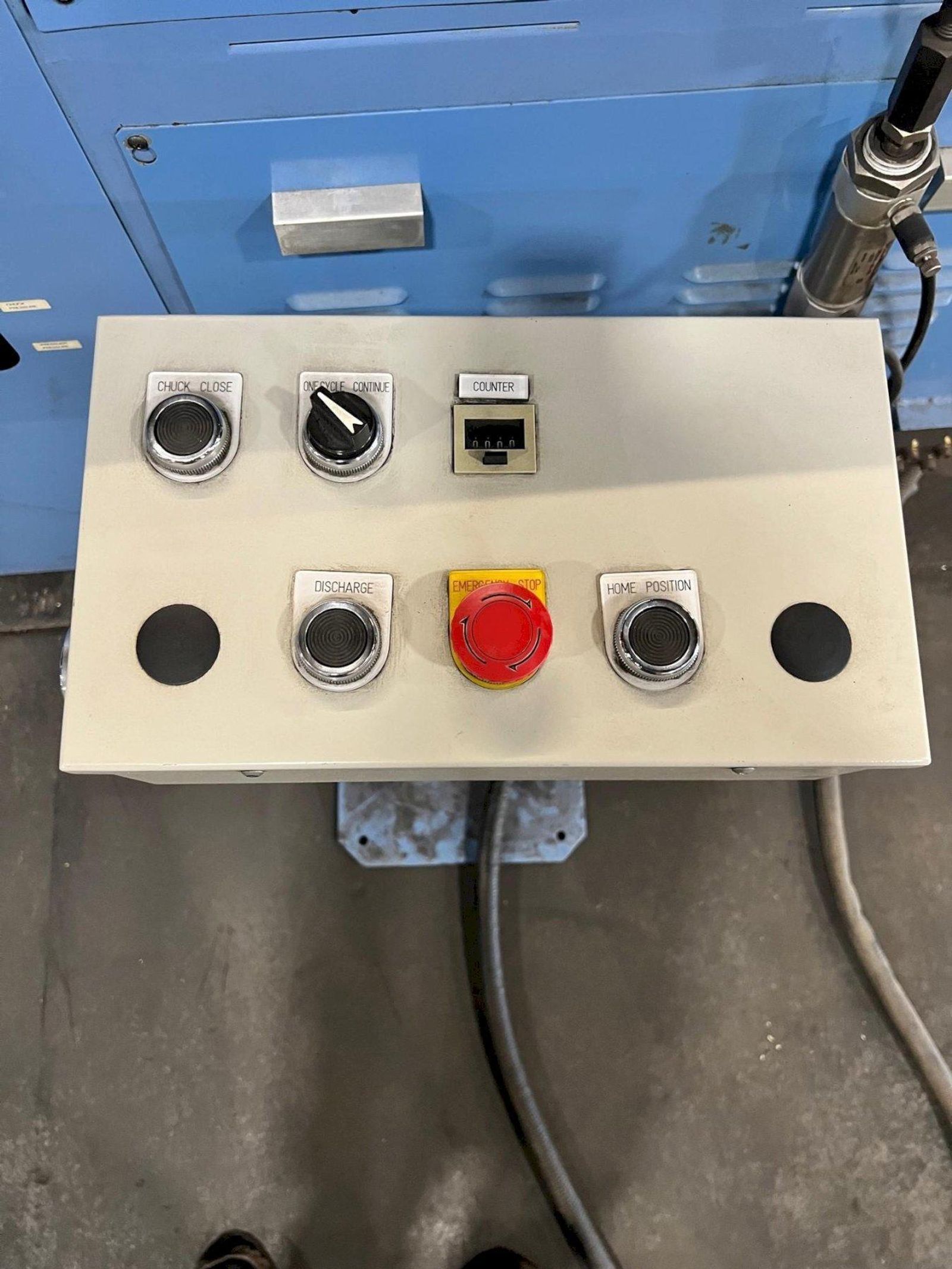

CONSOLE & OPERATOR PEDESTAL .. YES
