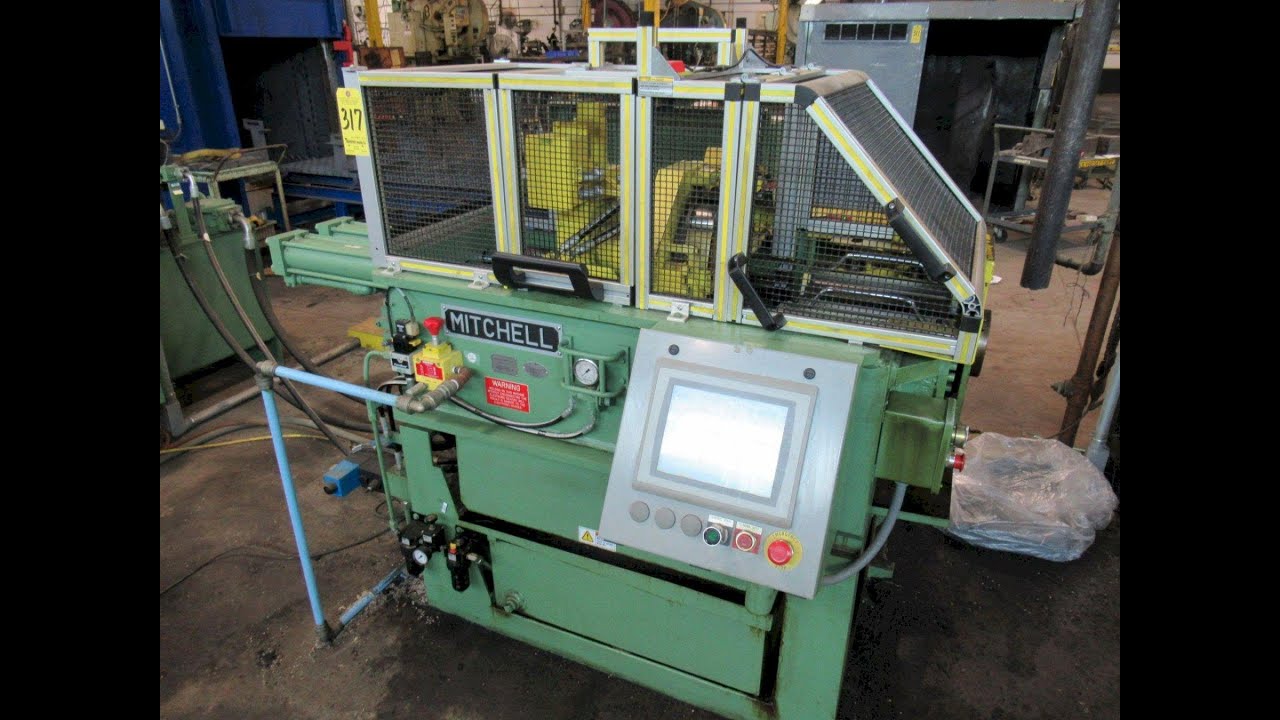

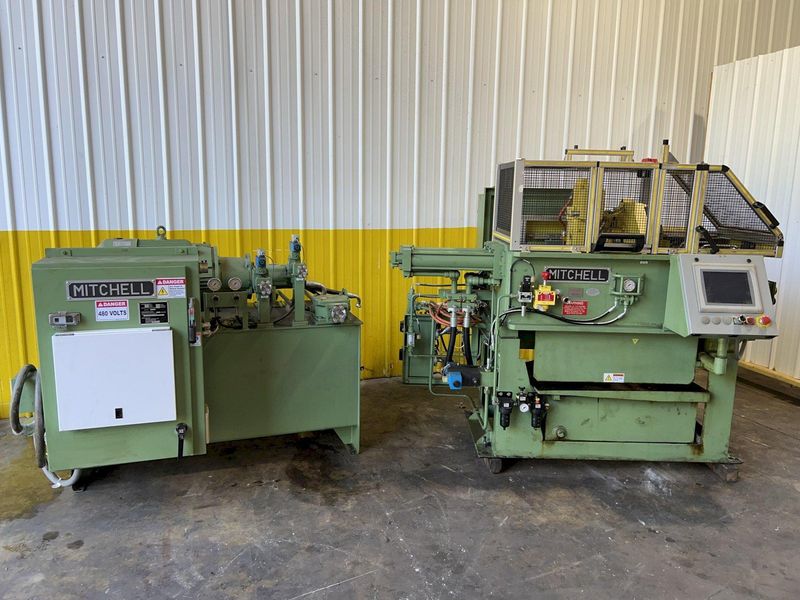

MITCHELL PUSH POINTER:
SERIAL .................... PP-734-E
YEAR NEW ................... 2015
CONTROLS ................... ALLEN BRADLEY TOUCHSCREEN
TUBE SIZE RANGE ............ 2.75” DIAMETER & SMALLER
REDUCTION OF TUBE .......... 15 TO 20% PER DIE
RATED POINTING FORCE ....... 33,000 LBS @ 1989 PSI
MAXIMUM POINTING FORCE ..... 41,480 LBS @ 2500 PSI
POINTING SPEEDS:
DIE CROSSHEAD ADVANCE ...... 410 IPM @ 2000 PSI
DIE CROSSHEAD RETRACT ...... 577 IPM @ 1000 PSI
AUTOMATIC CYCLE ............ 1,2,3,4, OR 5 PUSH
POINTING DIES .............. 4.0” OD X 2.5” Thick
DIE HOLDERS ................ 5 HEADS
DIE INDEX POSITIONING ...... AUTOMATIC - SERVO DRIVE
DIE TRAVEL ................. 16” MAX
REAR DIE STROKE POSITIONS .. LASER SENSOR
TUBE GRIPPER JAWS:
TWO (2) SIDED FIXED ........ 2.750" OD AND UNDER
FOUR (4) SIDED FIXED ....... 2.375" OD AND UNDER
SIX (6) SIDED FIXED ........ 1.625" OD AND UNDER
EIGHT (8) SIDED FIXED ...... 1.125" OD AND UNDER
LENGHT OF GRIPPER .......... 13" LONG
OPENING OF GRIPPER JAWS .... 2-12" MAX
CLAMPING MECHANISM ......... HYDRALIC DOUBLE TOGGLE
MACHINE CENTERLINE ......... 42"
DIES & TOOLING ............. SEE PICTURES
HYDRAULIC SYSTEM:
MAIN HYDRAULIC PUMP:
PUMP MACHINE FUNCTIONS ..... PUSH & CLAMP
MAKE & MODEL ............... VICKERS VANE TYPE
FLOW RATE .................. 29 GPM @ 2000 PSI @ 1800 RPM
MOTOR SIZE ................. 40 HP
AUXILLARY HYDRAULIC PUMP:
PUMP MACHINE FUNCTIONS ..... DIE LOCKING PIN
MAKE & MODEL ............... VICKERS VANE TYPE
FLOW RATE .................. 8 GPM @ 1000 PSI @ 1800 RPM
HYDRAULIC RESERVIOR ........ 100 GALLONS
RESERVIOR INDICATOR ........ YES
HYDRAULIC FLUID ............ OIL 150-315SUS @ 100 DEGREES
HEAT EXCHANGER ............. WATER/OIL TYPE
RECIRCULATING LUBE SYSTEM:
DIE LUBE RESERVIOR ......... APPROX 30 GALLONS
RESERVIOR IN MACHINE BASE .. YES
LUBE PUMP .................. VIKING 1.0 GPM OUTPUT
LUBE PUMP MOTOR ............ 0.75 HP
