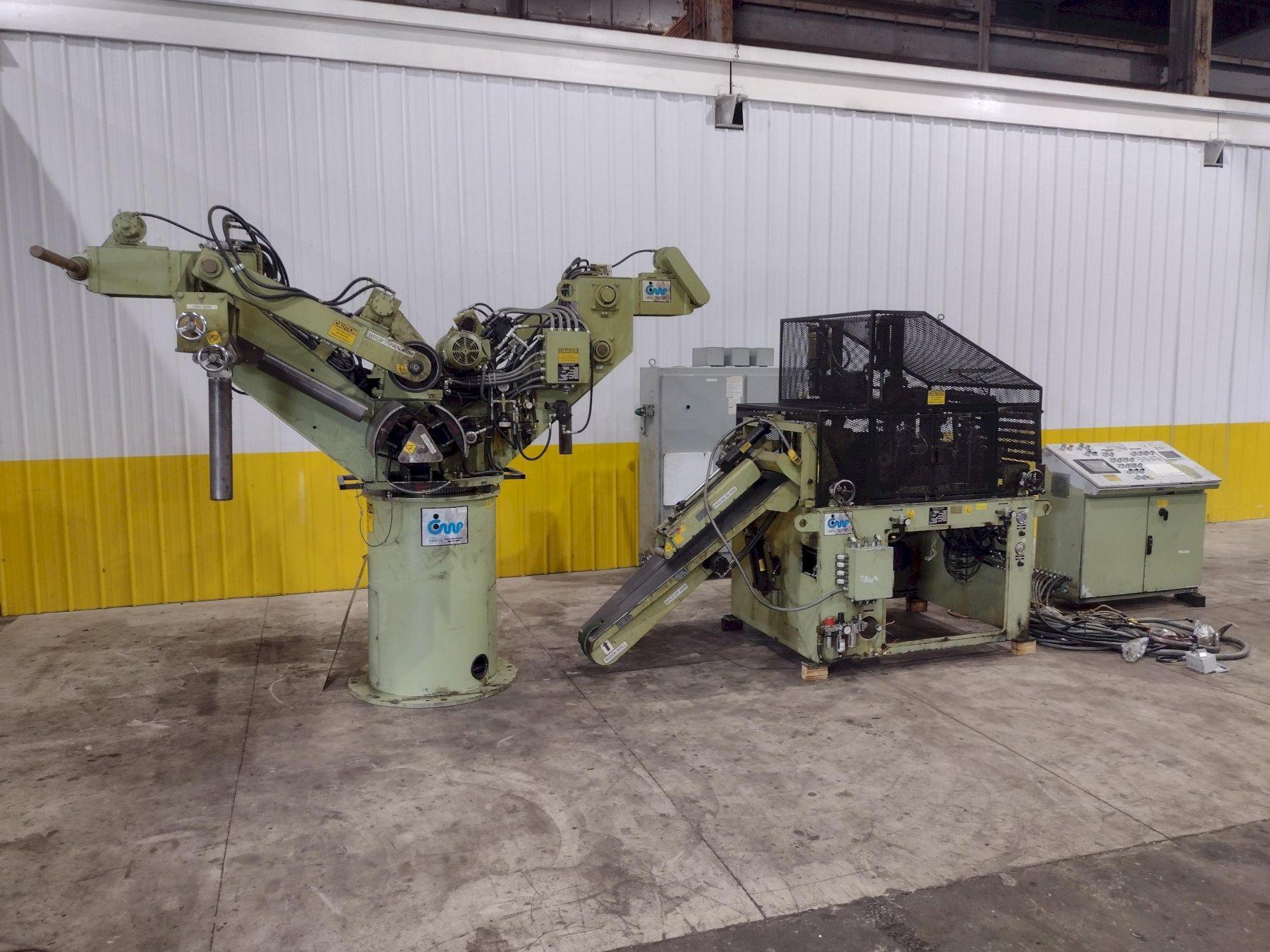

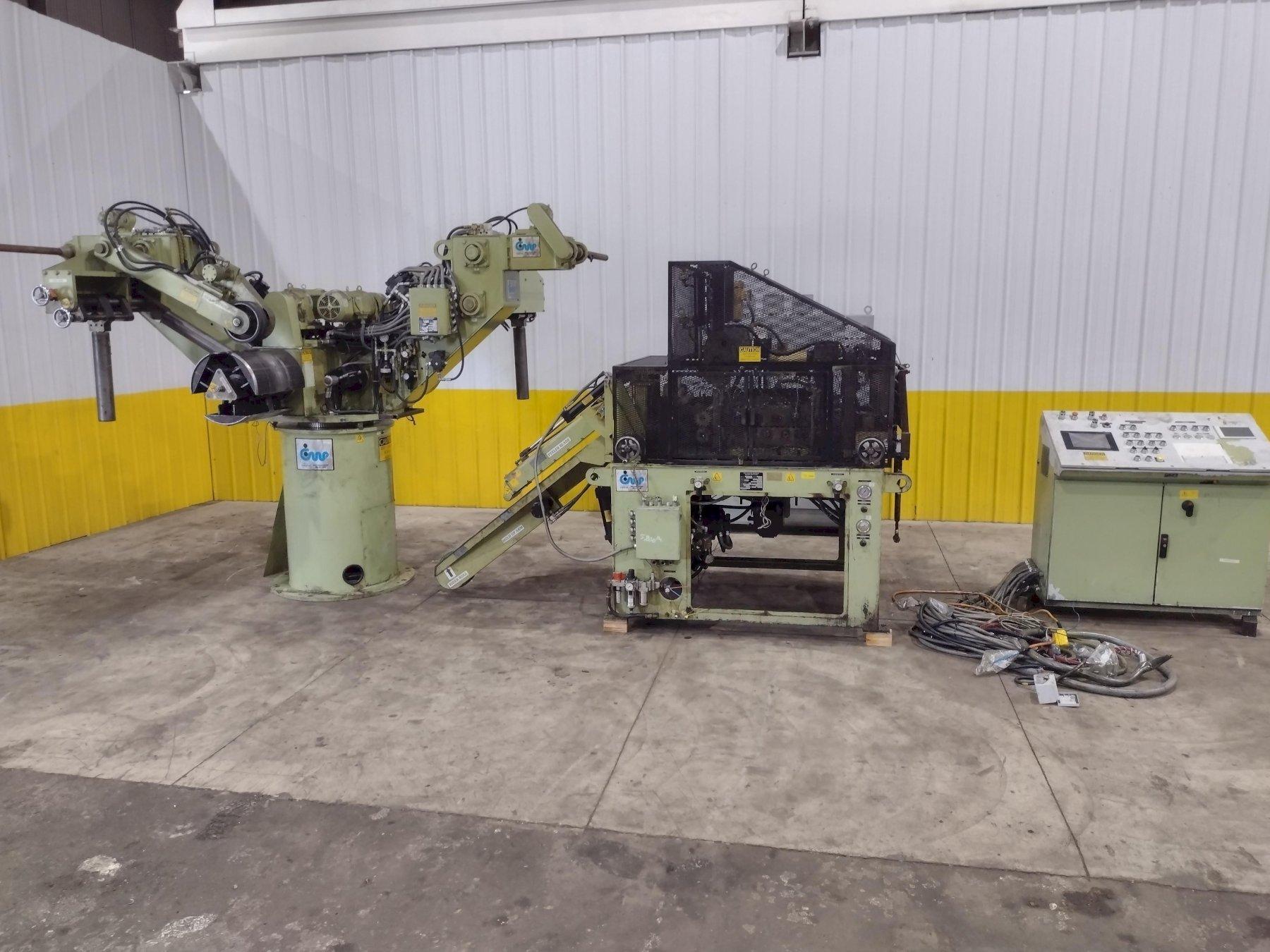

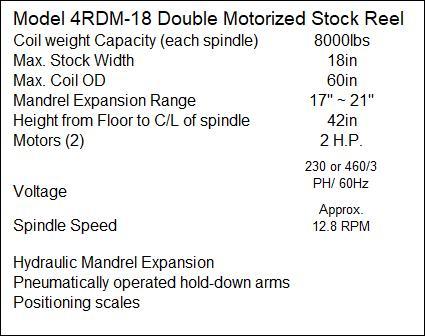

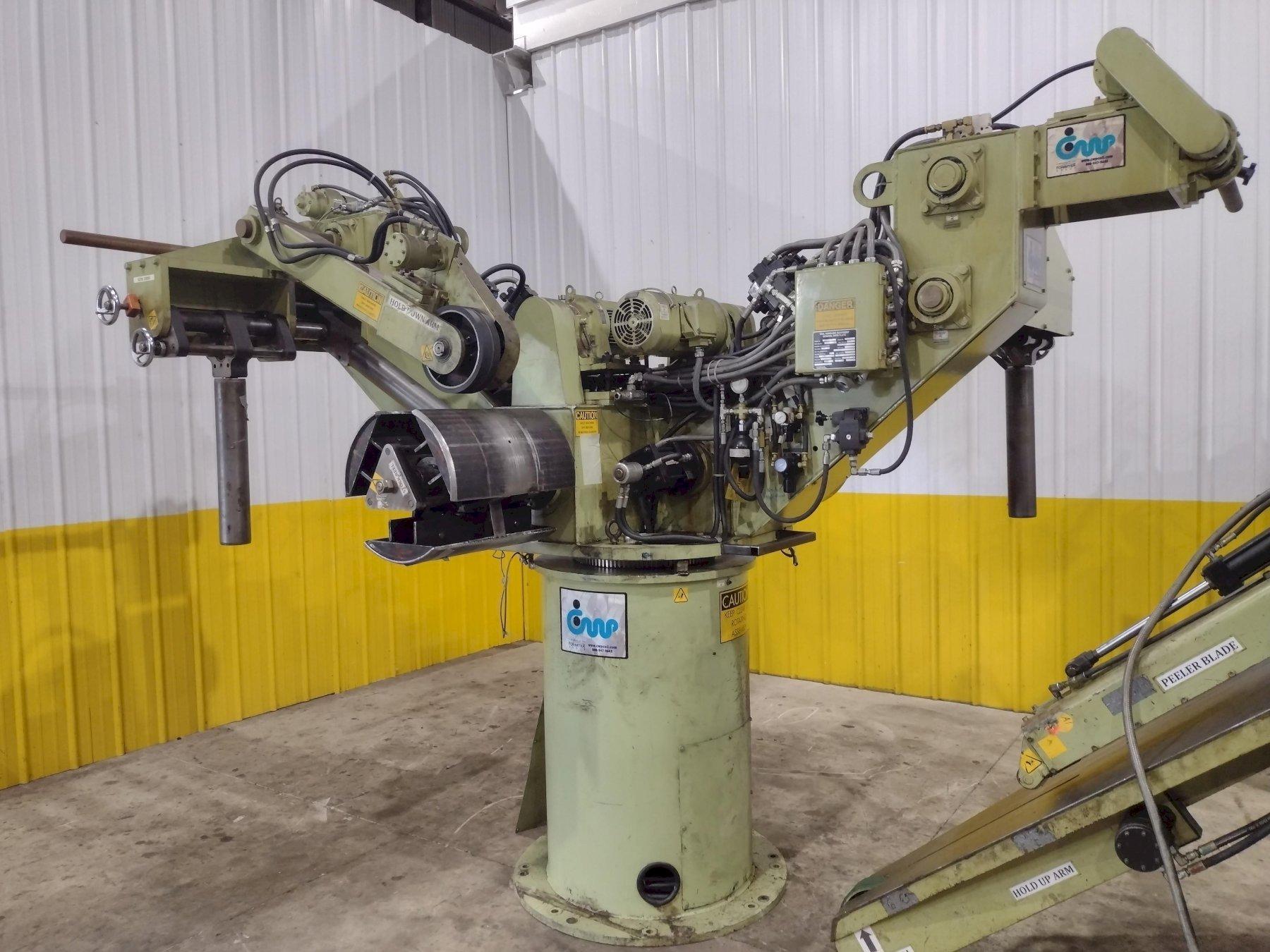

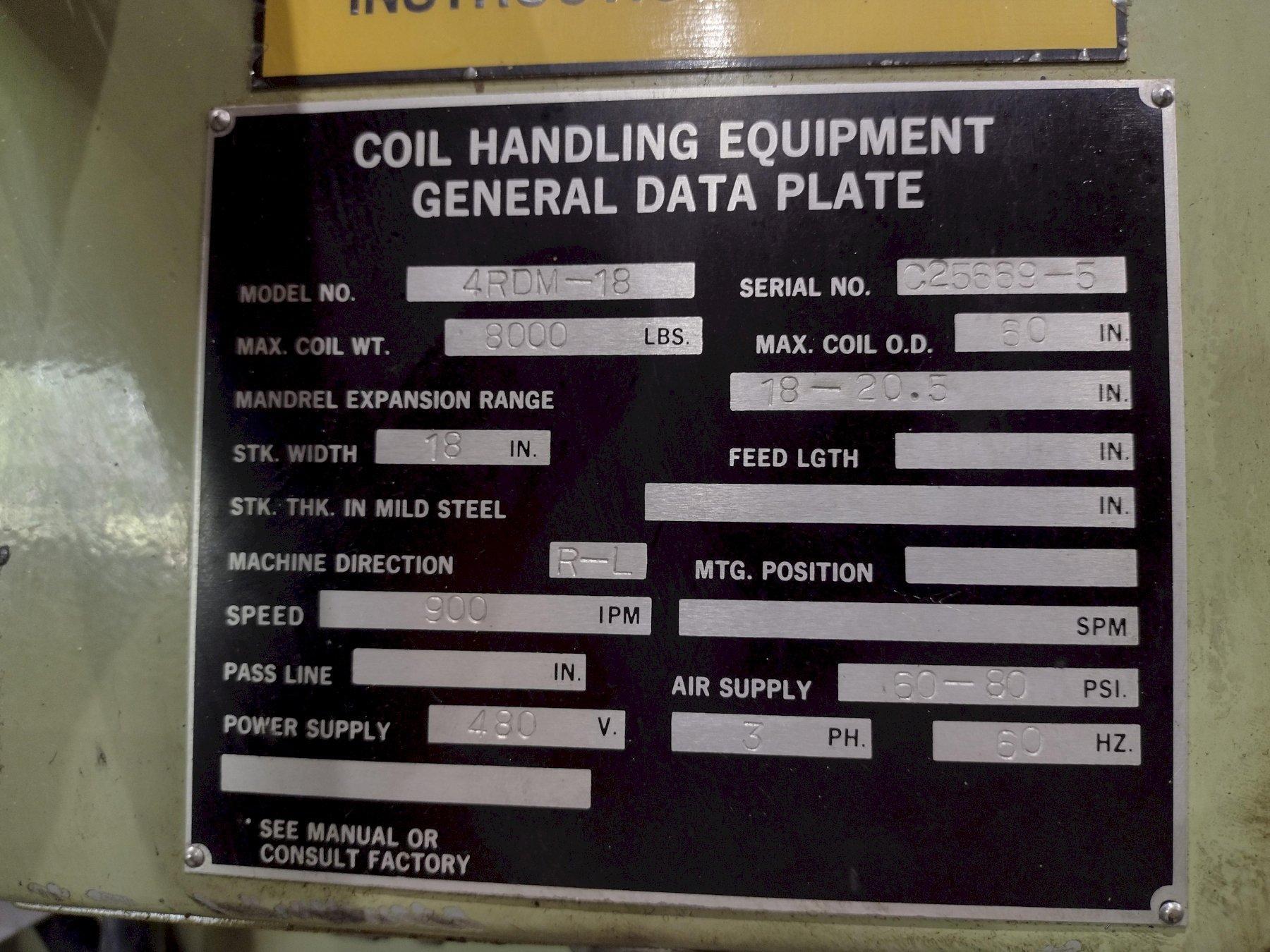

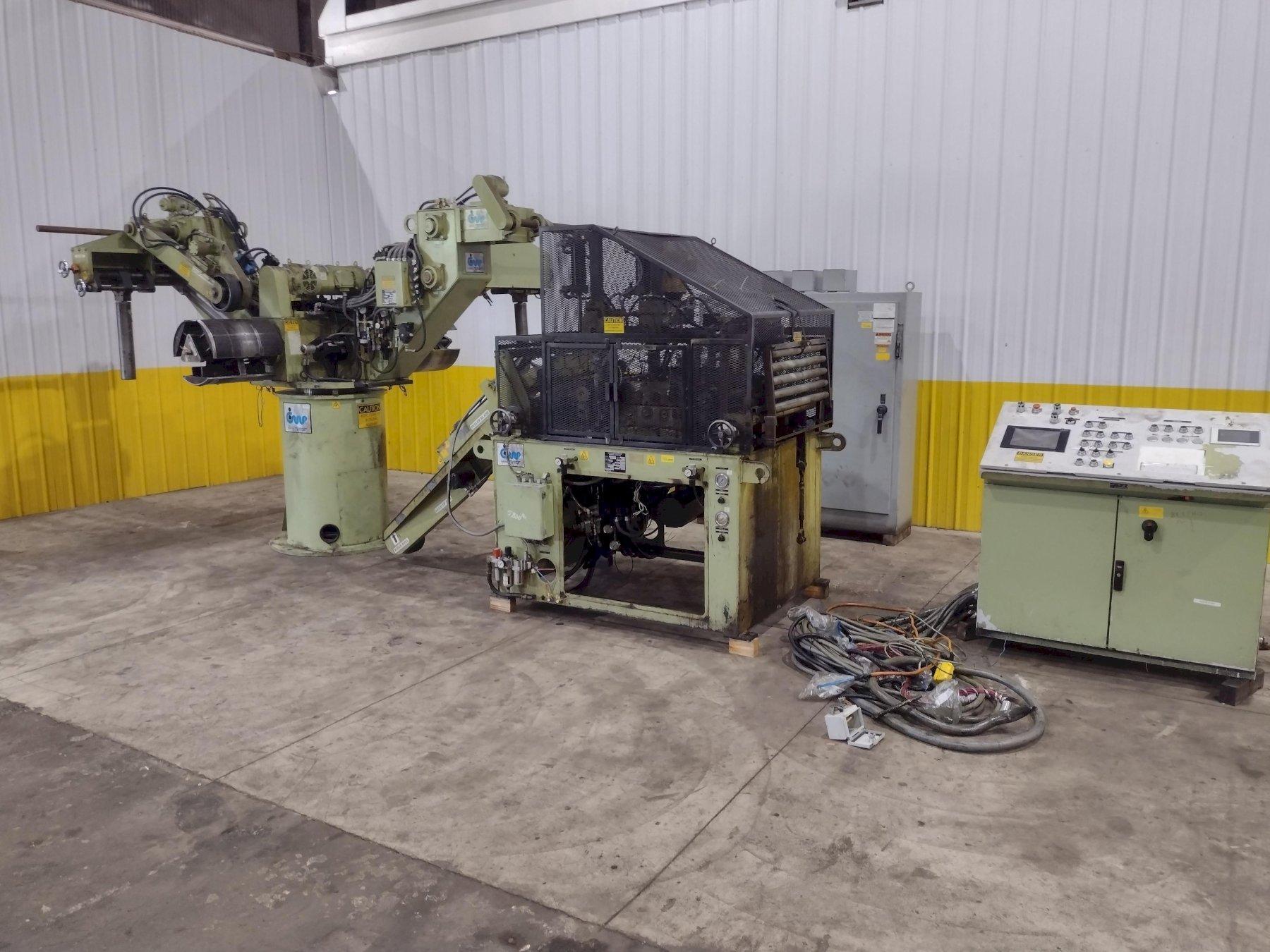

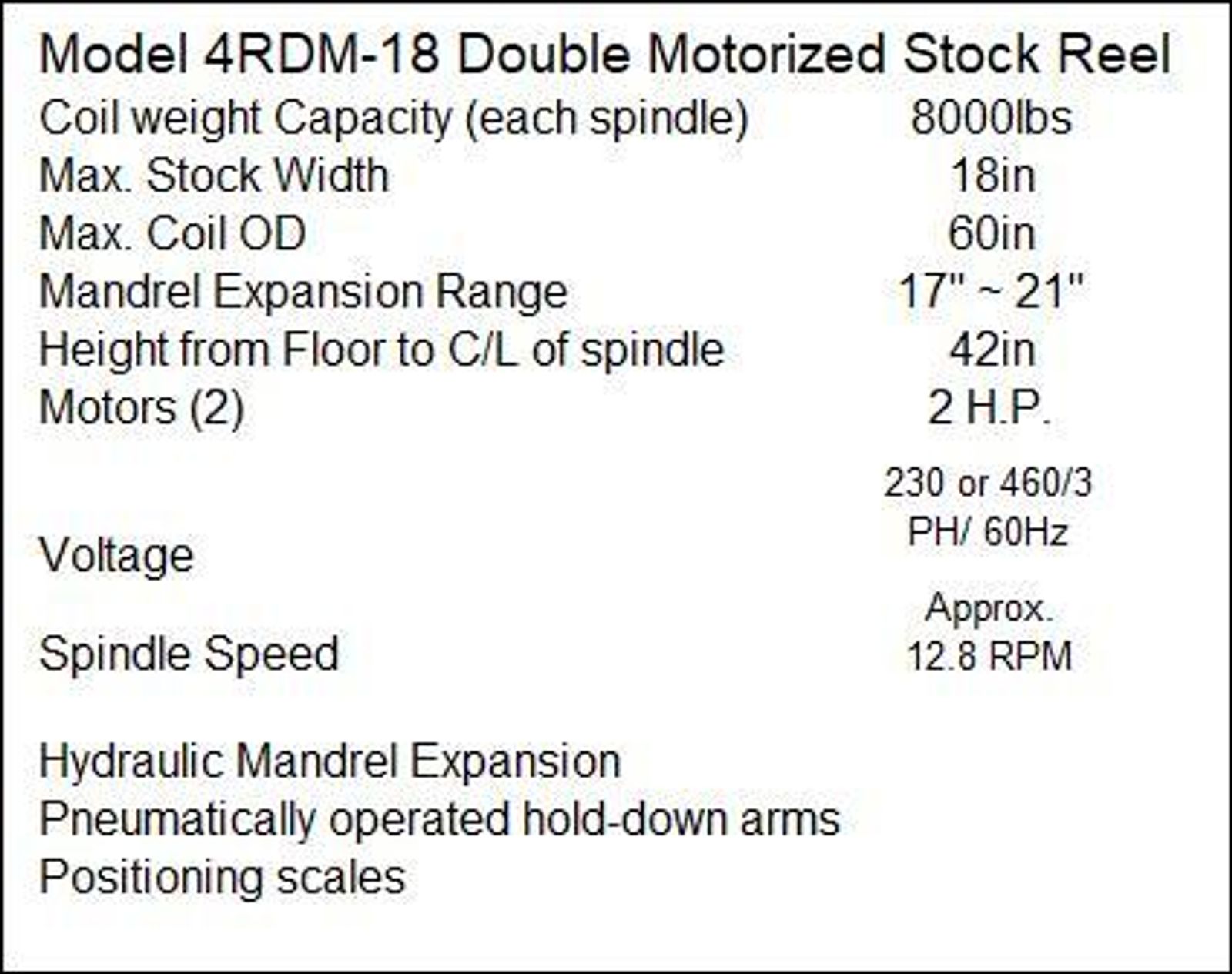

CWP UNCOILER - COIL REEL
SERIAL ...................... C25669-5
MODEL ....................... 4RDN-18
COIL WEIGHT CAPACITY ........ 8,000 LBS PER SIDE
COIL WIDTH .................. 18"
COIL OD ..................... 60"
COIL ID EXPANSION RANGE ..... 18" TO 20.5"
EXPANSION ................... HYDRAULIC
FLOOR TO SPINDLE CENTER ..... 42"
SPEED ....................... 900 IPM
DIRECTION ................... RIGHT TO LEFT
PEELER ARM .................. YES

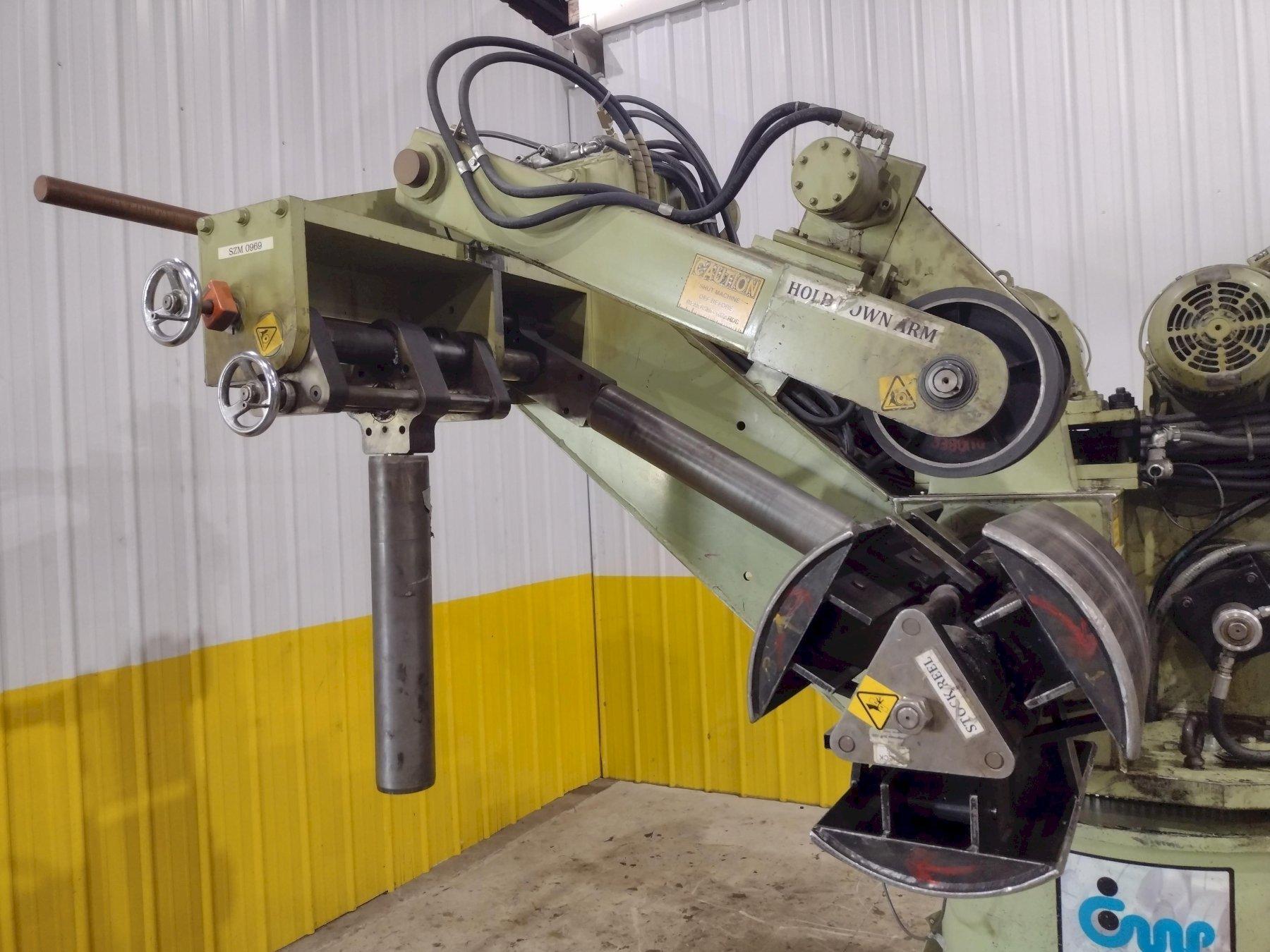

HOLD DOWN ARMS .............. YES, PNEUMATIC
MOTORS ...................... 2 @ 2 HP

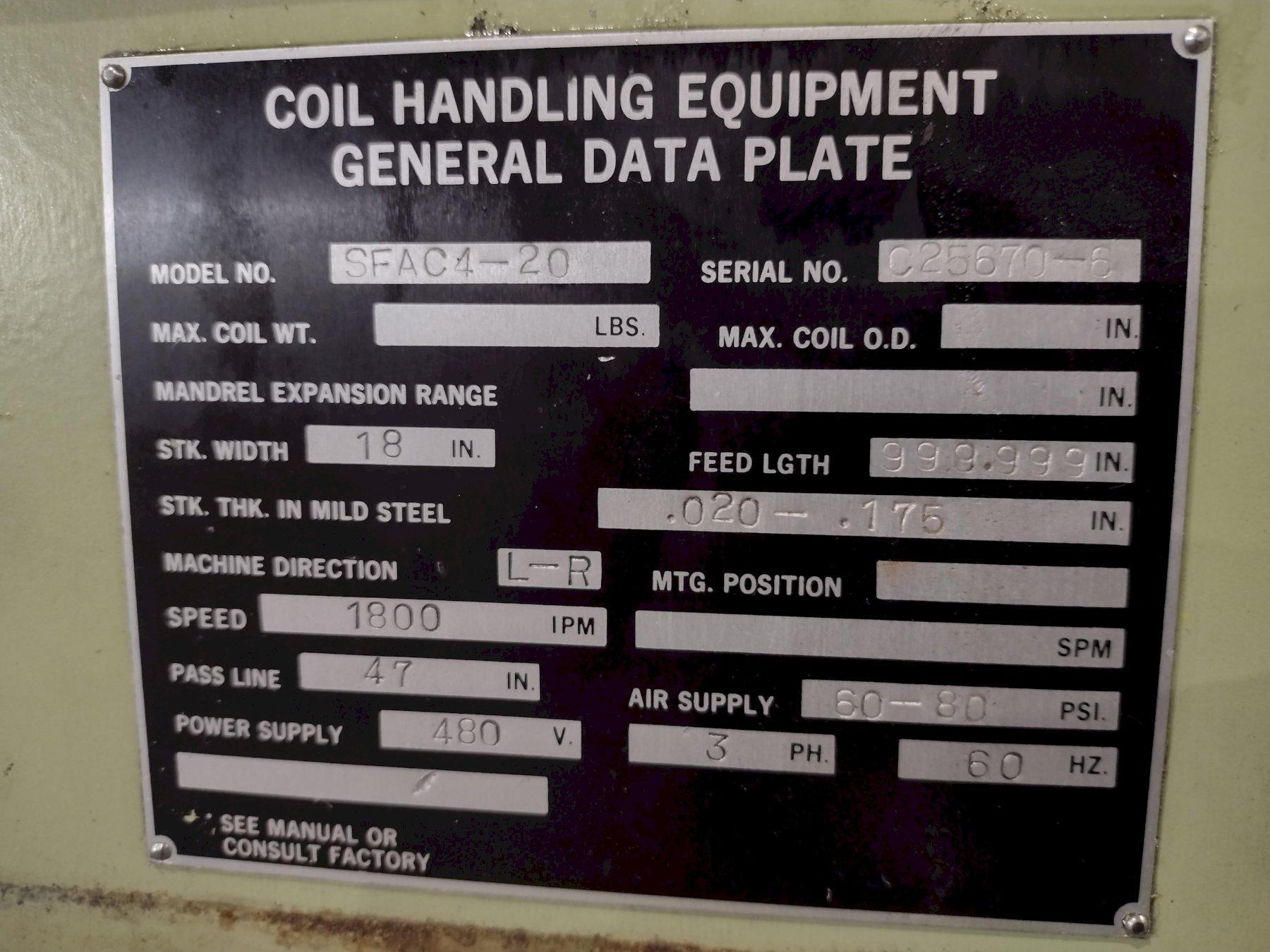

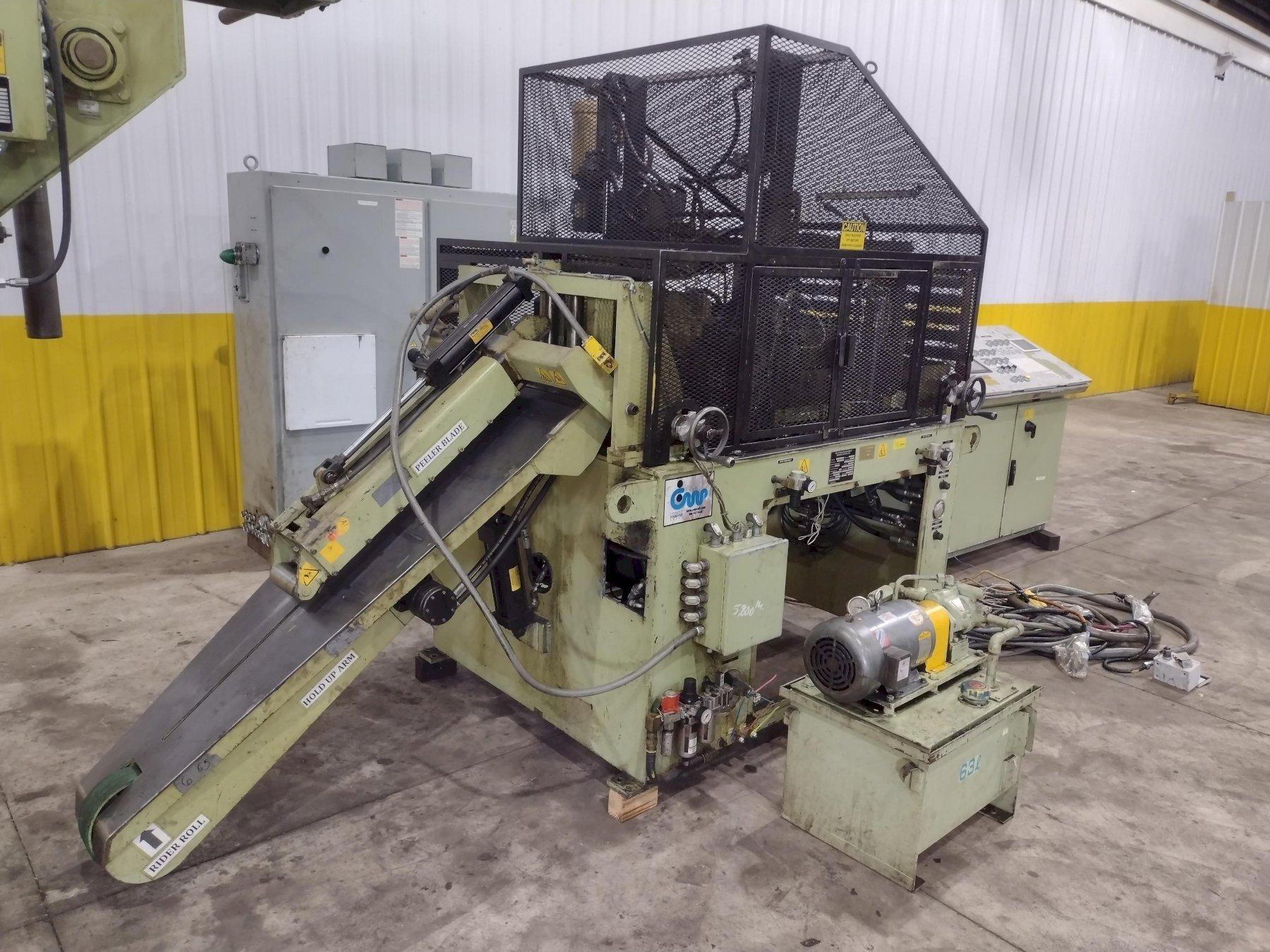

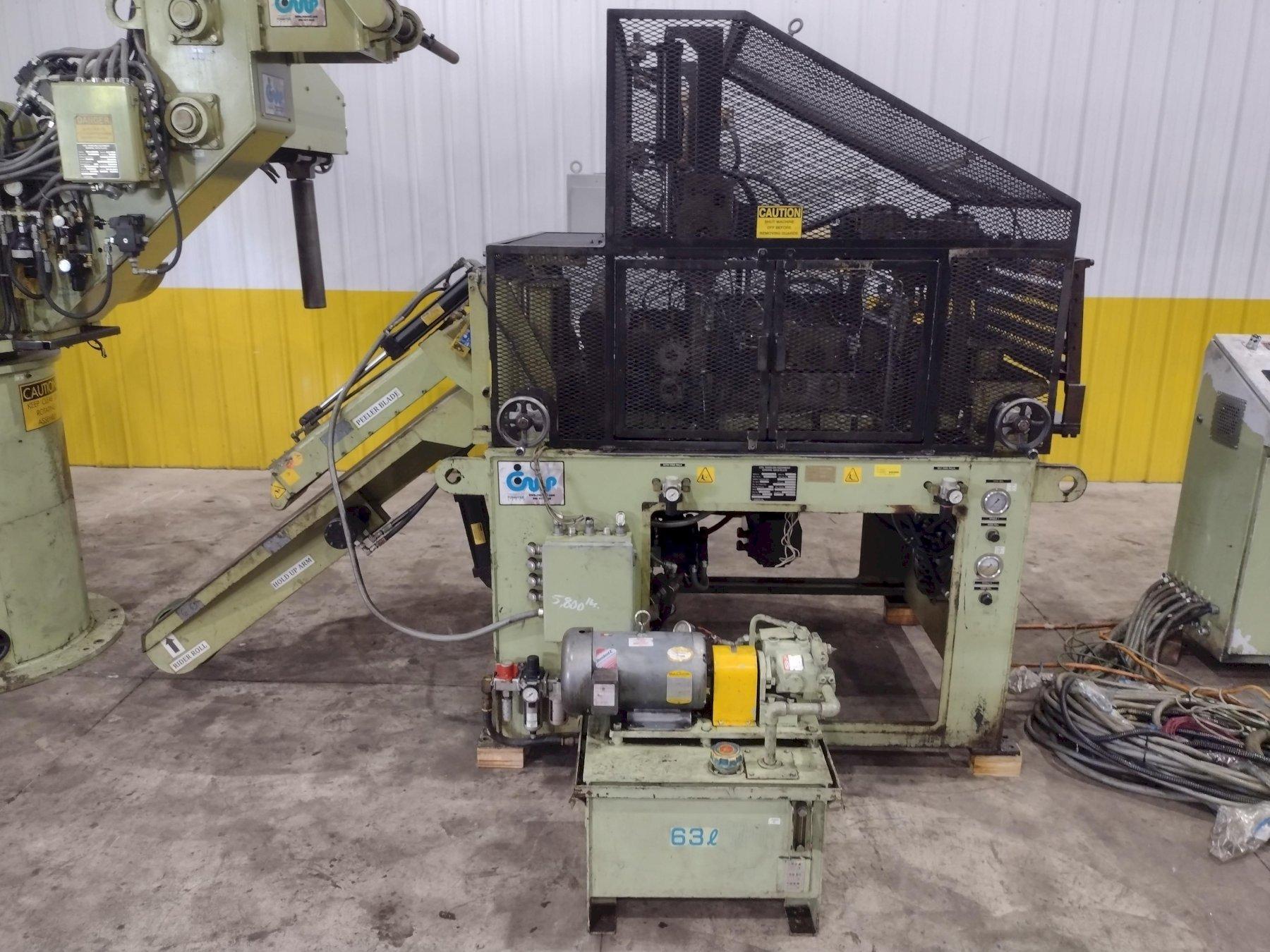

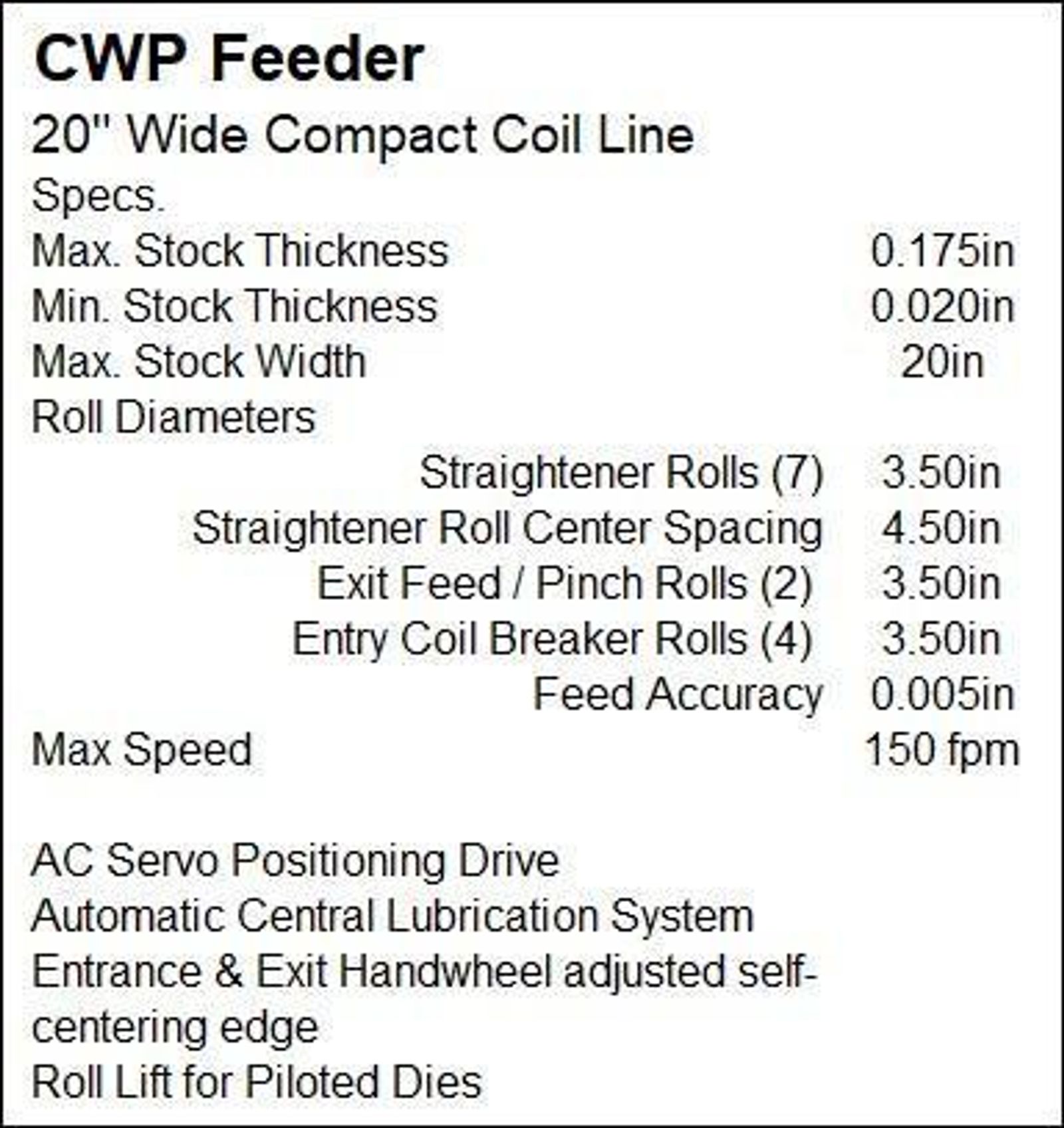

CWP FEEDER / STRAIGHTENER
SERIAL ...................... C25670-S
MODEL ....................... DFAC1-20
STOCK WIDTH ................. 20"
STOCK THICKNESS ............. .020" TO .175"
STRAIGHTENING ROLLS ......... 7 (4 OVER 3)
DIAMETER OF ROLLS ........... 3.5"
ROLL CENTERS ................ 4.5"
ENTRY & EXIT GUIDES ......... SELF CENTERING
ENTRY BREAKER ROLLS ......... 4 X 3.5"
EXIT FEED / PINCH ROLLS ..... 2 X 3.5"
FEED ACCURACY ............... .005"
SPEED ....................... 150 FPM MAX
PASS LINE ................... 47"
PEELER ARM .................. YES
THREADING TABLE ............. YES
POSITIONING DRIVE AC SERVO .. YES
CENTRAL LUBE AUTOMATIC ...... YES

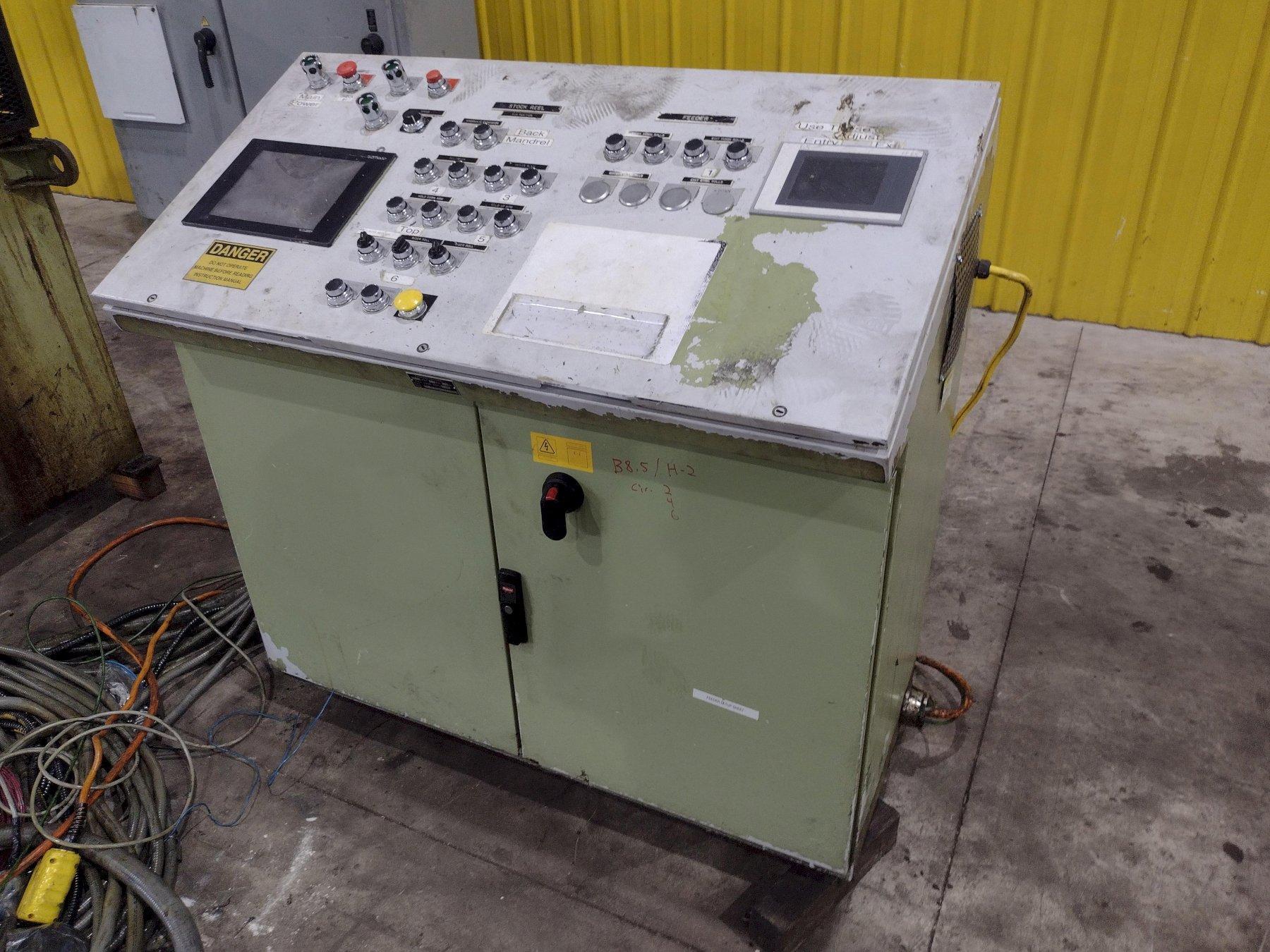

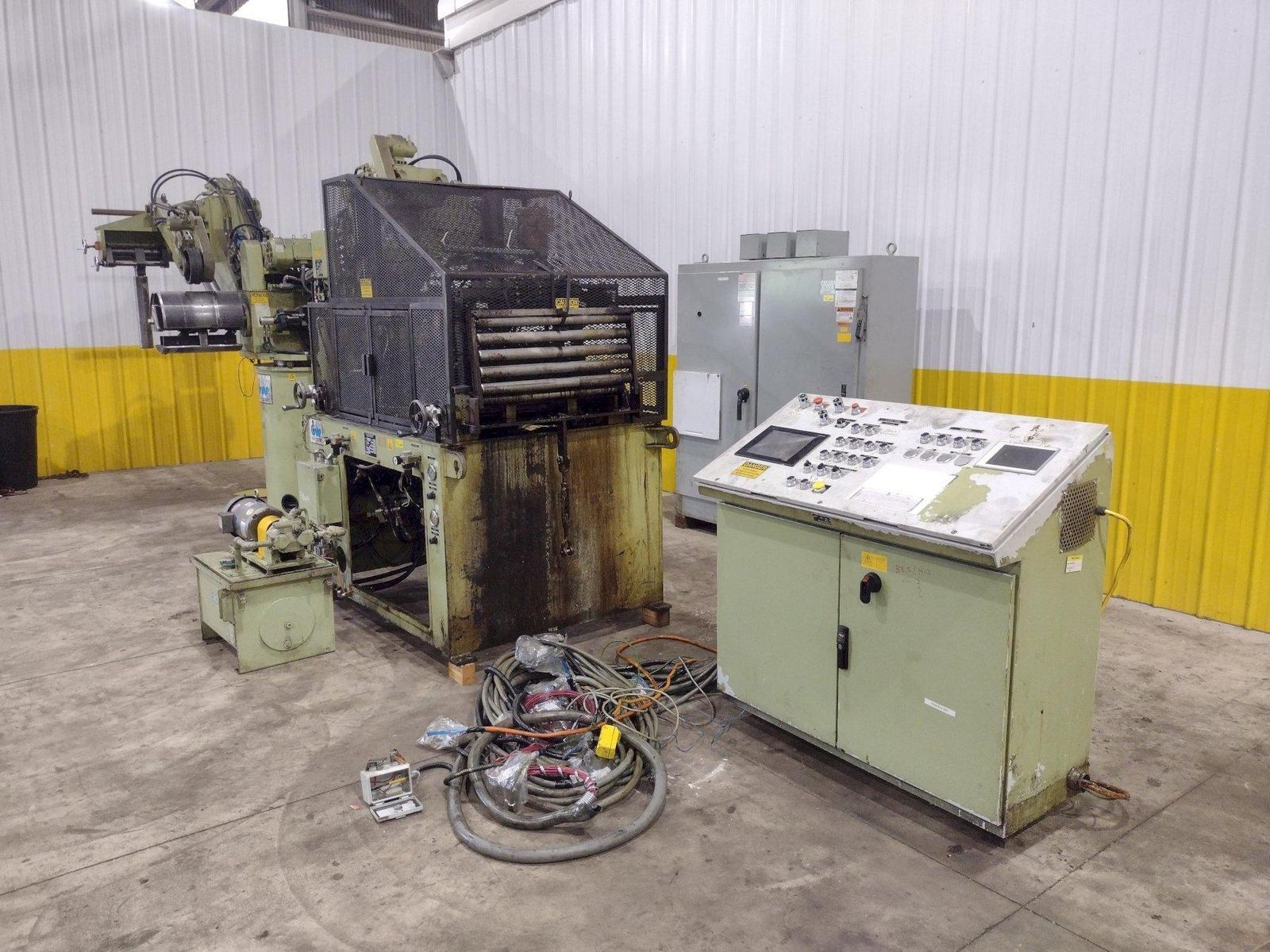

TOUCH SCREEN OPERATOR CONTROL STATION
Brand
CWP
Type
Coil Feed Lines
Stock No.
22215
 |
