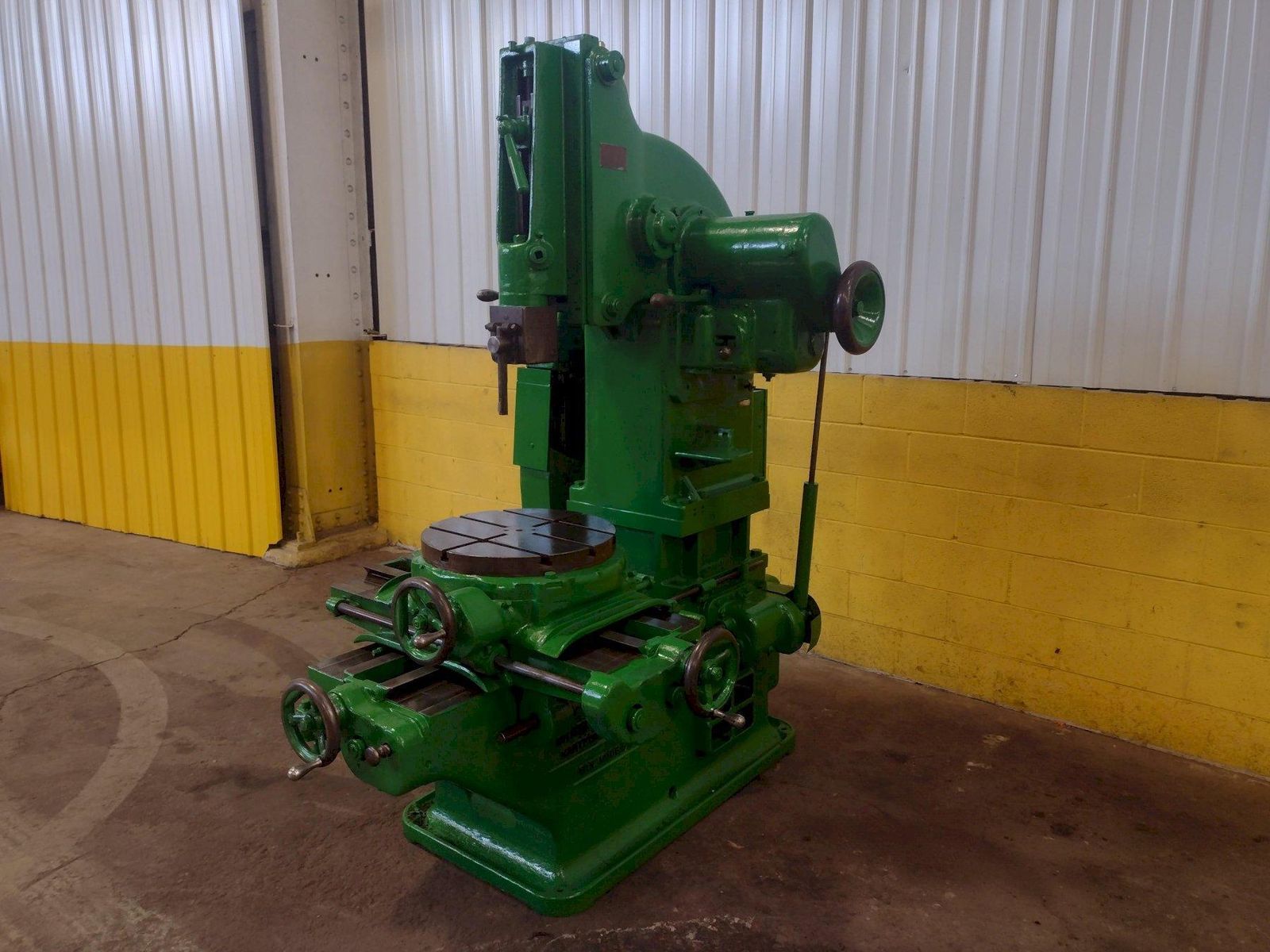

6" PRATT & WHITNEY MODEL #B VERTICAL SLOTTER : STOCK #12262

Overview

SERIAL ............................... 1031

MODEL ................................ B
LENGTH OF STROKE ..................... 0 TO 6"
TABLE TO RAM (MAXIMUM) ............... 15"
VERTICAL ADJUSTMENT OF RAM ........... 10"
ROTARY TABLE DIAMETER (T-SLOTTED) .... 19-1/2"
STROKES PER MINUTE ................... 33 - 49 - 76 - 116
LONGITUDINAL TABLE TRAVEL ............ 25"
CROSS TABLE TRAVEL ................... 20"
LONGITUDINAL & CROSS TABLE FEEDS ..... .0027" TO .0243" PER STROKE
ROTARY TABLE FEED .................... .009" TO .085" PER STROKE
COLUMN TO RAM CENTERLINE ............. 18-3/4"
ANGULAR RAM ADJUSTMENT ............... 0 TO 5 DEGREES
FLOOR TO TABLE ....................... 37"
MOTOR ................................ 3 HORSEPOWER


6" PRATT & WHITNEY MODEL #B VERTICAL SLOTTER : STOCK #12262

Brand
PRATT & WHITNEY

Type
Shapers, Vertical

Stock No.
12262

Contact Us
Buy Now
Price: $7950.00
