SERIAL ......................... MT2-184
NEW ............................ 09/1997
MODEL .......................... MTH175-144
CAPACITY ....................... 175 TONS
BENDING CAPACITIES ............ 10'MAX X 1/4"
OVERALL LENGTH OF BED & RAM .... 144"
DISTANCE BETWEEN HOUSINGS ...... 126"
RAM STROKE (VAR) ............... 0"-8"
OPEN HEIGHT .................... 17" (MAX DIE SPACE)
ADJUSTMENT ..................... 9"
RAM SPEED APPROACH ............. 300 IPM
RAM SPEED PRESS ................ 22 IPM
RAM SPEED RETURN ............... 250 IPM
THROAT ......................... 8"
HURCO CNC BACK GAGE ............ AUTOBEND 7
FOOT PEDAL & PEDESTAL CONTROL .. YES
ONE SHOT LUBE .................. YES
LOWER DIE RAIL ................. YES
ADJUSTABLE STROKE .............. YES
ADJUSTABLE RAM SPEED ........... YES
FLOOR FLUSH .................... YES
HYDRAULIC PUMP ................. 15HP
Brand

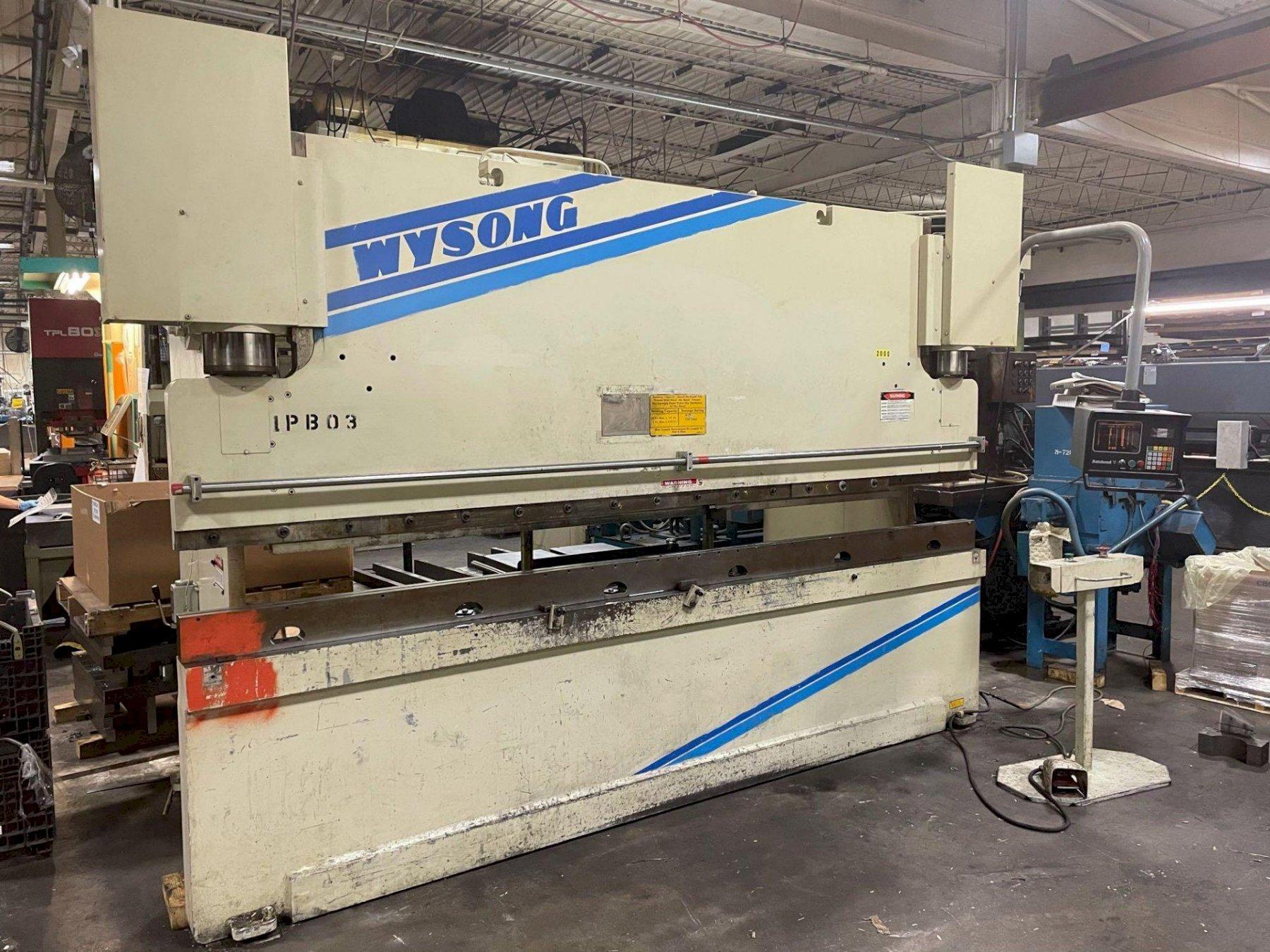

WYSONG
Type
Brakes, Hydraulic
Stock No.
15923
 |
419-269-2000 |
Stock #: 15923
SERIAL ......................... MT2-184
NEW ............................ 09/1997
MODEL .......................... MTH175-144
CAPACITY ....................... 175 TONS
BENDING CAPACITIES ............ 10'MAX X 1/4"
OVERALL LENGTH OF BED & RAM .... 144"
DISTANCE BETWEEN HOUSINGS ...... 126"
RAM STROKE (VAR) ............... 0"-8"
OPEN HEIGHT .................... 17" (MAX DIE SPACE)
ADJUSTMENT ..................... 9"
RAM SPEED APPROACH ............. 300 IPM
RAM SPEED PRESS ................ 22 IPM
RAM SPEED RETURN ............... 250 IPM
THROAT ......................... 8"
HURCO CNC BACK GAGE ............ AUTOBEND 7
FOOT PEDAL & PEDESTAL CONTROL .. YES
ONE SHOT LUBE .................. YES
LOWER DIE RAIL ................. YES
ADJUSTABLE STROKE .............. YES
ADJUSTABLE RAM SPEED ........... YES
FLOOR FLUSH .................... YES
HYDRAULIC PUMP ................. 15HP
