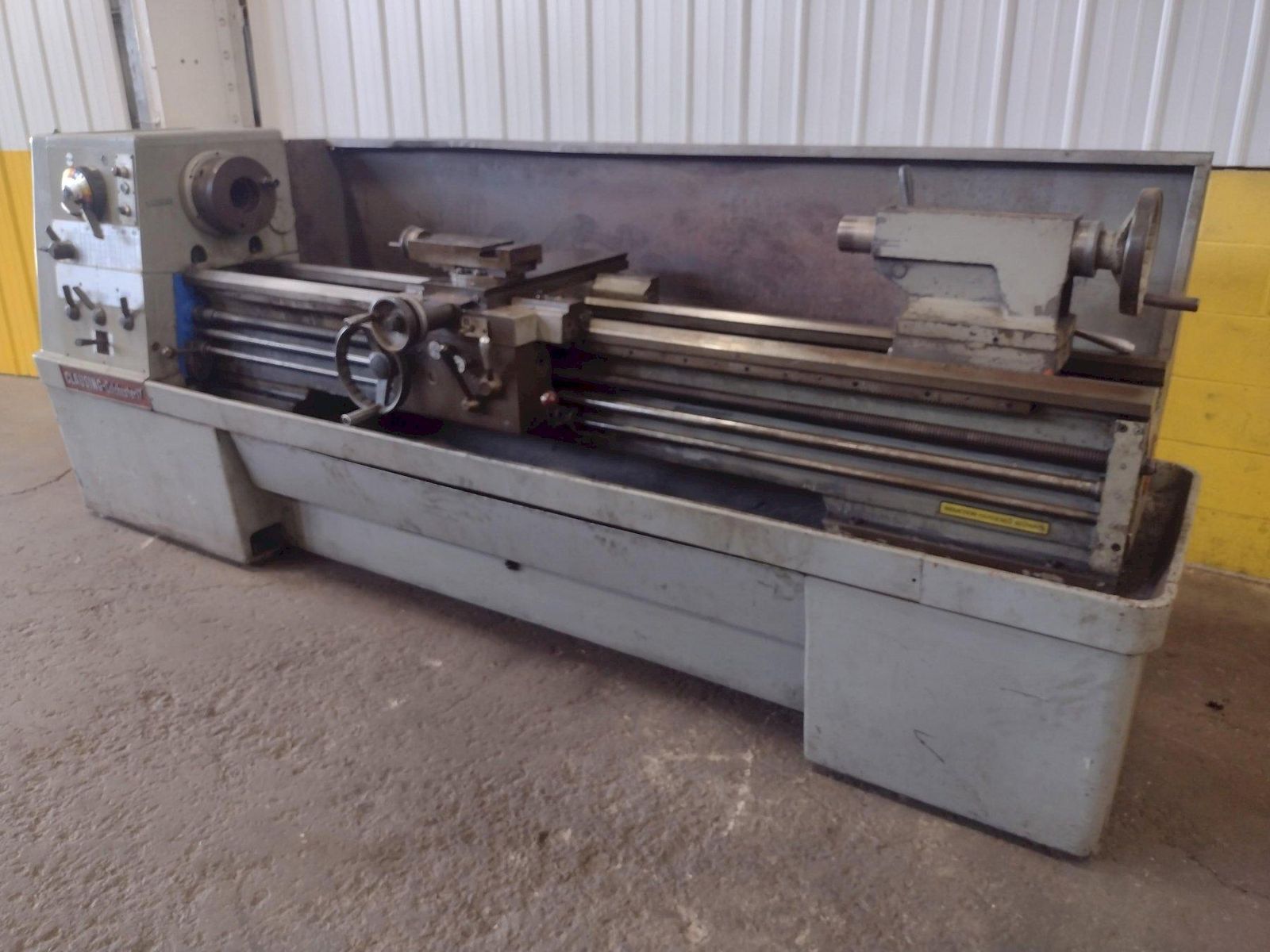

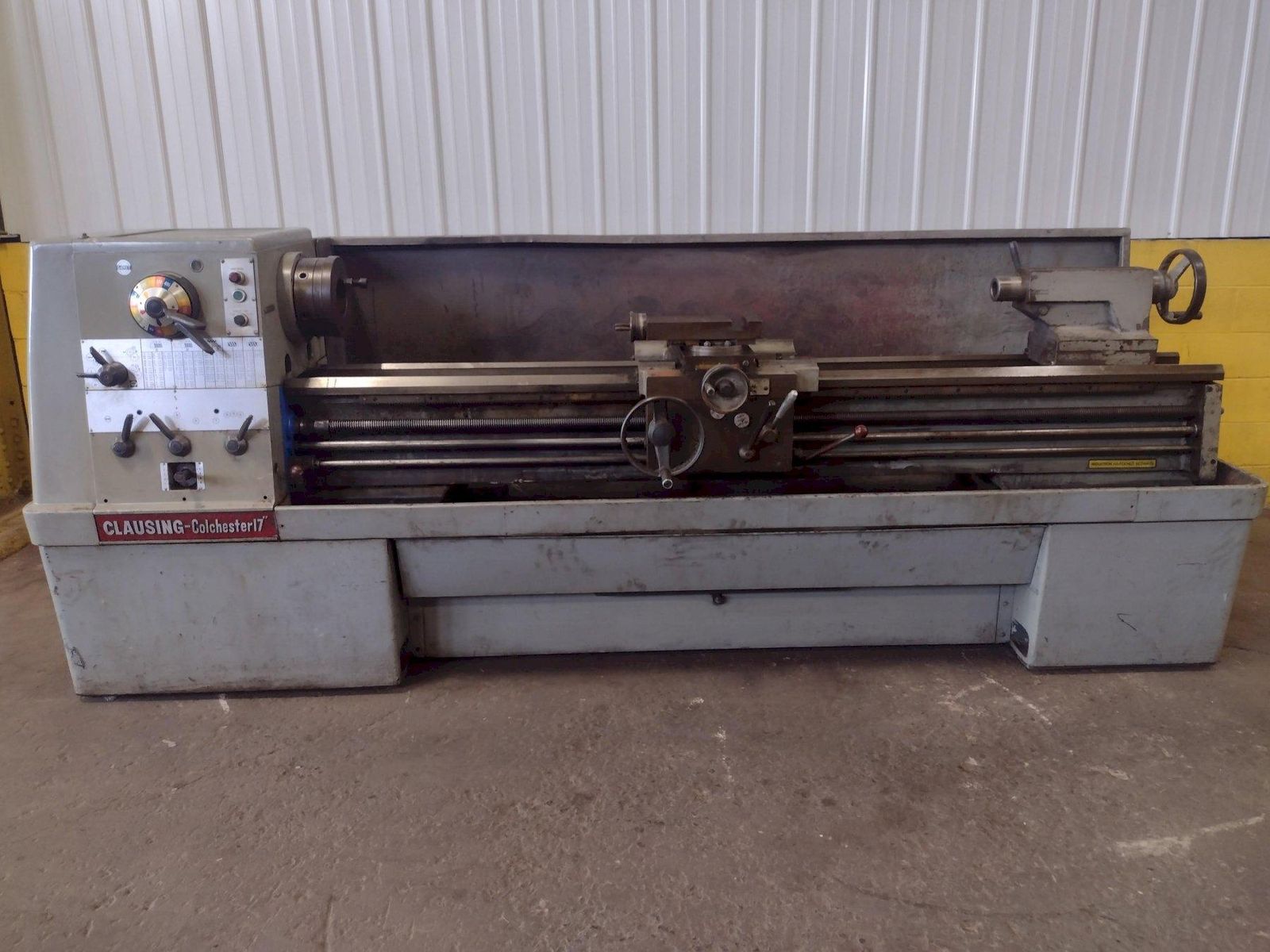

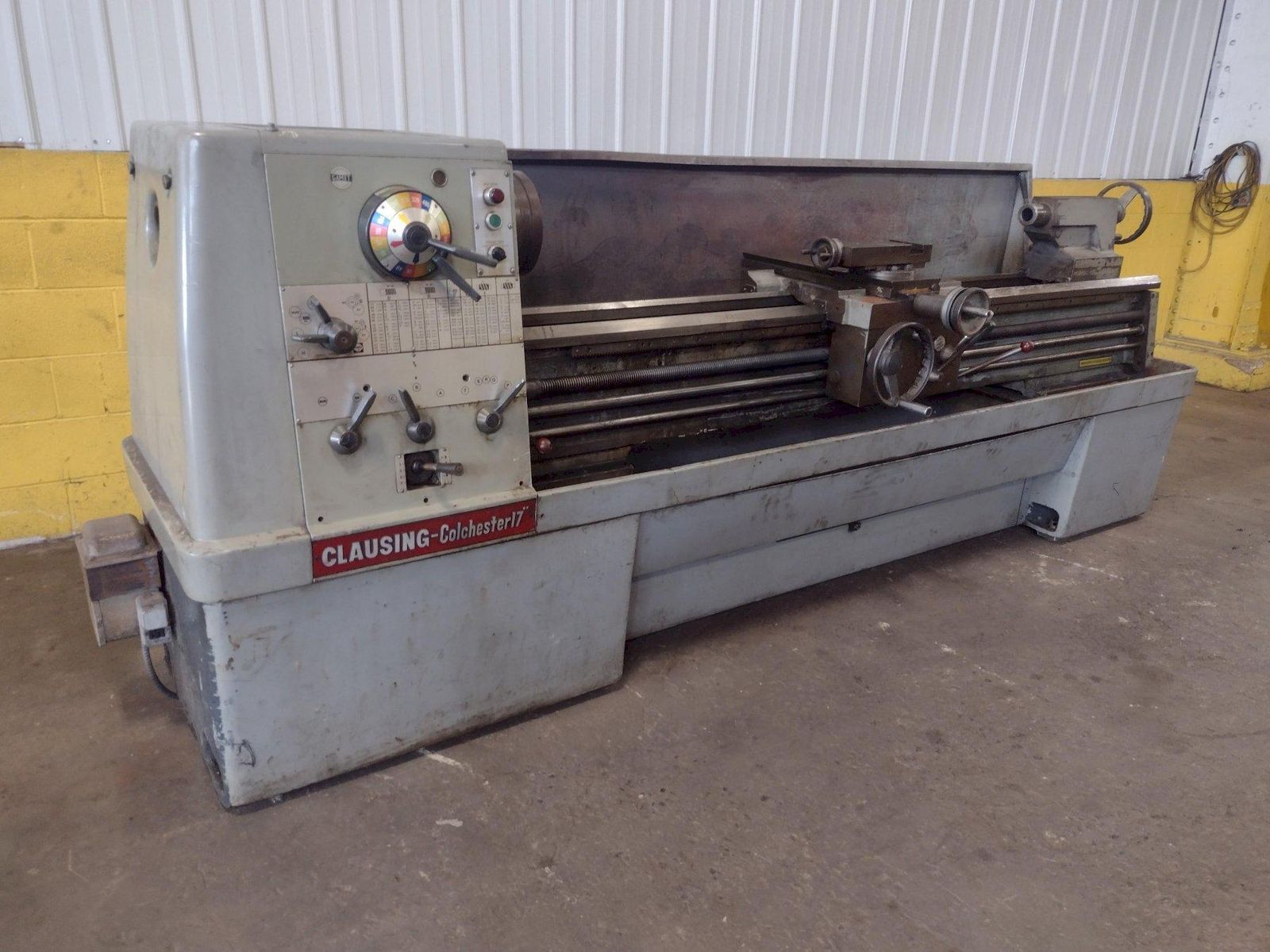

17" X 84" CLAUSING MODEL #17 ENGINE LATHE, 3" HOLE: STOCK #10292

Overview

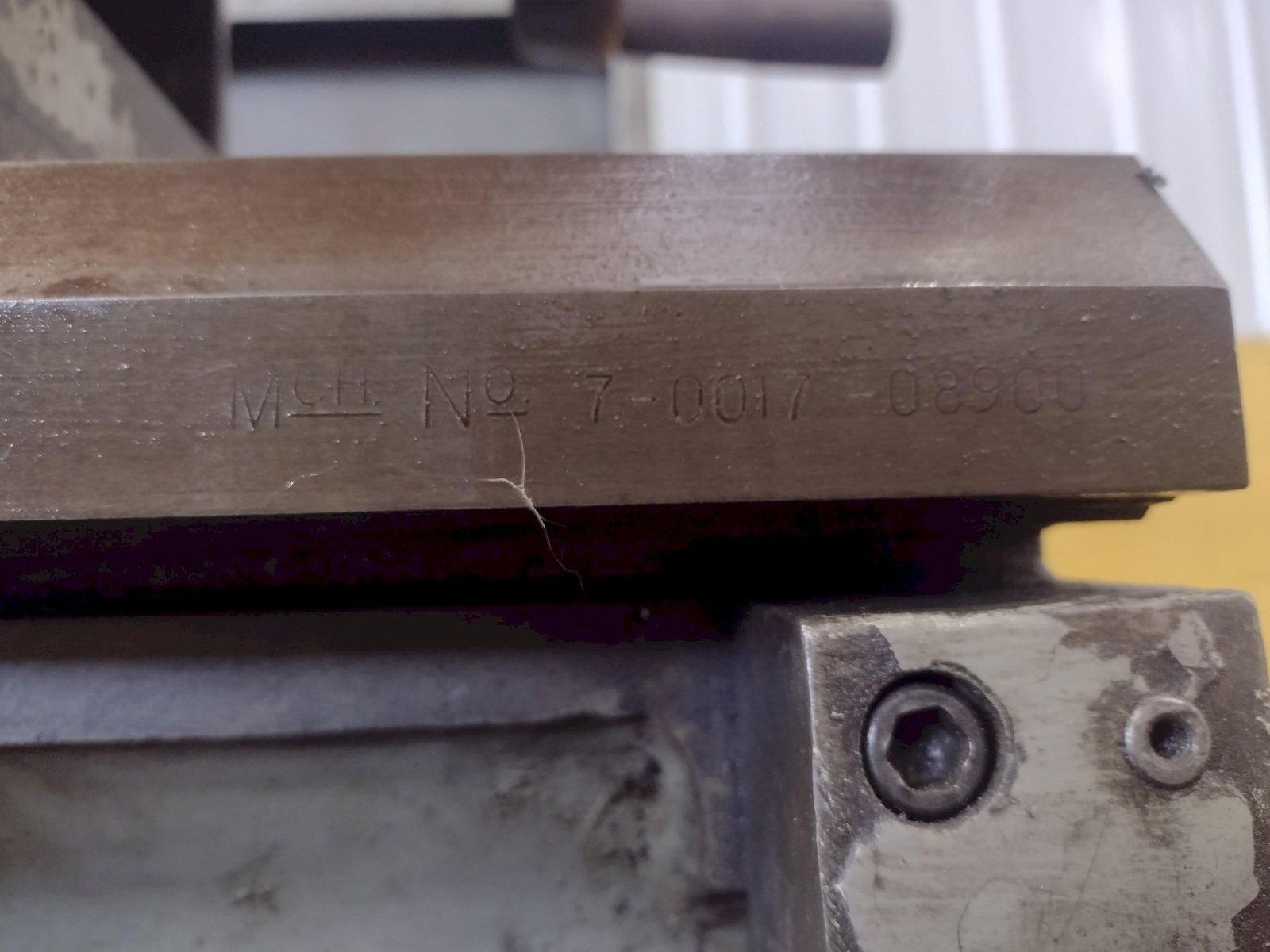

SERIAL ............................. 7/0017/08900
MODEL .............................. 17
SWING OVER WAYS .................... 18"
SWING IN GAP ....................... 28"
SWING OVER CROSS SLIDE ............. 10-1/2"
DISTANCE BETWEEN CENTERS ........... 86"
SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM

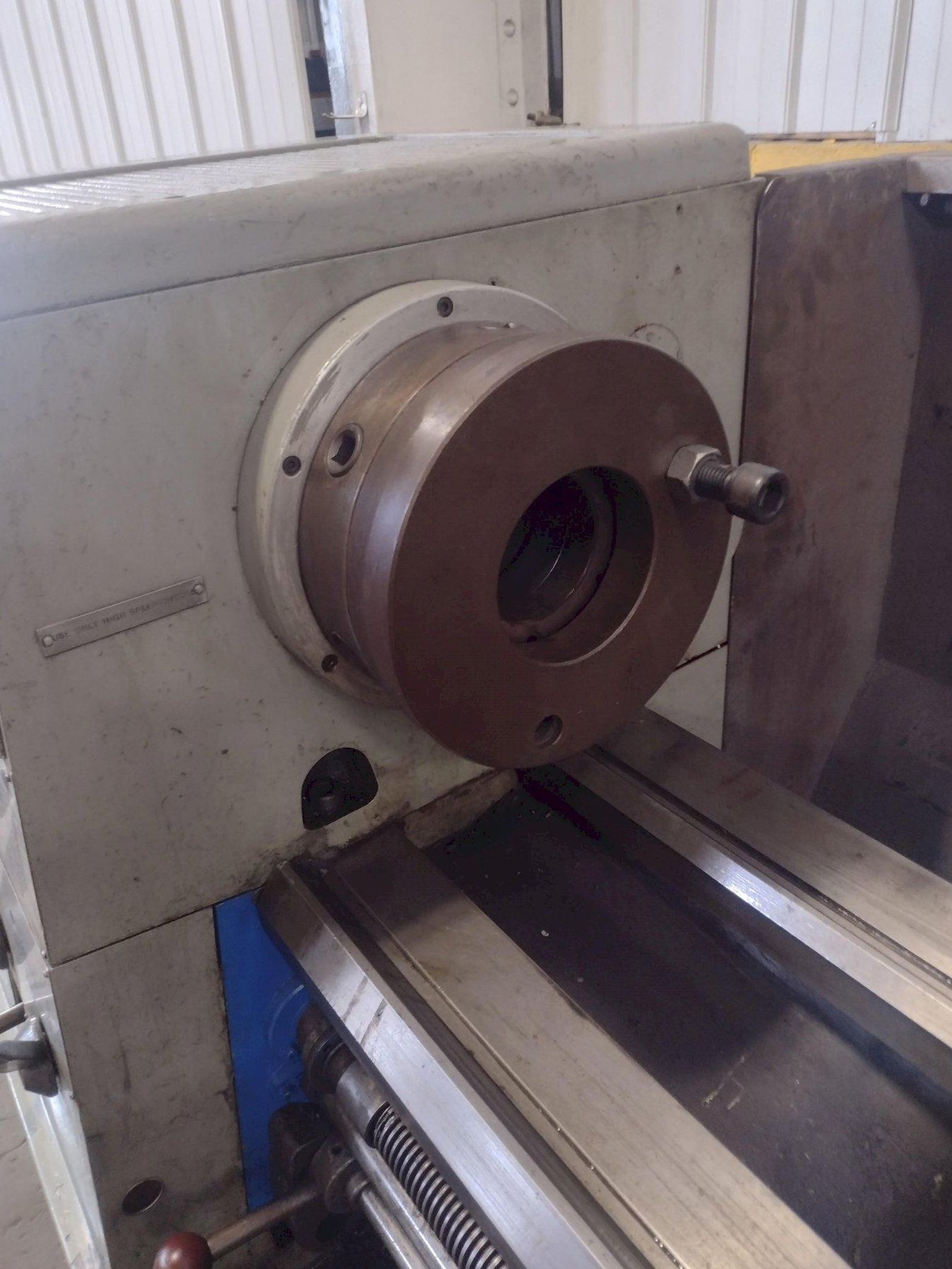

DIAMETER OF SPINDLE HOLE ........... 3-1/16"
FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR
THREADS (ENGLISH) .................. (38) 2 TO 72 TPI
THREADS (METRIC) ................... (40) .4 TO 14 MMPI
CROSS FEEDS ........................ .001 TO .016

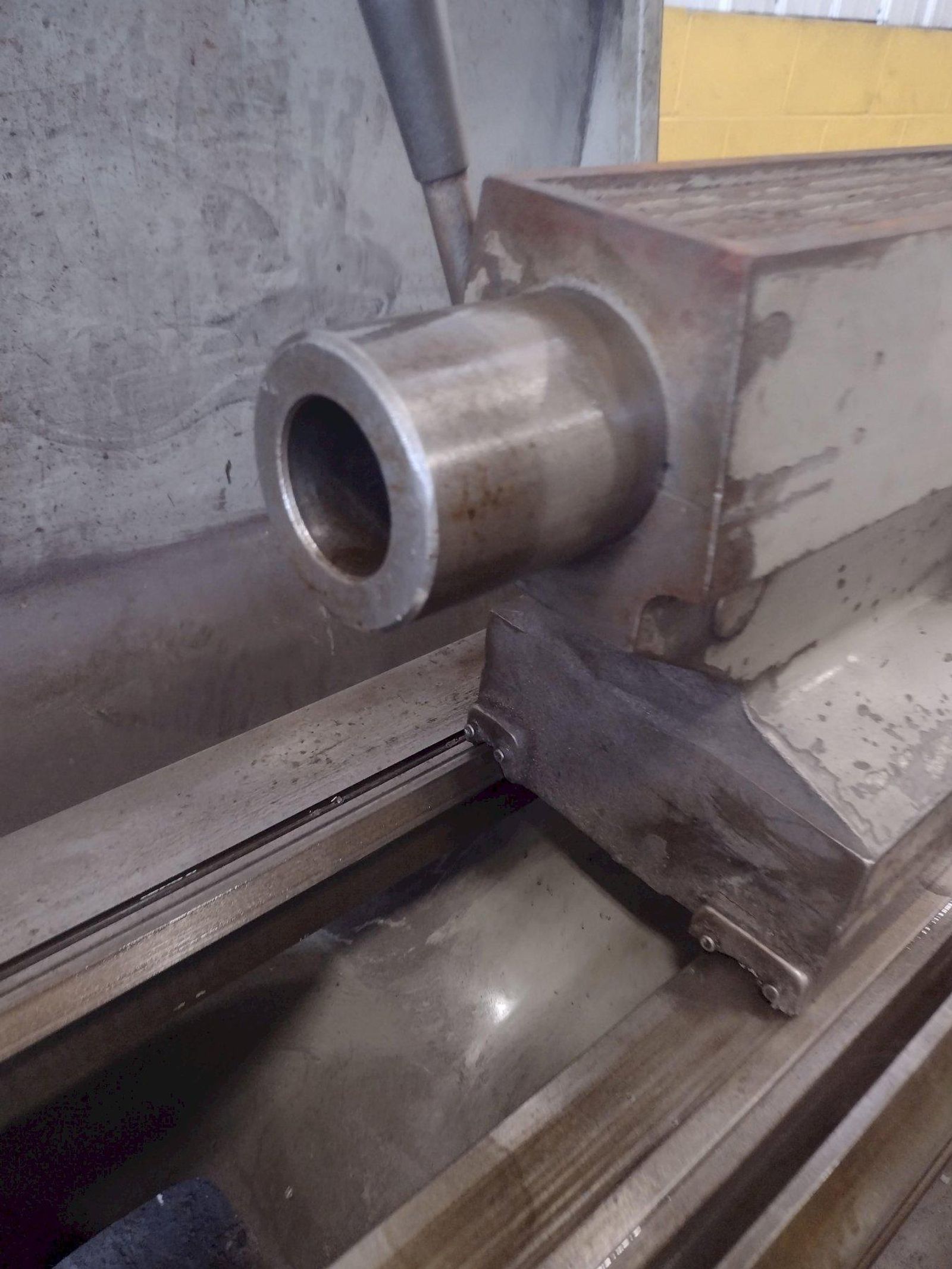

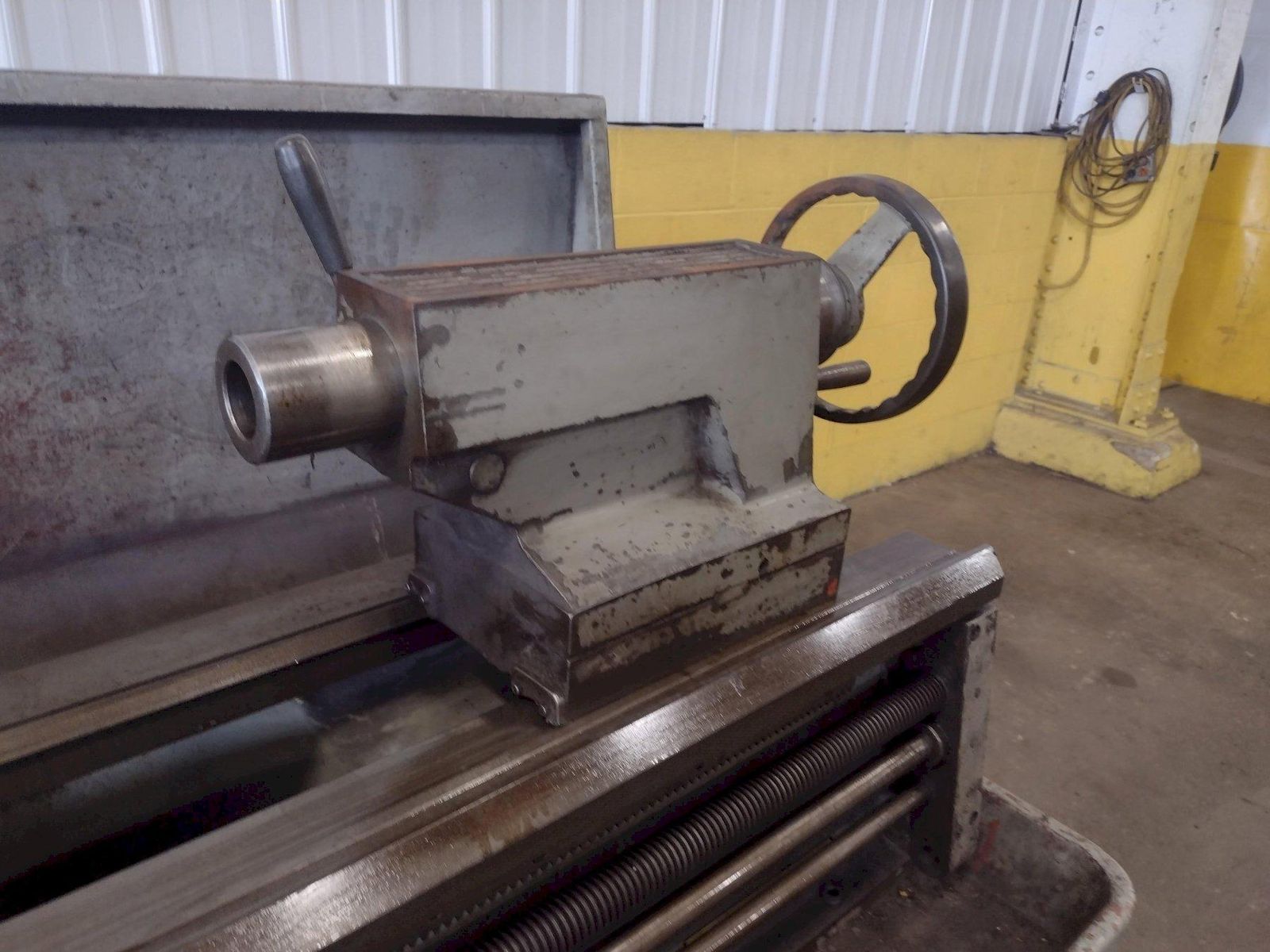

TAPER IN TAIL STOCK ................ #5 MT
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
COOLANT ............................ YES
MOTOR .............................. 10 HORSEPOWER

Specifications
Main Motor 10
Threads Per Inch 72
Threads Per Millimeter 14
Swing 18 inches
Centers 84 inches
Spindle Bore 3.125 inches
Power 10 horsepower
RPM 1600
Swing in Gap 28 inches
Spindle Speed RPM 1600

17" X 84" CLAUSING MODEL #17 ENGINE LATHE, 3" HOLE: STOCK #10292

Brand
CLAUSING

Type
Lathes, Engine

Stock No.
10292

Price: $10500.00
Print Details

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

17" X 84" CLAUSING MODEL #17 ENGINE LATHE, 3" HOLE: STOCK #10292

Stock #: 10292

Equipped With

SERIAL ............................. 7/0017/08900
MODEL .............................. 17
SWING OVER WAYS .................... 18"
SWING IN GAP ....................... 28"
SWING OVER CROSS SLIDE ............. 10-1/2"
DISTANCE BETWEEN CENTERS ........... 86"
SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/16"
FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR
THREADS (ENGLISH) .................. (38) 2 TO 72 TPI
THREADS (METRIC) ................... (40) .4 TO 14 MMPI
CROSS FEEDS ........................ .001 TO .016
TAPER IN TAIL STOCK ................ #5 MT
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
COOLANT ............................ YES
MOTOR .............................. 10 HORSEPOWER
