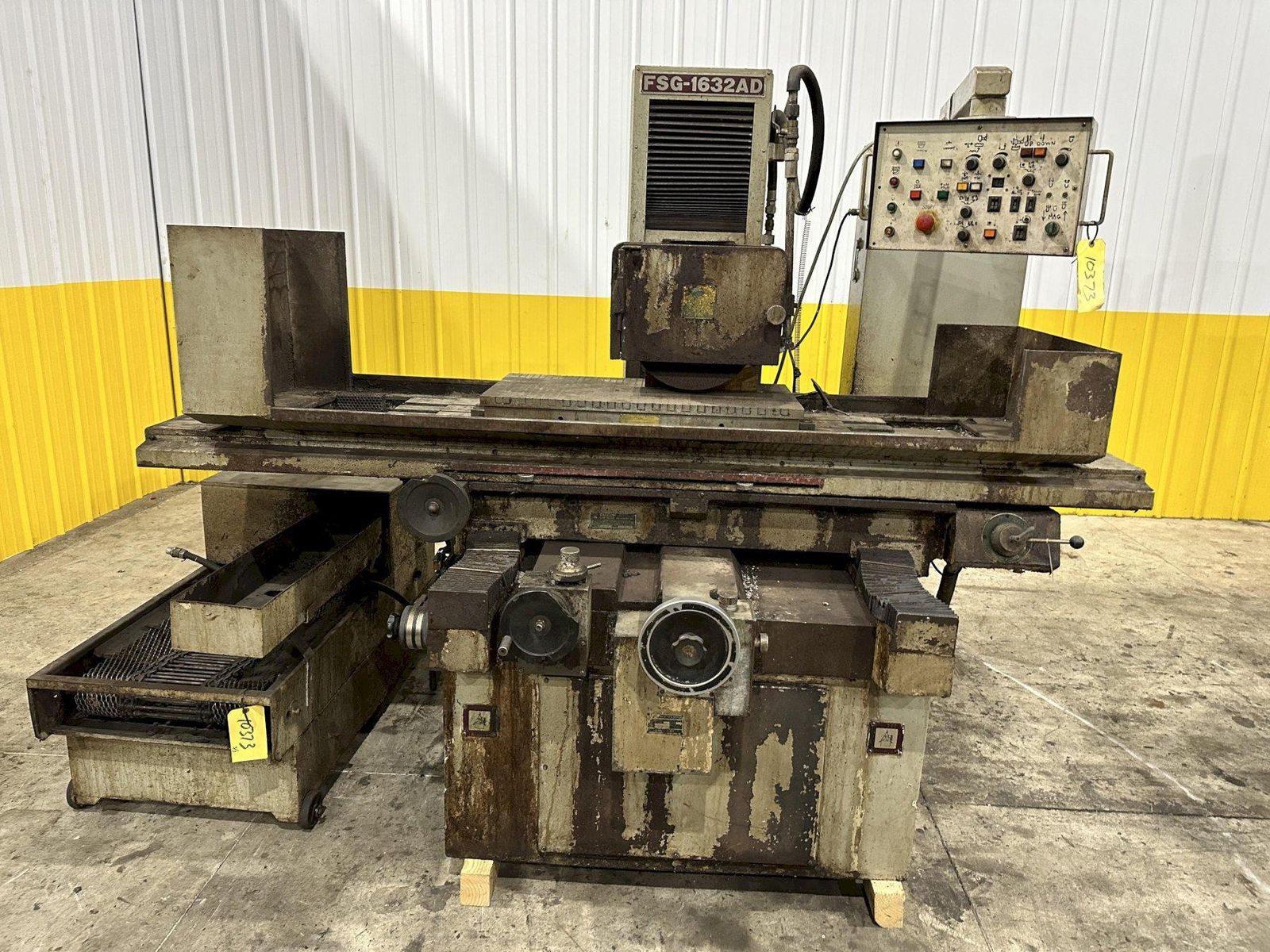

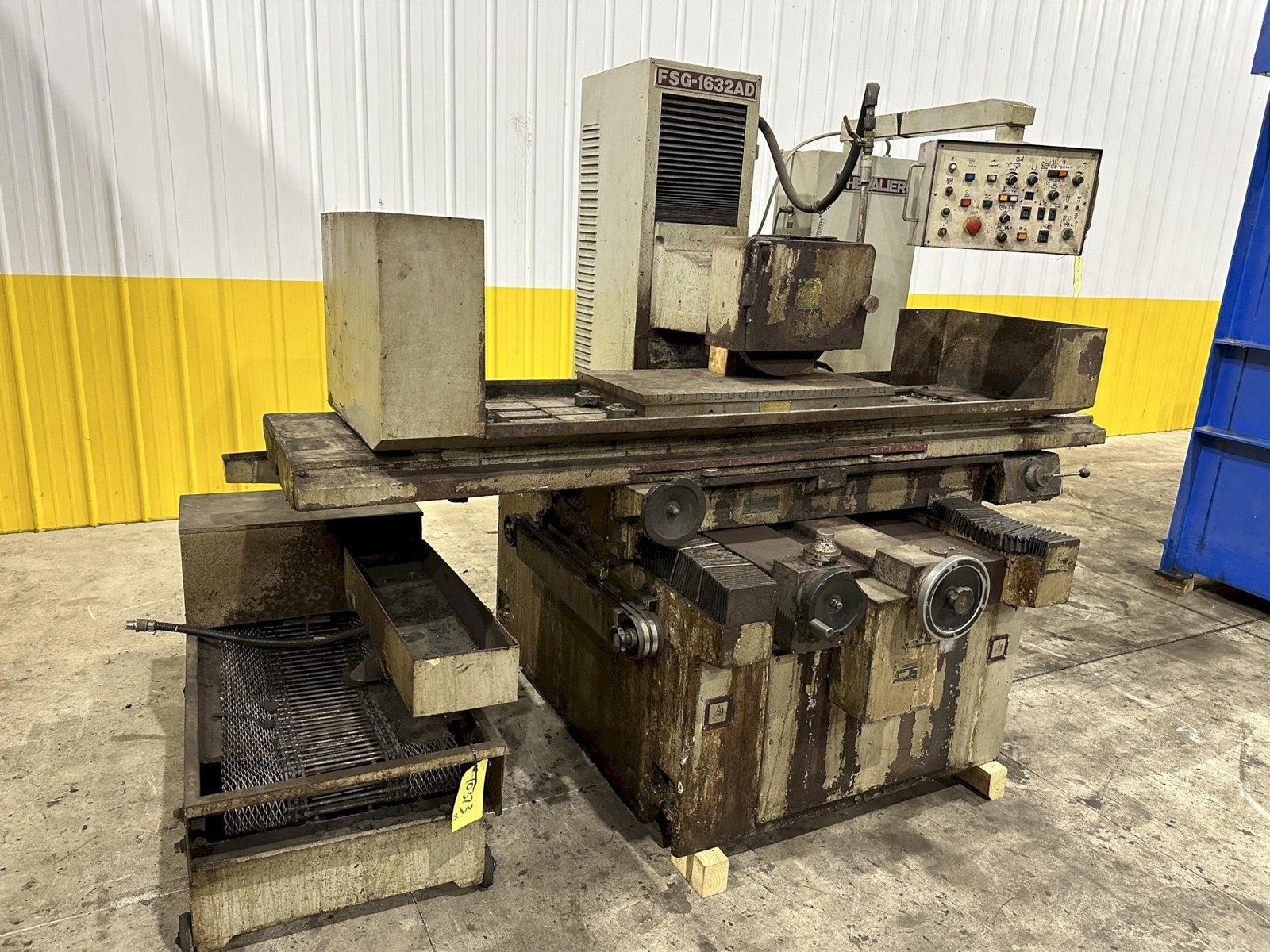

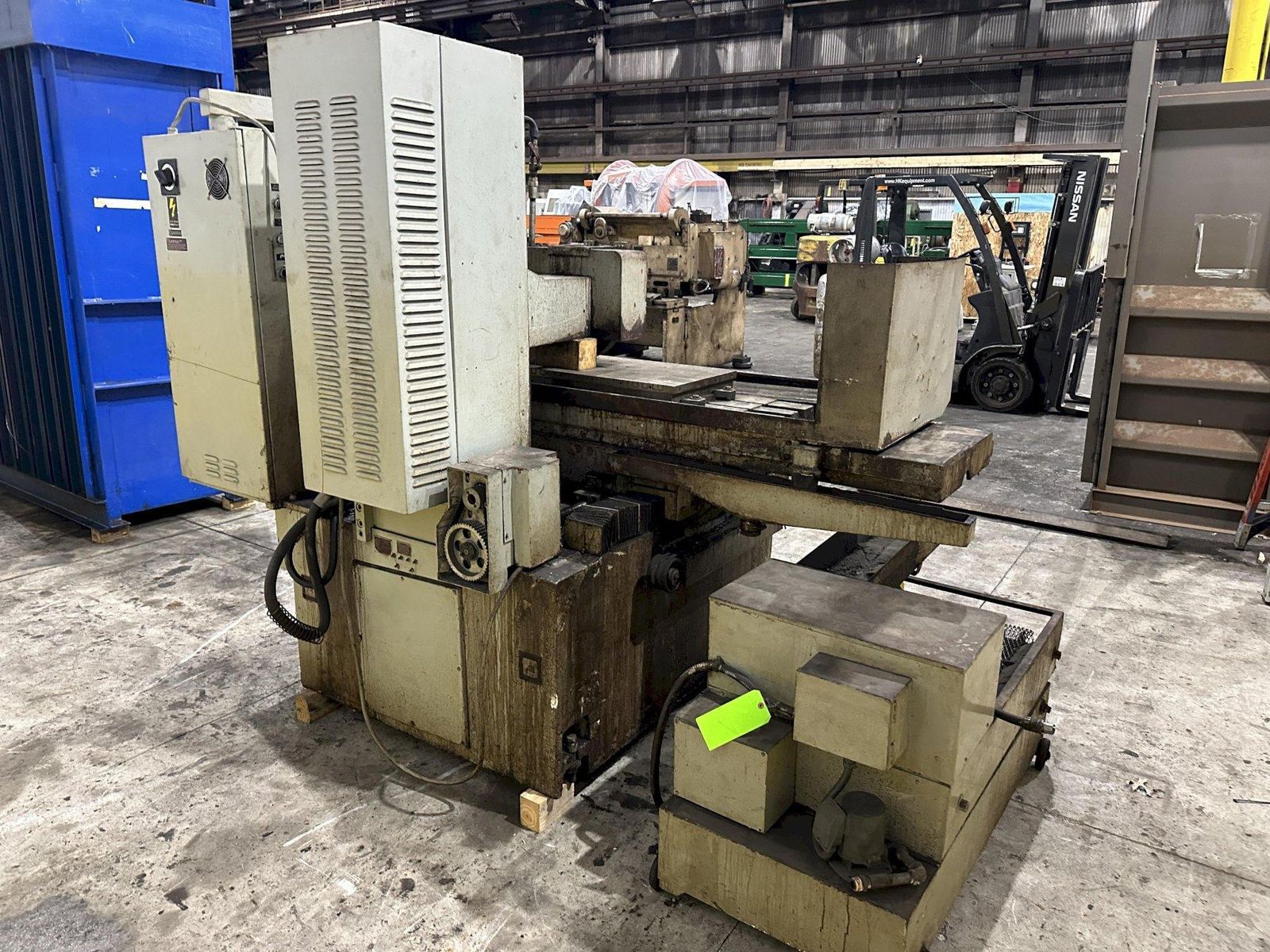

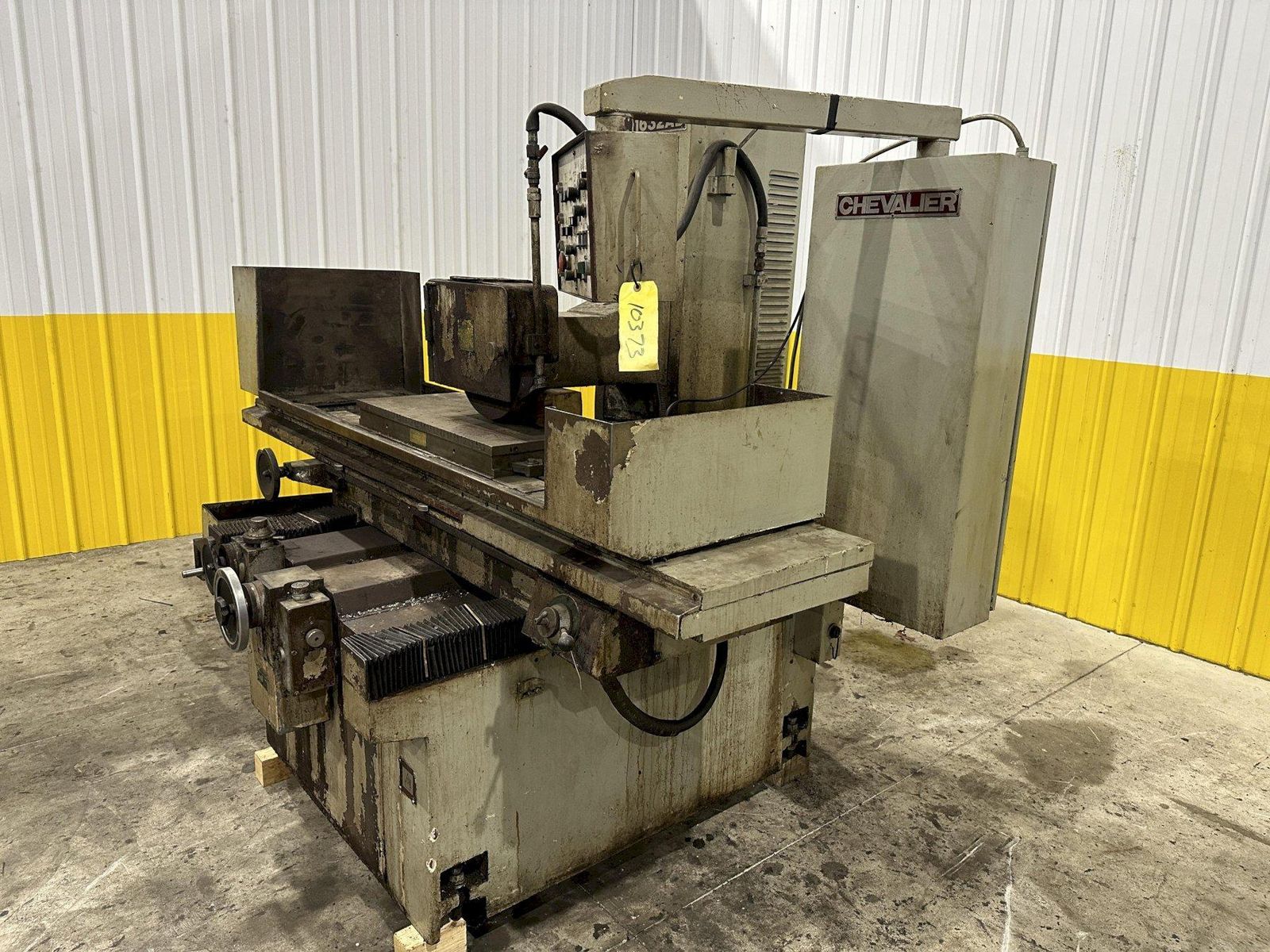

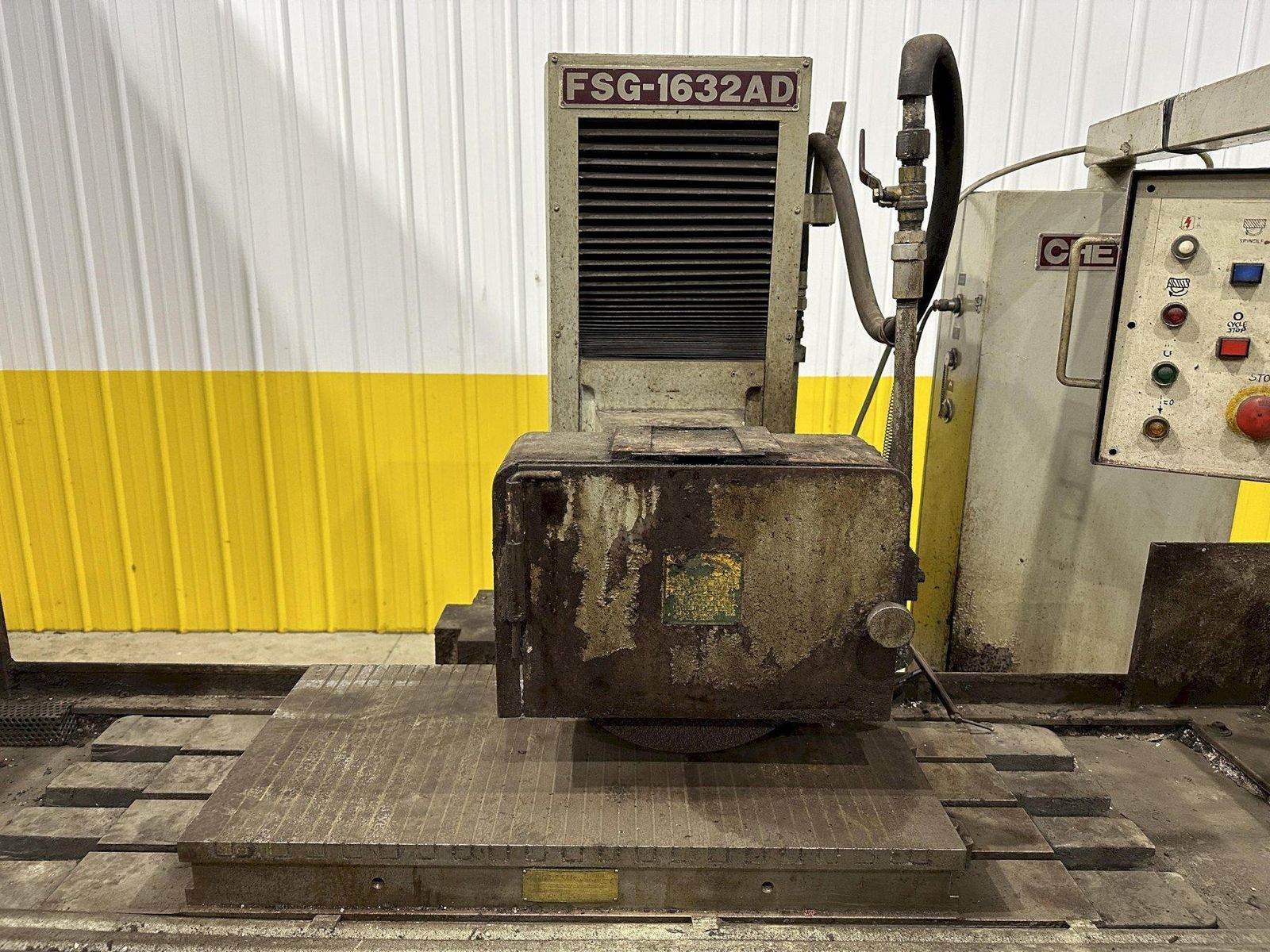

16" x 32" CHEVALIER MODEL #FSG-1632AD HORIZONTAL SURFACE GRINDER: STOCK #10373

Overview

MODEL ................................. FSG-1632AD
GRINDING CAPACITY ..................... 16" X 32"
SPINDLE TO TABLE (MAXIMUM) ............ 24"
LONGITUDINAL TABLE TRAVEL ............. 35-3/8"
CROSS TABLE TRAVEL .................... 18"
TABLE SPEED (VARIABLE) ................ 5 TO 25 FPM
SPINDLE SPEED ......................... 3450 RPM

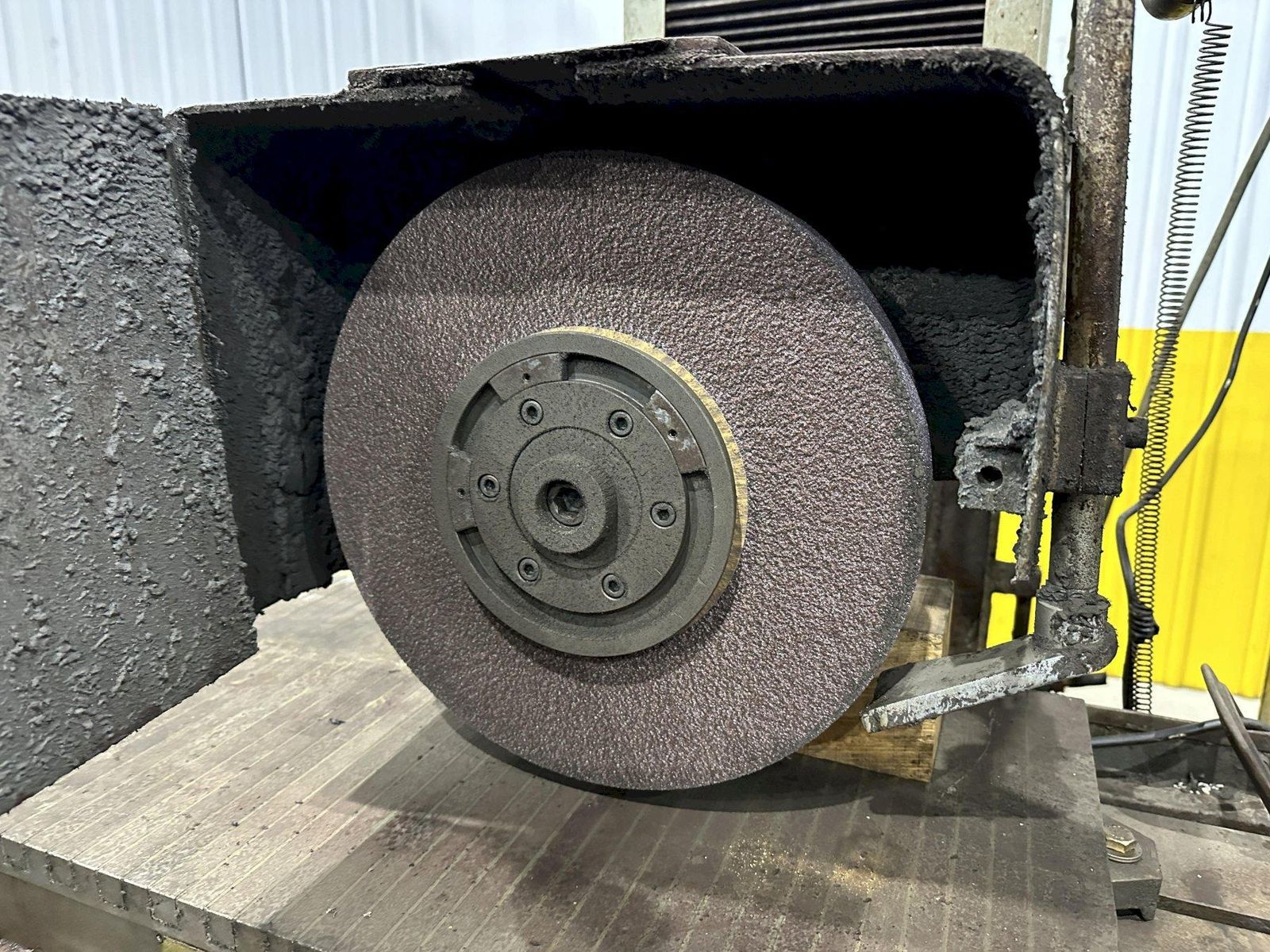

GRINDING WHEEL SIZE ................... 14" X 2" X 5"

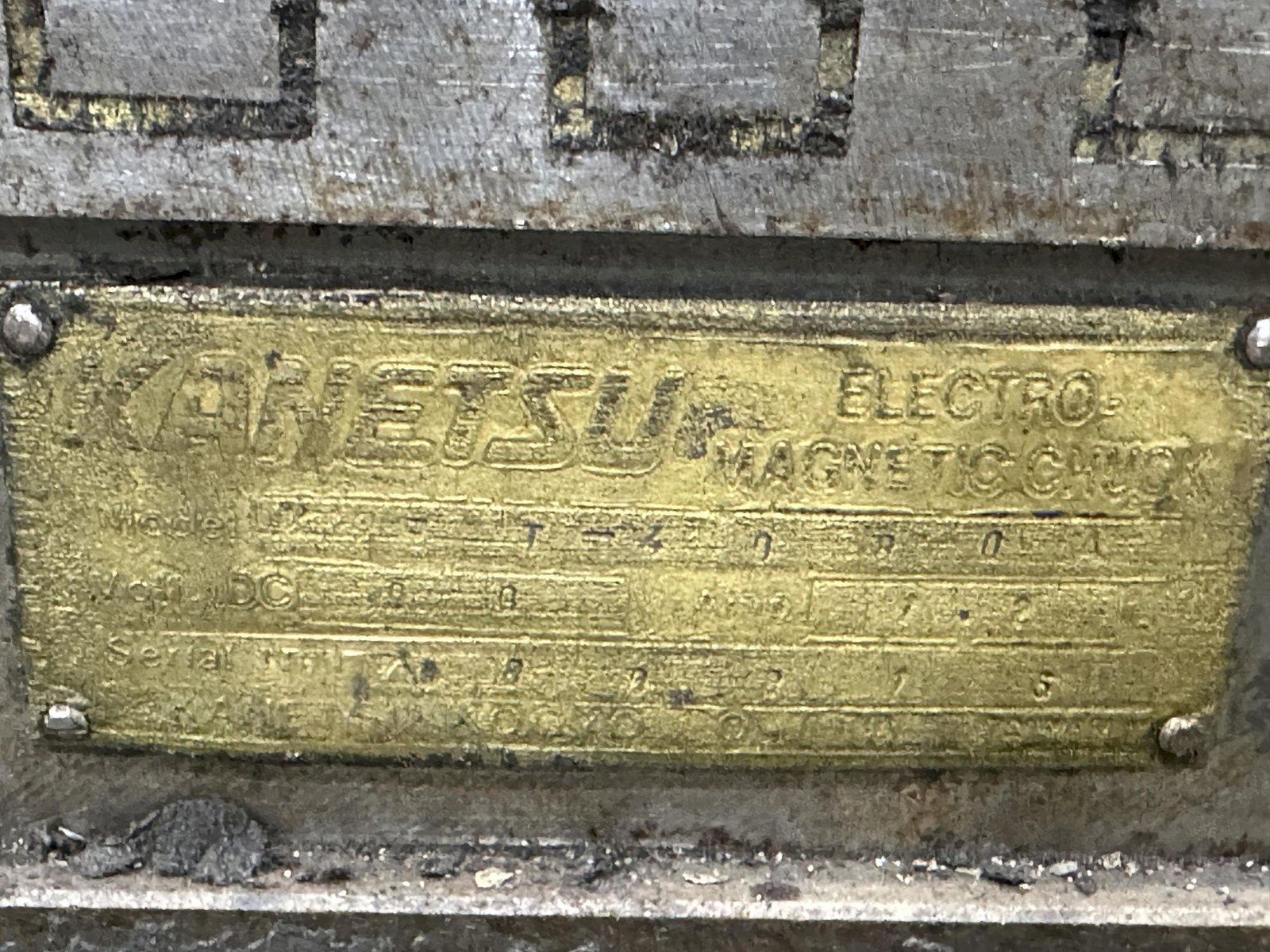

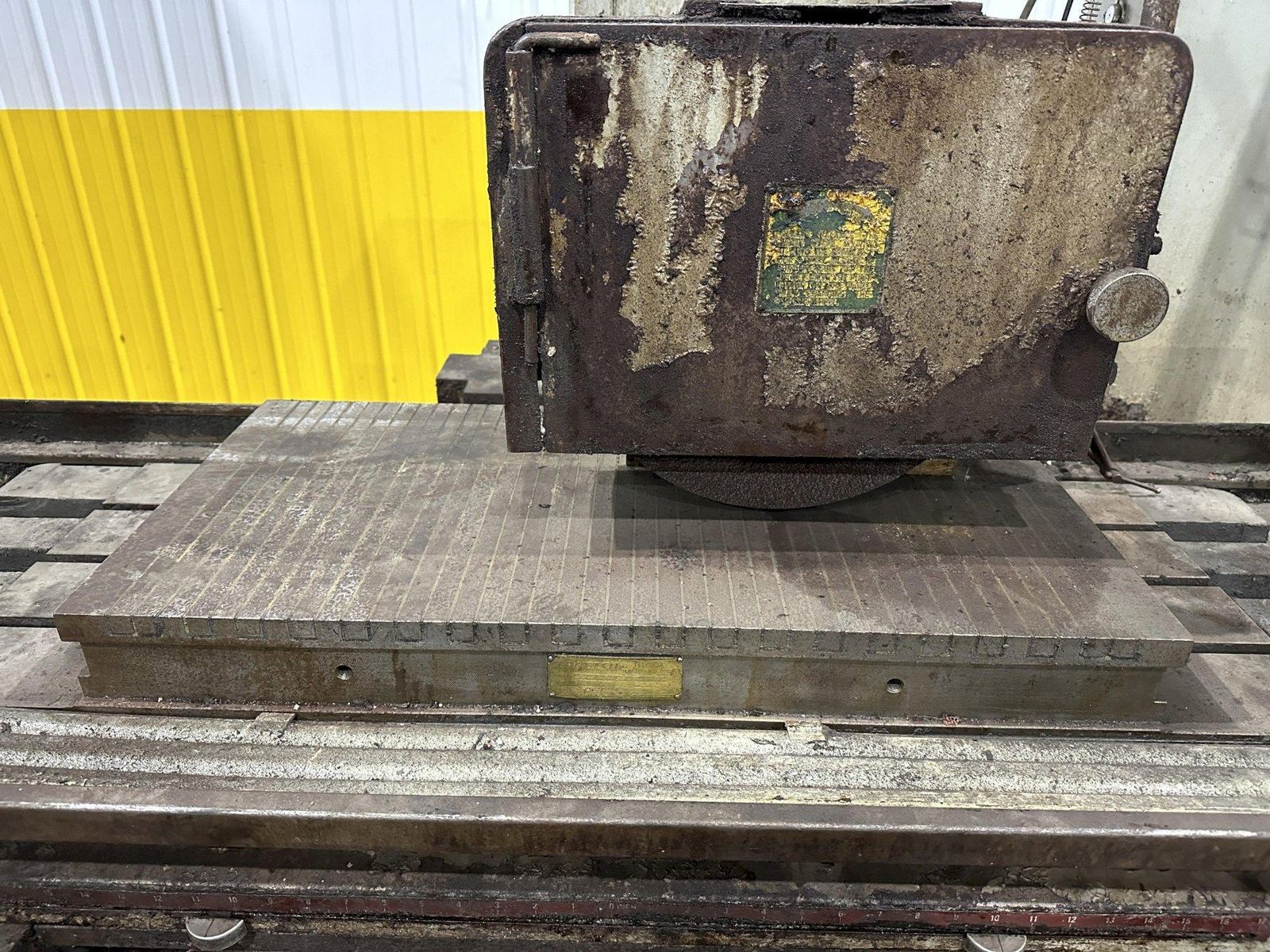

ELECTRO-MAGNETIC CHUCK SIZE ........... 32-3/8" X 15-3/4"
INCREMENTAL DOWNFEED .................. 0.00005" TO 0.002"
AUTOMATIC CROSSFEED ................... 0.005 IPR
POWER ELEVATION ....................... 12 FPM

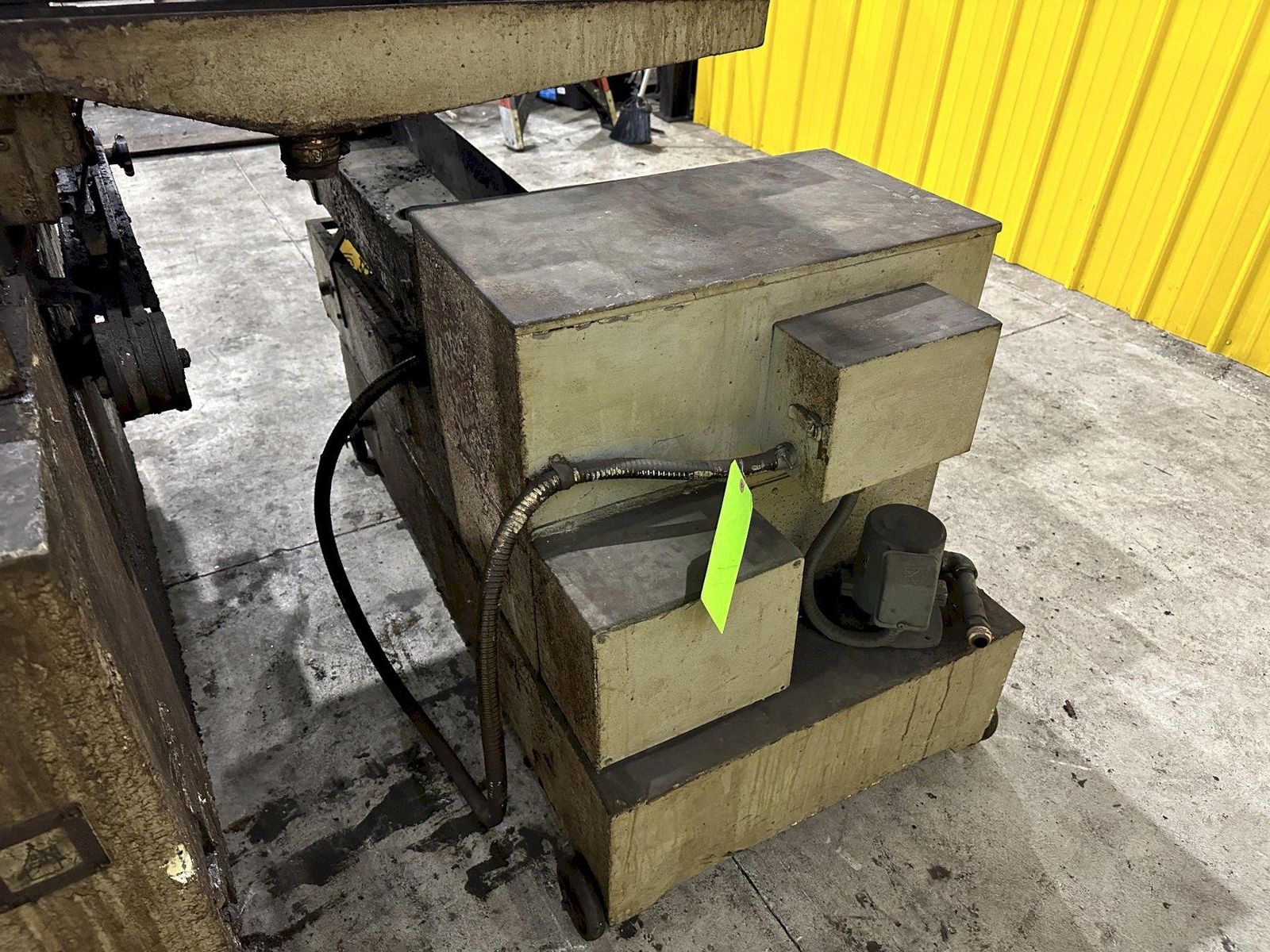

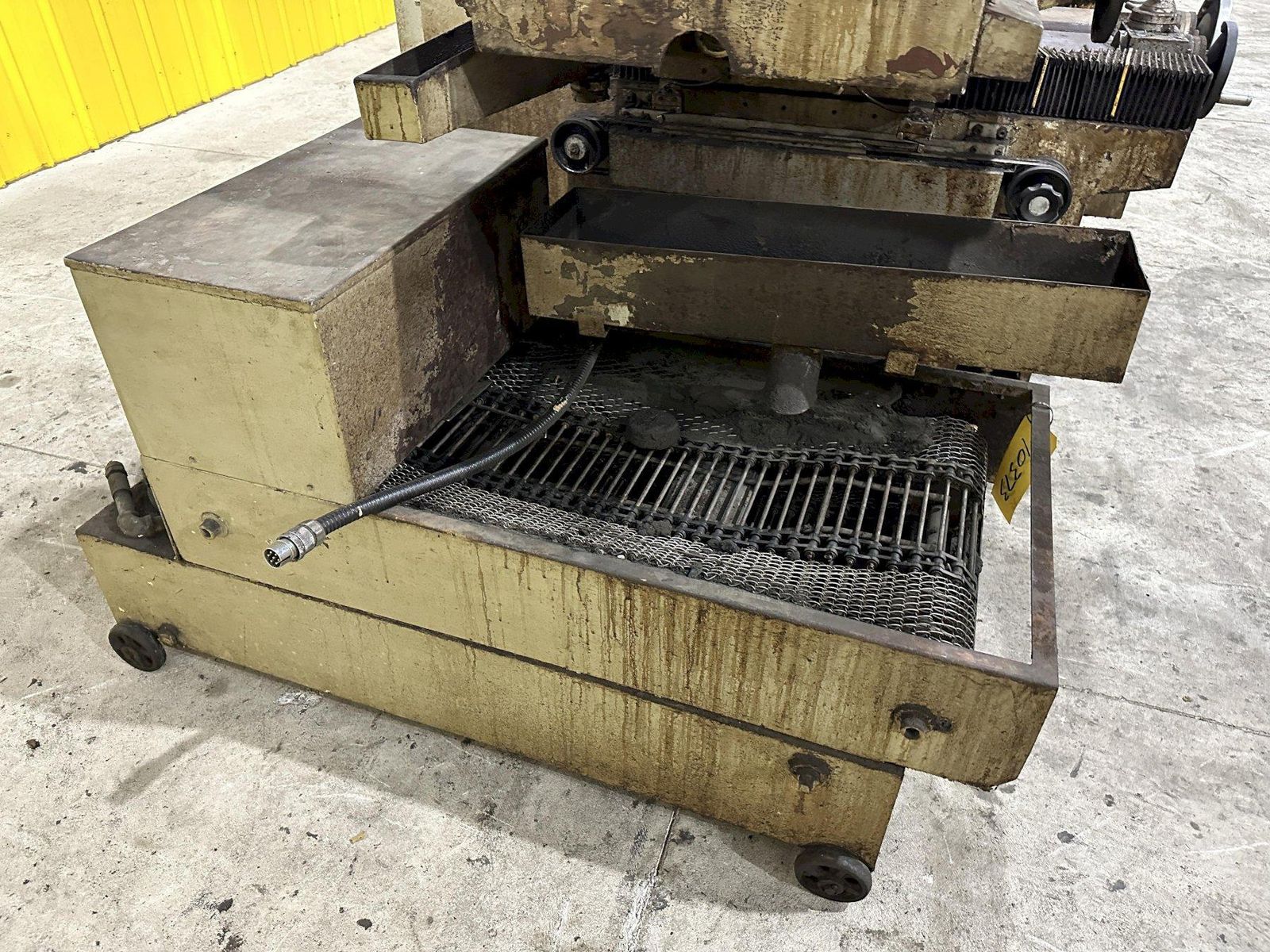

COOLANT W/PAPER FILTRATION ............ YES

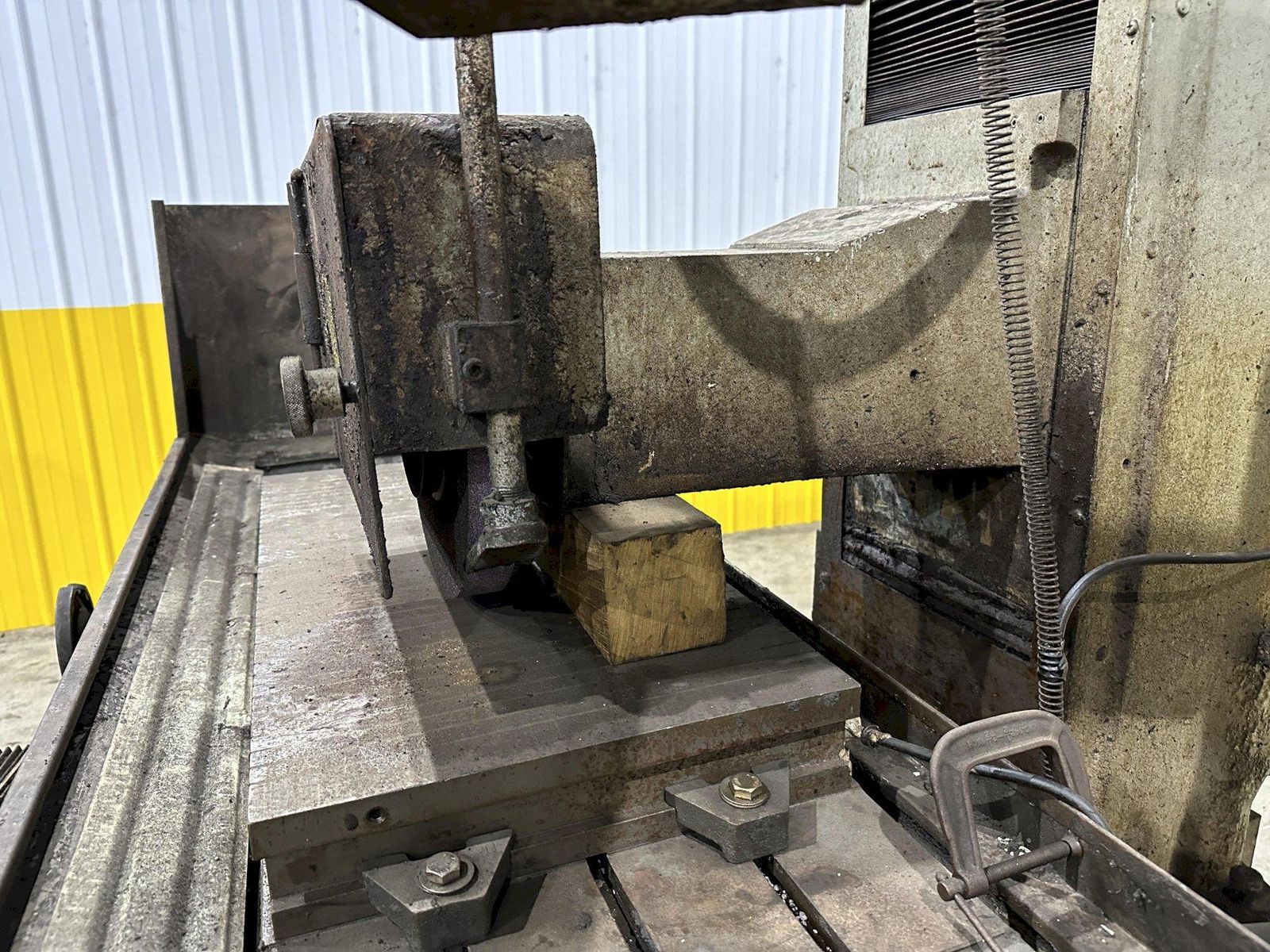

OVER THE WHEEL DRESSER ................ YES

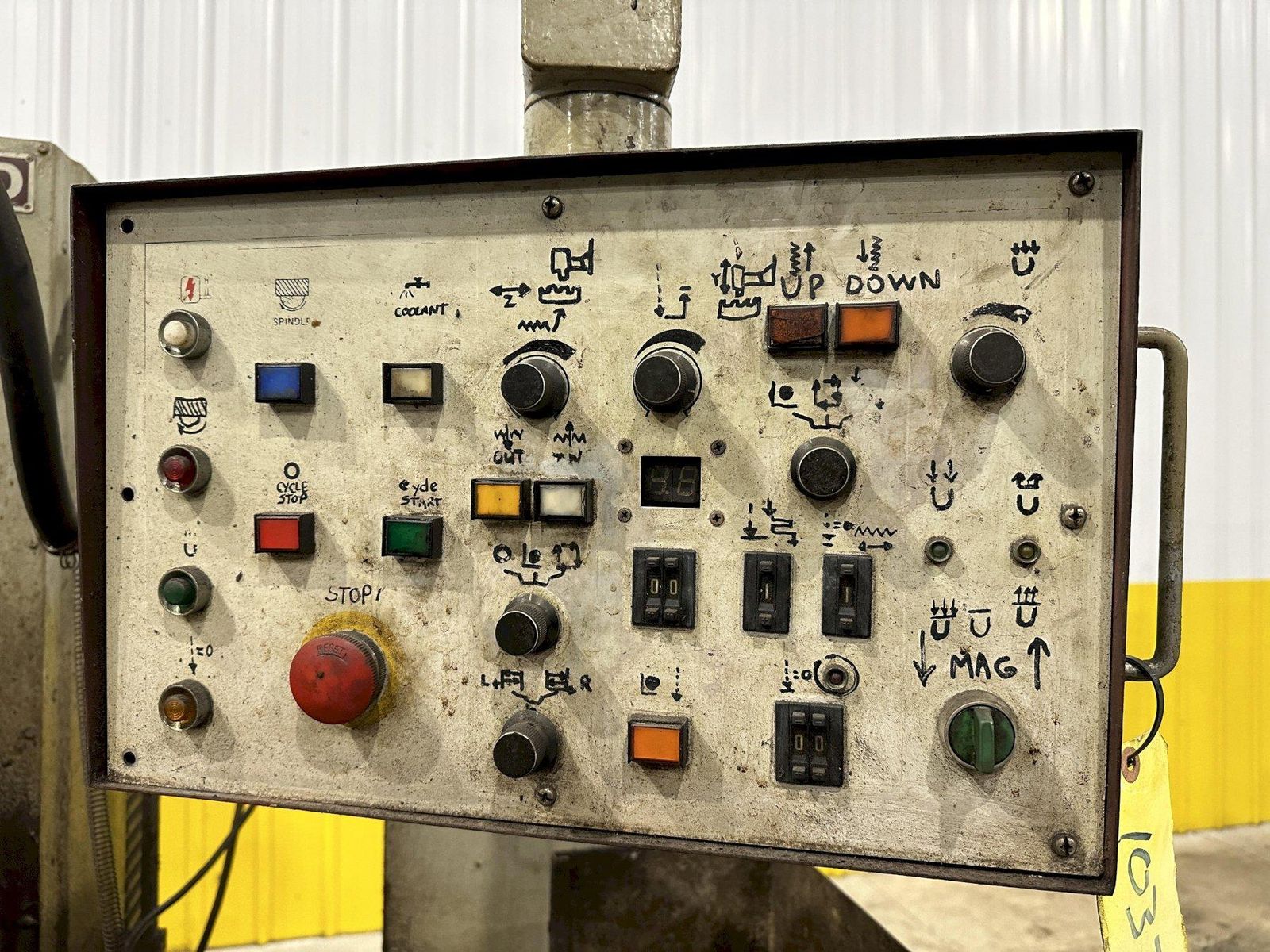

ELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YES
SPINDLE MOTOR ......................... 5 HORSEPOWER
HYDRAULIC MOTOR ....................... 2 HORSEPOWER

Specifications
Incremental Downfeed yes
Chuck Size 16 X 32
Spindle (Horz/Vert) horizontal
X-Axis Travel 35 inches
Y-Axis Travel 18 inches
Z-Axis Travel 24 inches
Main Motor 5
Grinding Wheel Speed RPM 3450
Table-W 16 inches
Table-L 32 inches
Power 5 horsepower
Grinding Wheel Width 2 inches
Grinding Wheel Dia. 14 inches

16" x 32" CHEVALIER MODEL #FSG-1632AD HORIZONTAL SURFACE GRINDER: STOCK #10373

Brand
CHEVALIER

Type
Grinders, Surface, Recip.

Stock No.
10373
