NEW ........................... 1998
OVERALL BENDING LENGTH ........ 198"
BENDING CAPACITY .............. 0.158"
BACK GAUGE DEPTH .............. 157"
SMALLEST INNER BEND RADIUS .... 1.5 x Thickness
MIN FLANGE HEIGHT ............ 7 x Thickness
CLAMPING BEAM PROFILE ......... 45 Degrees
STROKE ........................ 19.69"
FOLDING BEAM ADJUSTMENT ....... 3.15"
ACCURACY ...................... +/- 0.5 Degrees
RANGE ......................... 0 – 180 Degrees
BACK GAUGE ACCURACY ........... +/- 0.004"
MOTOR - UPPER BEAM ............ 4.1 HP 3/60
LOWER BEAM .................... 10 HP 3/60
EQUIPPED WITH:
DELEM FM 200 BH CNC CONTROLLER
DUAL DRIVES
BACK GAUGE

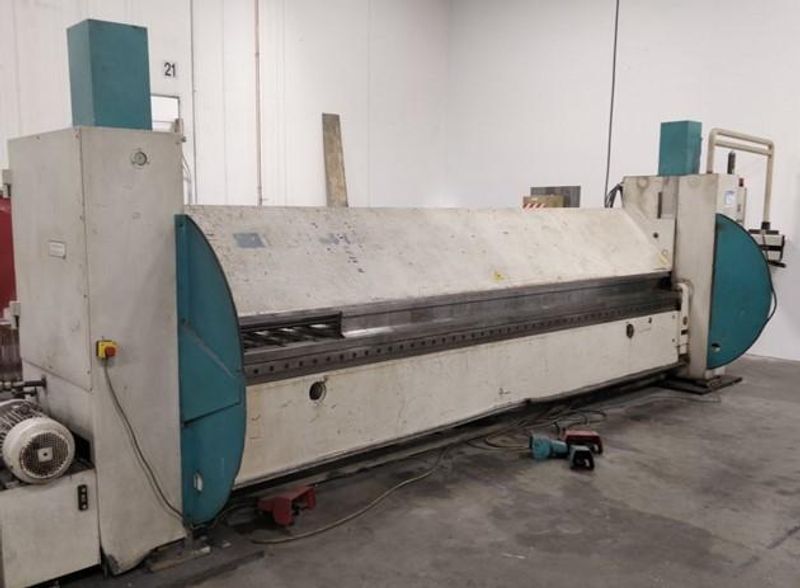

Brand
FASTI
Type
Folding Machines
Stock No.
15556
 |
