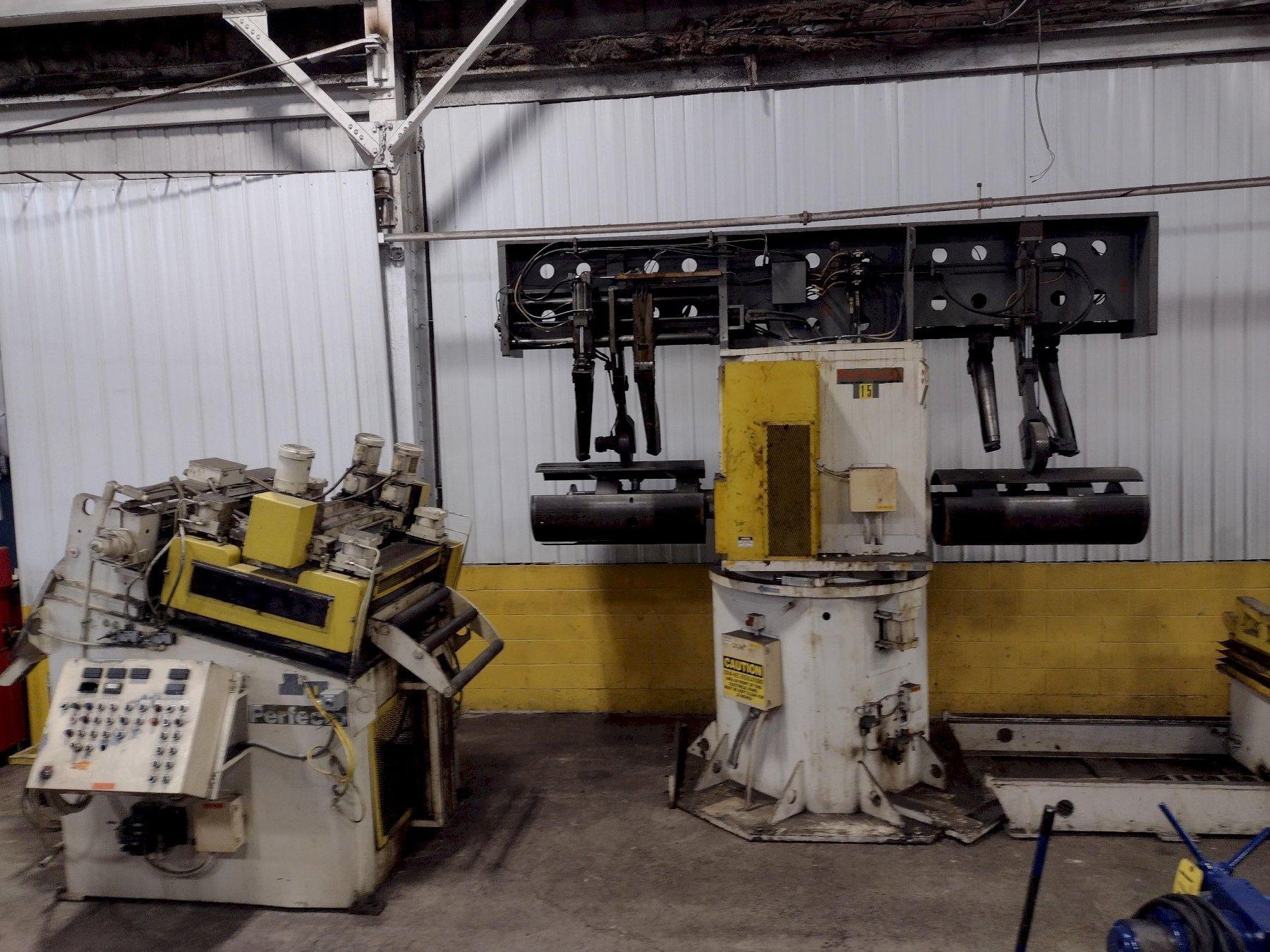

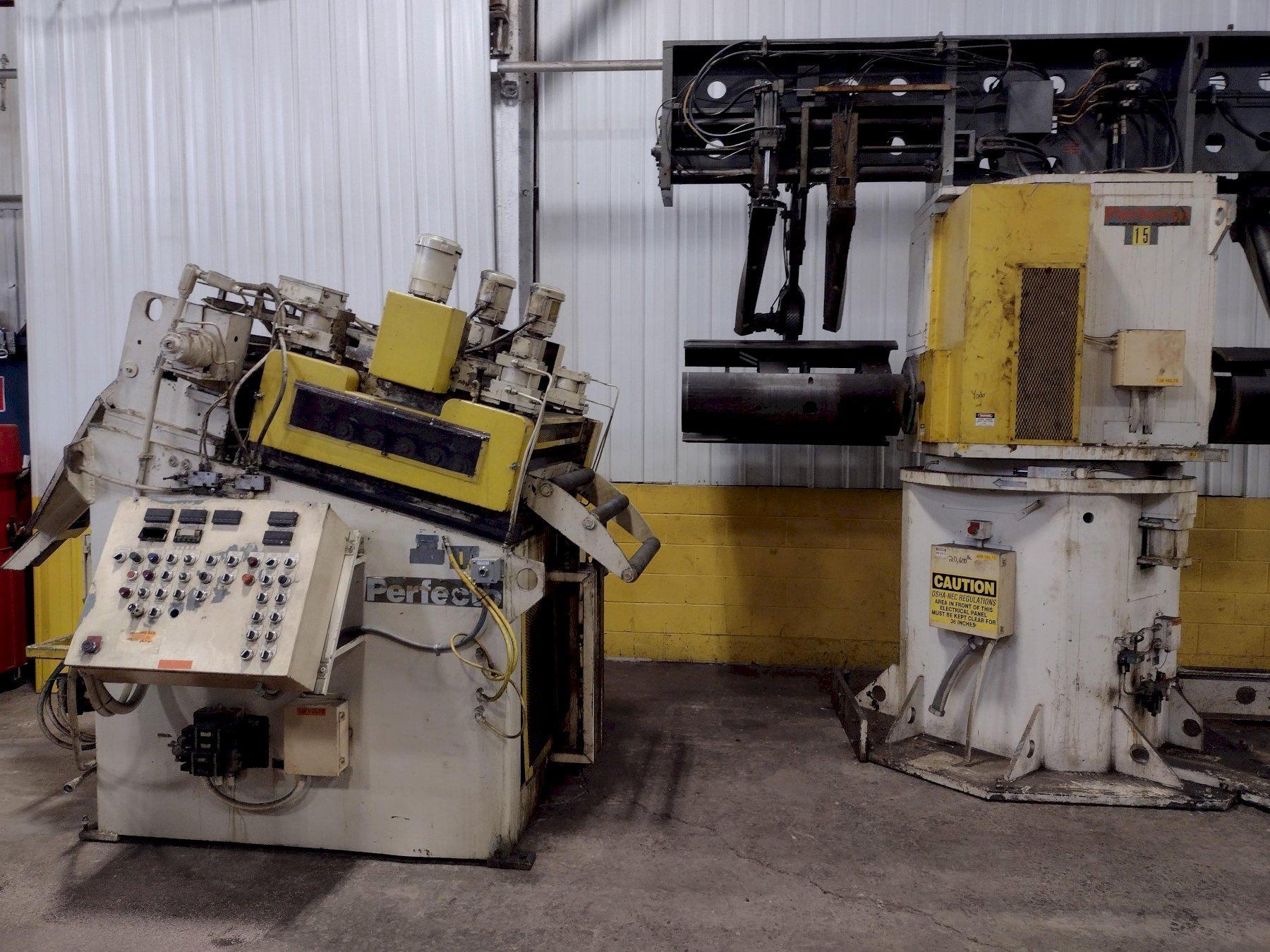

15,000 LB X 36" X 1/4" PERFECTO COIL REEL, CAR & STRAIGHTENER: STOCK #18400

Overview

SERIAL ..................... 93128

NEW ........................ 1993

MODEL ...................... RD15436 / 38-36-7 COIL

WEIGHT CAPACITY ............ 15,000 LBS

COIL WIDTH CAPACITY ........ 36"

STOCK THICKNESS CAPACITY ... .250" x 36"

STOCK THICKNESS CAPACITY ... .375" x 16"

EXPANSION RANGE ............ 20" - 24"

COIL OD CAPACITY ........... 72"

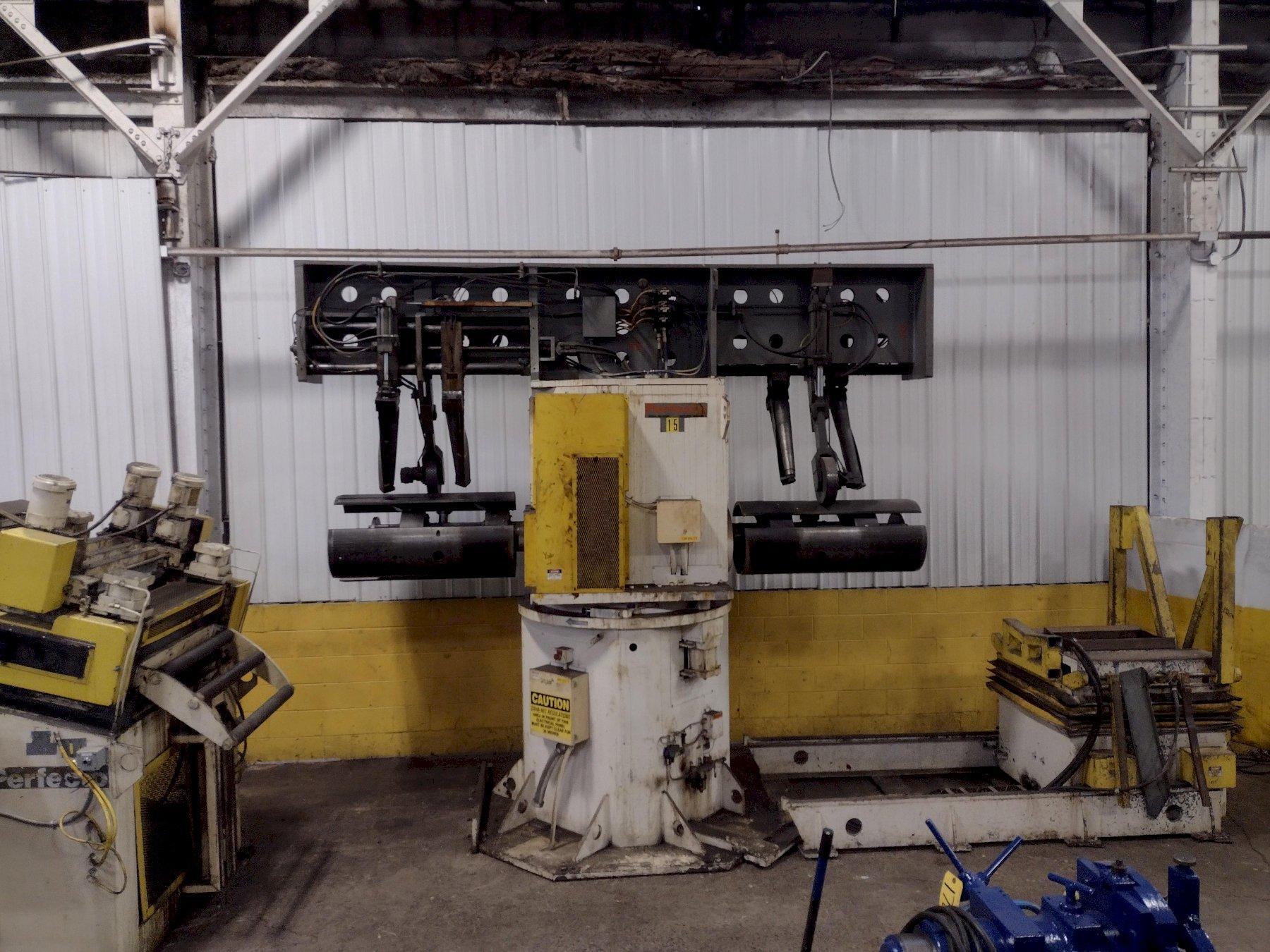

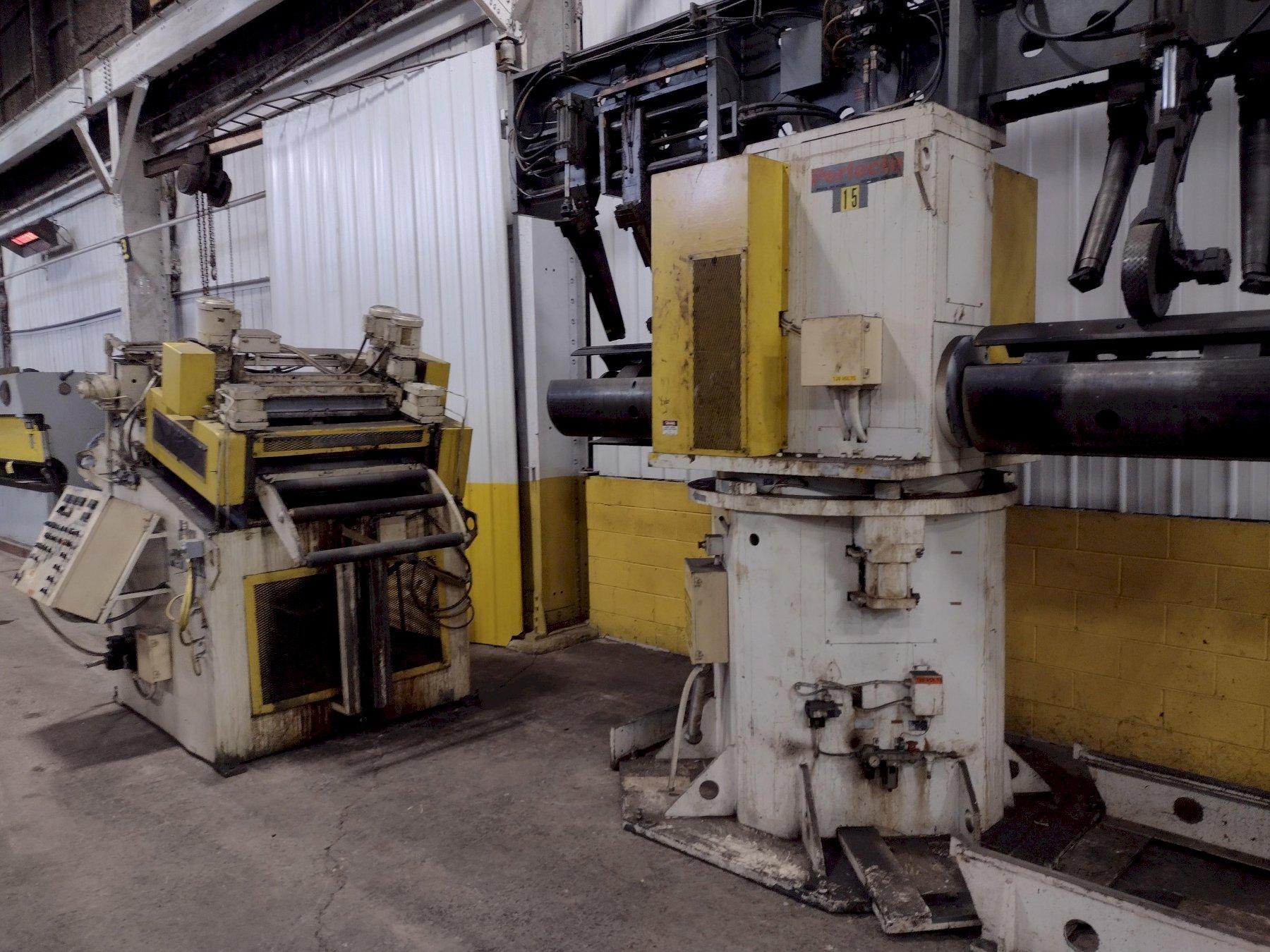

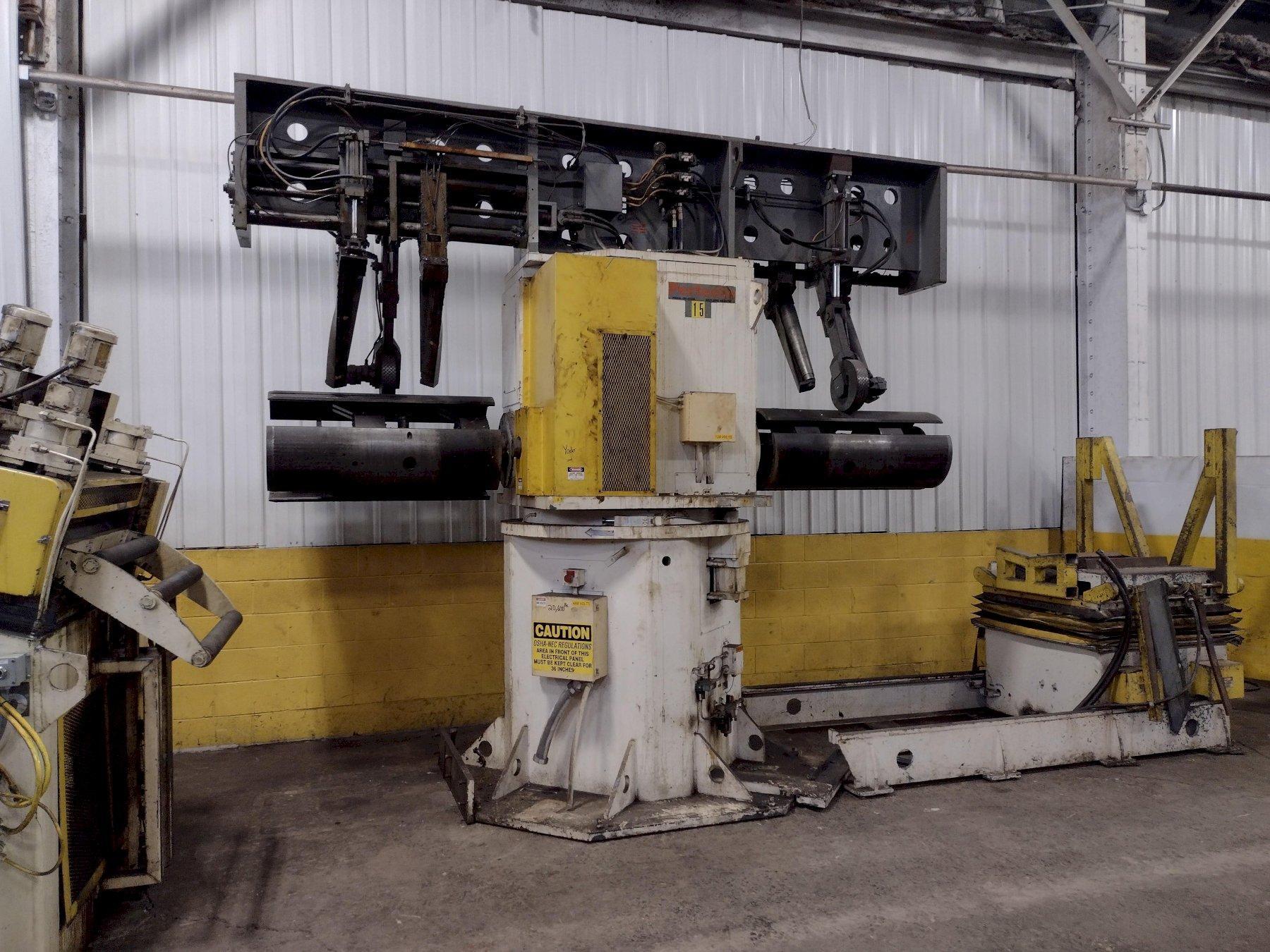

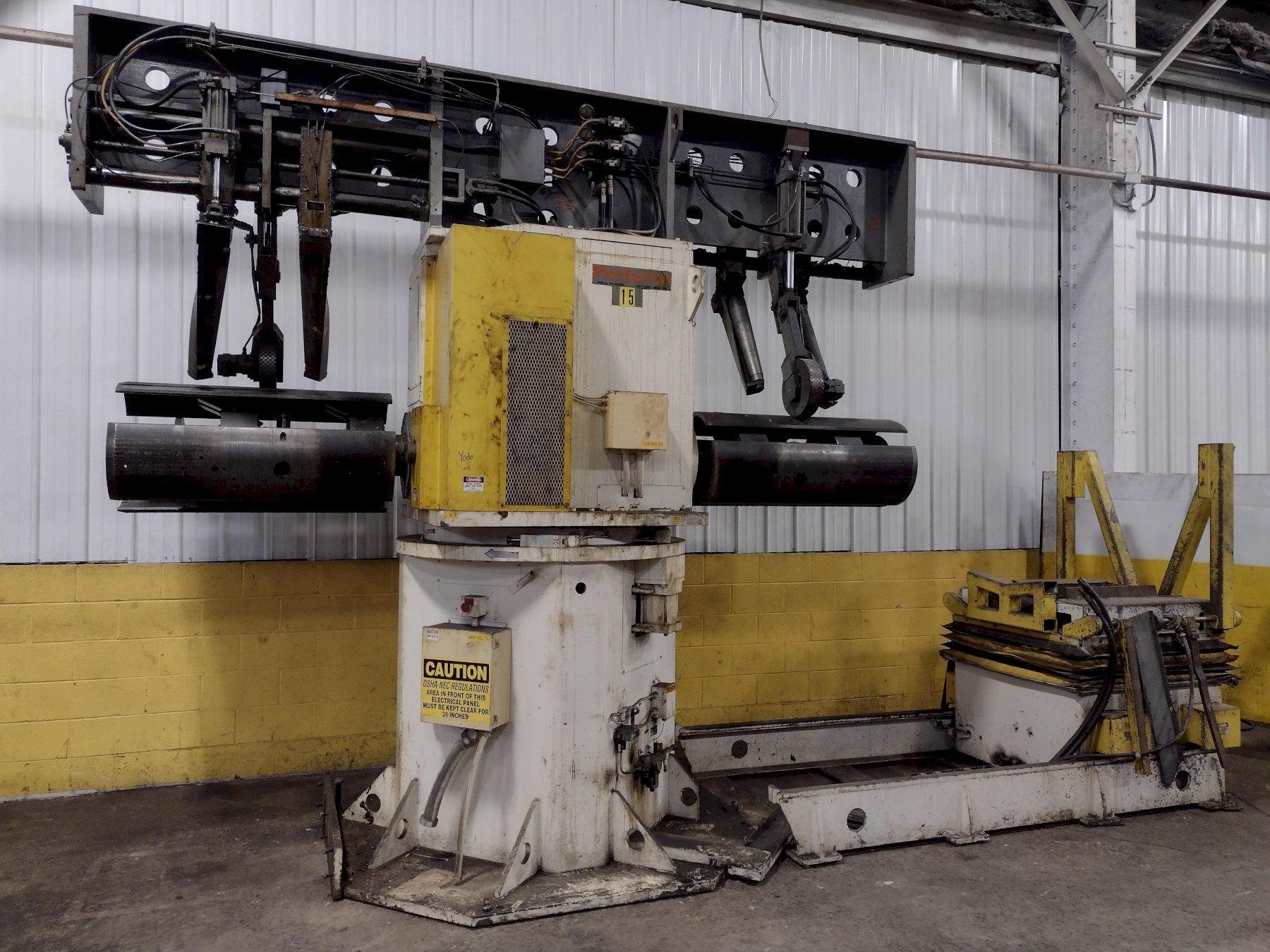

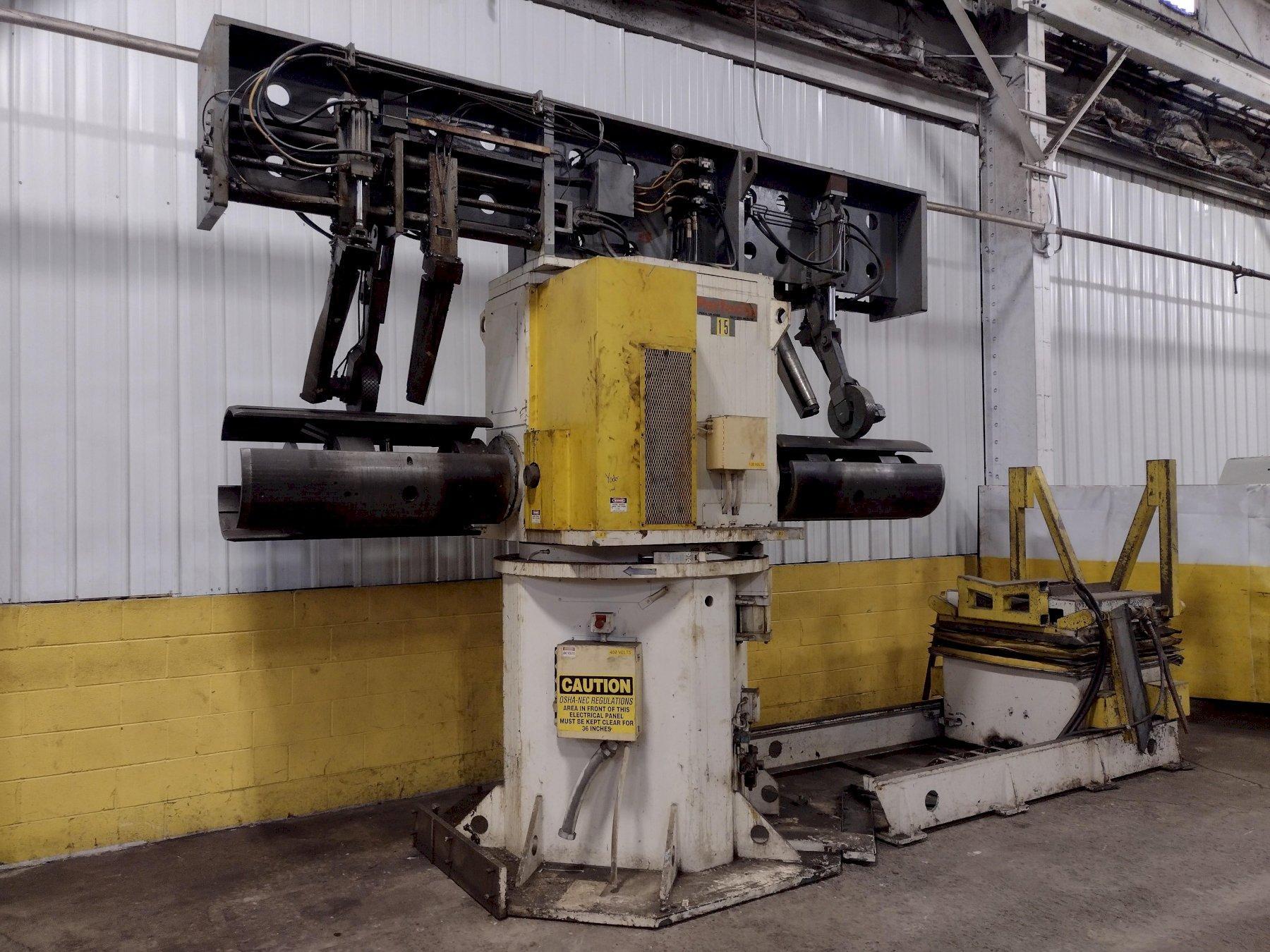

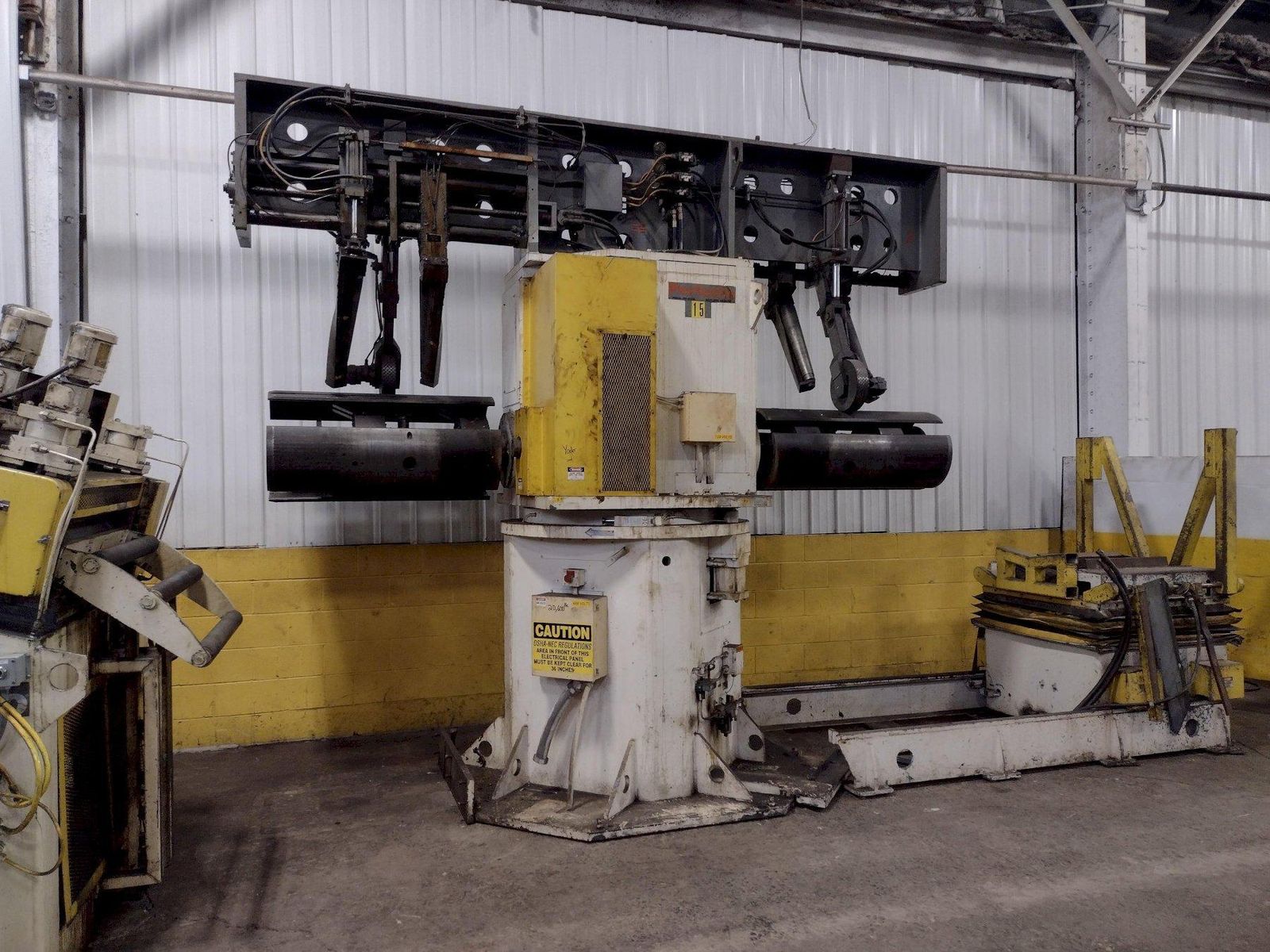

Perfecto Double End Pull Off Coil Reel Model No.: RD15436

Three leaf mandrels with hydraulic expansion

Threading drive for jog forward and reverse

Air brakes mounted on main spindle (adjustable tensioning)

Coil hold down arms with motorized end wheel

Powered coil guides (replaces manual coil keeper arms)

Powered turret rotation / indexing

Air shot pin for rotation lock

Self contained hydraulic pump unit

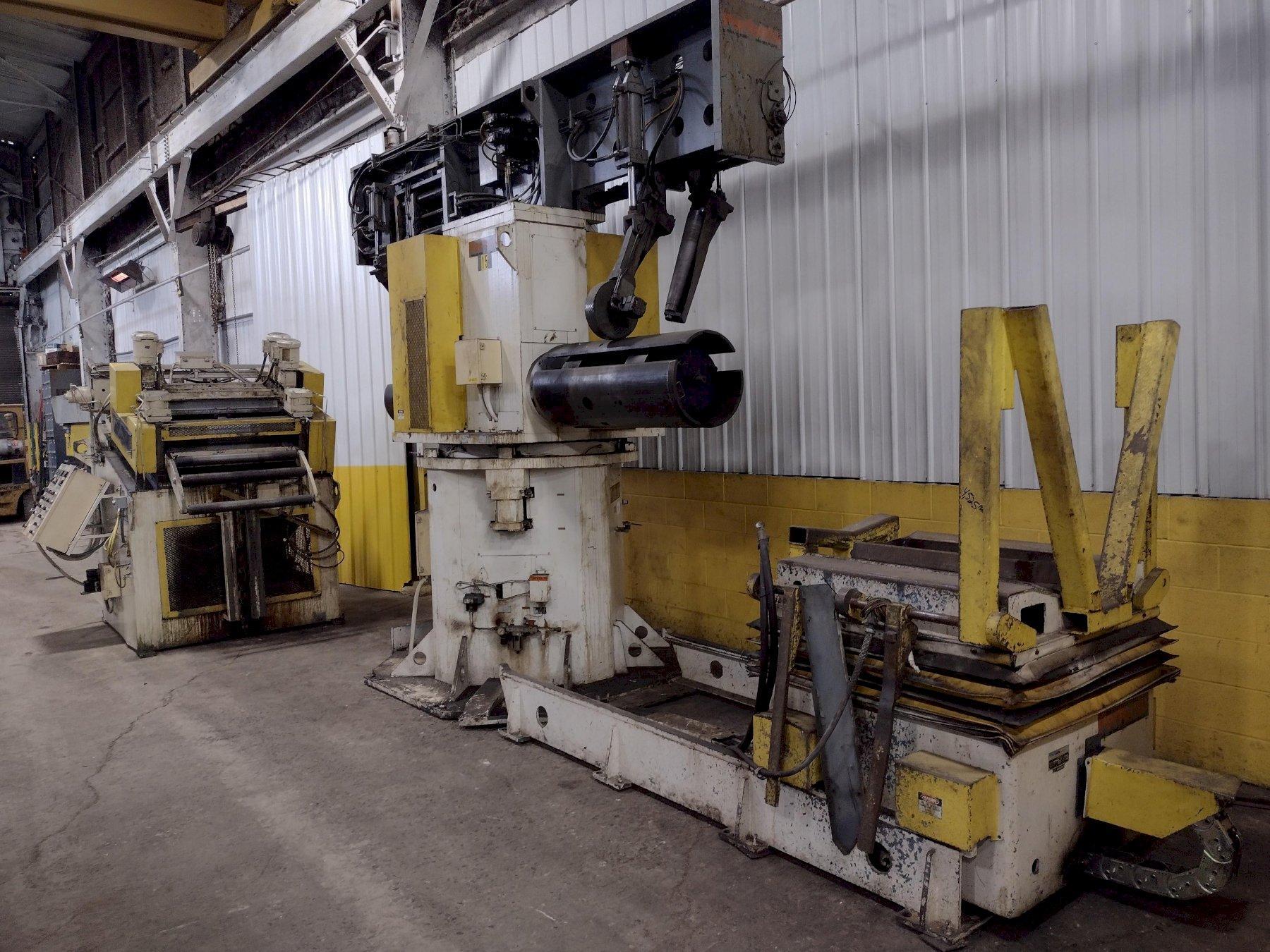

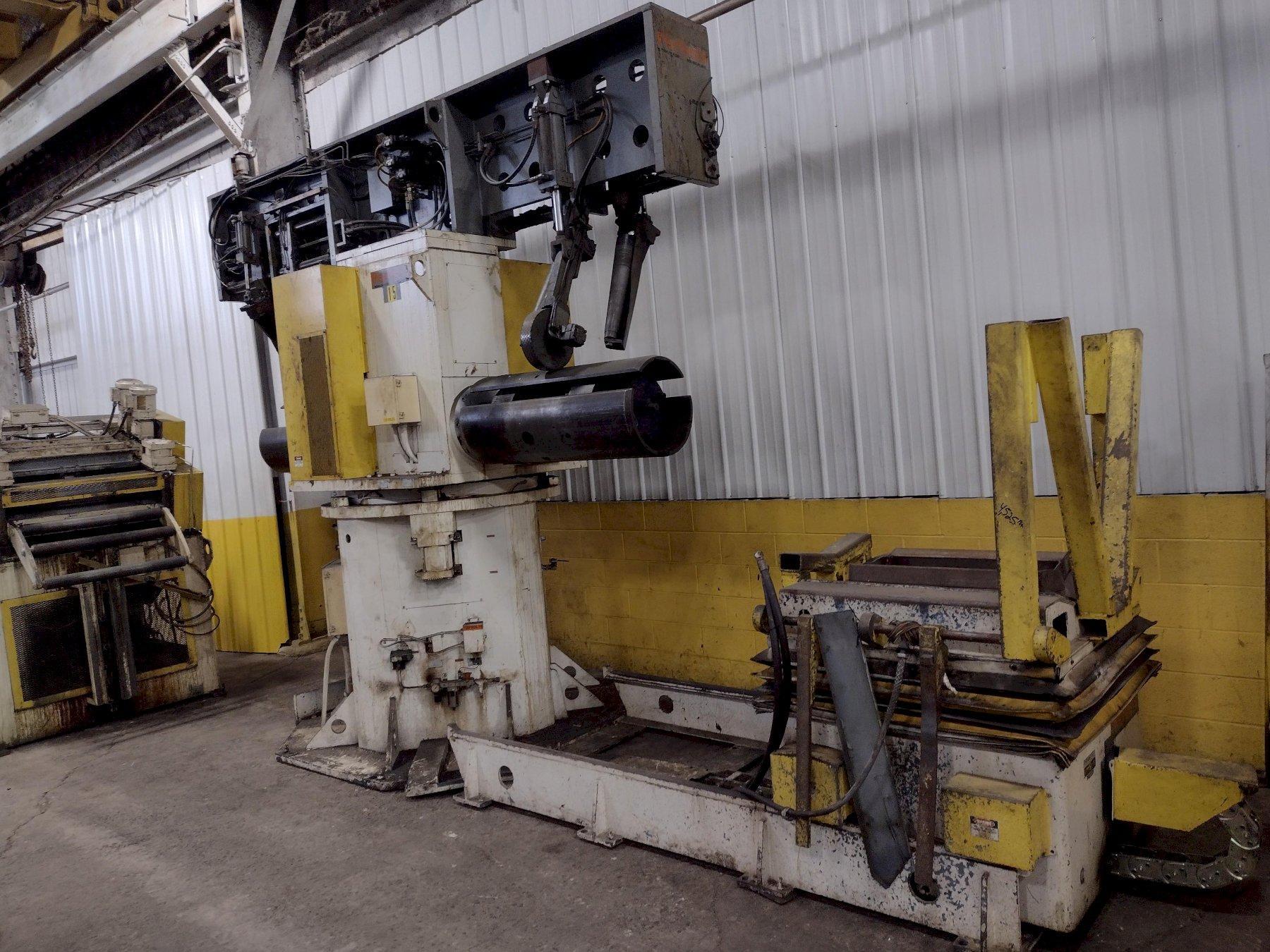

Perfecto Traveling Coil Load Car Model No.: LC-200

Powered lift and travel

Adjustable narrow coil supports

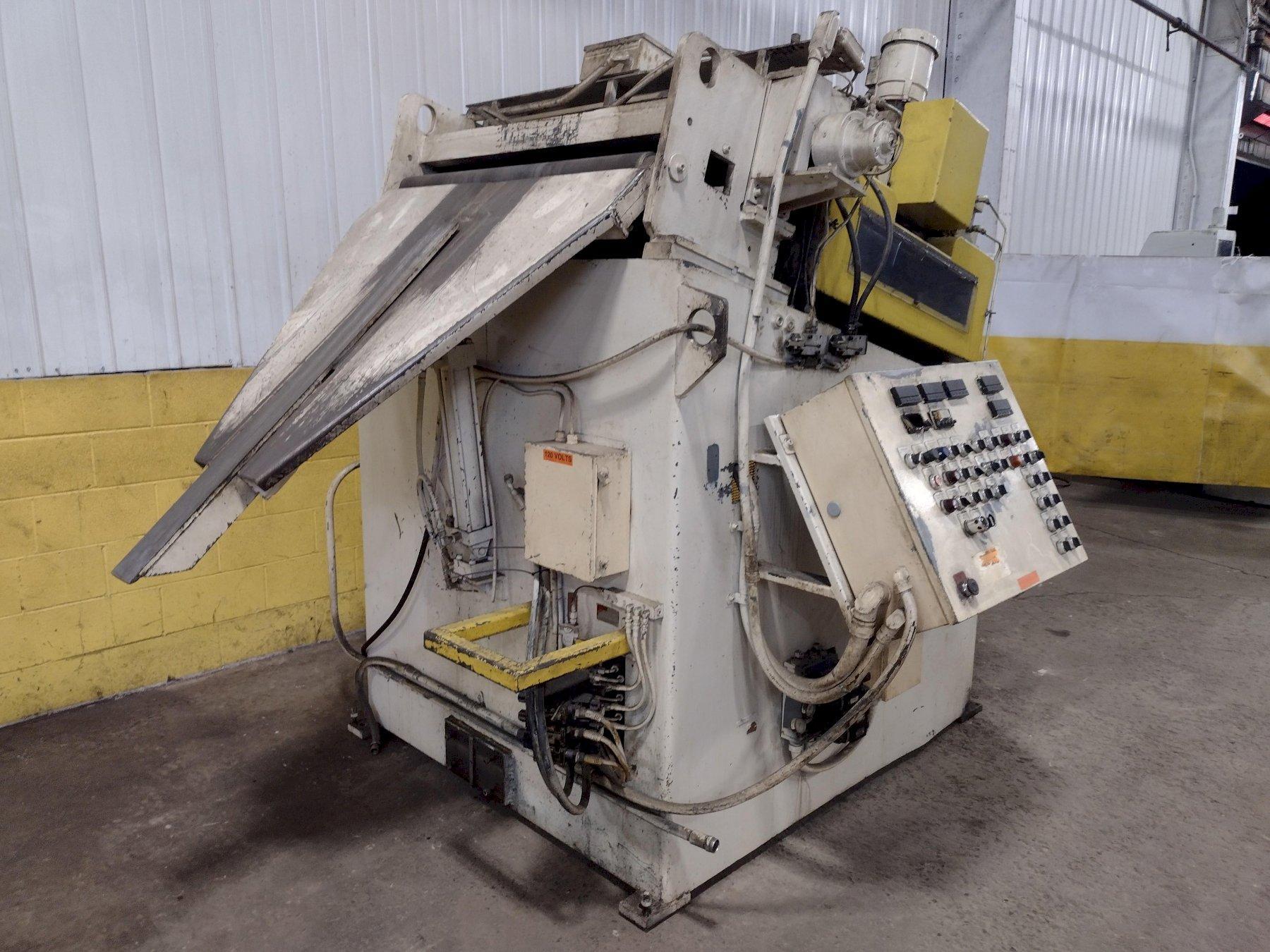

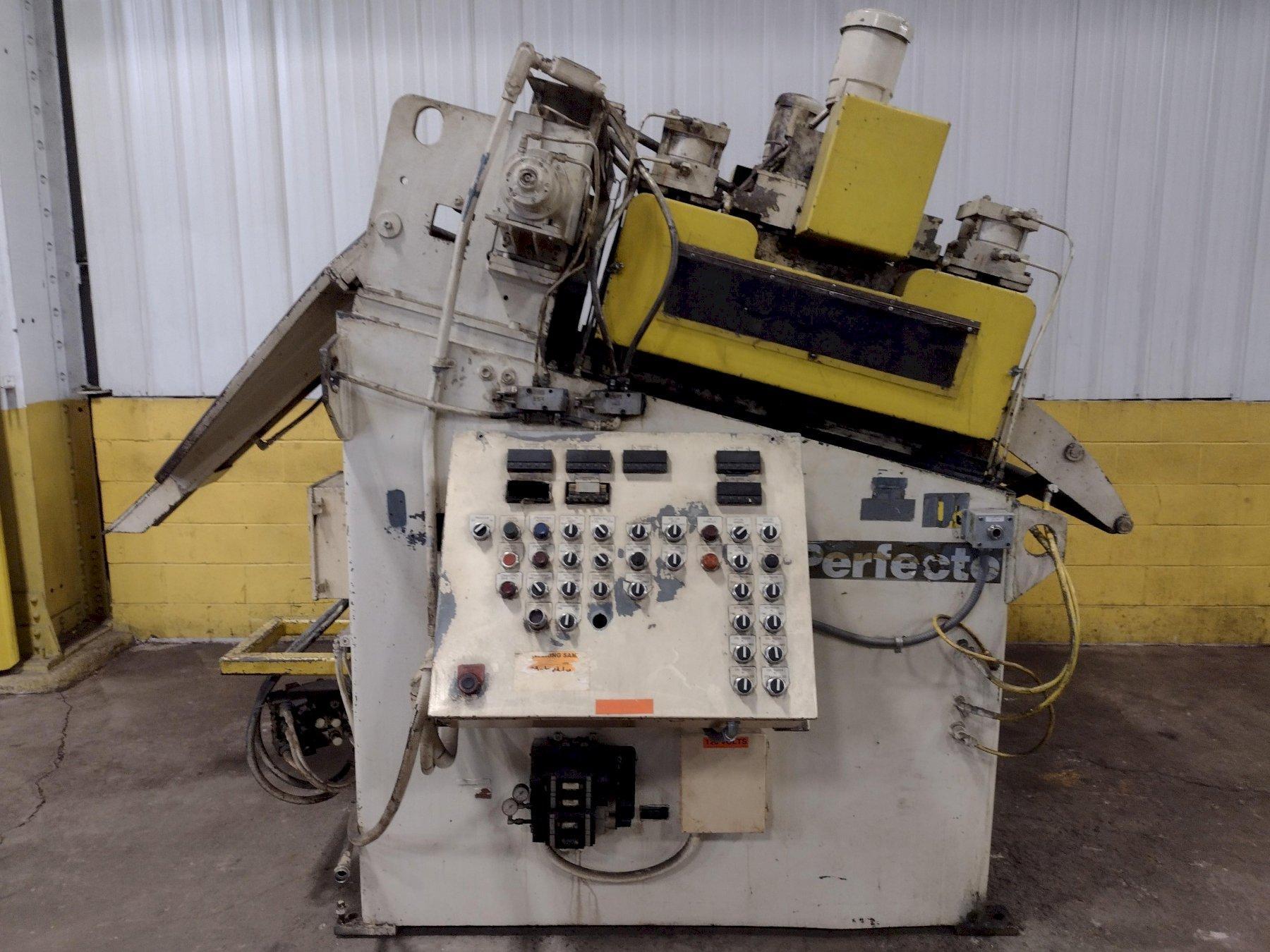

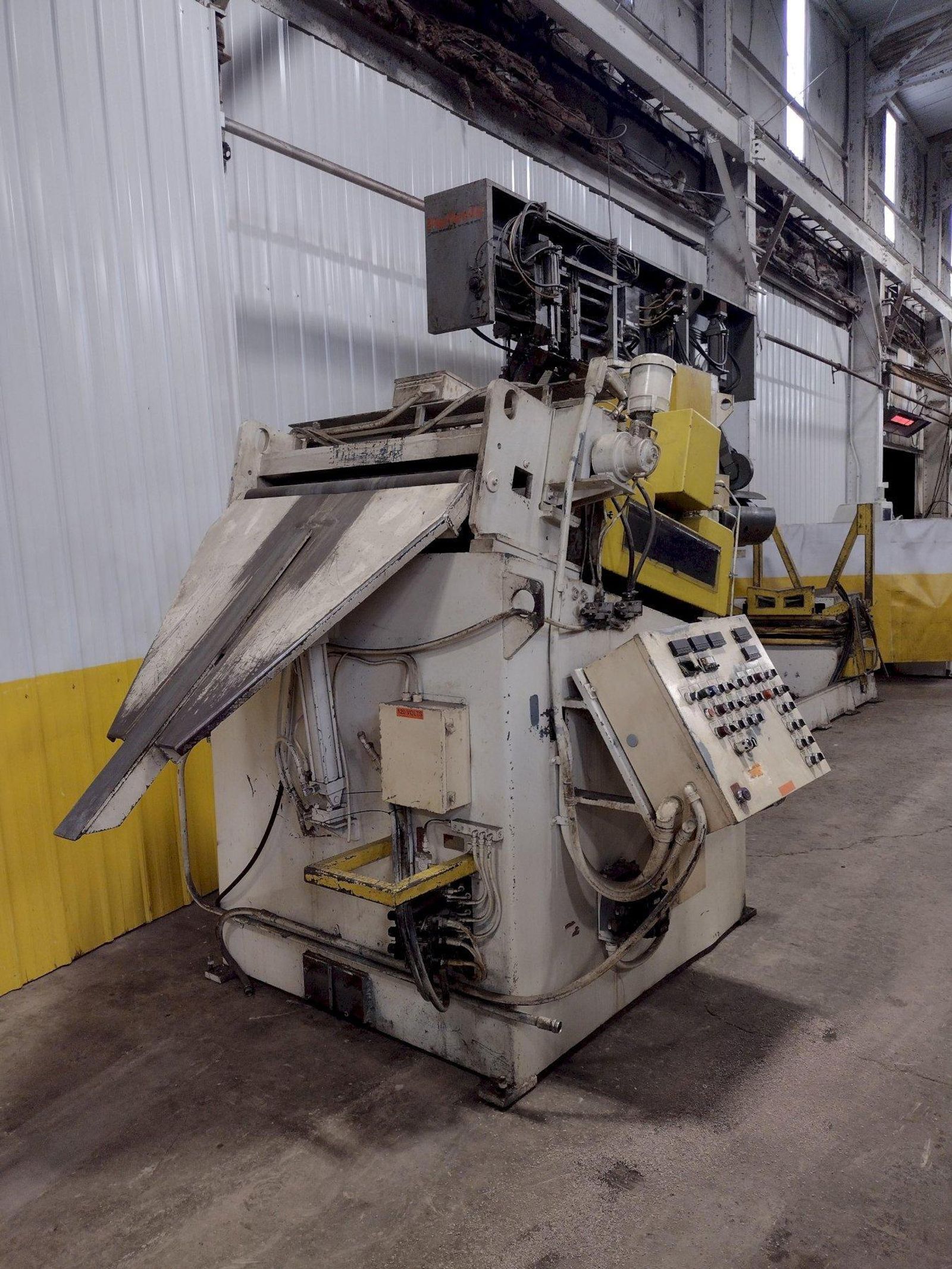

Perfecto Powered Coil Straightener Model No.: 38-36-7

Entry and exit pinch rolls with air operated adjustment

Seven straightening rolls x 3.8" diameter

Back up support rollers on straightening rolls

Motorized straightening roll adjustment

Motorized stock width edge guides

Stock peeler table with spade extension

Inclined head

Exit cascade loop support rollers

Variable speed drive

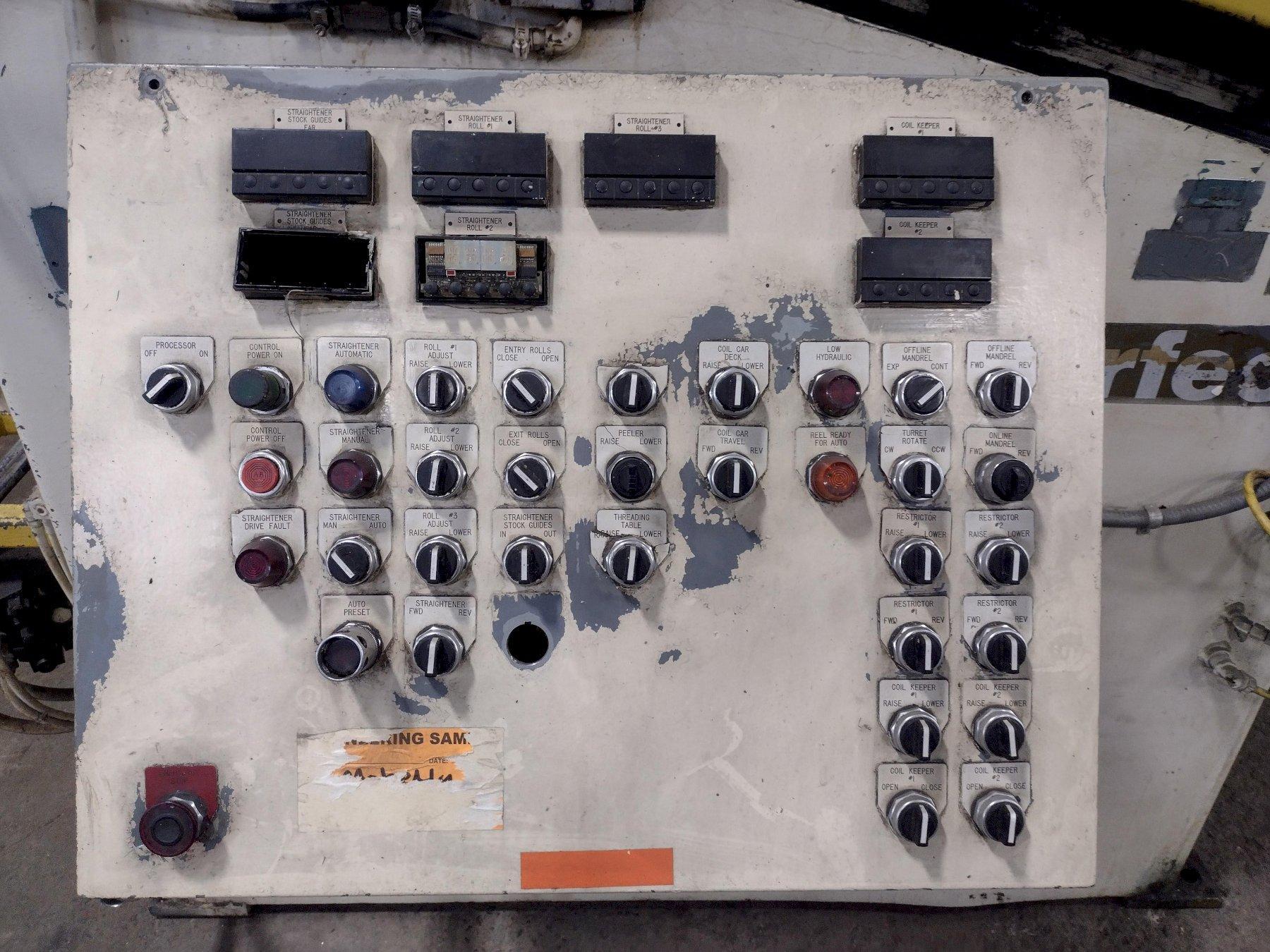

Operator's control station

Exit threading table for loop area
