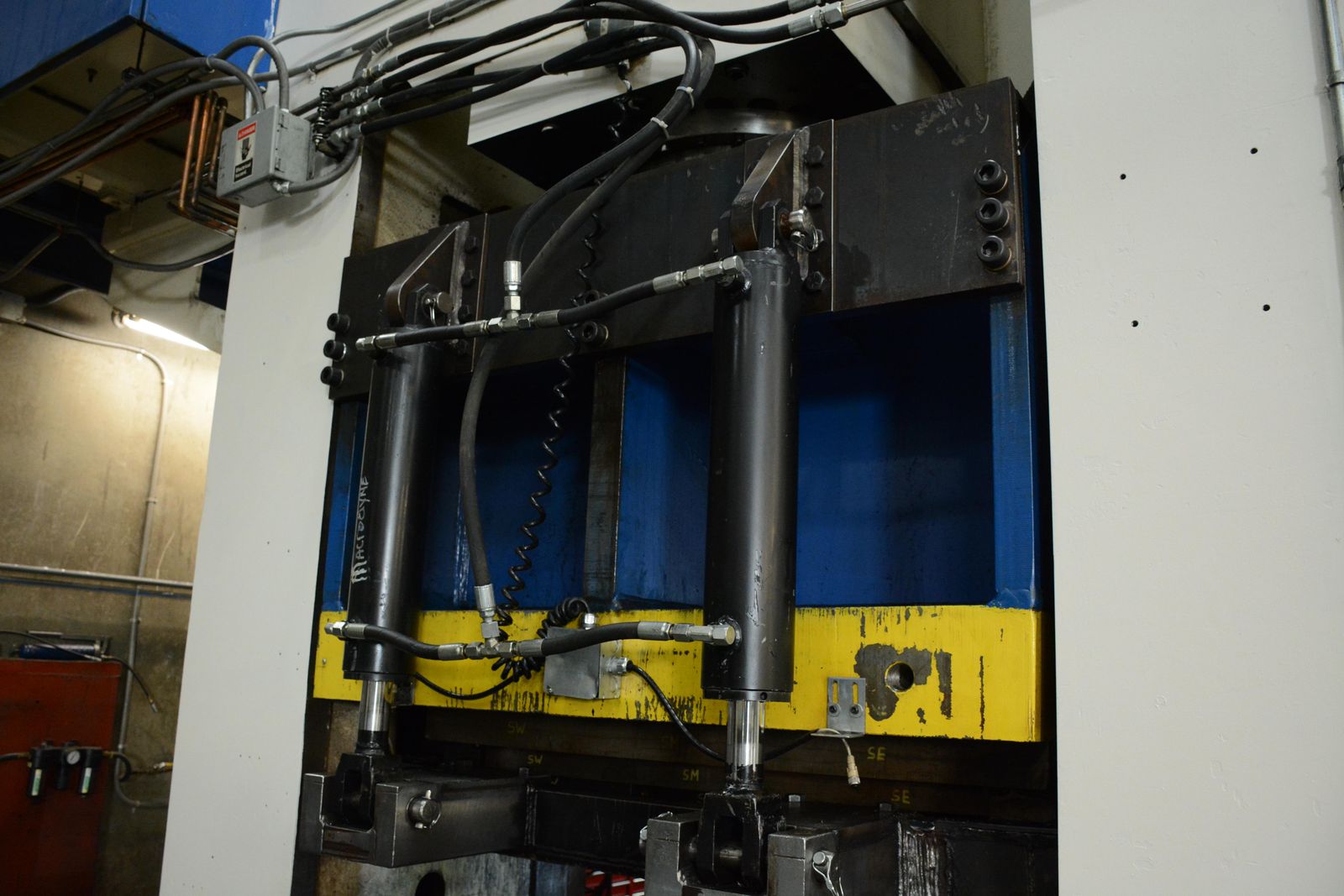

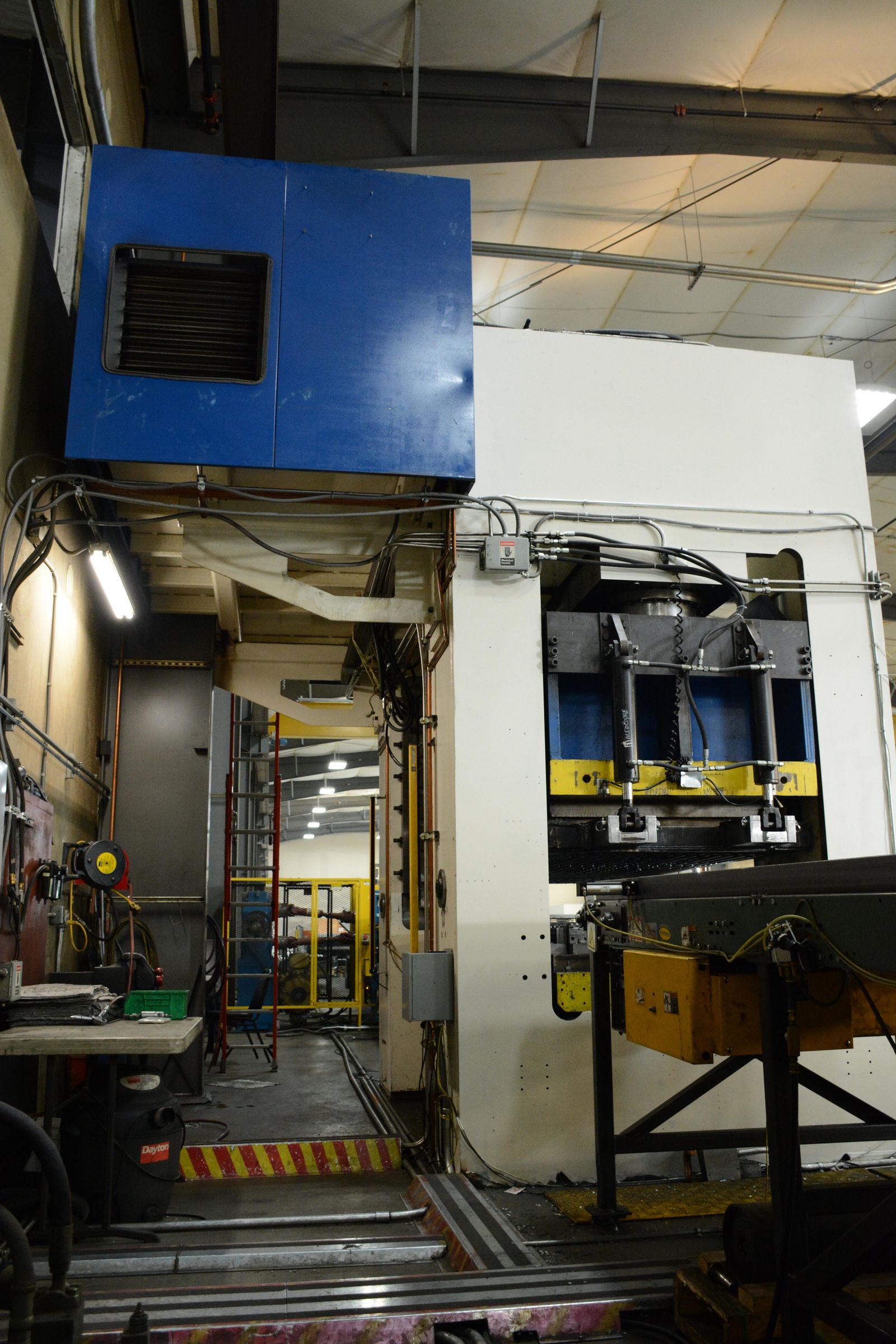

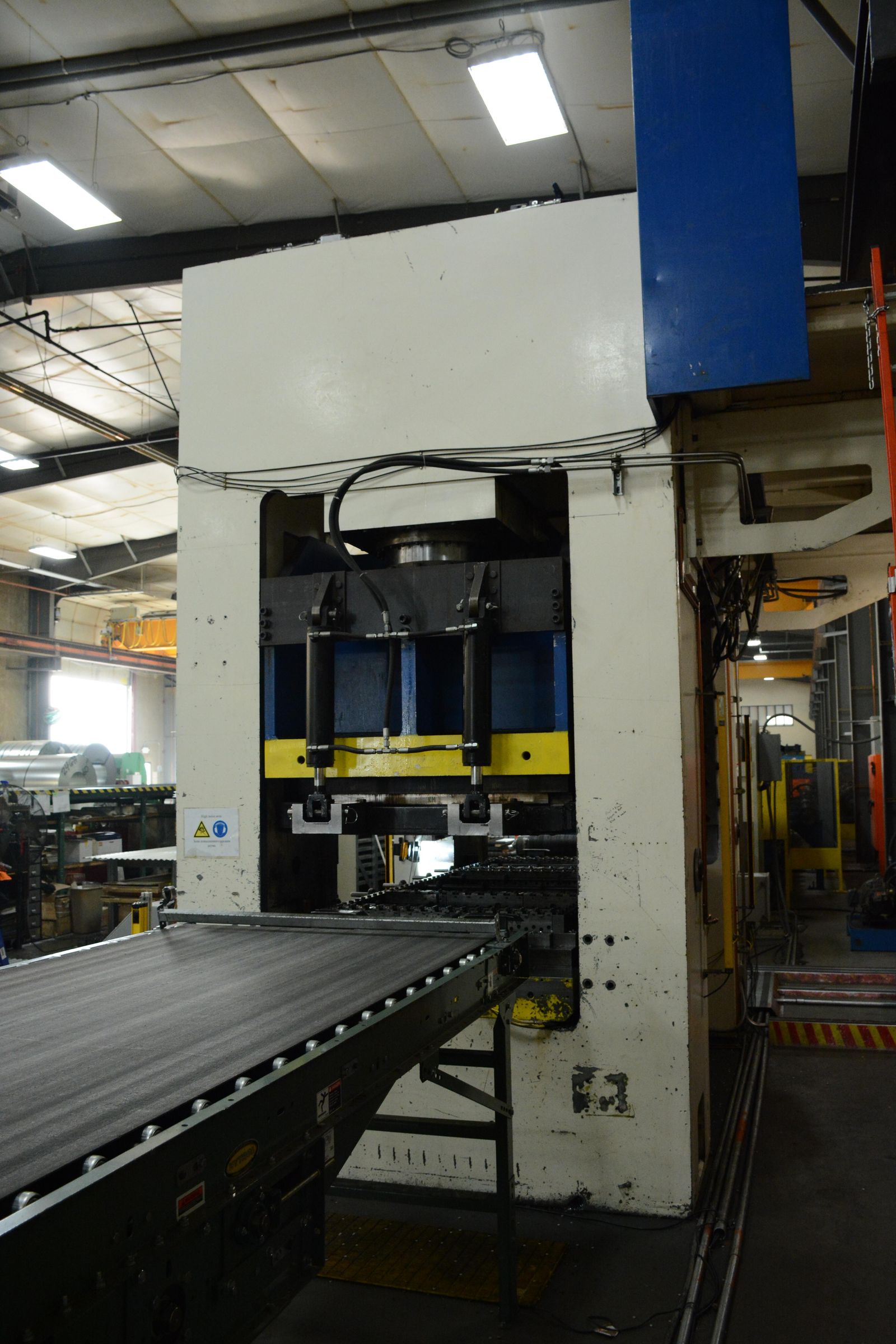

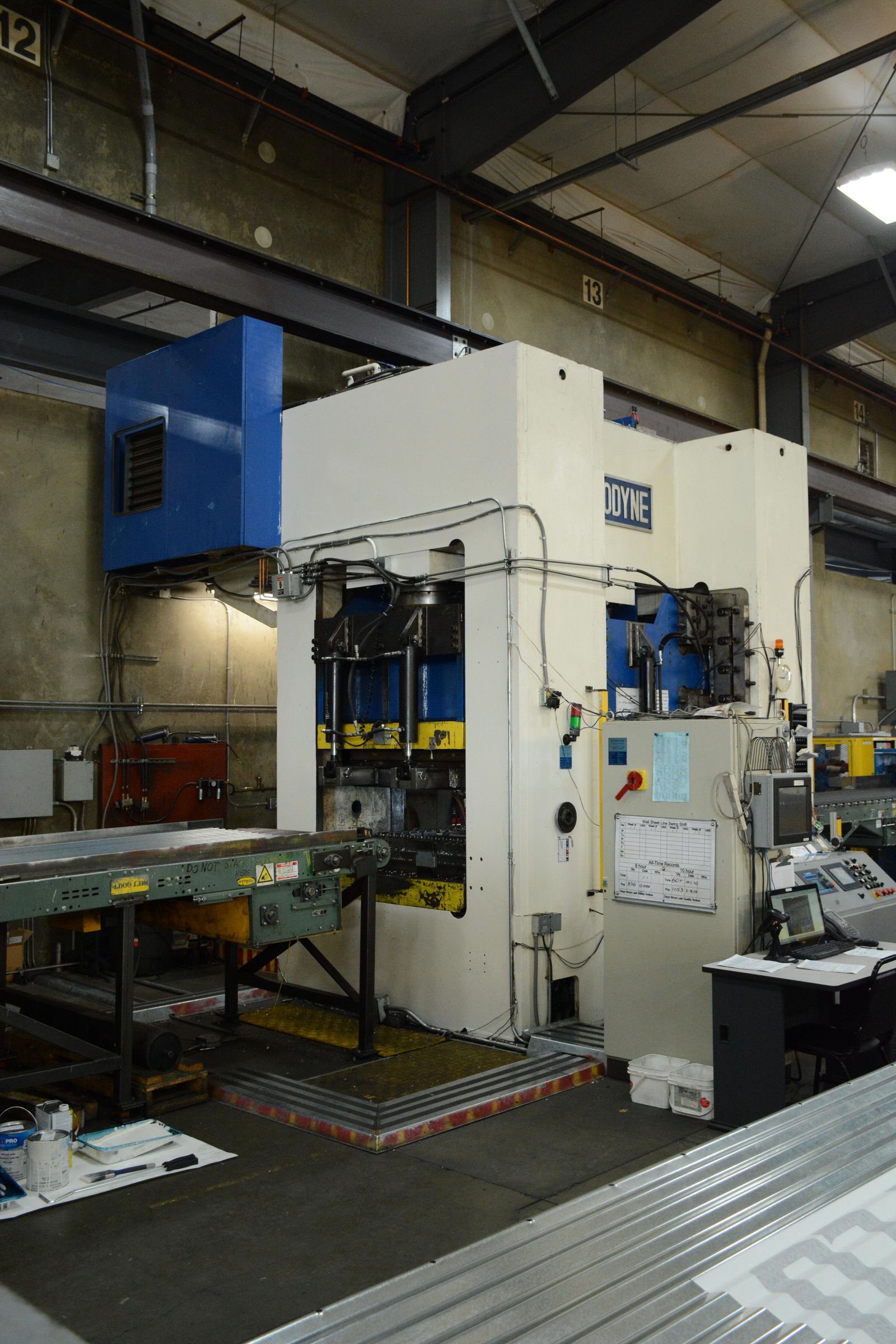

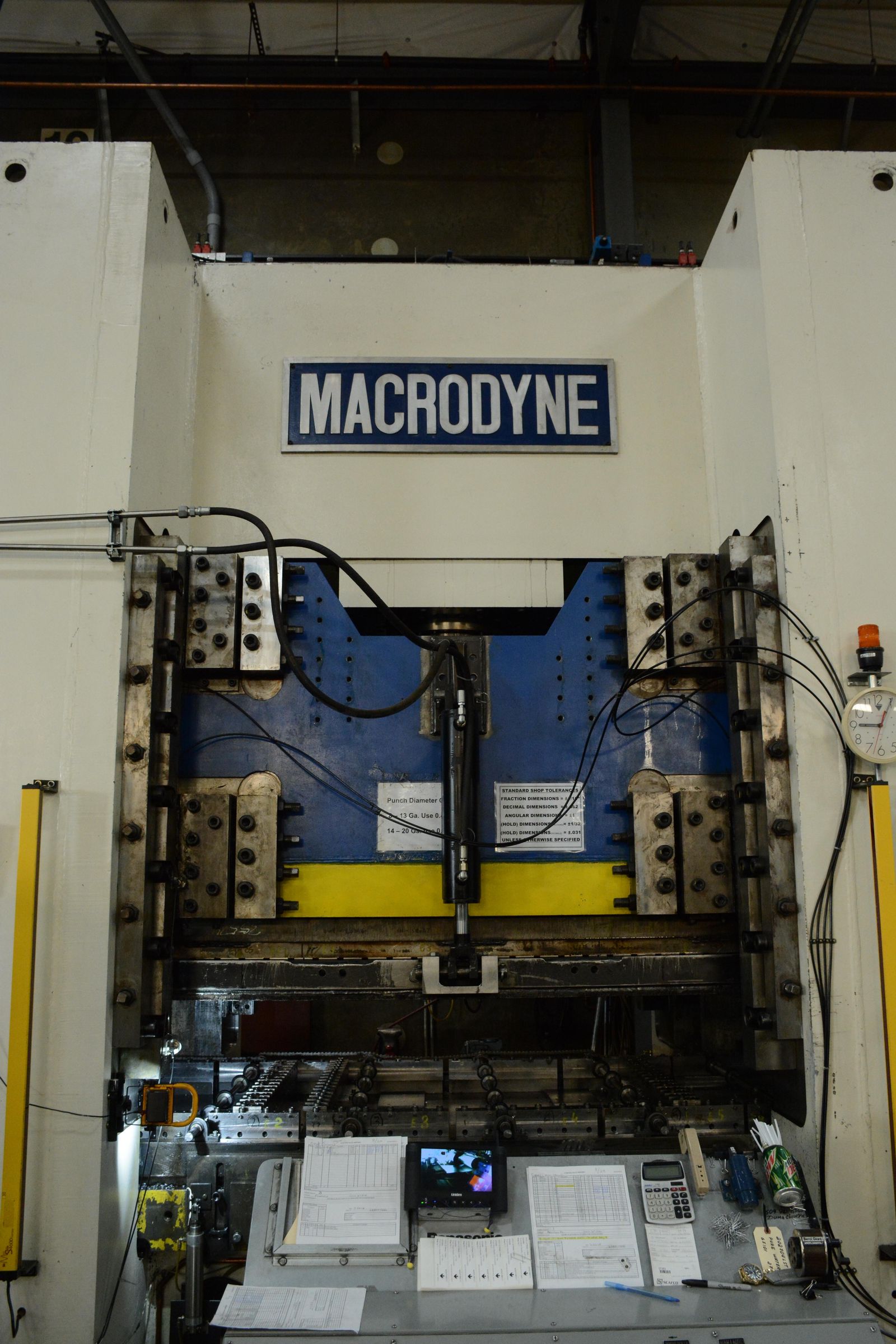

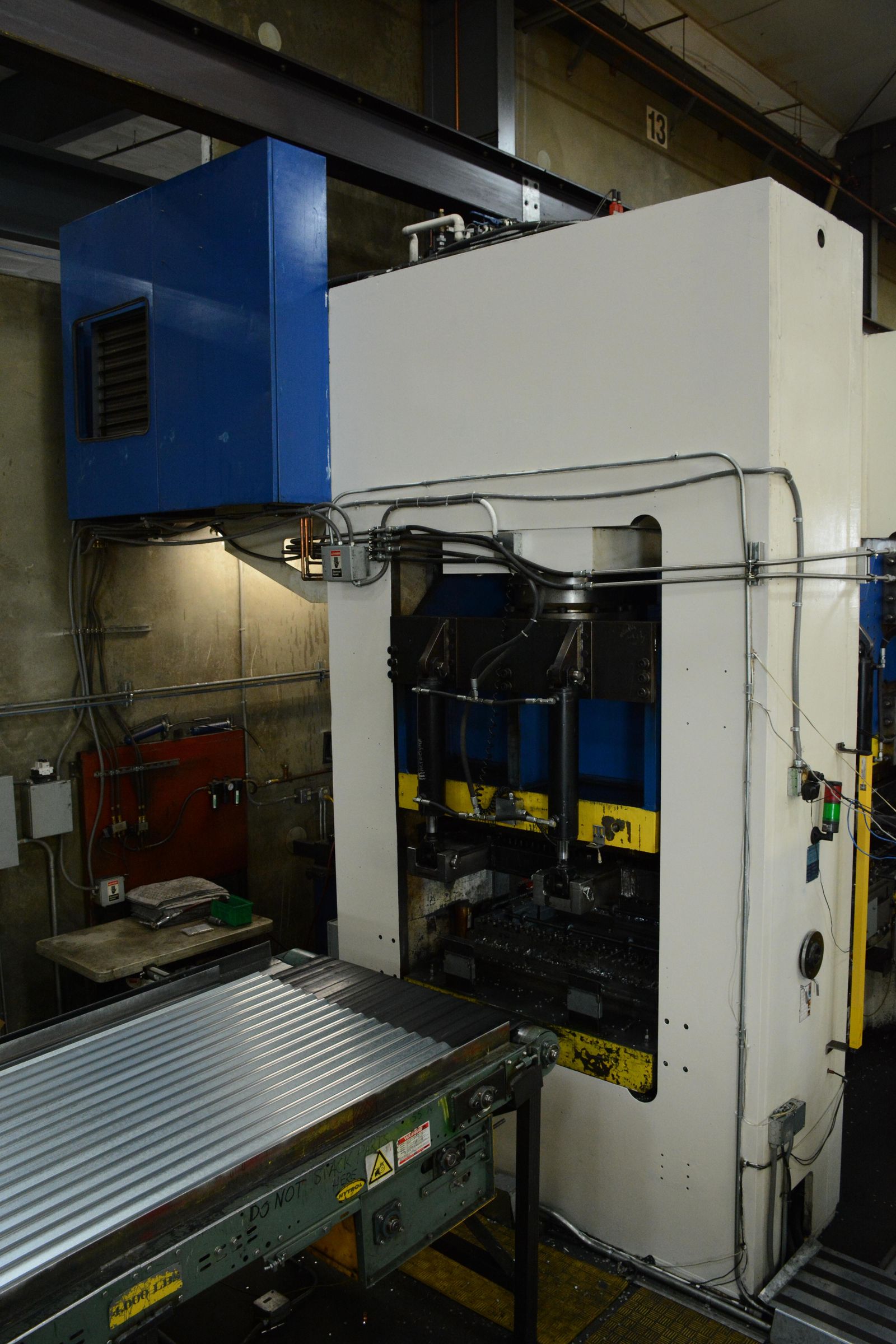

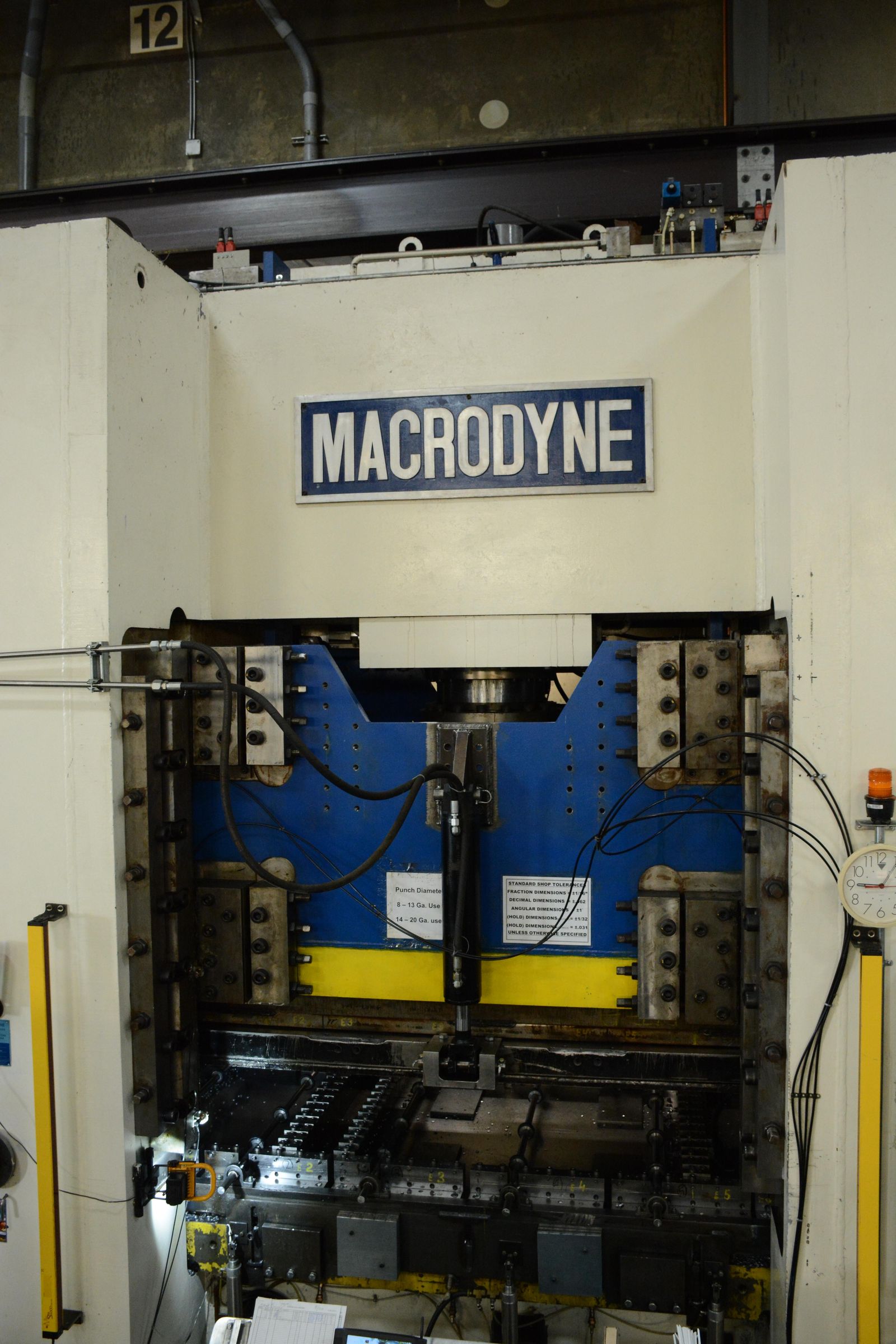

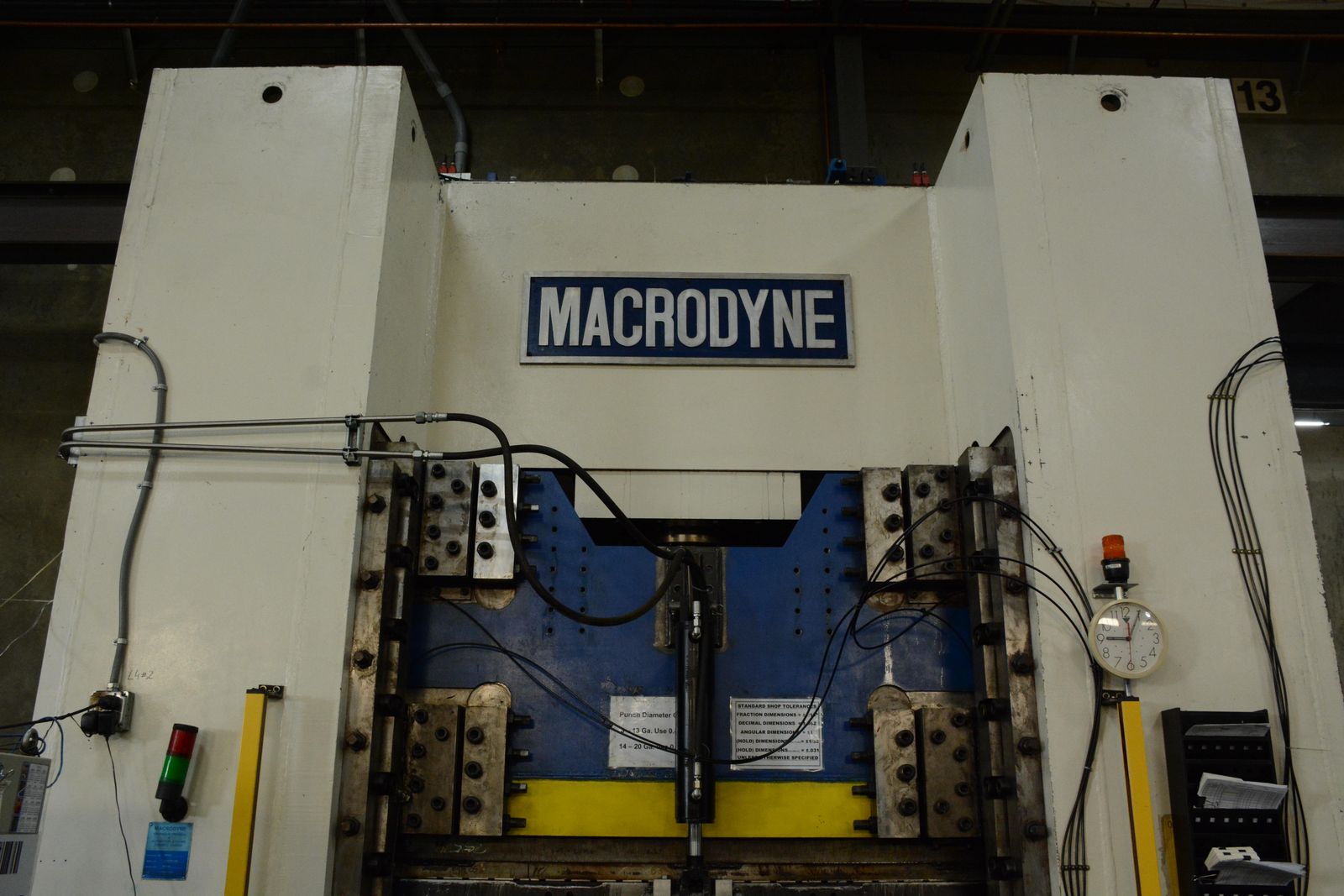

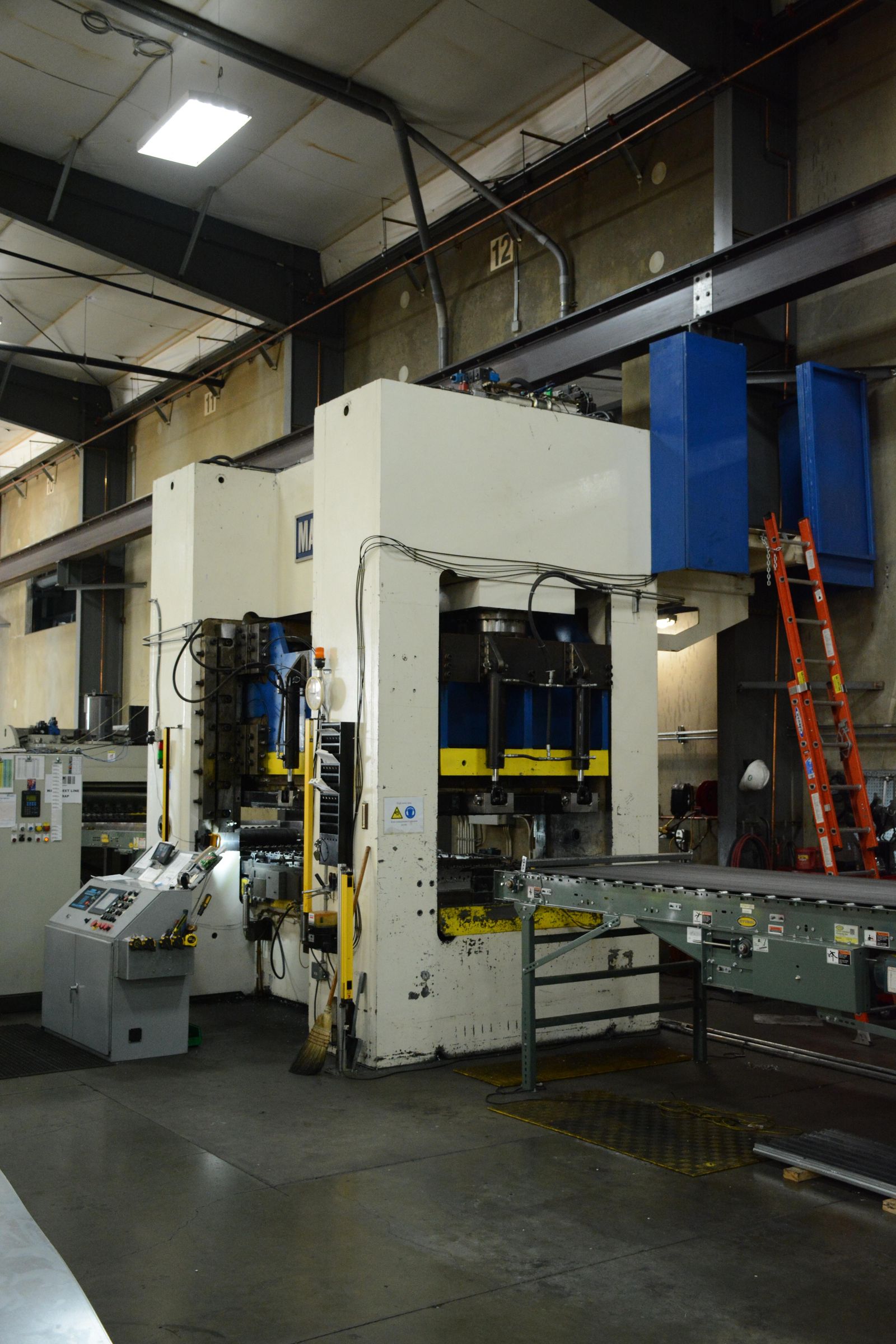

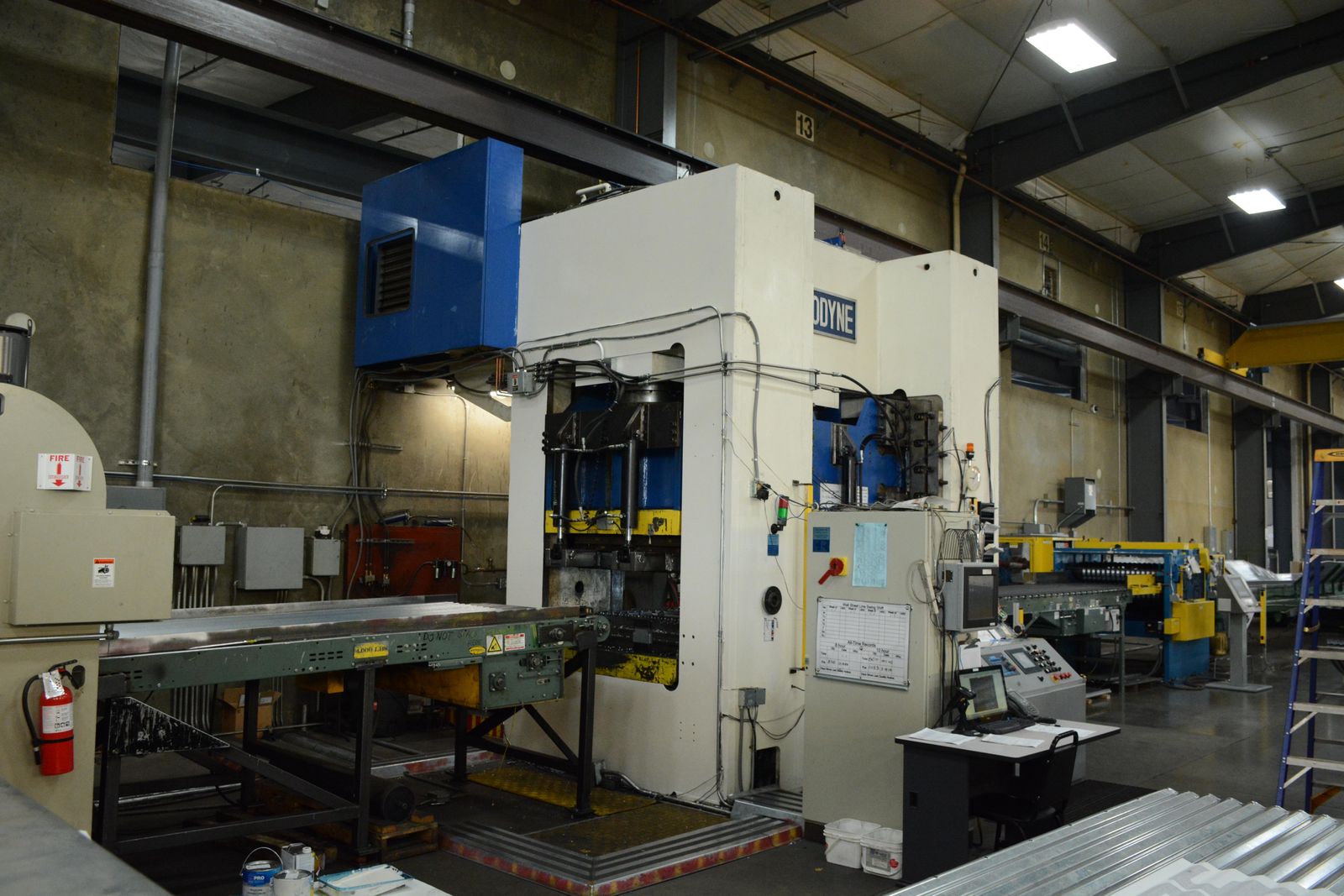

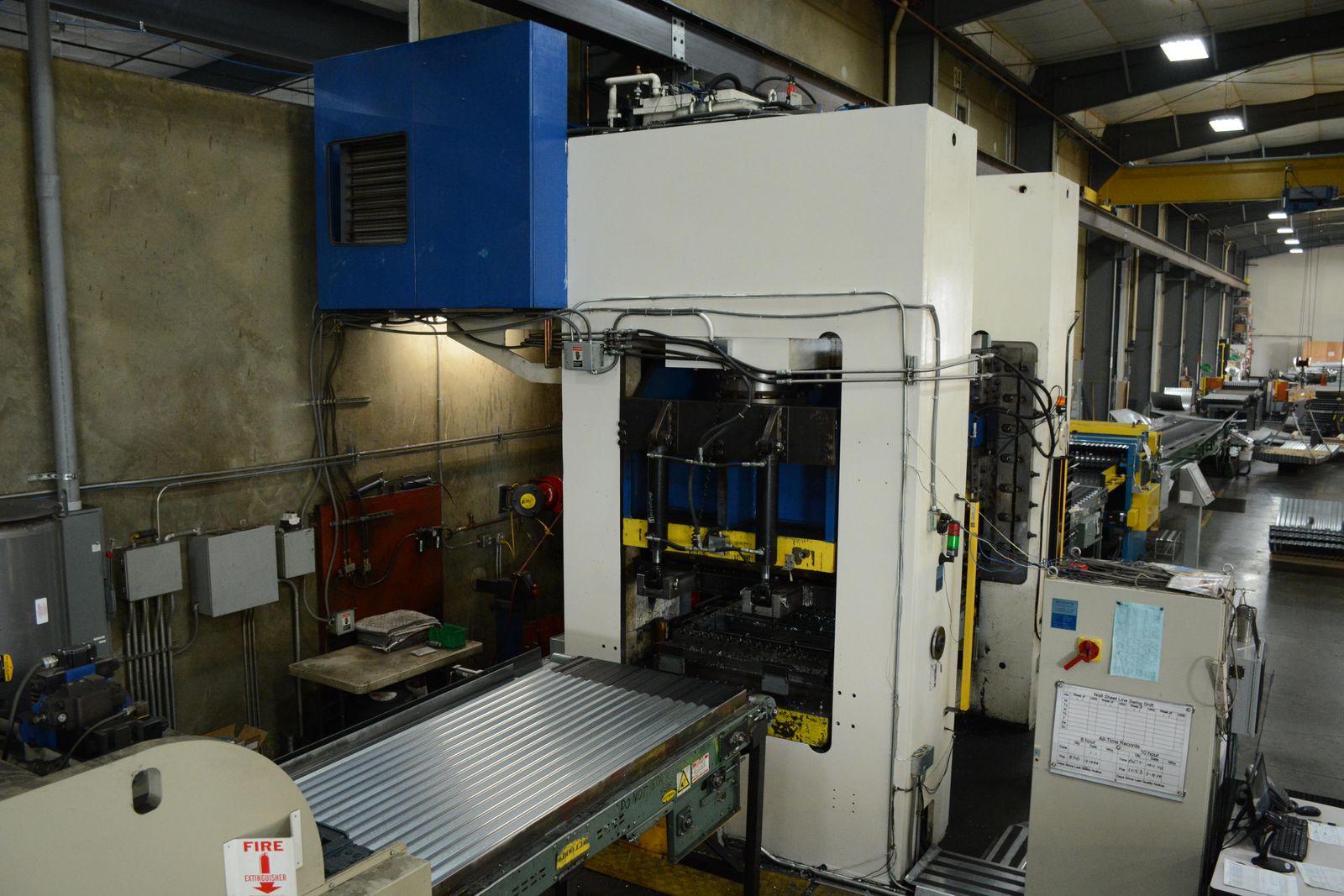

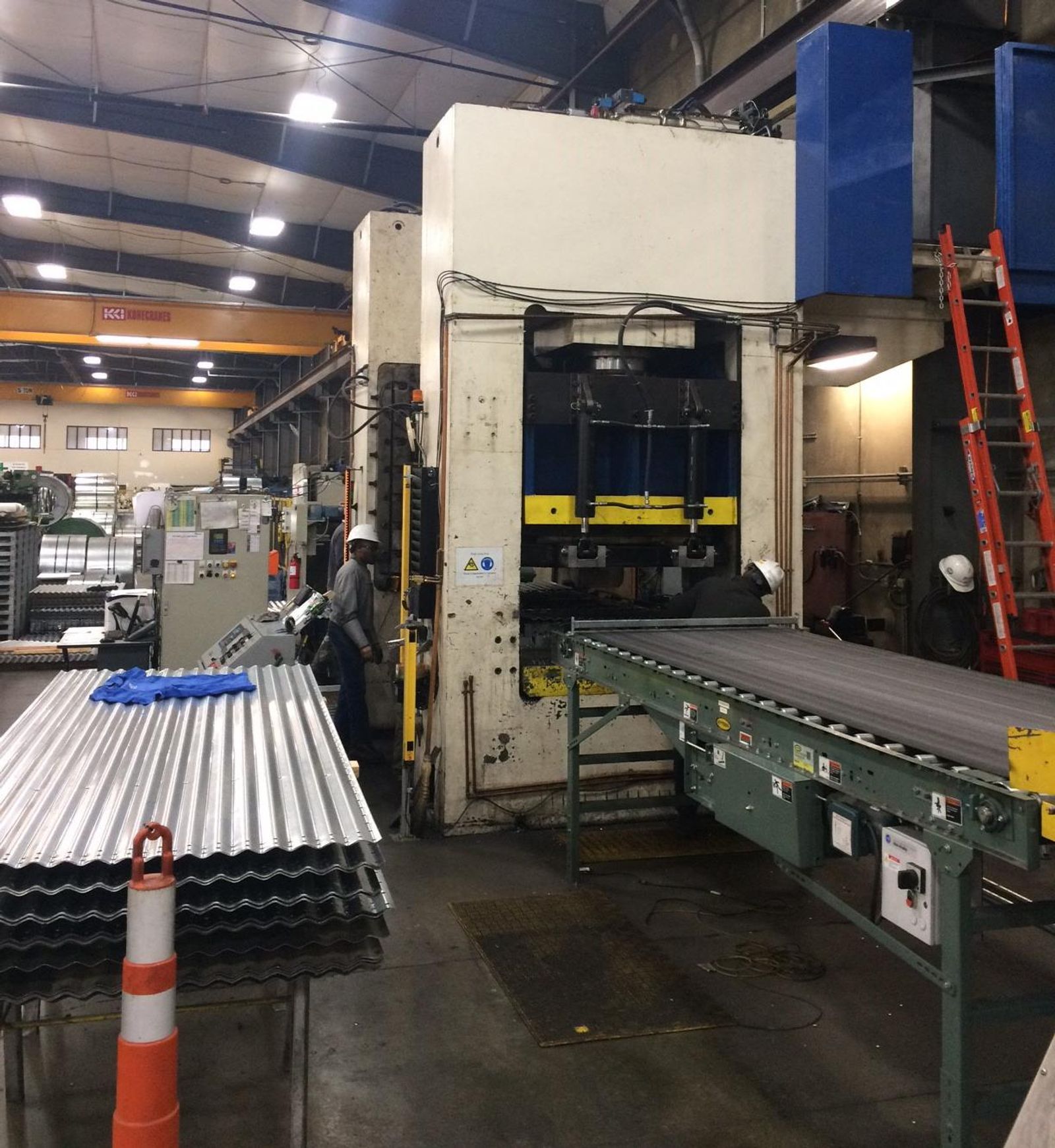

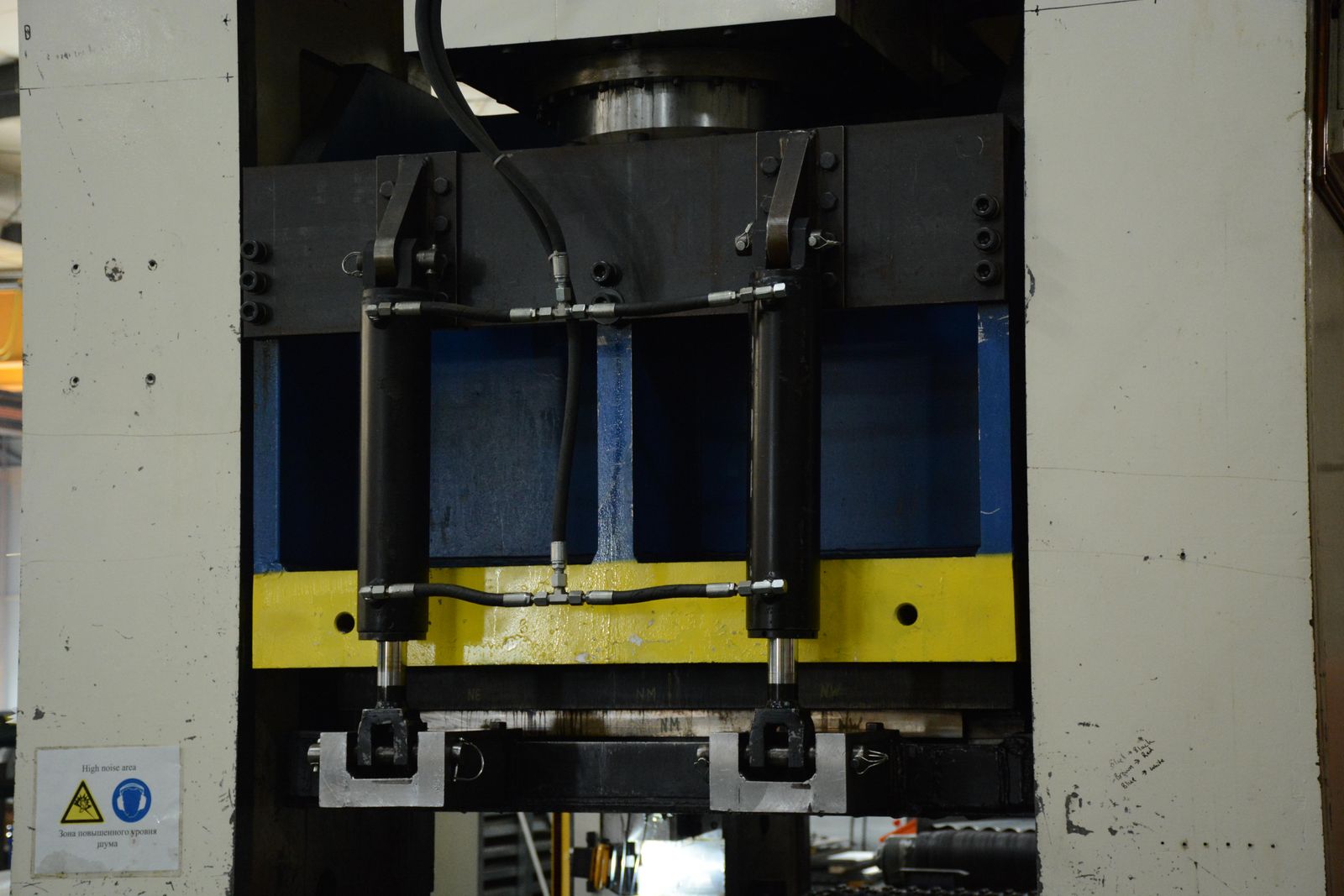

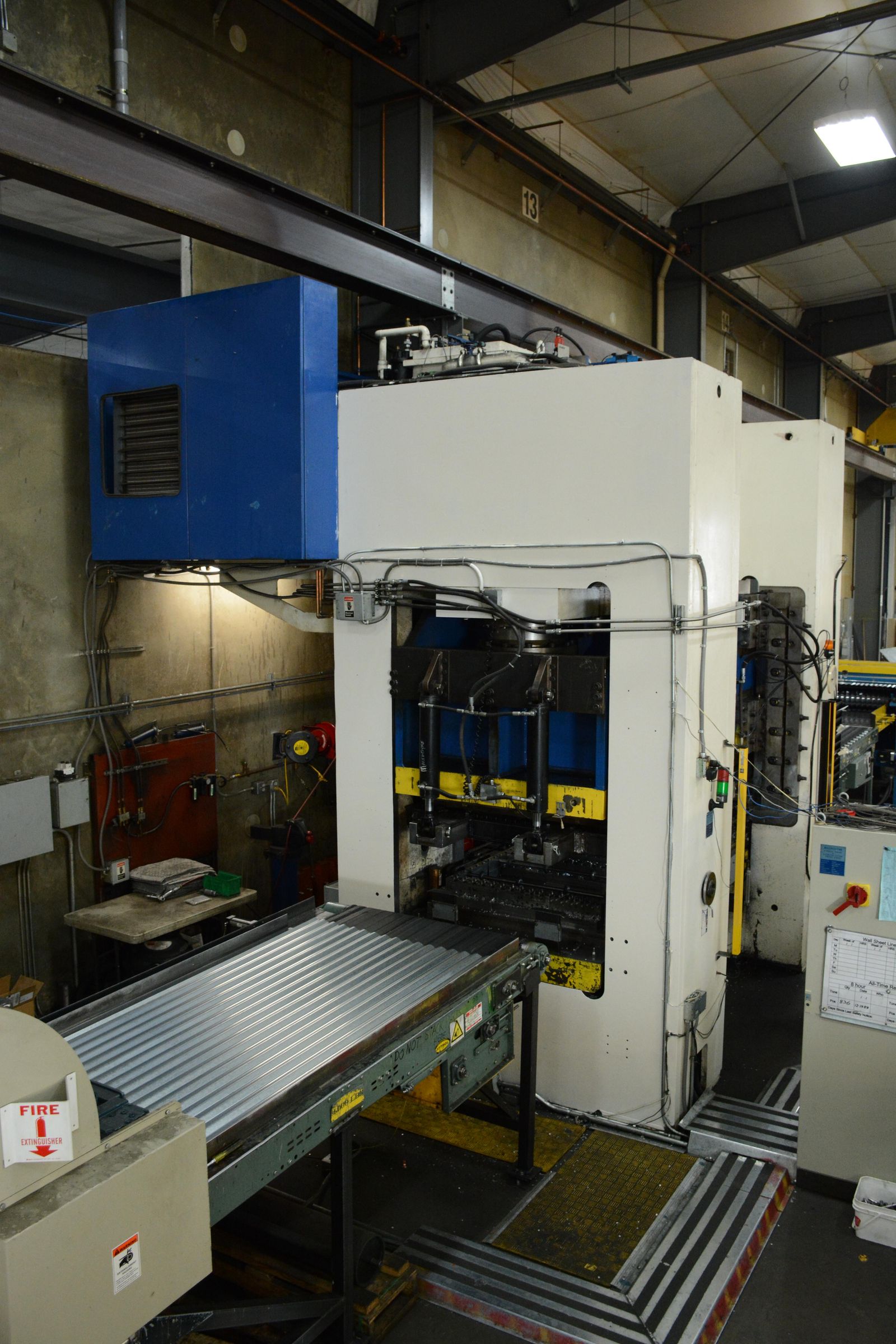

1500 TON MACRODYNE HYDRAULIC PUNCH PRESS, NEW 2004: STOCK #10046

Overview

NEW ............................ 2004
CAPACITY ....................... 1500 TON
LIFTING FORCE .................. 12 TONS
STRIPPING FORCE ................ 100 TON
BED SIZE ....................... 54" X 144"
BETWEEN FRAME .................. 56" X 76"
STROKE ......................... 16"
OPEN HEIGHT .................... 32"
CLOSED HEIGHT .................. 16"
PASS LINE ...................... 38"
FAST APPROACH .................. 7.5" @ 100 IPM
PRESSING SPEED ................. 5" @ 6 IPM
FAST RETURN .................... 8" @ 100 IPM
TOTAL CYCLE TIME ............... 15 SECONDS
CONTROL ........................ ALLEN BRADLEY MICROLOGIX 1500 PLC
HYDRAULIC SYSTEM ............... 3900 PSI
HYDRAULIC MOTOR ................ 60 HP

Specifications
Tonnage 1500 tons
Stroke 16 inches
Daylight 32 inches
Power 60 horsepower
Bed Width 54 inches
Bed Length 144 inches
IPM 100 inches-per-minute
CNC Control yes
Type of CNC Control MACRODYNE

1500 TON MACRODYNE HYDRAULIC PUNCH PRESS, NEW 2004: STOCK #10046

Brand
MACRODYNE

Type
Presses, Hydraulic

Stock No.
10046
