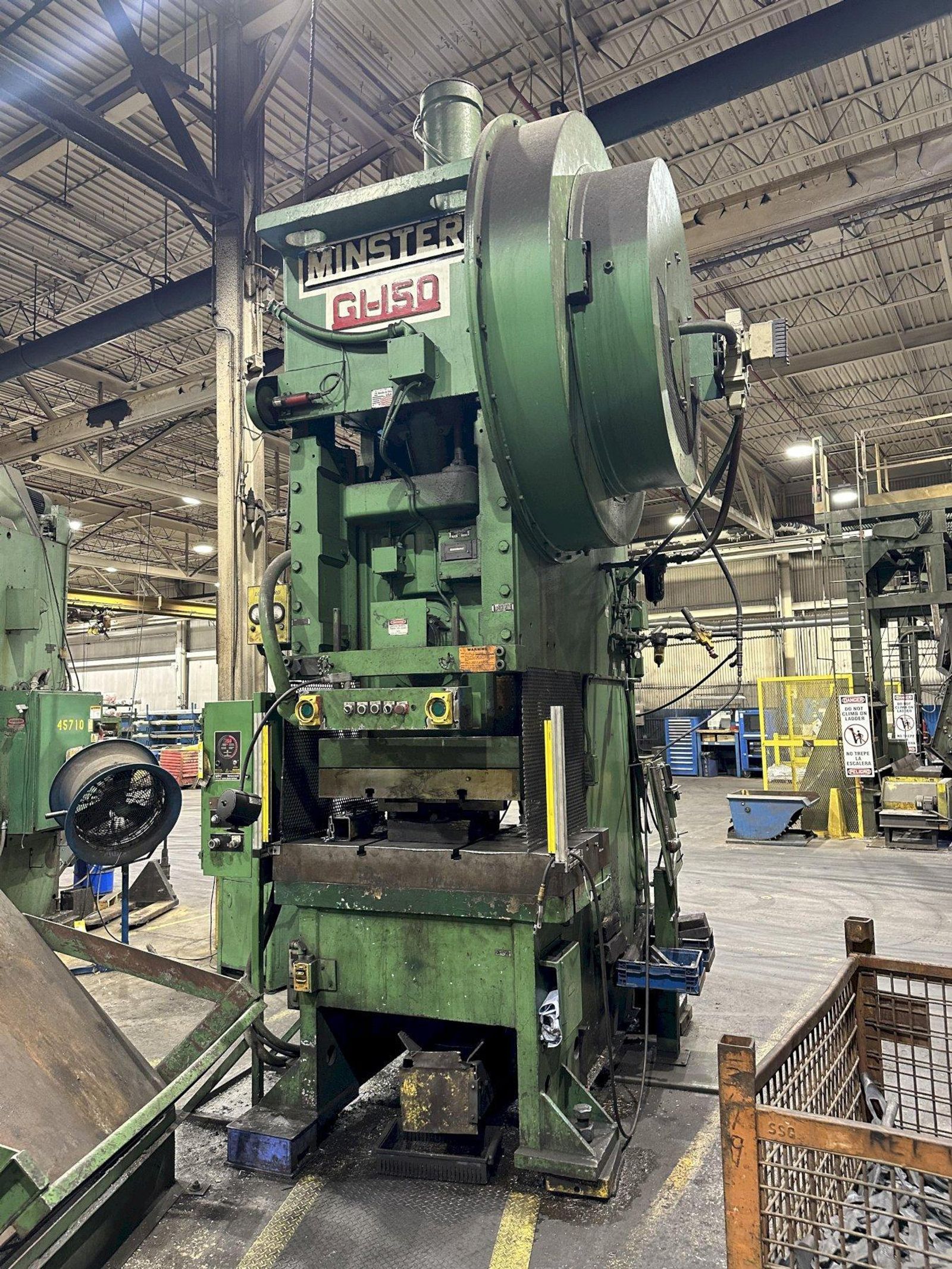

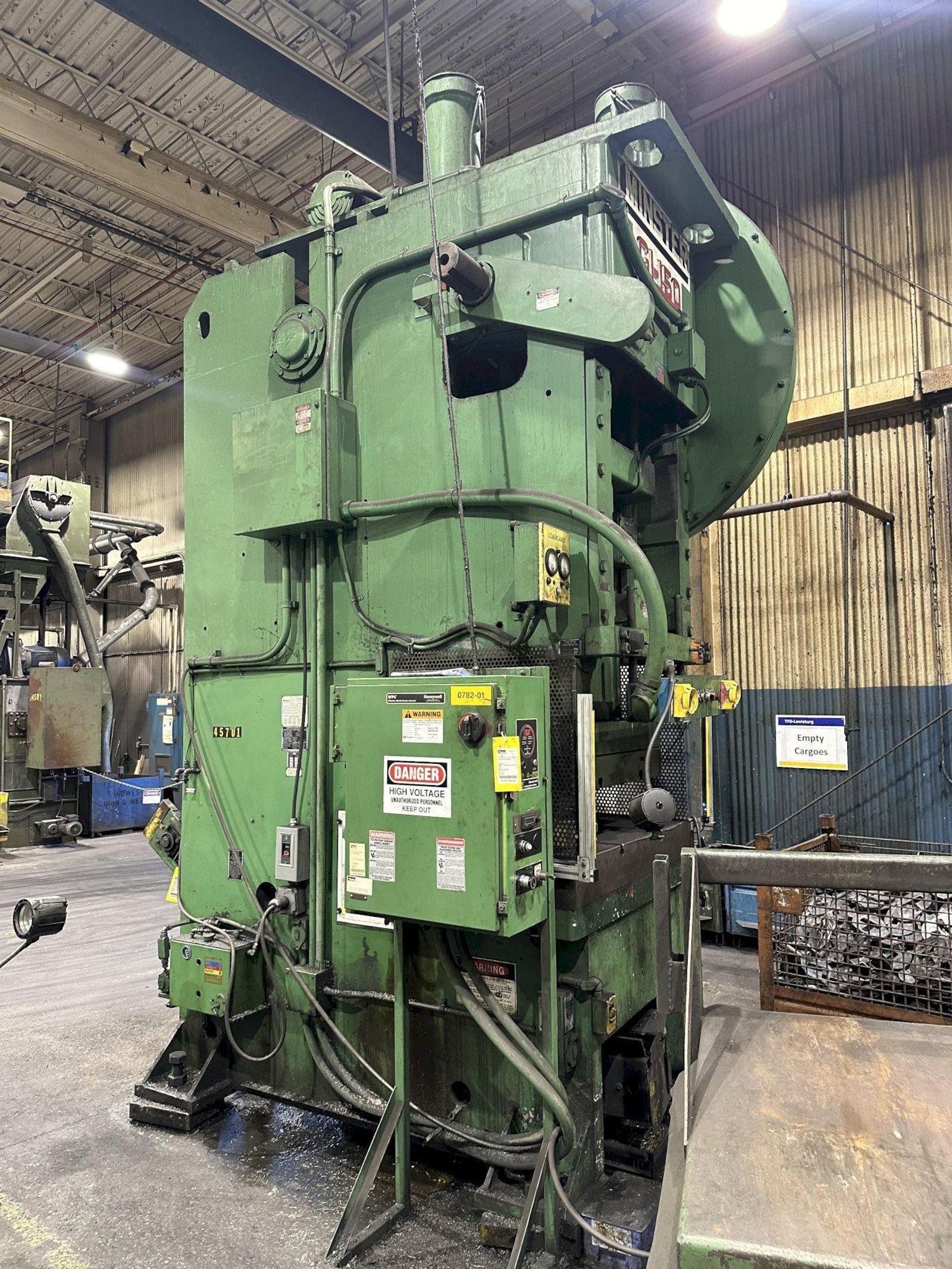

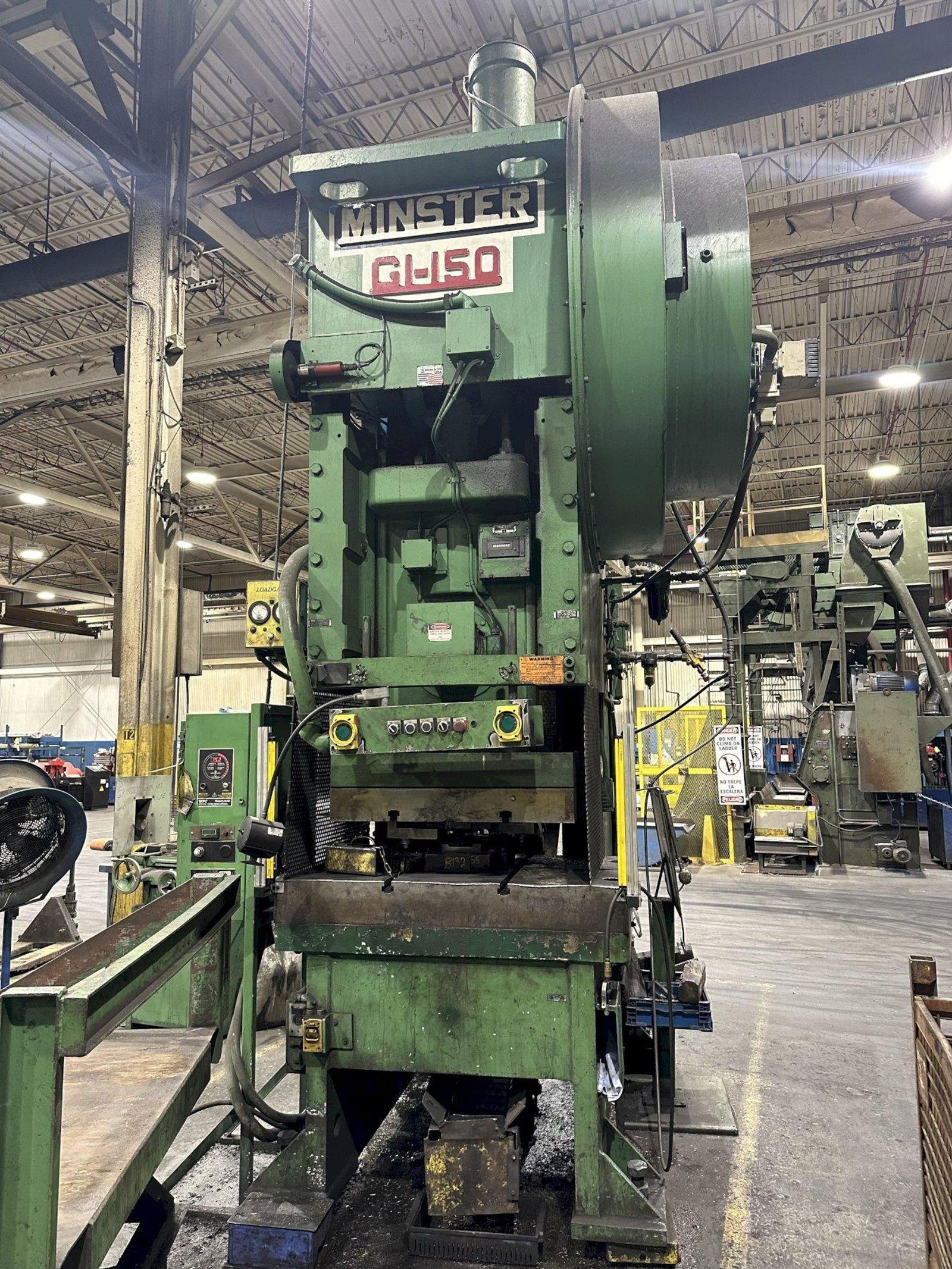

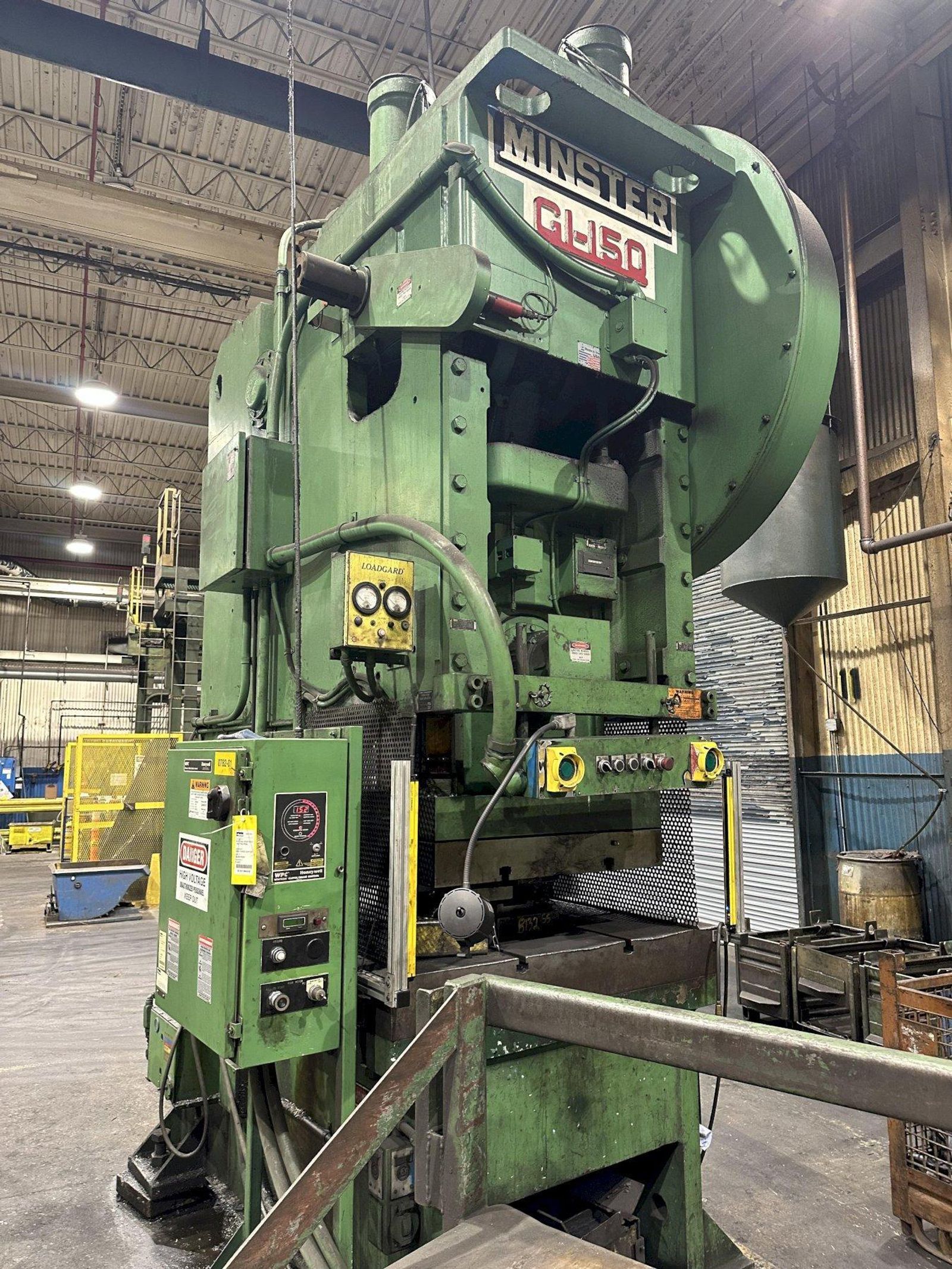

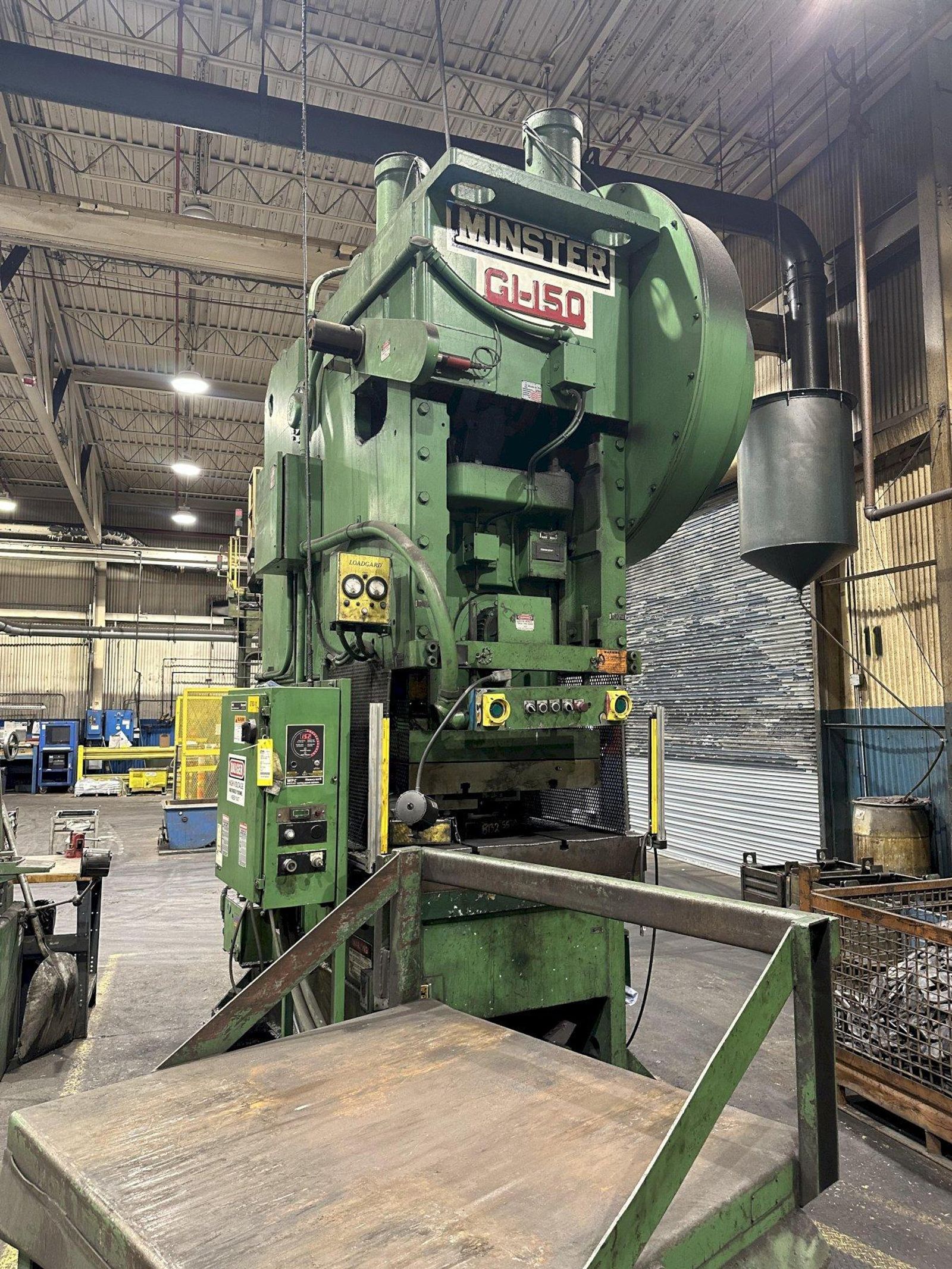

150 TON MINSTER MODEL #G1-150 OBS GAP FRAME PRESS, 6" STROKE: STOCK #20022

Overview

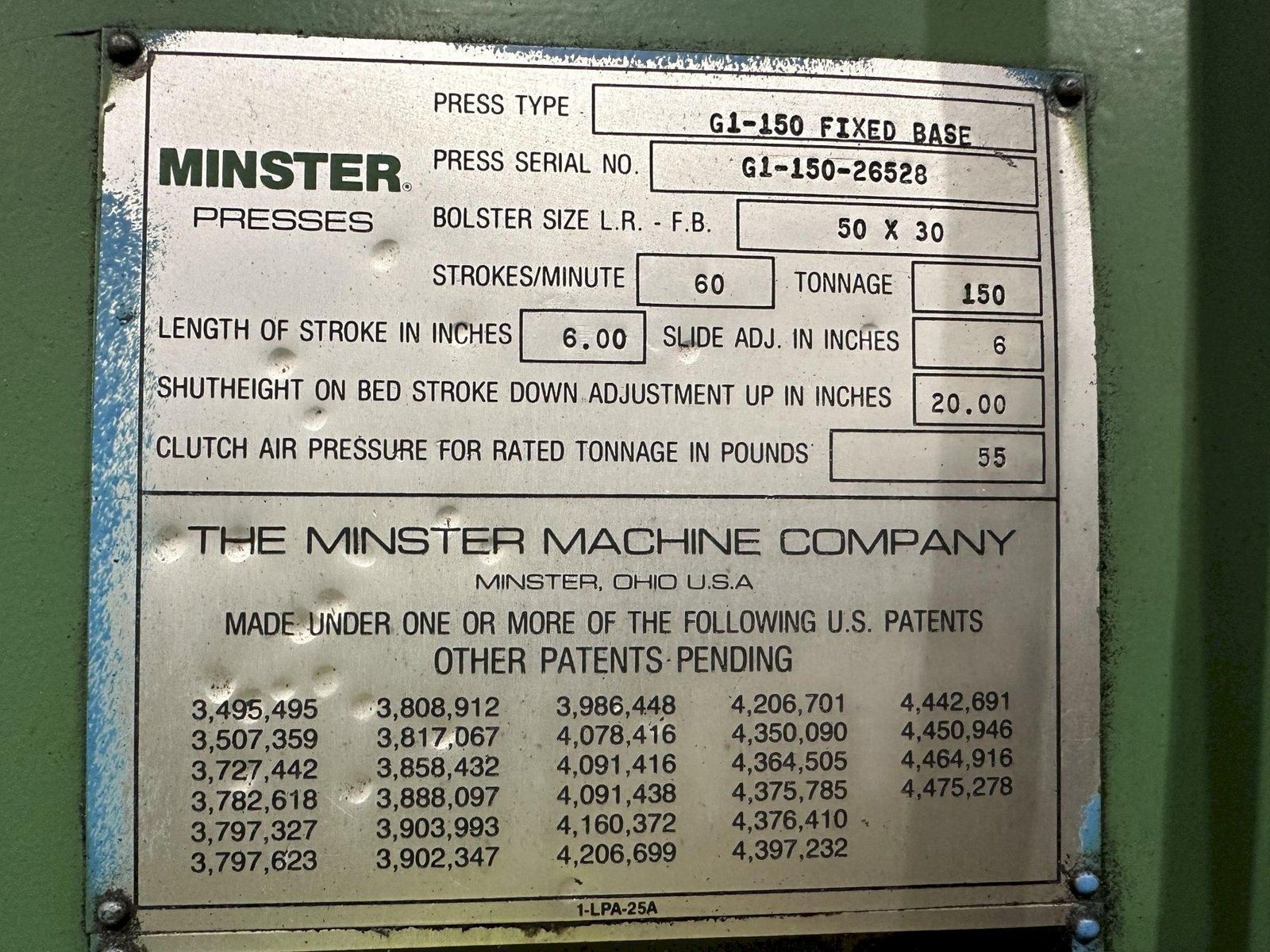

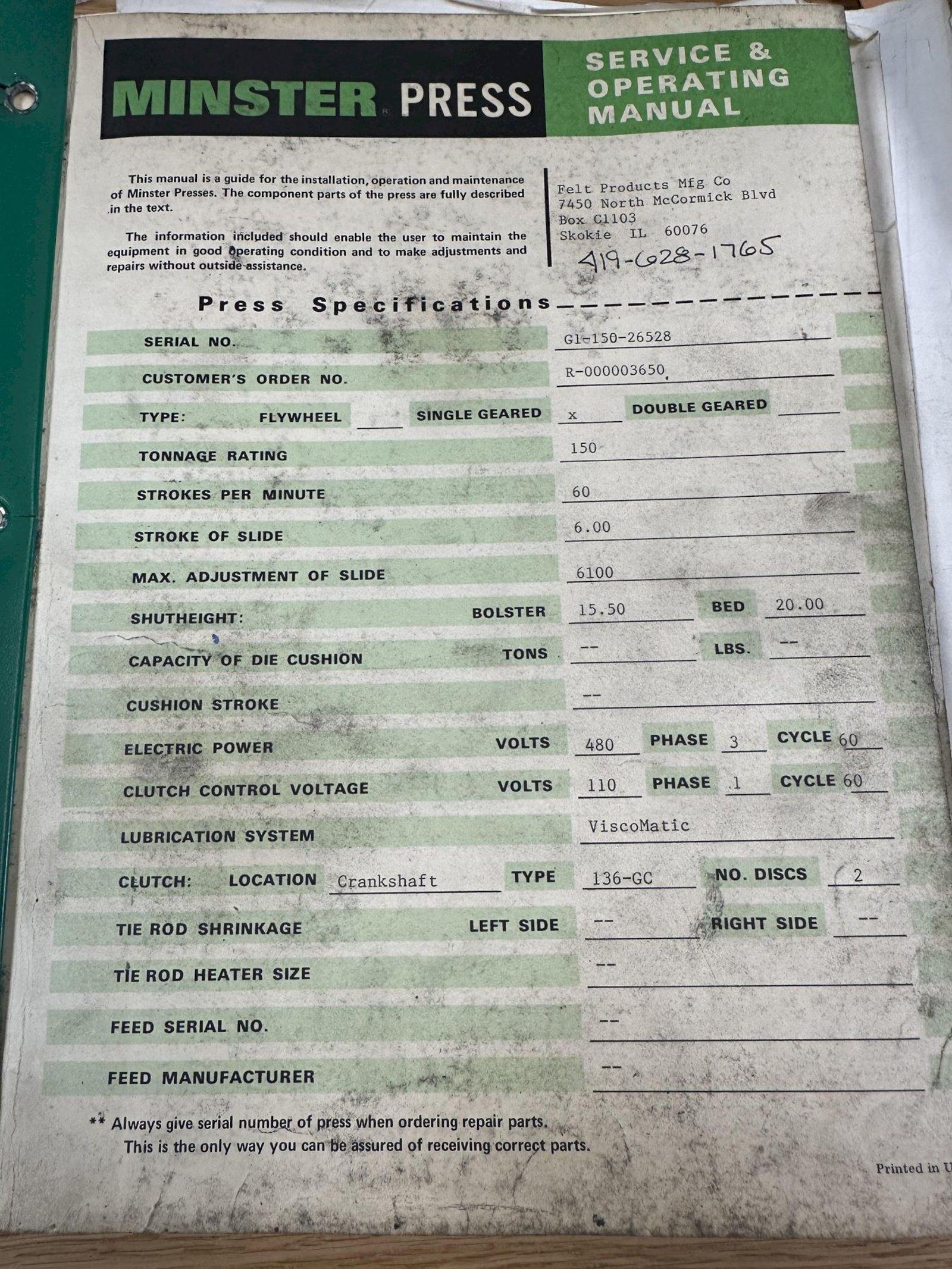

SERIAL ......................... G1-150-26528
MODEL .......................... G1-150
YEAR ........................... 1988
STROKE ......................... 6"
SPEED .......................... 60 SPM
SHUT HEIGHT .................... 20"
RAM ADJUSTMENT ................. 6"

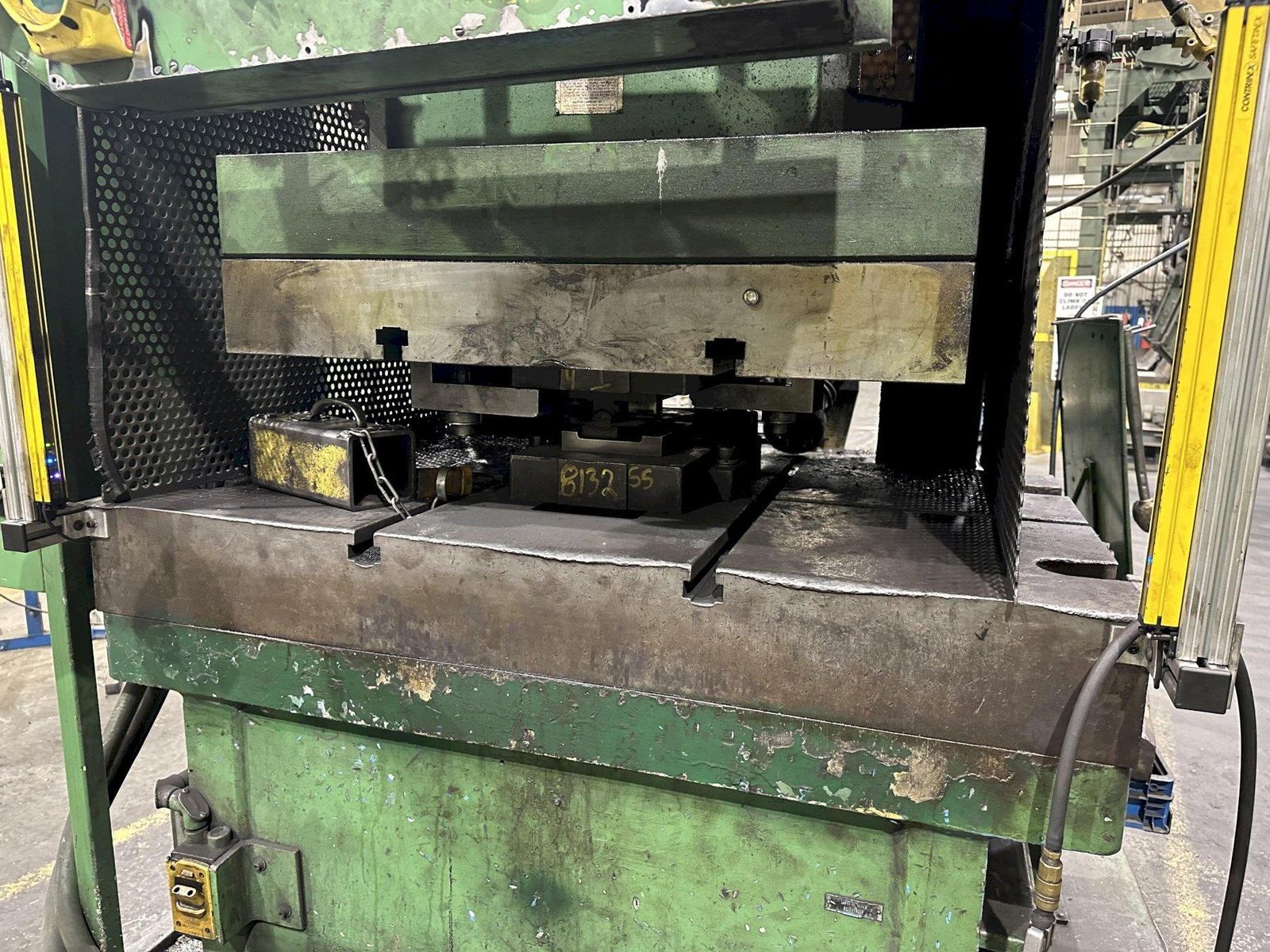

SLIDE / RAM AREA ............... 24" FB X 36" LR
BED AREA ....................... 30" FB X 50" LR
RAM & BED T-SLOTTED ............ YES
DISTANCE BEWTEEN HOUSINGS ...... 27"
STROKE MODES ................... SINGLE & CONTINUOUS
STROKE COUNTER ................. YES
AIR CLUTCH & BRAKE ............. YES

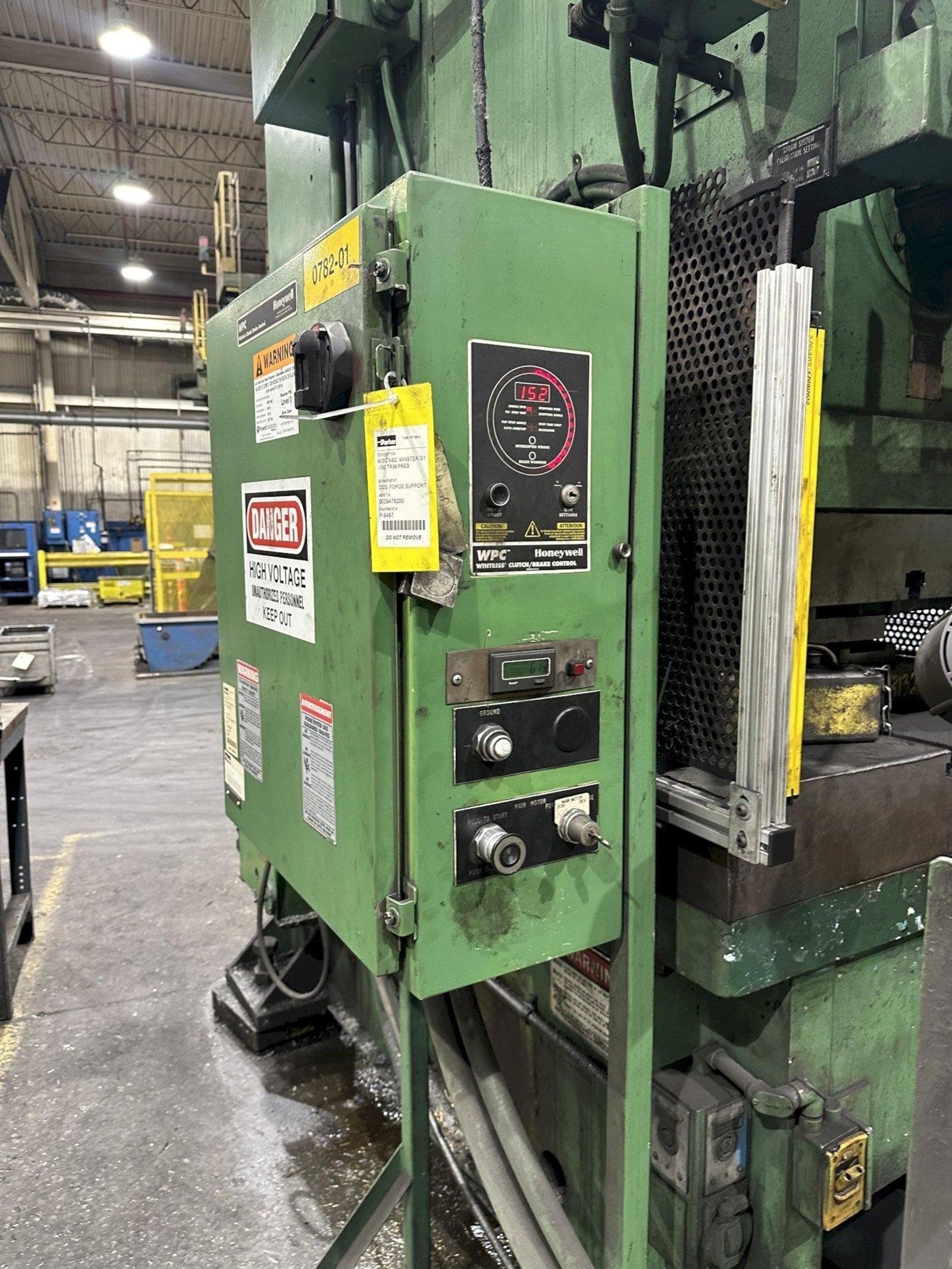

WINTRISS BRAKE/CLUTCH MONITOR .. YES
LOADGARD AIR BALANCE MONITOR ... YES
LIGHT CURTAINS ................. YES
DUAL PALM BUTTONS & CONTROLS ... YES
MOTOR FORWARD & REVERSE ........ YES
MAIN MOTOR ..................... 15 HP

150 TON MINSTER MODEL #G1-150 OBS GAP FRAME PRESS, 6" STROKE: STOCK #20022

Brand
MINSTER

Type
Presses, Gap Frame (OBS)

Stock No.
20022

Make an Offer
Request a Quote
Print Details

Contact Us
