SERIAL .................... 070806ZX1682
JET SOTCK ................. 321910

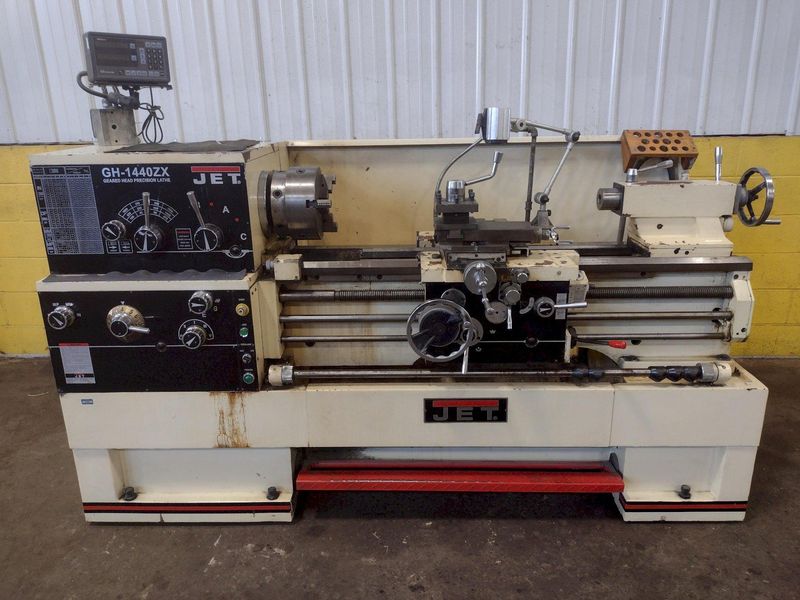

MODEL ..................... GH-1440ZX
| Specifications | ||
|---|---|---|
| Dimensions | 96 x 44 x 66 | |
| Weight | 5187 pounds | |
Brand
JET
Type
Lathes, Engine
Stock No.
15069
 |
419-269-2000 |
Stock #: 15069
SERIAL .................... 070806ZX1682
JET SOTCK ................. 321910
MODEL ..................... GH-1440ZX
SIZE ...................... 14 x 40SWING OVER BED ............ 14"
SWING OVER CROSS .......... 7-5/8"
SWING IN GAP .............. 23-5/8"
LENGTH OF GAP ............. 12"
SPINDLE HOLE BORE ......... 3-1/8"
SPINDLE SPEEDS ............ (12) 42 TO 1800 RPM
LONGITUDINAL FEED RATES ... .0015 - .0900 IPR
CROSS FEED RATES .......... .0006 - .0360 IPRINCH THREADS .............. (61) 1-5/8 TO 72 TPI
METRIC THREADS ............ (24) .05 TO 20
CHUCK MOUNT ............... D1-8
CHUCK ..................... YES
COMPOUND SLIDE TRAVEL ..... 5-1/8"
CROSS SLIDE TRAVEL ........ 9"
CARRIAGE TRAVEL ........... 36-9/16"
TAILSTOCK SPINDLE TRAVEL .. 6"
WIDTH OF BED .............. 13-3/8"
DIGITAL READ OUT .......... 2 AXIS
FOOT BRAKE ................ YES
MOTOR ..................... 7-1/2 HP
