Nominal Swing ............ 13"
Distance between Centers (Nominal)............23-5/8"
Distance between Centers w/Tailstock Overhanging............29-1/2"
Table:
Longitudinal Table Travel............27"
Longitudinal Table Travel per Handwheel Turn - Coarse............25/32"
Longitudinal Table Travel per Handwheel Turn - Fine............3/32"
Longitudinal Table Speed - Hydraulic............0.06 to 18' FPM
Table Swivels............11 Degrees
Reversing Dwell............0 - 5 Seconds
Grinding Wheel Infeed:
1 Graduation of Feed Scale............0.0002"
Automatic Feed - Maximum............0.035"
Automatic Infeed Per Table Reversal............0.00005" - 0012"
Infeed for Plunge Grinding............0.00004" - .002"
Plunge Grinding - Infeed Speed............10 - 1000 uIN/Second
Micrometer Stop, 1 Graduation............0.00005"
Universal Grinding Spindle Head:
Transverse Movement of Wheel Slide............11-1/4"
Hydraulic Rapid Wheel Slide Advance/Retraction Stroke............1-9/16"
Grinding Wheel Speeds - RPM (4)............1500, 1700, 2220 & 3600
Grinding Wheel for Cylindrical Grinding............16" X 2" X 5"
Grinding Wheel - Surface Grinding............10" X 3/4" X 3"
Swivel of Grinding Head w/Locking Every 90 Degrees............270 Degrees
Vert. Motion of Grinding Spdl Head, Height of Centers............4-59/64" - 13-25/32"
Workhead:
Spindle Speeds - Infinitely Variable............10 - 400 RPM
Workhead Swivels............360 Degrees
Inside Taper of Work Spindle............#5 MT
Approximate Floor Space Required............102" X 64" X 66"
Approximate Weight............6,000 Lbs.
EQUIPPED WITH:
Hydraulic Operation Featuring: Single Lever Control, Infinitely Variable Table
Traverse, Automatic Feed, Plunge Feed, Rapid Wheel Advance & Retraction
Sparkout Timer
Three Wheelhead Machine: Left-Hand (O.D.) & Right-Hand Wheel Mounting (Face
Grinding) with Swing Around I.D. Grinding Unit (Capability)
Coolant System with Paper Filtration
Hubs, Books, Manuals and Drawings.

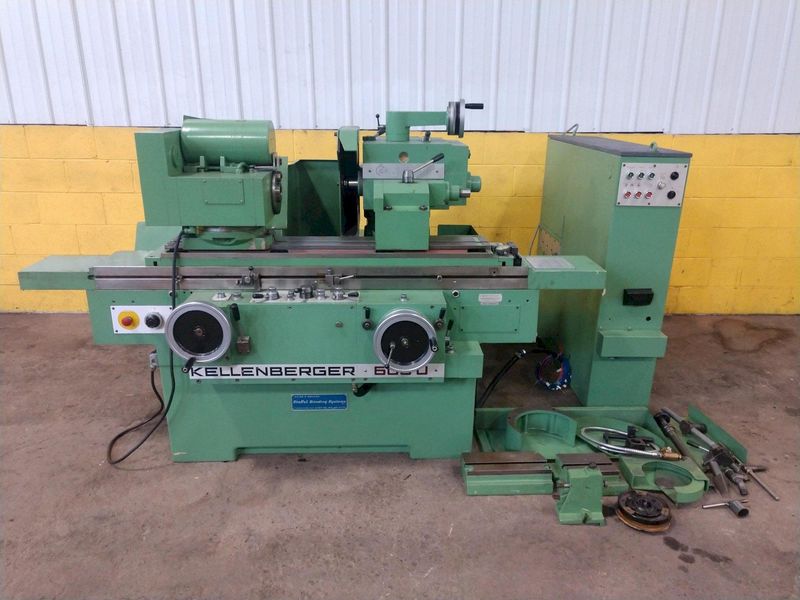

Brand
KELLENBERGER
Type
Grinders, Cylindrical (Incl Plain & Angle Head)
Stock No.
14440
 |
