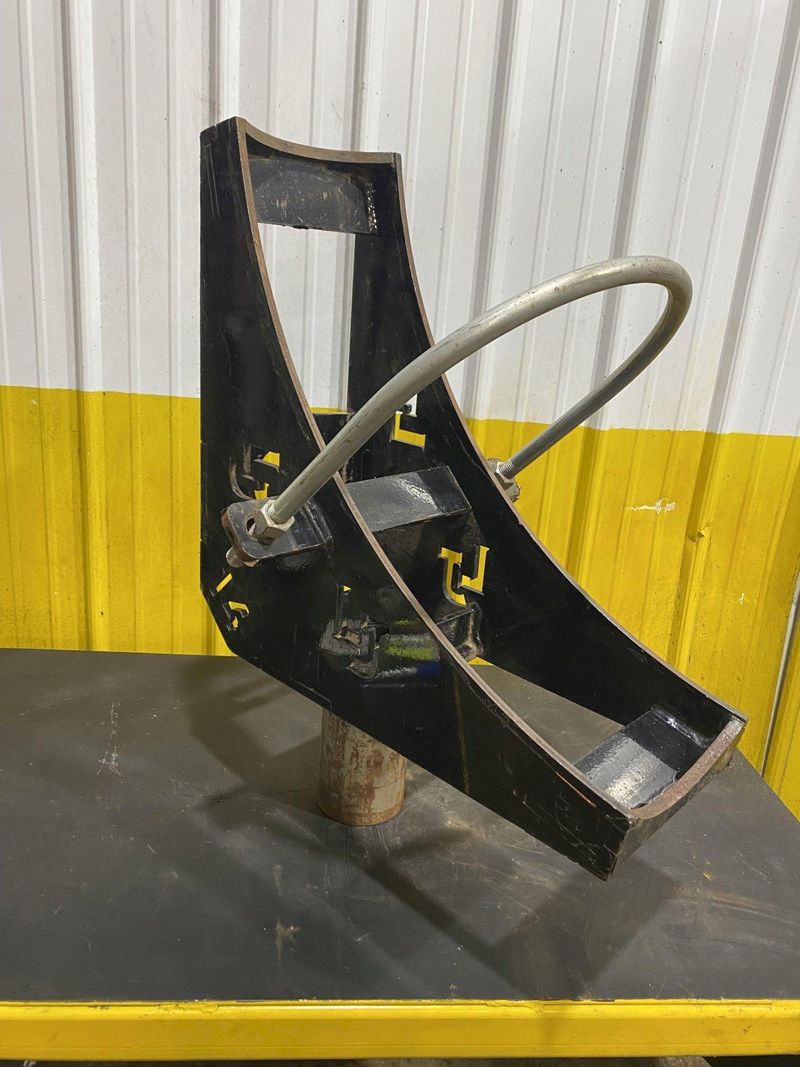

14" LJ WELDING AUTOMATION ELBOW PIPE WELDING JIGS & FIXTURES: STOCK #18661
Overview
- 90° Elbows
- Precision fit and clamp allows for quick and easy fitting, prepping and welding of elbows for use with welding positioners
- Multiple models range in OD pipe diameter size: 2″ to 48″
- 250 lb. weight capacity (Models: 2″OD,3″OD,4″OD & 6″OD)
- 500 lb. weight capacity (Models: 8″OD, 10″OD, 12″OD & 14″OD)
- 1,000 lb. weight capacity (Models: 16″OD, 18″OD, 20″OD & 24″OD)
- 2,000 lb. weight capacity (Models: 30″OD, 36″OD, 42″OD & 48″OD)
- Designed to be used in conjunction with a pipe gripper chuck
A wide range of models are available to accommodate pipe diameters from 2″ OD to 48″ OD. In addition to support, these jigs offer added safety when fixturing pipe to a positioner. Weld Plus also stocks a variety of sizes and styles of gripper chucks which are commonly used with elbow jigs. In conclusion, the LJ welding jigs help save time and money with your pipe fabrication applications.
