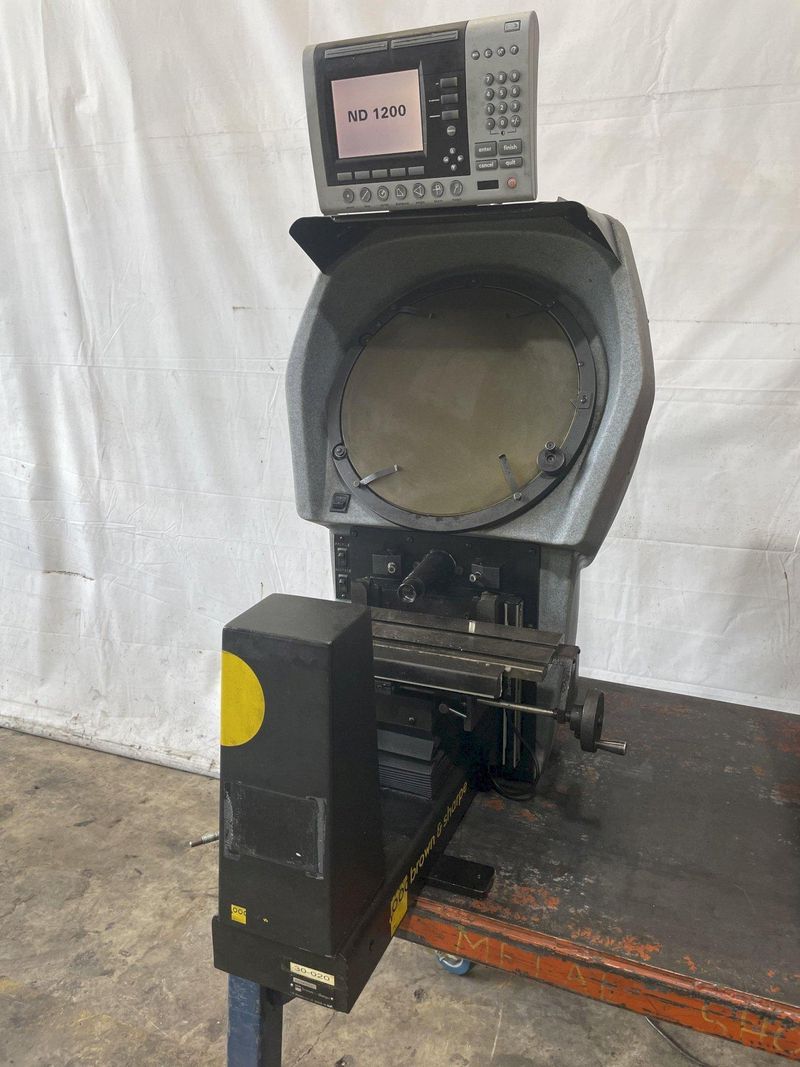

14" BROWN & SHARPE OPTICAL COMPARATOR

HORIZONTAL PROJECTION BENCH TYPE

HEIDENHAIN QUADRA CHEK ND1200 DIGITAL READOUT DISPLAY WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

MODEL: 32-3552

SCREEN DIAMETER ................... 14"

TABLE SIZE ........................ 16" X 5"

WEIGHT CAPACITY ON TABLE .......... 50 LBS.

HORIZONTAL TRAVEL ................. 7"

VERTICAL TRAVEL ................... 4"

FOCUS ............................. 2.5"

HELIX ANGLE ....................... +/- 6 DEG.

APPROXIMATE DIMS. OF MACHINE ...... 21.5W" x 53"L x 41.8"H

APPROX. MACHINE WEIGHT ............ 170 LBS.

HEIDENHAIN QUADRA CHEK ND1200 DIGITAL READOUT DISPLAY

WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

SCALE RESOLUTION IS 0.00005"

PROTRACTOR RESOLUTION:

VERNIER ....... 5 MINUTE

DIGITAL ....... 1 MINUTE

FIBER OPTIC SURFACE ILLUMINATION

DIGITAL DISPLAY FOR ANGLE ADJUSTMENT OF SCREEN

FLOATING TYPE STAGE FOR EFFORTLESS MOVEMENT

HELIX ADJUSTMENT

PROFILE ILLUMINATION LAMP: 24 VOLT, 150 WATT

SURFACE ILLUMINATION LAMP: 12 VOLT, 100 WATT

(1) LENS, 20X MAGNIFICATION

115 VOLT/1 PHASE ELECTRICS
