| Specifications | ||
|---|---|---|
| Dimensions | 339” X 138” X 146” | |
| Weight | 222000 pounds | |
Brand
FACCIN
Type
Rolls, Plate Bending (incld Pinch)
Stock No.
20498
 |
419-269-2000 |
Stock #: 20498

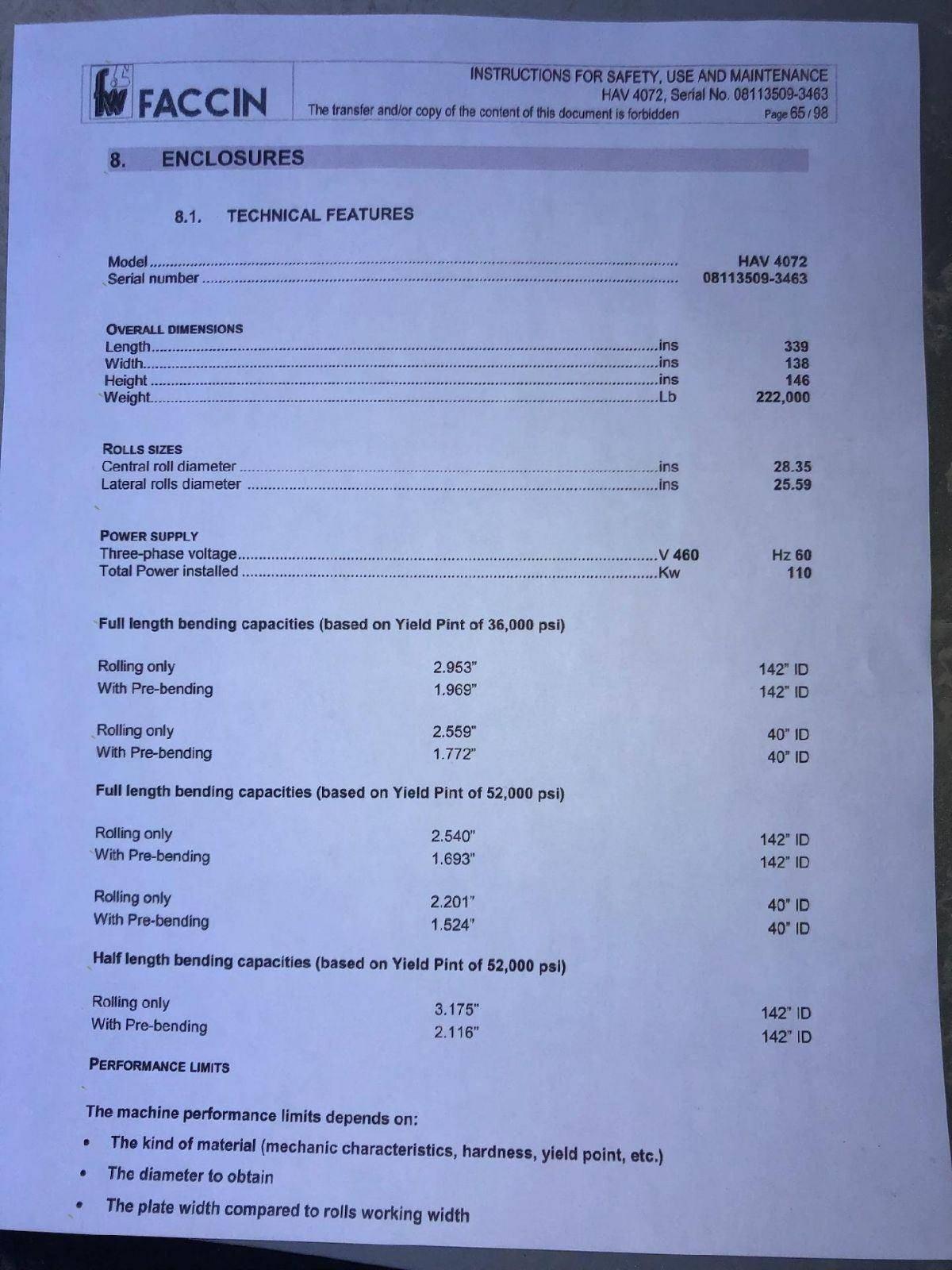

SERIAL ....................................... 08113509-3463
MODEL ........................................ HAV4072
YEAR ......................................... 2009
CENTRAL ROLL DIAMETER ........................ 28.35"
LATERAL ROLLS DIAMETER ....................... 25.59"
PLATE ROLL ................................... 2.953” X 13’FULL LENGTH ROLLING CAPACITY(@ 36,000 PSI) ... 2.953”PRE-BENDING CAPACITY.......................... 1.969”MAX WORK LENGTH .............................. 158”ROLL DIAMETER................................. 22”NUMBER OF ROLLS .............................. 3
ADDITIONAL TOP & BOTTOM ROLLS ................ YES
