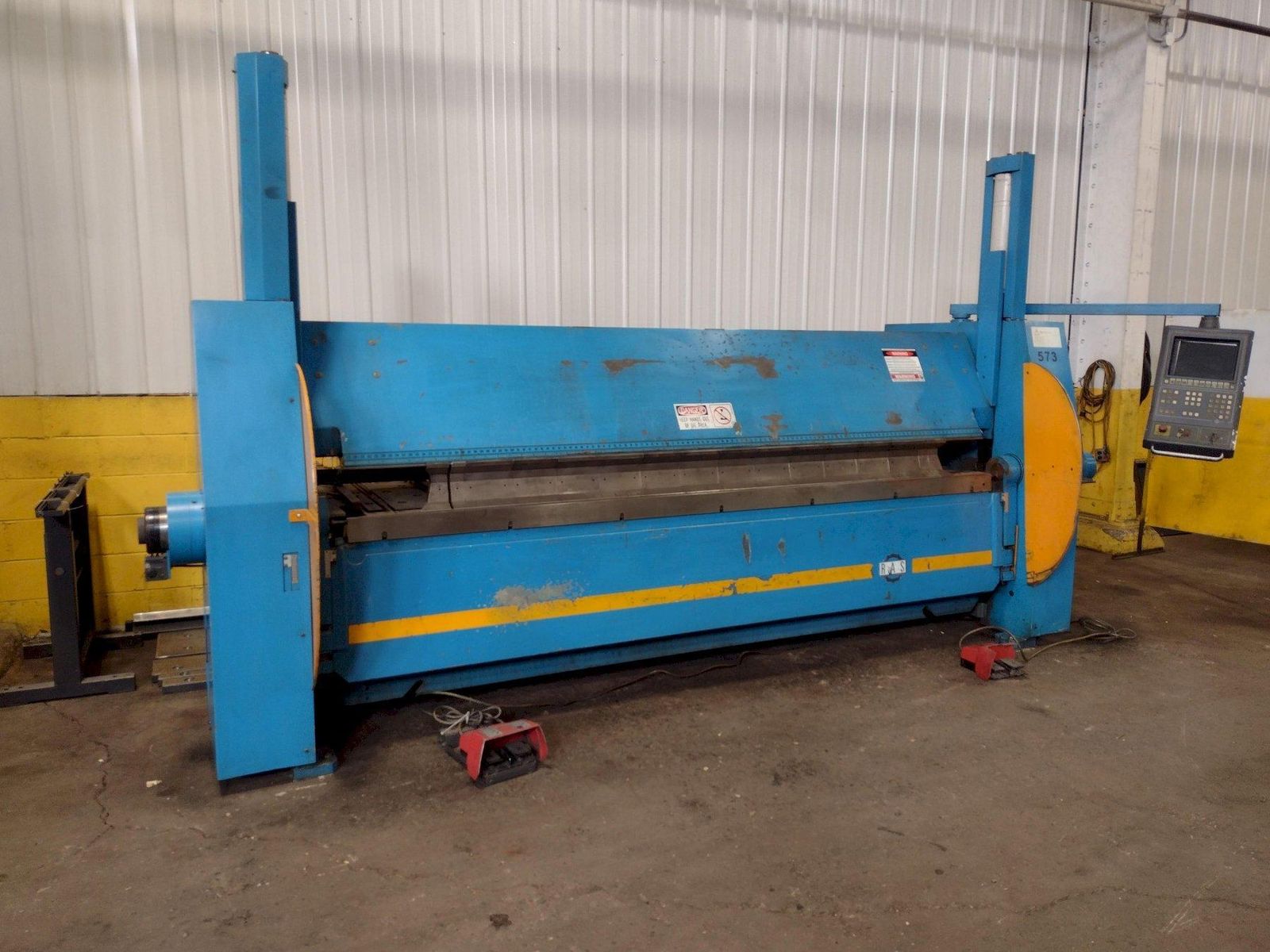

| Specifications | ||
|---|---|---|
| Dimensions | 203″ L x 87.6″ W x 70″ H | |
| Weight | 13500 pounds | |
Brand
RAS
Type
Folding Machines
Stock No.
17101
 |
419-269-2000 |

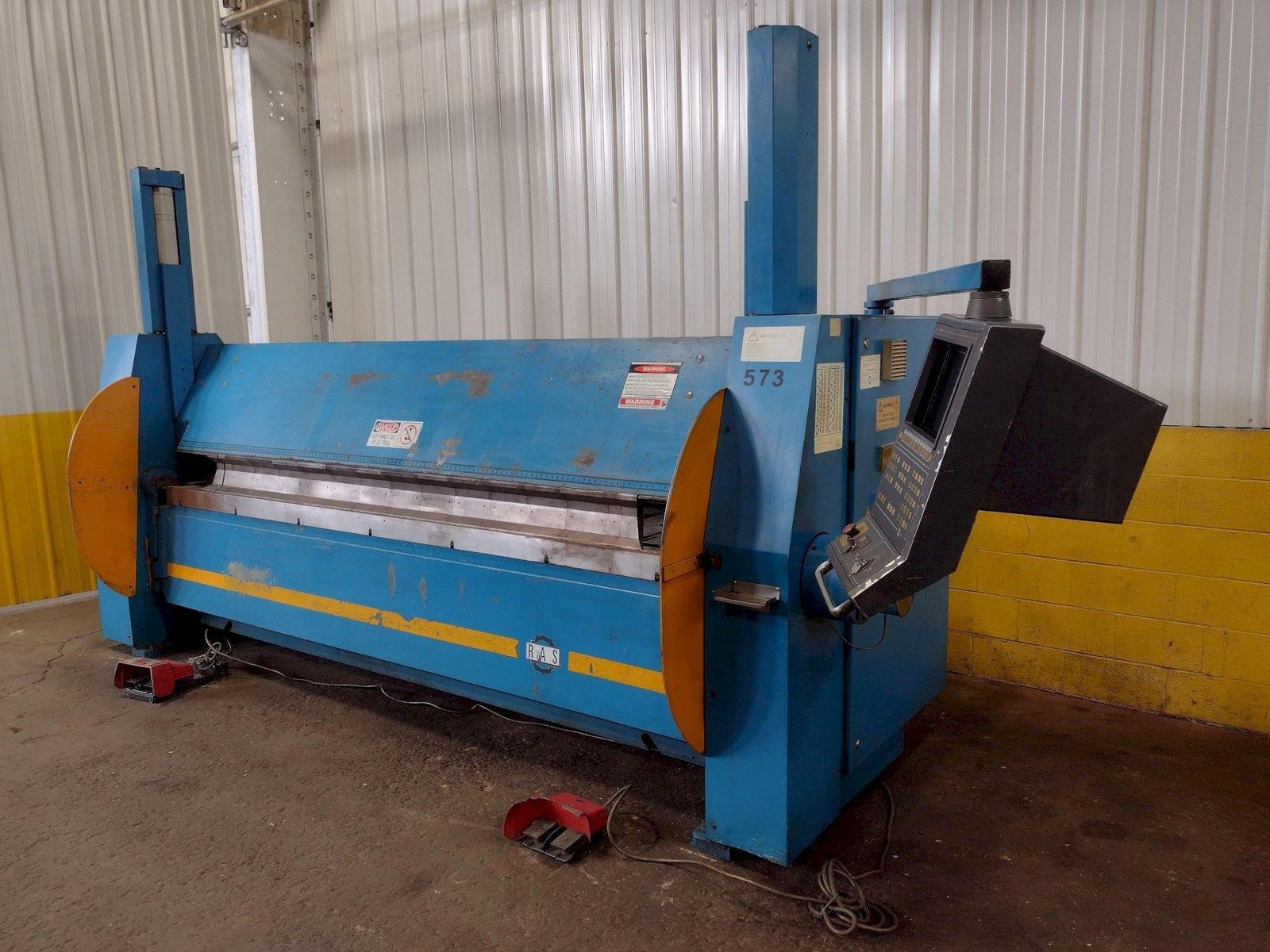

Stock #: 17101

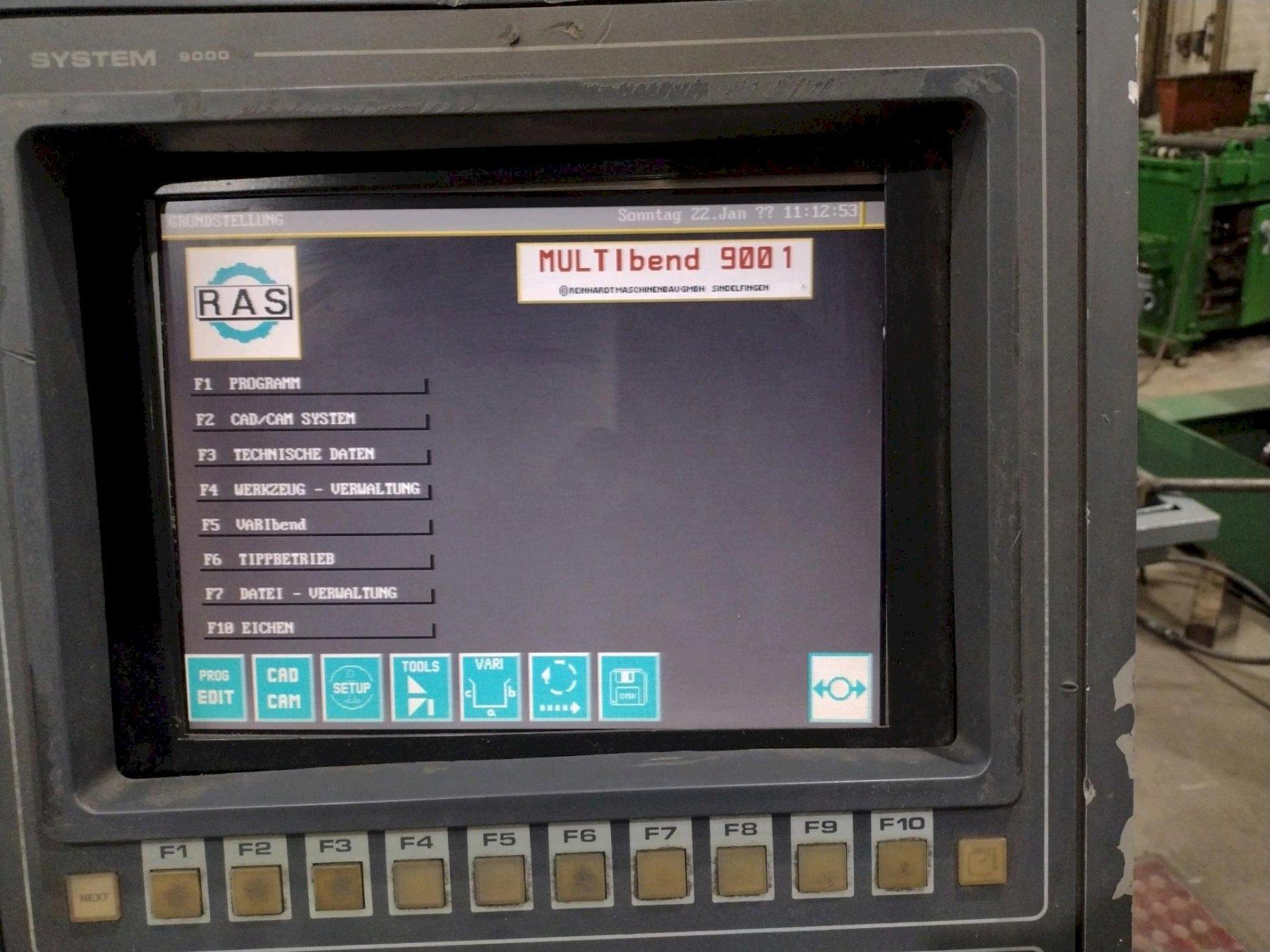

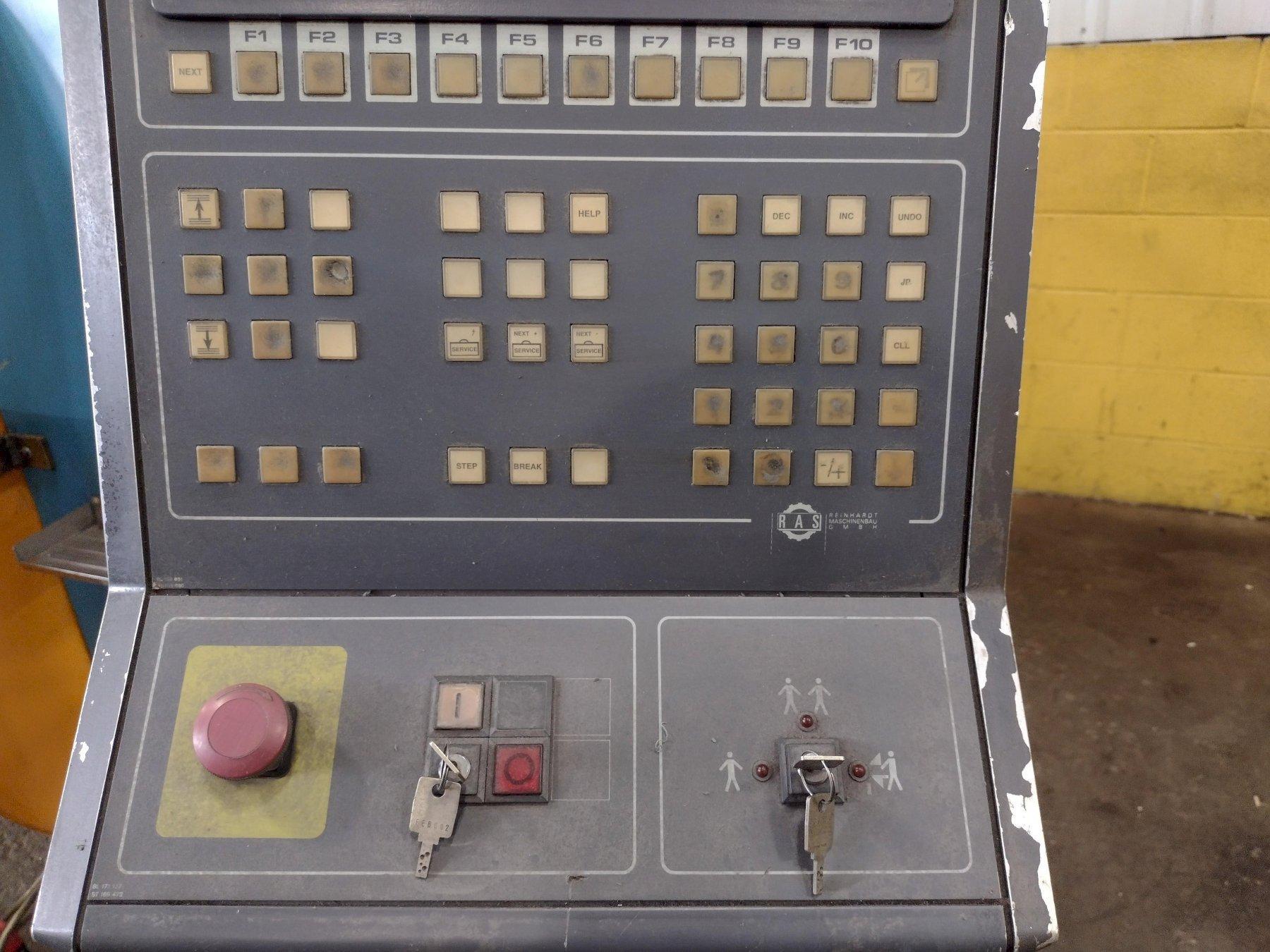

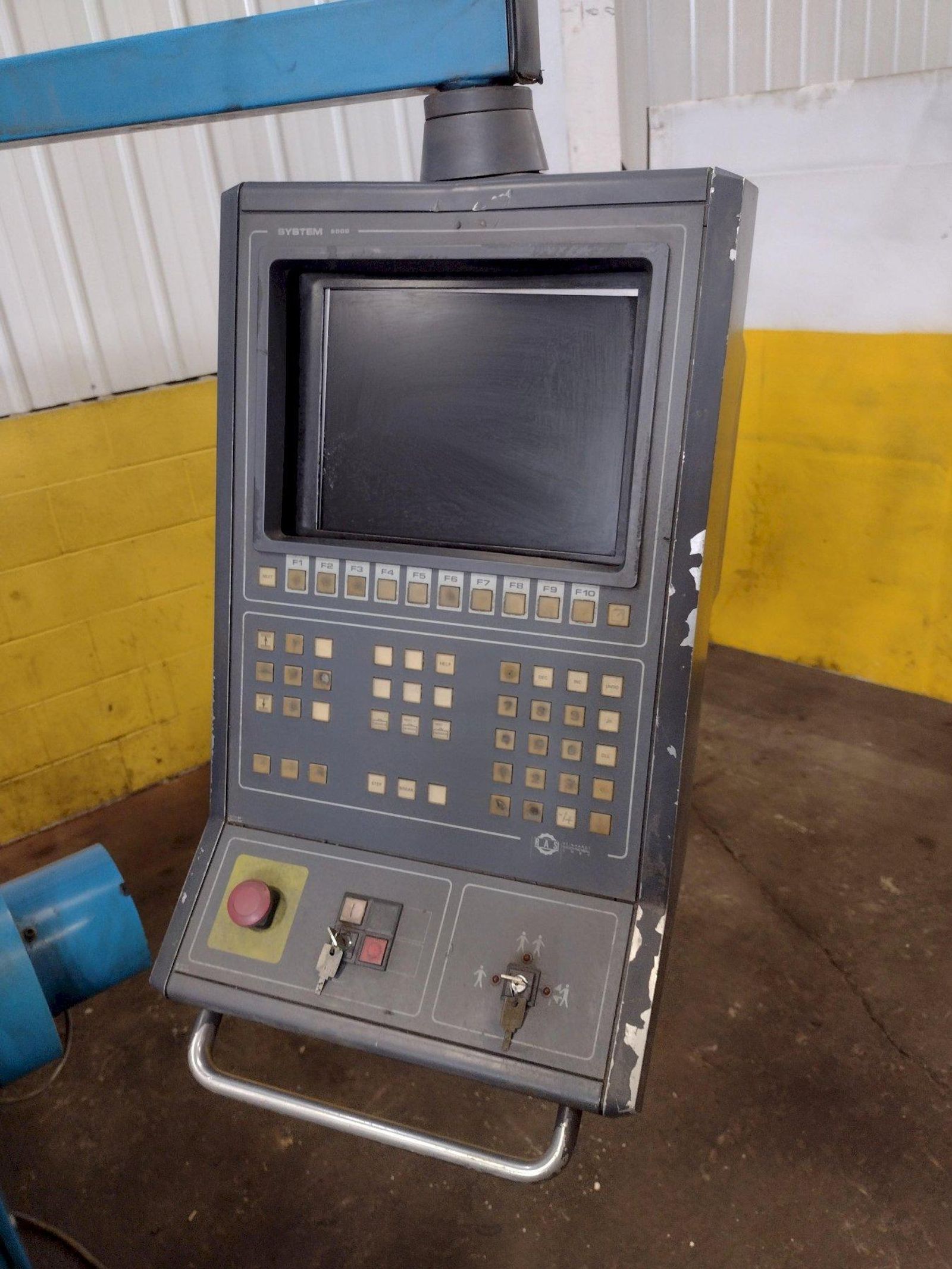

Serial ................................. 115.10Model .................................. No. 74.30.MB (Multibend) 9001Year ................................... 1999SpecificationsMax. Forming Capacity at Full Length ... 9 Gauge (Mild Steel)Max. Length of Forming ................. 126″Min. Flange Height ..................... 6 x Gauge Clamping Beam Max.Speed Up ............................... 3.60″/sec Clamping Beam Max.Speed Down ............................. 1.57″/sec Max.Folding Speed .......................... 74″/secFolding Angle Setting Range ............ 0-180 degreesCNC Folding Beam Stroke ................ 3.15″CNC Lower Beam Stroke .................. 3.15″Clamping Beam Stroke ................... 15.75″Back Gauge Positioning Accuracy ........ +/- .004″Back Gauge Max. Positioning Time ....... 3 secBack Gauge Min. Position ............... .394″Back Gauge Max. Position ............... 120″Motor Drive Power ...................... 12 HPEquipped With- RAS Multibend 9001 CNC Controller- Tooling
