SERIAL ...................... 1250282

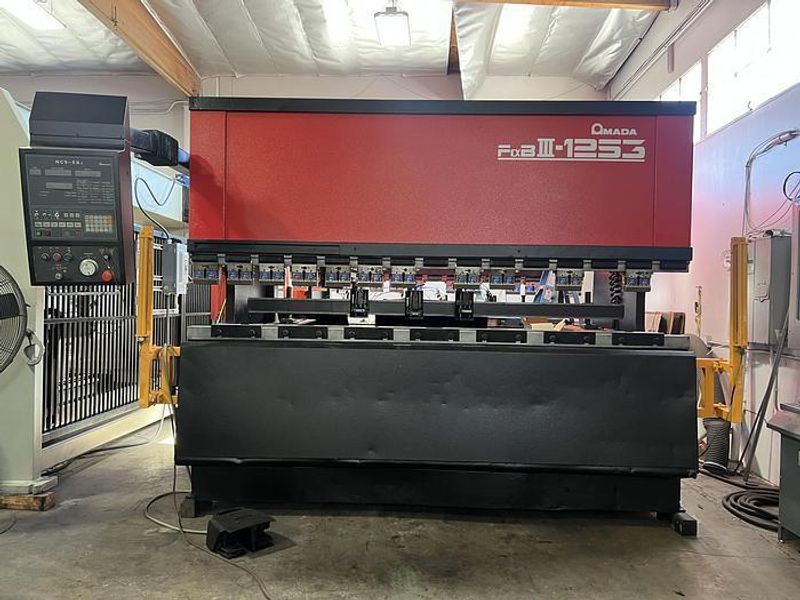

MODEL ....................... FBD-1253E
NEW ......................... 1990
CAPACITY .................... 138 US TONS
TABLE LENGTH ................ 118.1"
DISTANCE BETWEEN UPRIGHTS ... 106.3"
THROAT DEPTH ................ 15.75"
LENGTH OF STROKE ............ 5.91"
OPEN HEIGHT ................. 14.57"
CONTROL ..................... NC-9EXII
BACK GAUGING ................ CNC
BRAKE ....................... 8 AXIS
FOOT PEDAL .................. YES
FAST APPROACH SPEED ......... 165 IPM
SLOW BEND SPEED ............. 2.4 TO 18 IPM
FAST RETURN SPEED ........... 212 IPM
MOTOR ....................... 15 HP
Brand
AMADA
Type
Brakes, Press
Stock No.
19493
 |
419-269-2000 |
Stock #: 19493
SERIAL ...................... 1250282
MODEL ....................... FBD-1253E
NEW ......................... 1990
CAPACITY .................... 138 US TONS
TABLE LENGTH ................ 118.1"
DISTANCE BETWEEN UPRIGHTS ... 106.3"
THROAT DEPTH ................ 15.75"
LENGTH OF STROKE ............ 5.91"
OPEN HEIGHT ................. 14.57"
CONTROL ..................... NC-9EXII
BACK GAUGING ................ CNC
BRAKE ....................... 8 AXIS
FOOT PEDAL .................. YES
FAST APPROACH SPEED ......... 165 IPM
SLOW BEND SPEED ............. 2.4 TO 18 IPM
FAST RETURN SPEED ........... 212 IPM
MOTOR ....................... 15 HP
