| Specifications | ||
|---|---|---|
| Weight | 8400 pounds | |

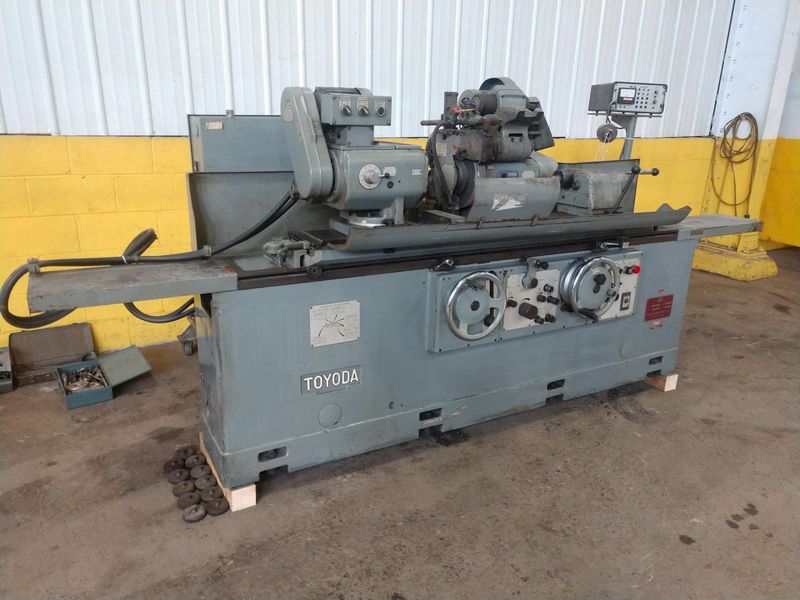

Brand
TOYODA
Type
Grinders, Cylindrical (Incl Plain & Angle Head)
Stock No.
14529
 |
419-269-2000 |
Stock #: 14529
SERIAL ........................ LG499-3
MODEL ......................... GUP 32X100
TYPE .......................... RB3628
NEW ........................... 1979
SWING OVER TABLE .............. 12.6"
CENTER DISTANCE ............... 40"GRINDING DIAMETER ............. 11.02"GRINDING WHEEL SIZE ........... 14" x 2" x 5"WHEEL SPEED ................... 1790 RPMWHEEL HEAD STROKE ............. 8.66"SWIVEL ANGLE .................. +/- 30 DEGREESTABLE TRAVERSE SPEED .......... 2 TO 158 IPMTABLE SWIVEL ANGLE ............ 12.5 TO 5 DEGREESWORK HEAD CENTER .............. #4 MTWORK HEAD SPEEDS .............. 16 TO 250 RPMWORK HEAD SWIVEL ANGLE ........ -90 TO +30 DEGREESLIVE SPINDLE LOAD ............. 88 LBS
WHEEL MOOR .................... 5 HPWORK HEAD MOTOR ............... 1.1 HP
DROP DOWN ID SPINDLE .......... YES
ID SPINDLE MOTOR .............. 1 HP
