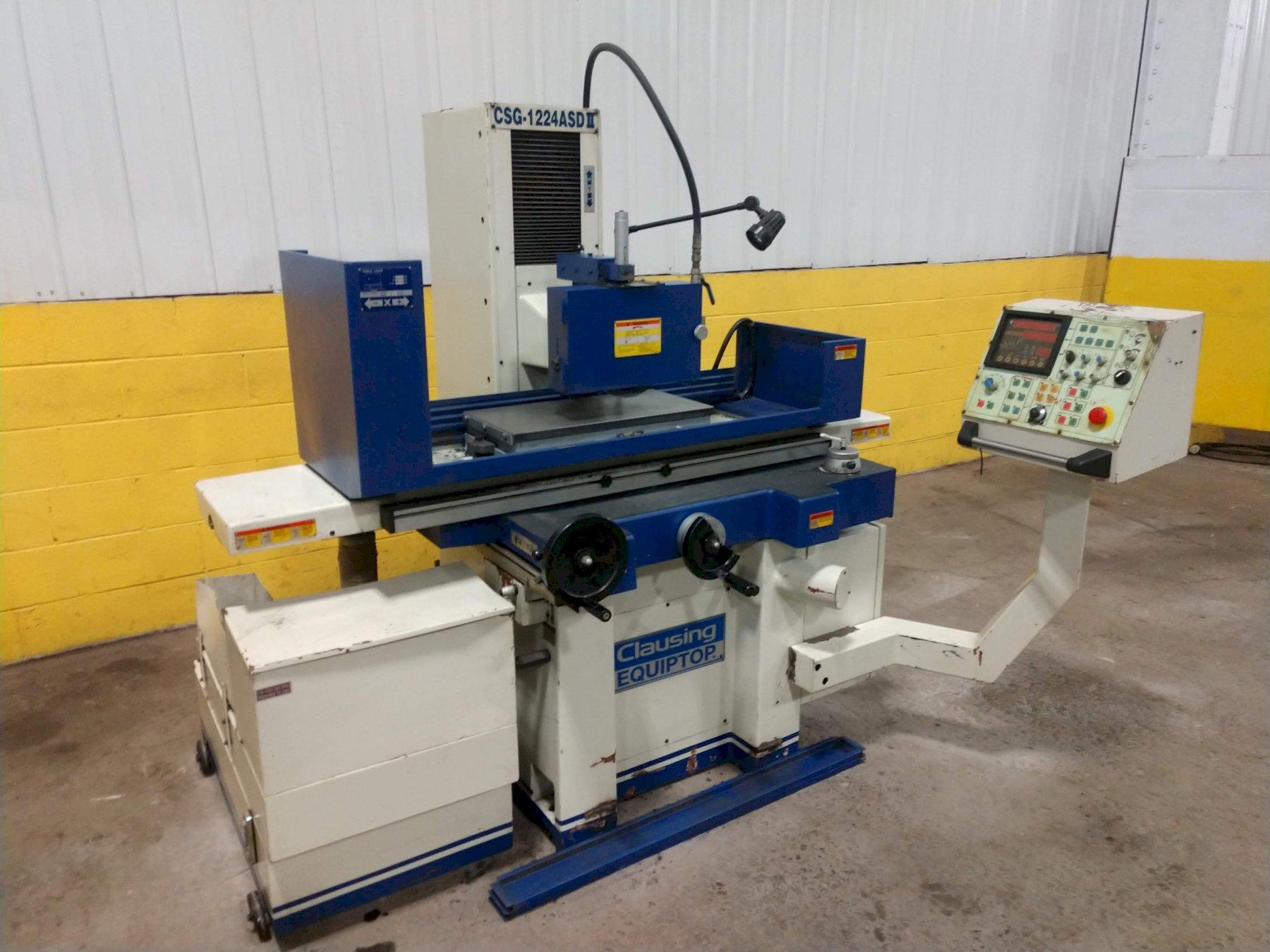

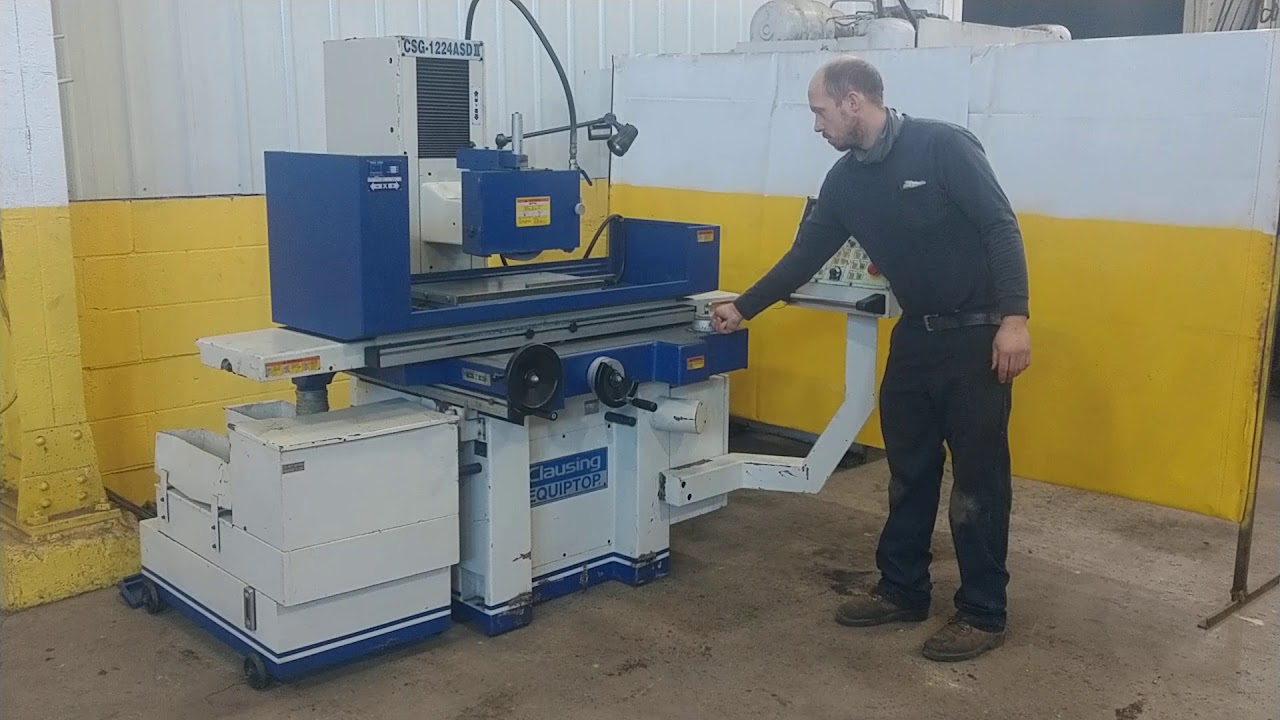

12" X 24" CLAUSING EQUIPTOP MODEL CSG-1224ASDII 3 AXIS HORIZONTAL SURFACE GRINDER: STOCK 13985

Overview

SERIAL 3007233
NEW 04-2007
Model: CSG1224ASDII

Table Size: 11-13/16" x 23-5/8"
Max. grinding length (longitudinal): 23-5/8"
Max. grinding width (crosswise): 11-13/16"
Max. distance from table surface to spindle centerline: 23"


Standard magnetic chuck size: 11-13/16" x 23-5/8"
Longitudinal movement of table
Max. travel (hydraulic): 25-9/16"
Max. travel (manual): 28-3/4"
Table speed infinitely variable: 196"-984"/min.
Crossfeed transverse travel
Auto transverse increment: 0.04" - .75"
Auto constant feeding speed: 0.79"-12.6"/min.
Max. auto transverse travel: 12-3/16"
Max. manual transverse travel: 13-3/8"
Handwheel per revolution: 0.2"
Handwheel per graduation: 0.001"
Wheelhead vertical downfeed
Automatic infeed: 0.00005"-.0025"
Step feed (JOG): 0.00005"
Rapid travel Approx.: 6"/min
Slow travel, Approx.: 0.236"/min
*Minimum display value (revolution): 0.0001"
*Minimum display value (graduation): 0.0001"

Grinding spindle drive
Speed (rpm): 1750rpm
Power rating: 5 Hp
Standard grinding wheel:
Diameter 12"
Width 1-1/4"
Bore 3"

Hydraulic motor (power rating): 2hp
Crossfeed motor (power rating): 80W
Elevating motor (power rating): 80W
Rated power, approx: 8-1/4 Hp

Specifications
Dimensions 106" X 63" X 73" HIGH
Weight 4400 pounds
