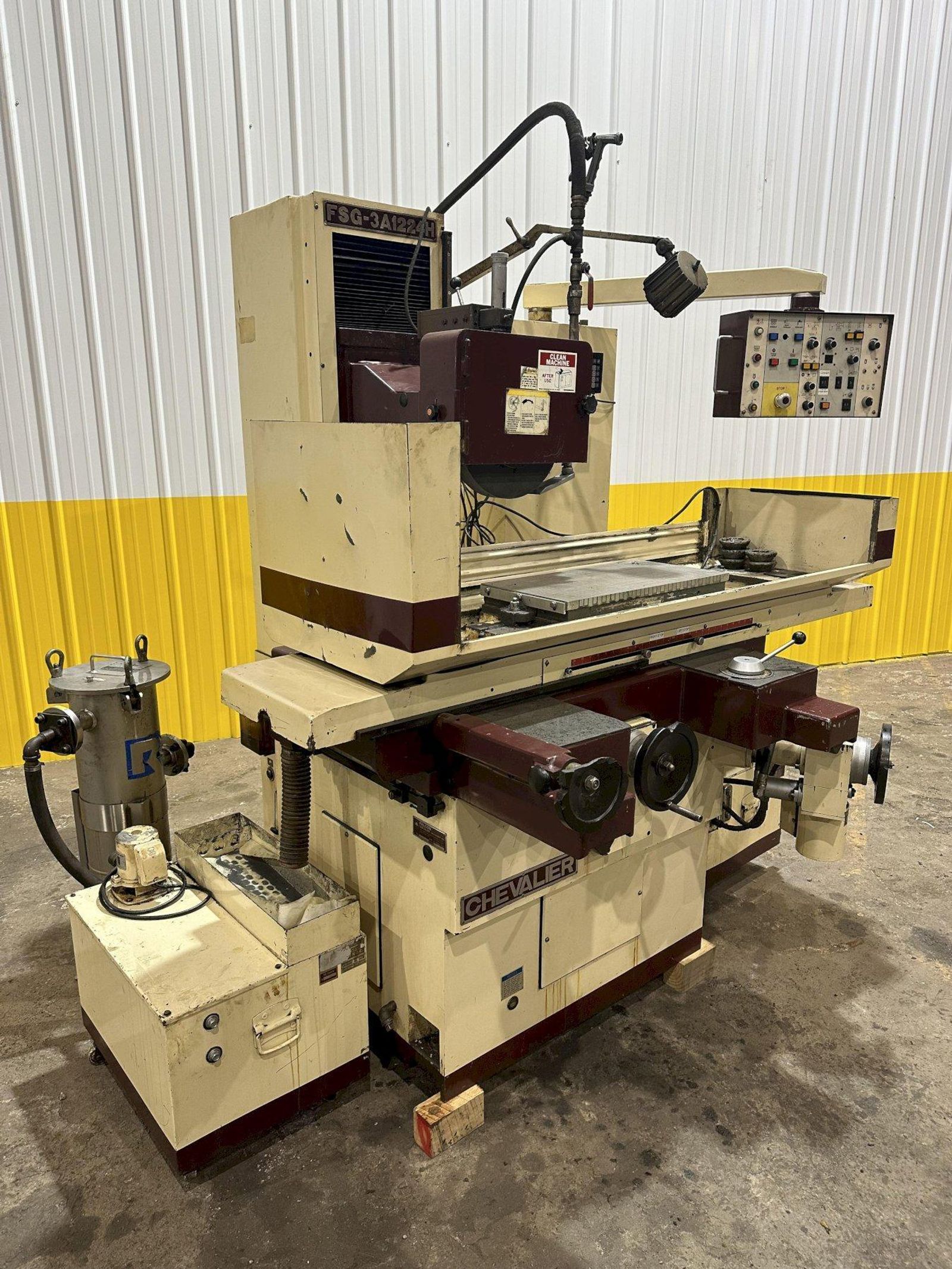

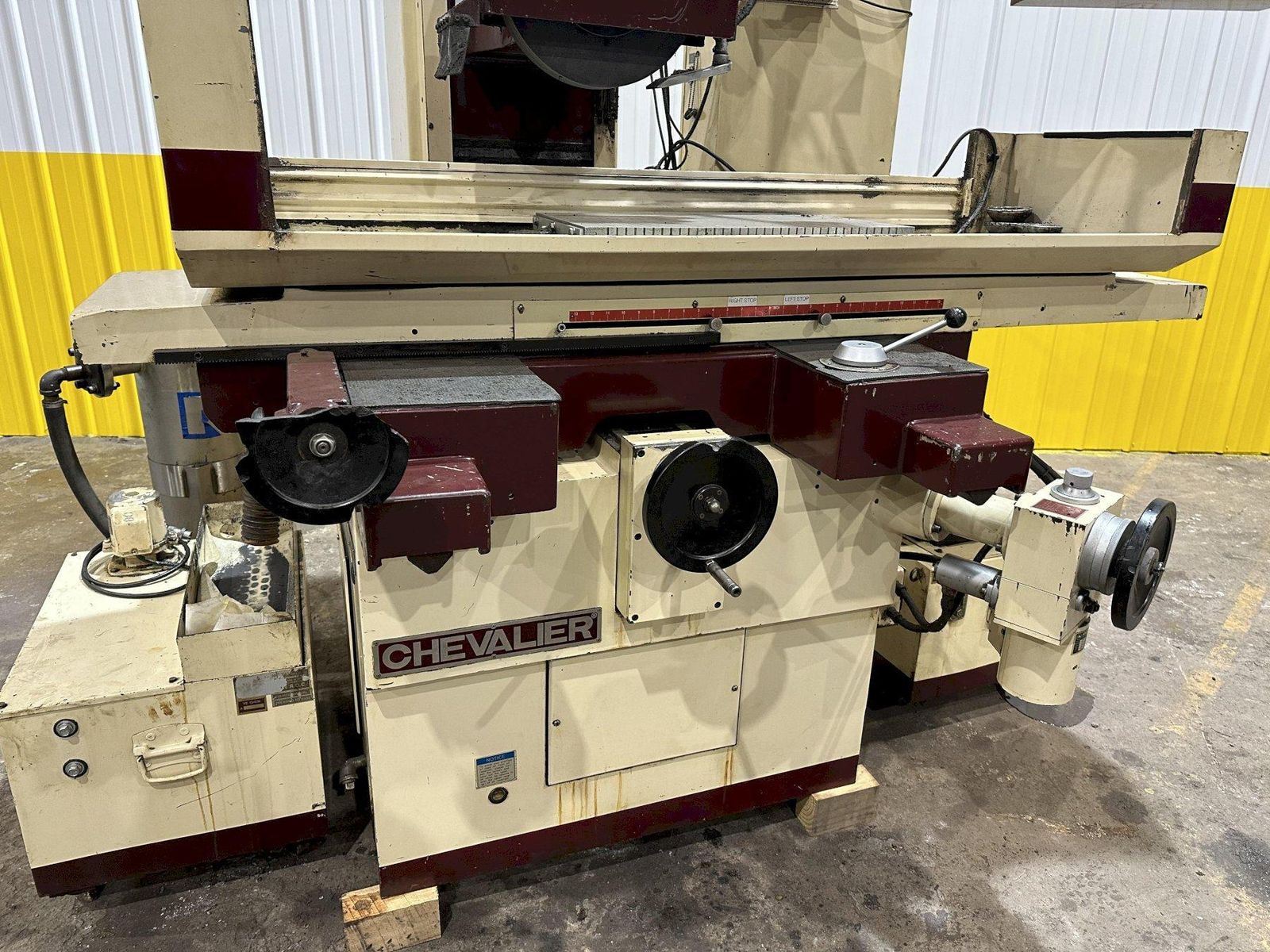

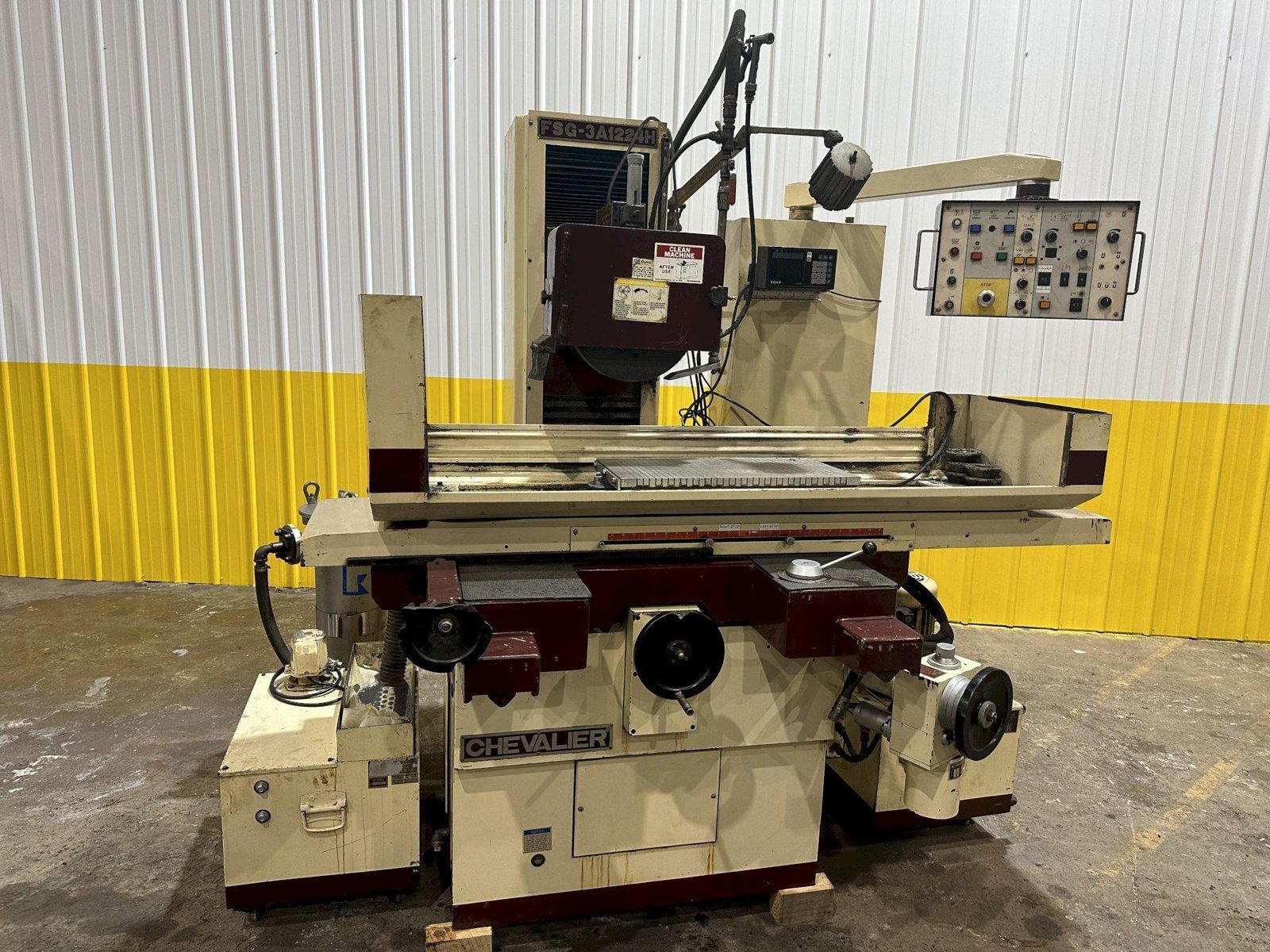

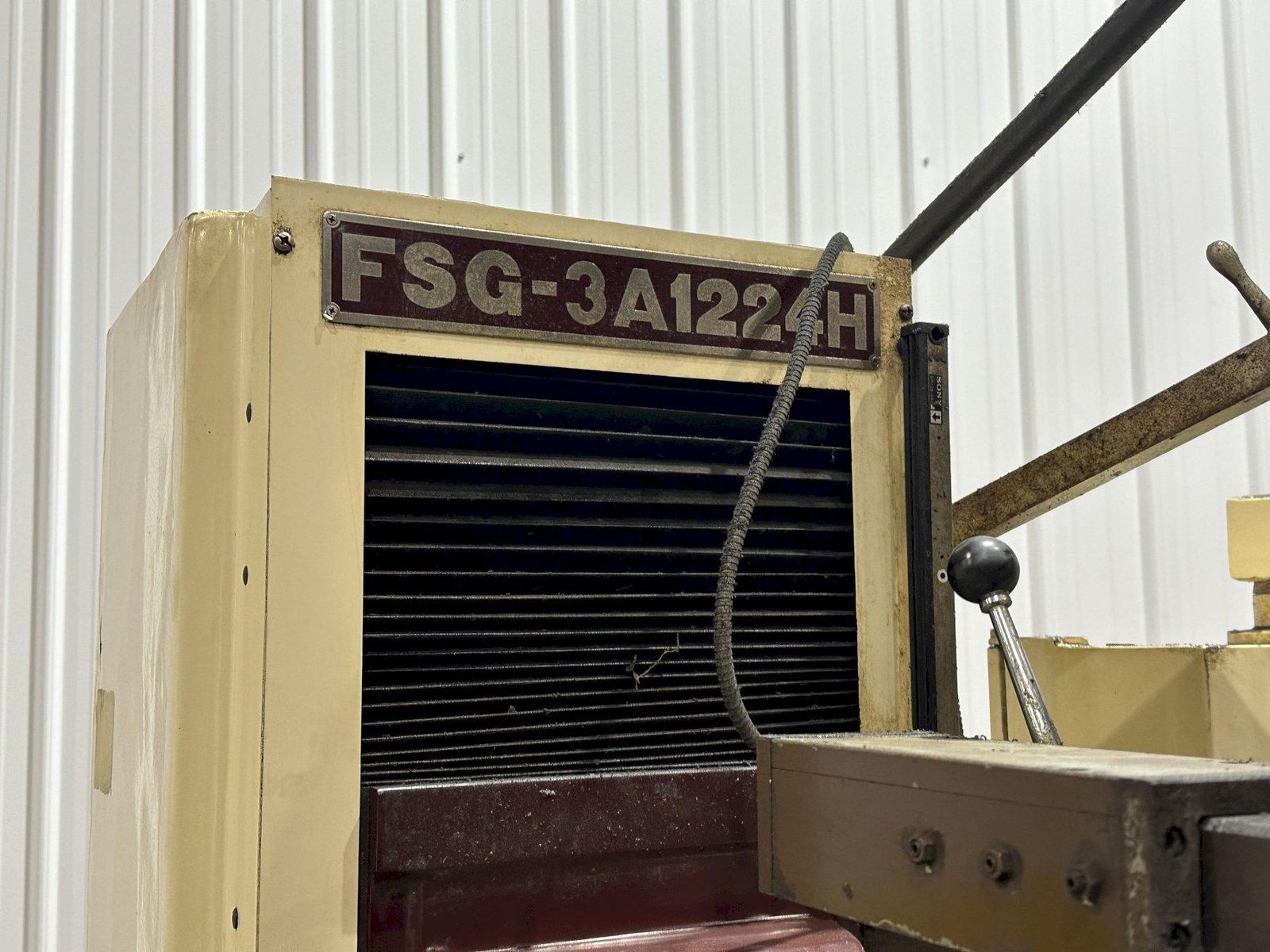

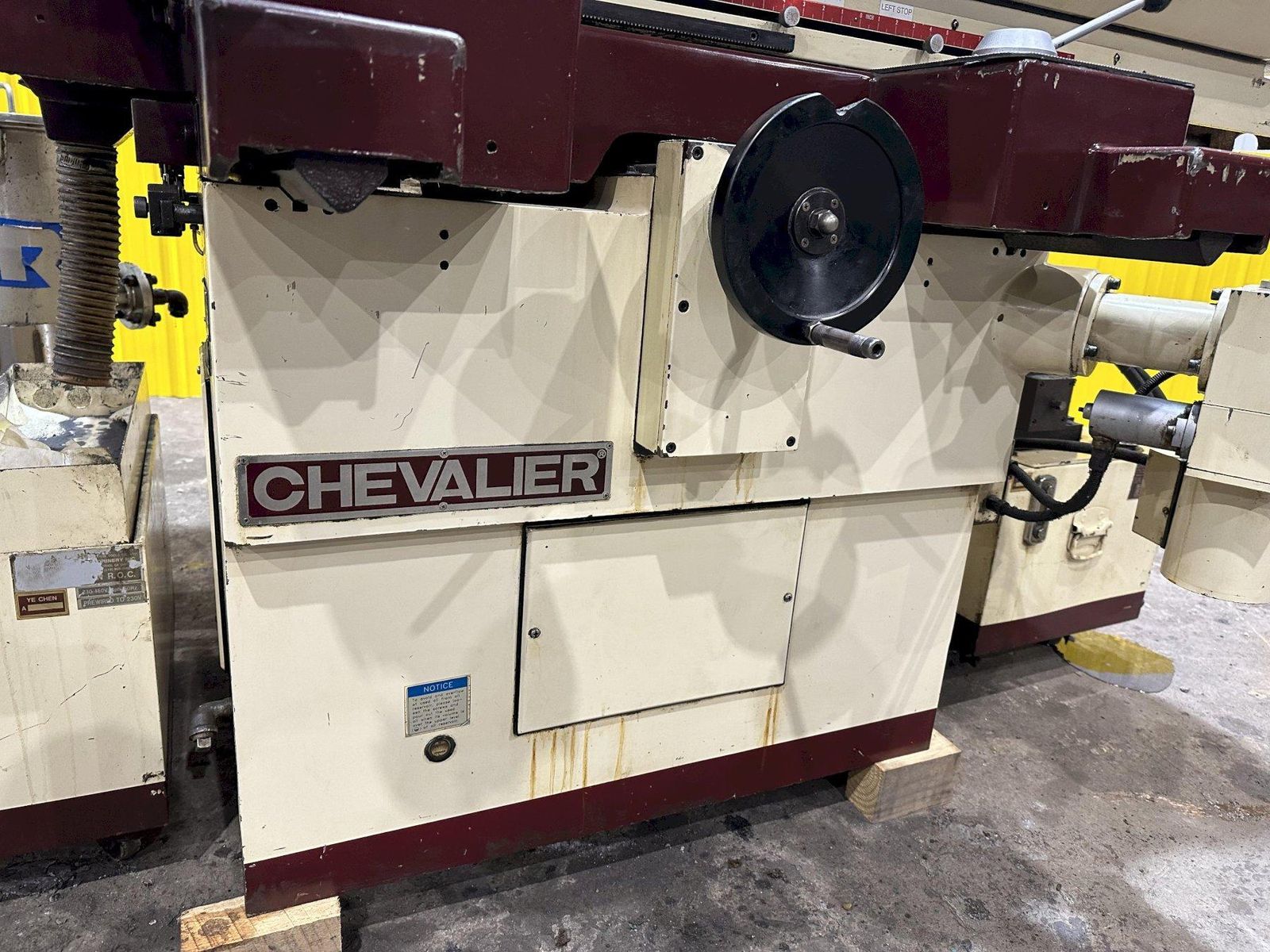

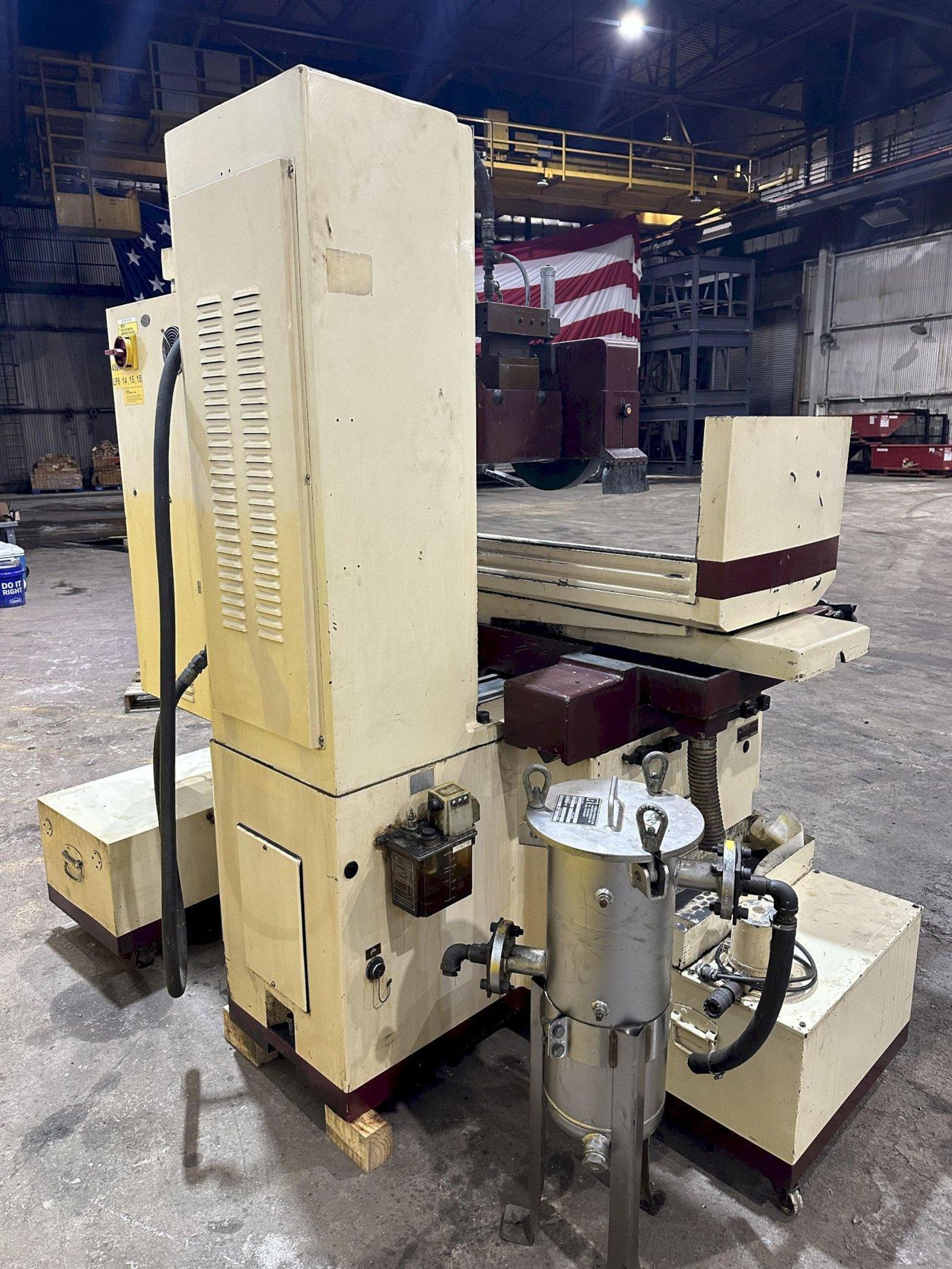

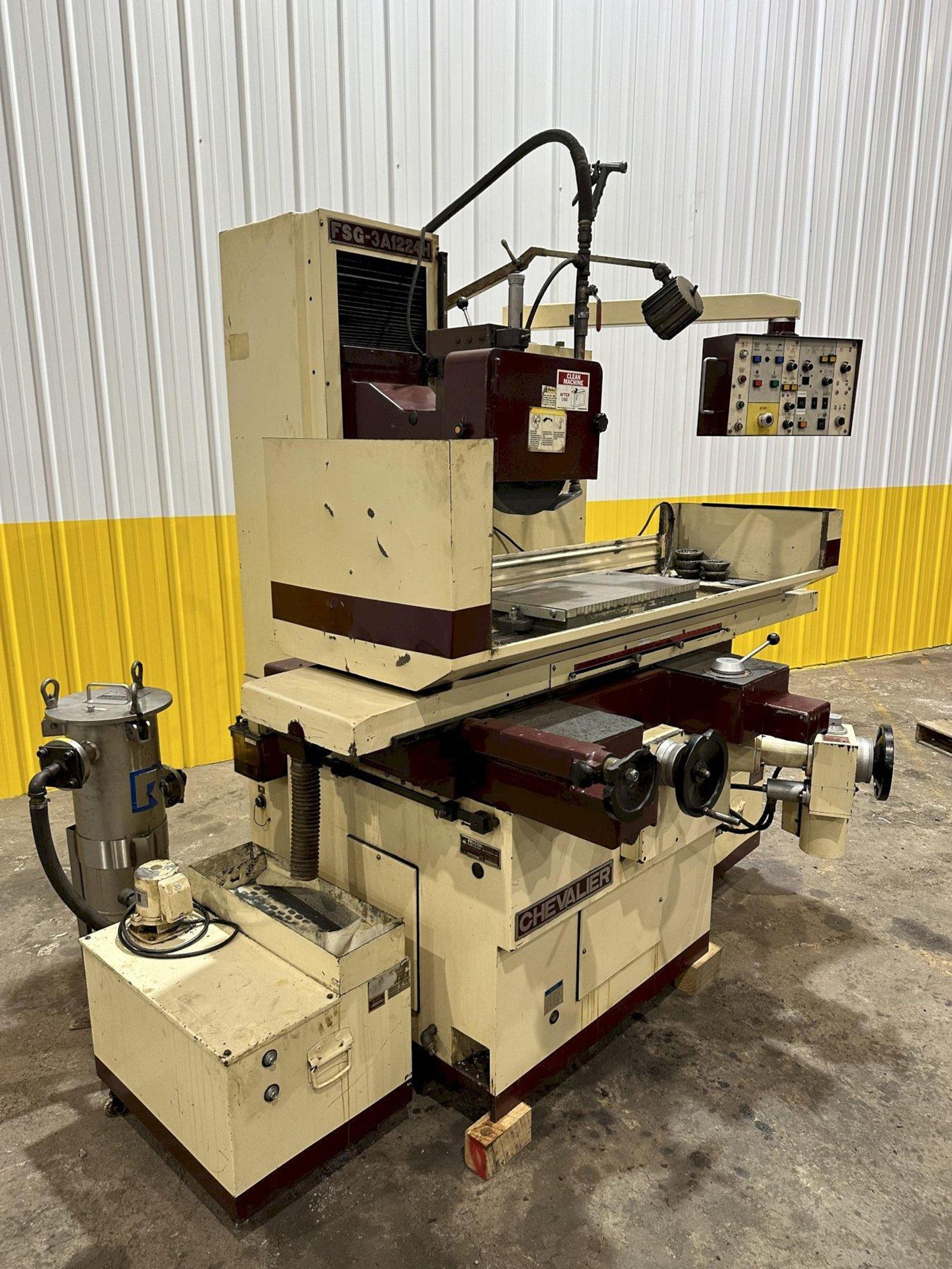

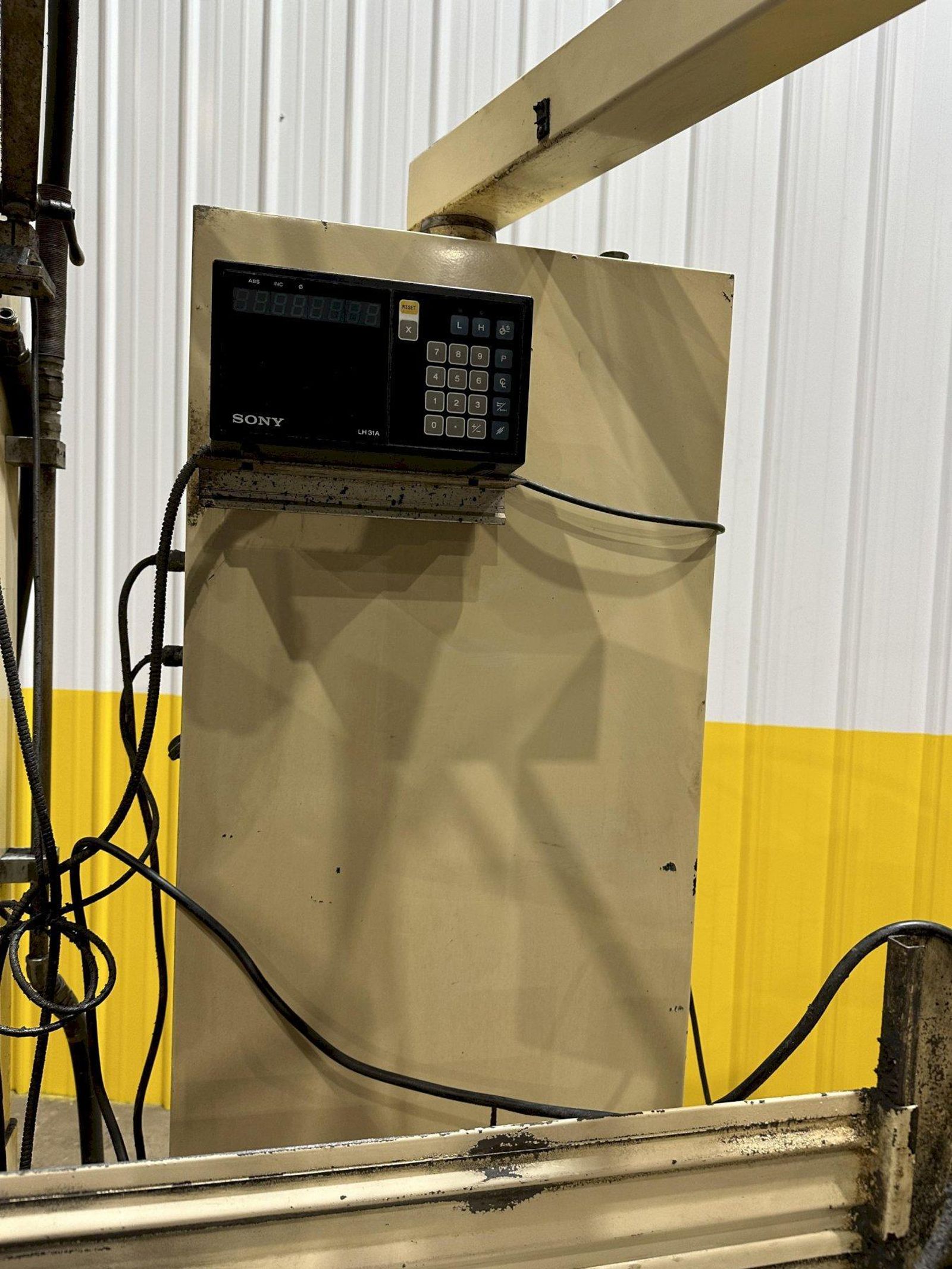

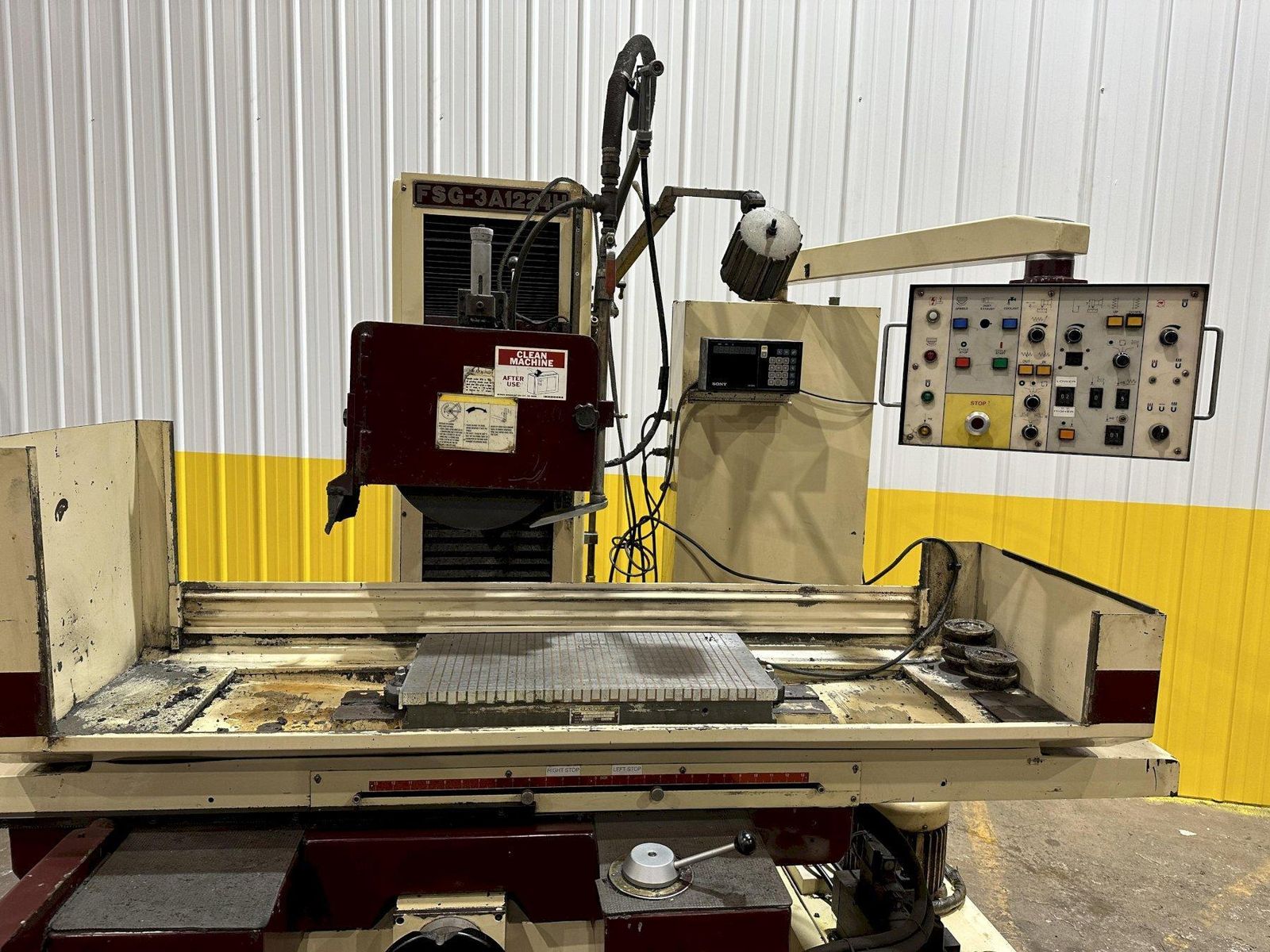

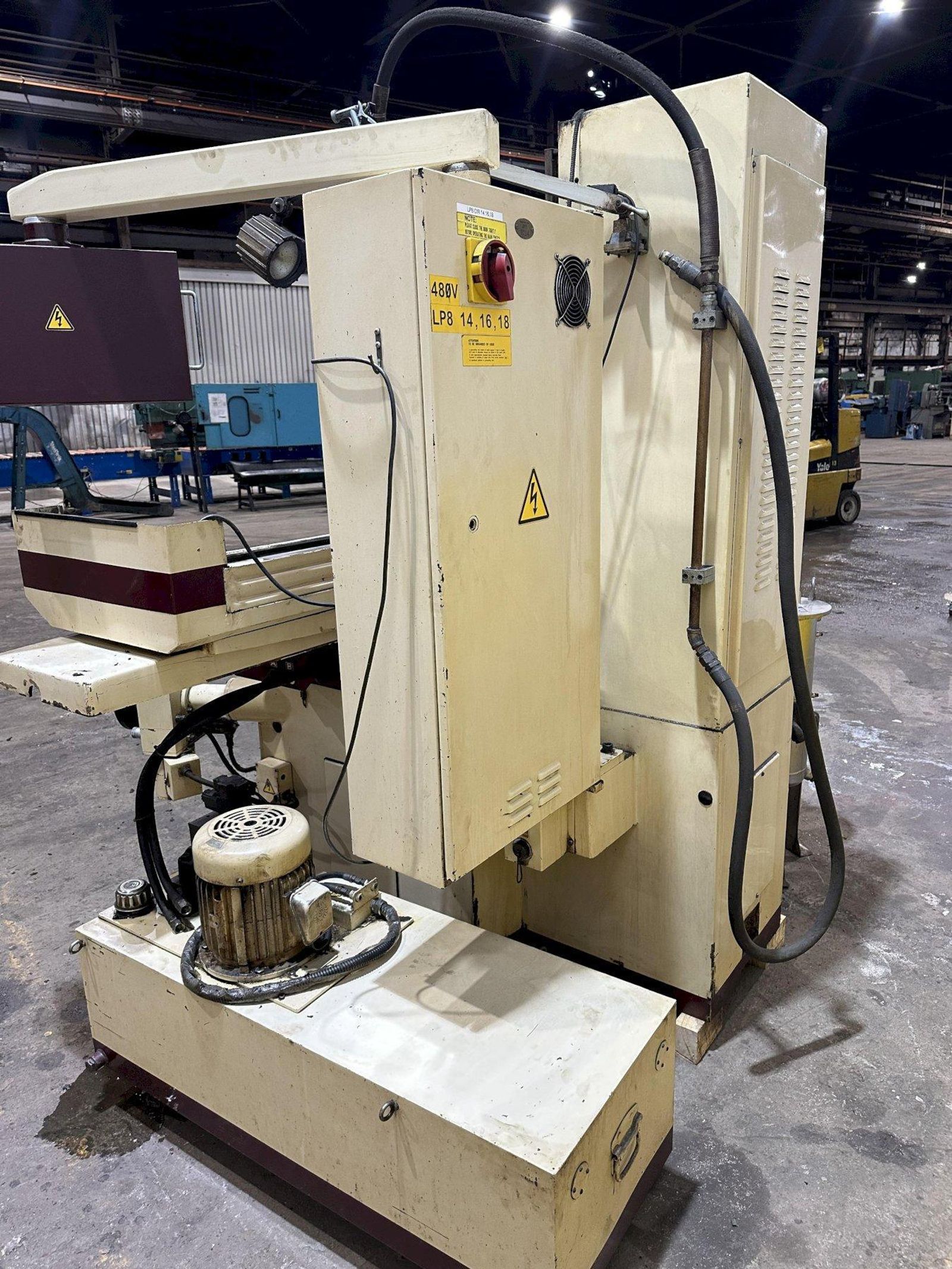

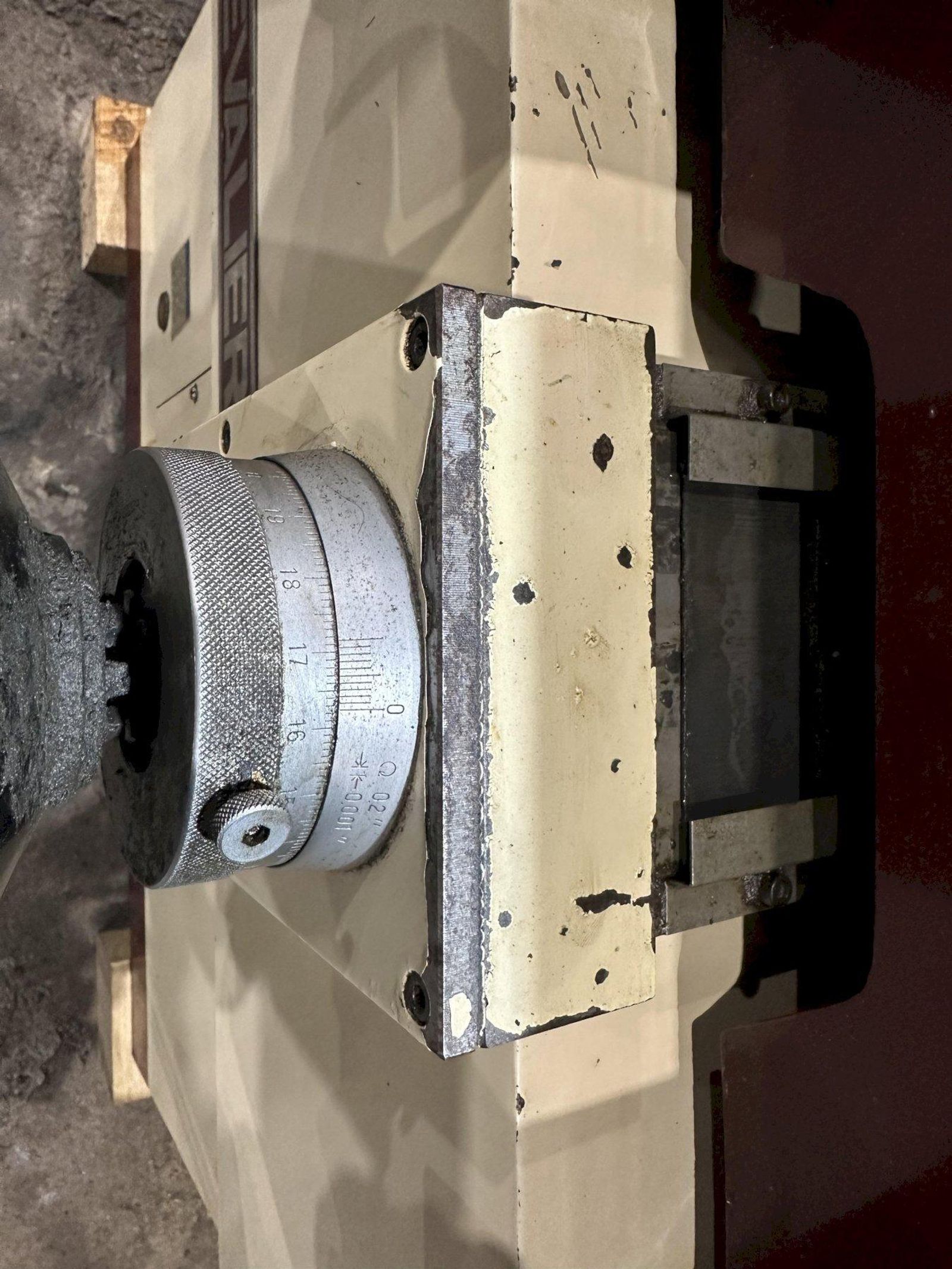

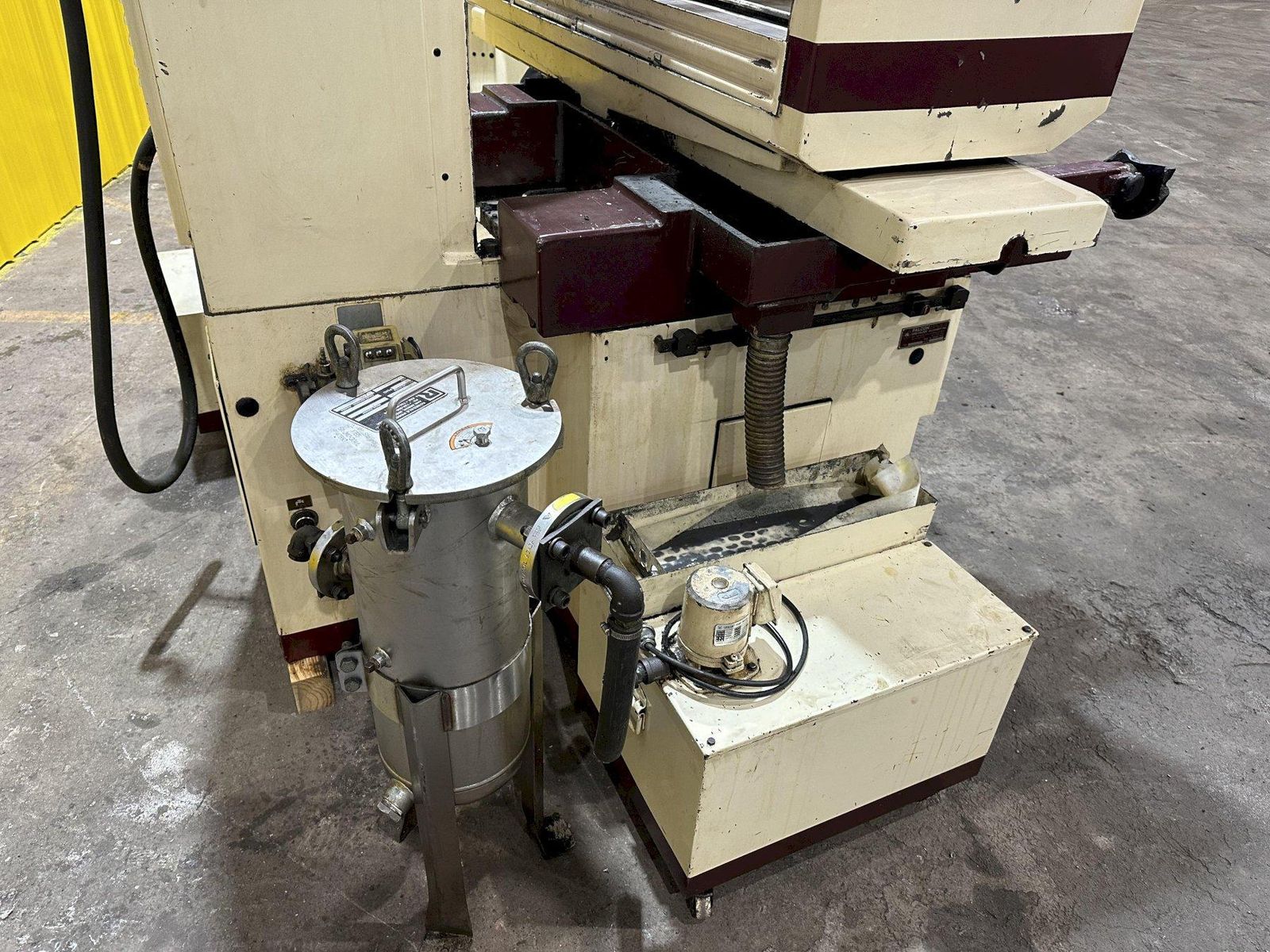

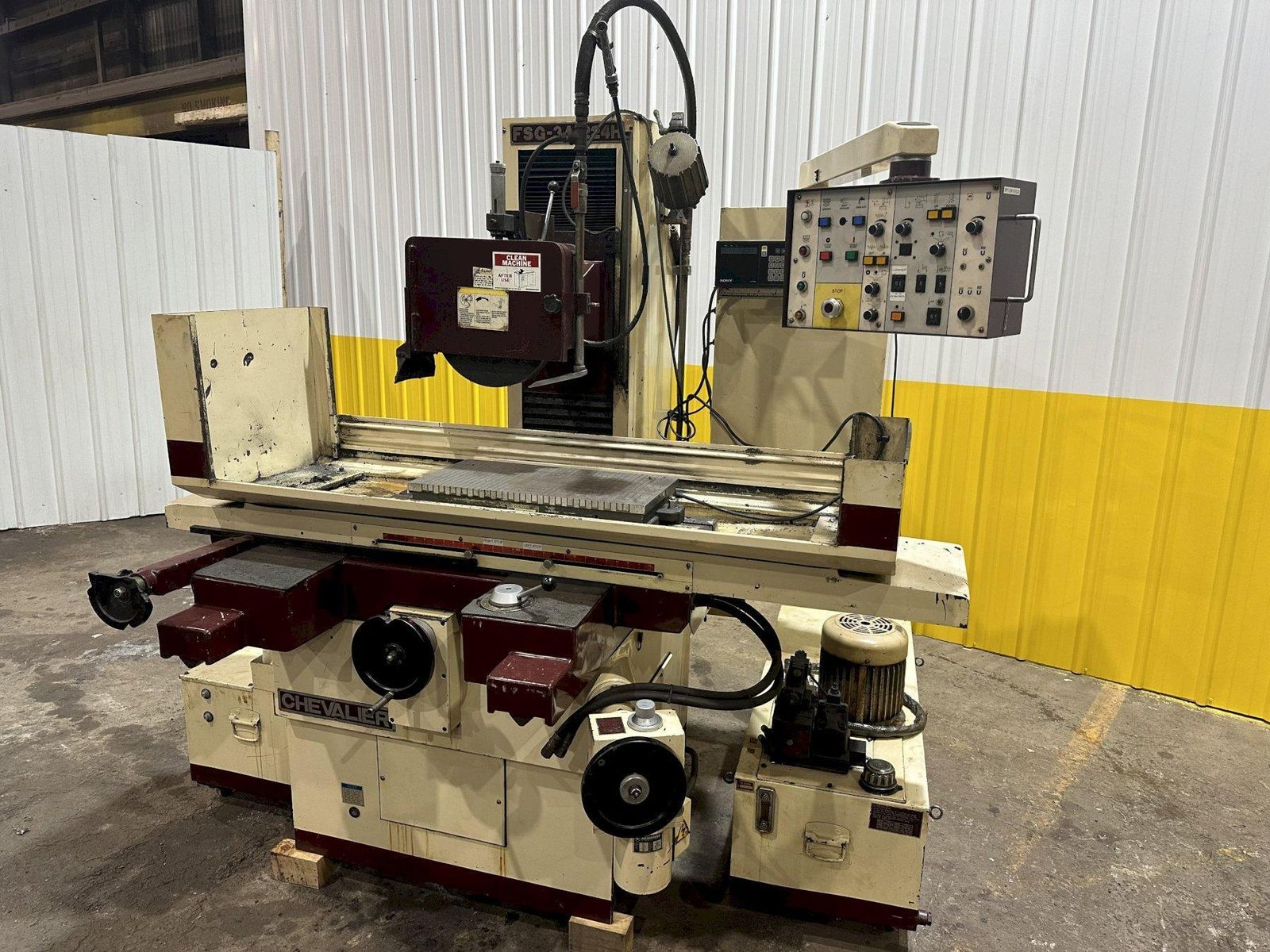

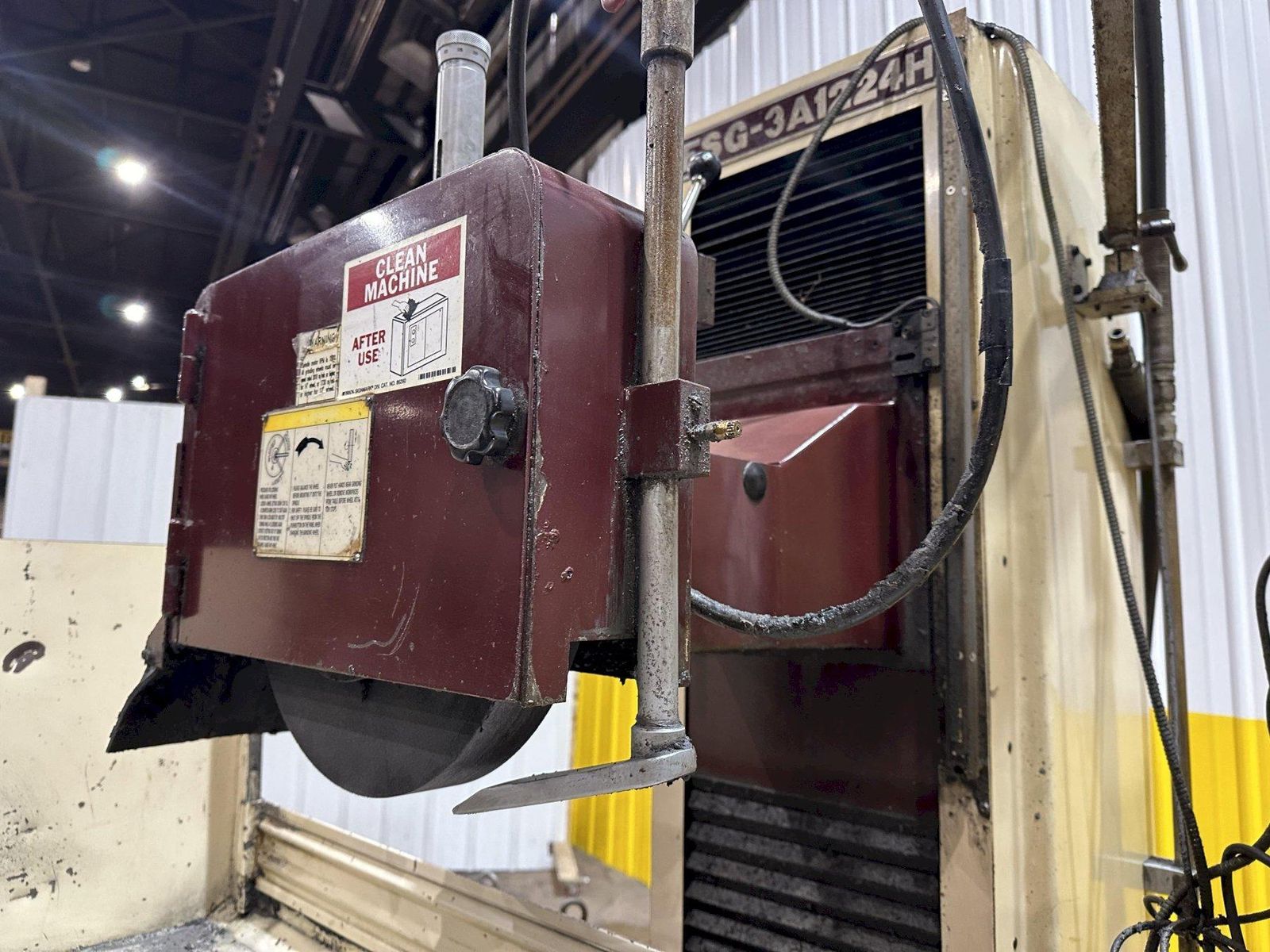

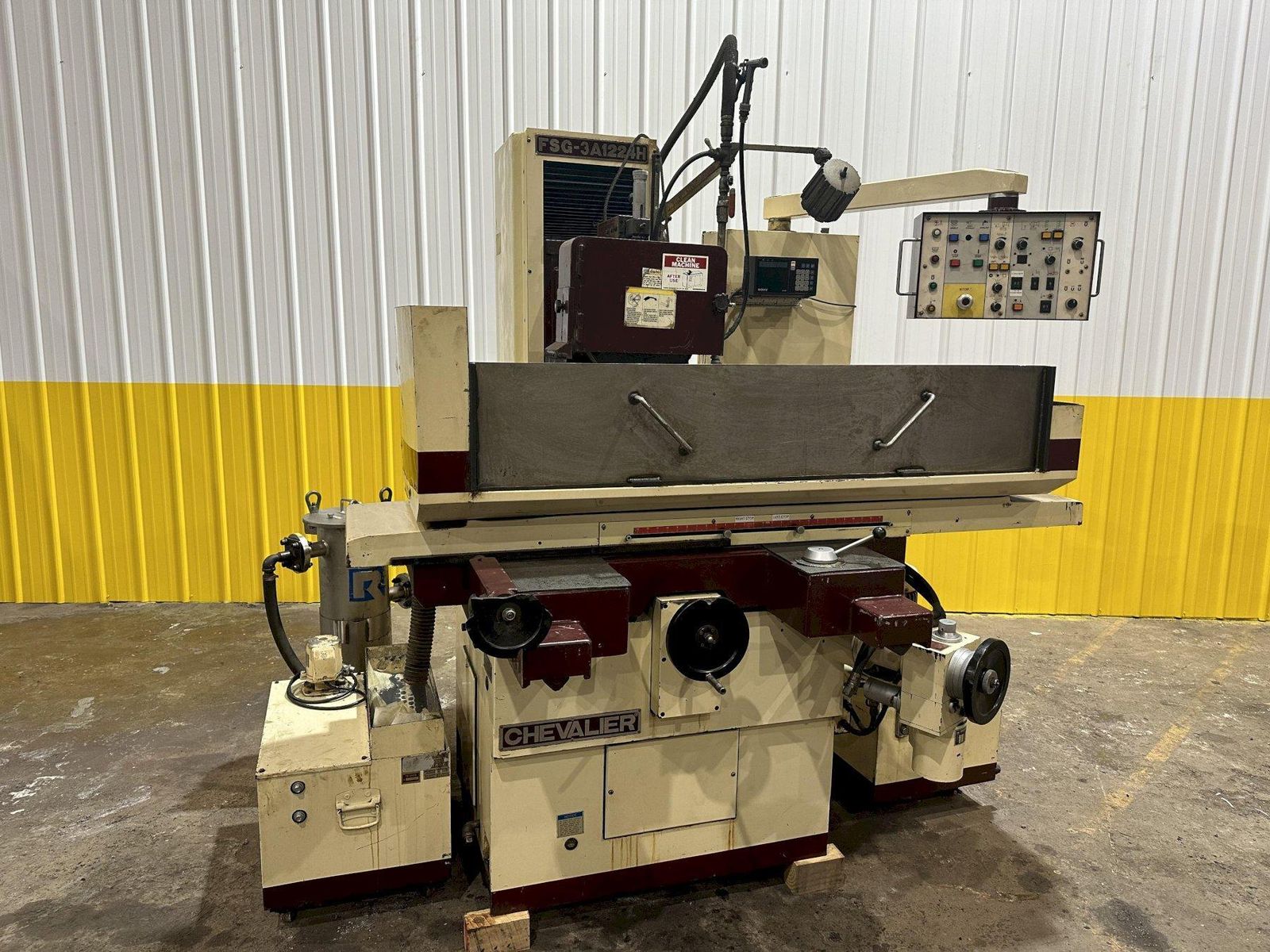

MODEL ........................................ FSG-3A1224H
Brand
CHEVALIER
Type
Grinders, Surface, Recip.
Stock No.
19824
 |
419-269-2000 |
Stock #: 19824

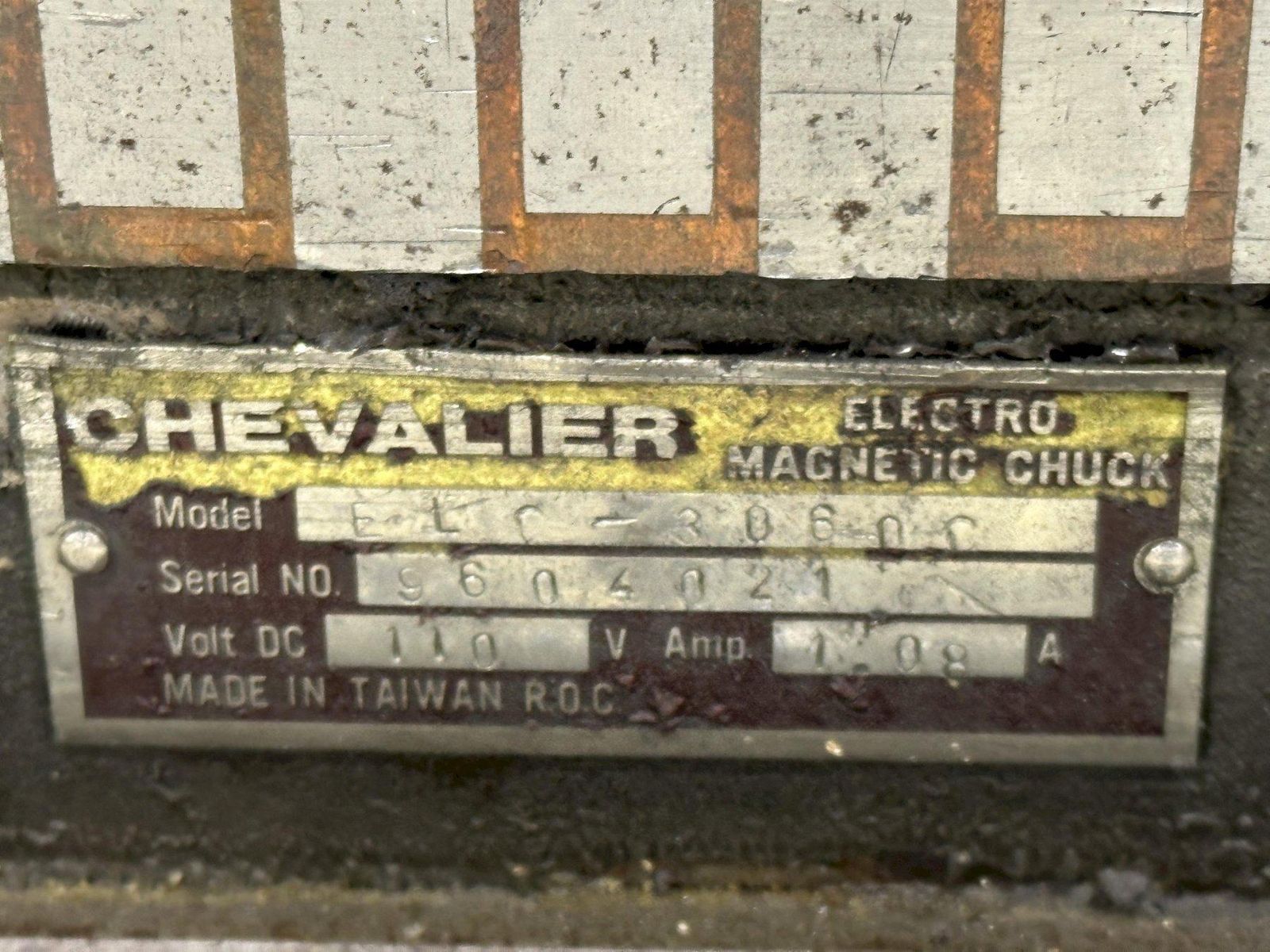

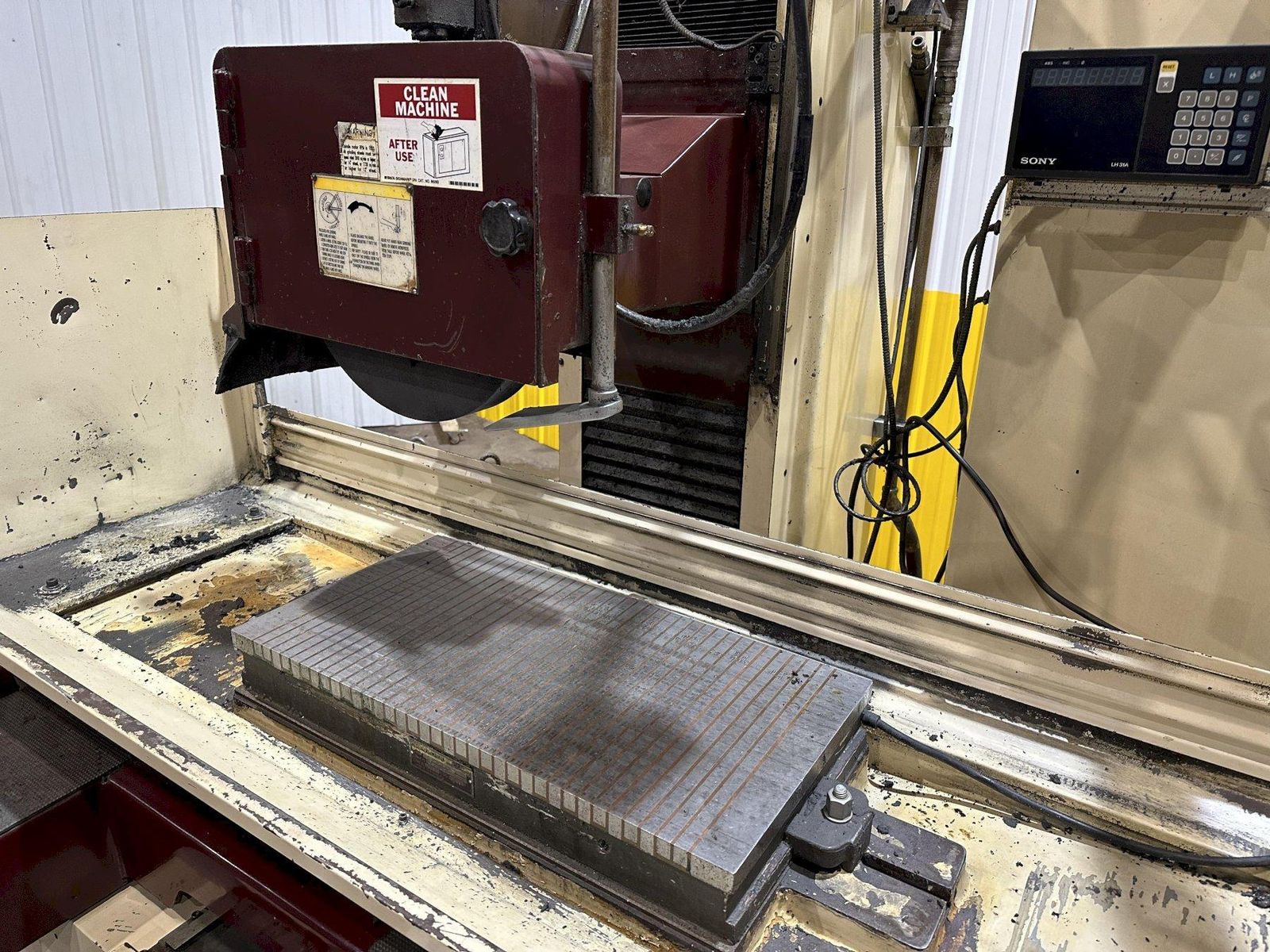

MODEL ........................................ FSG-3A1224H

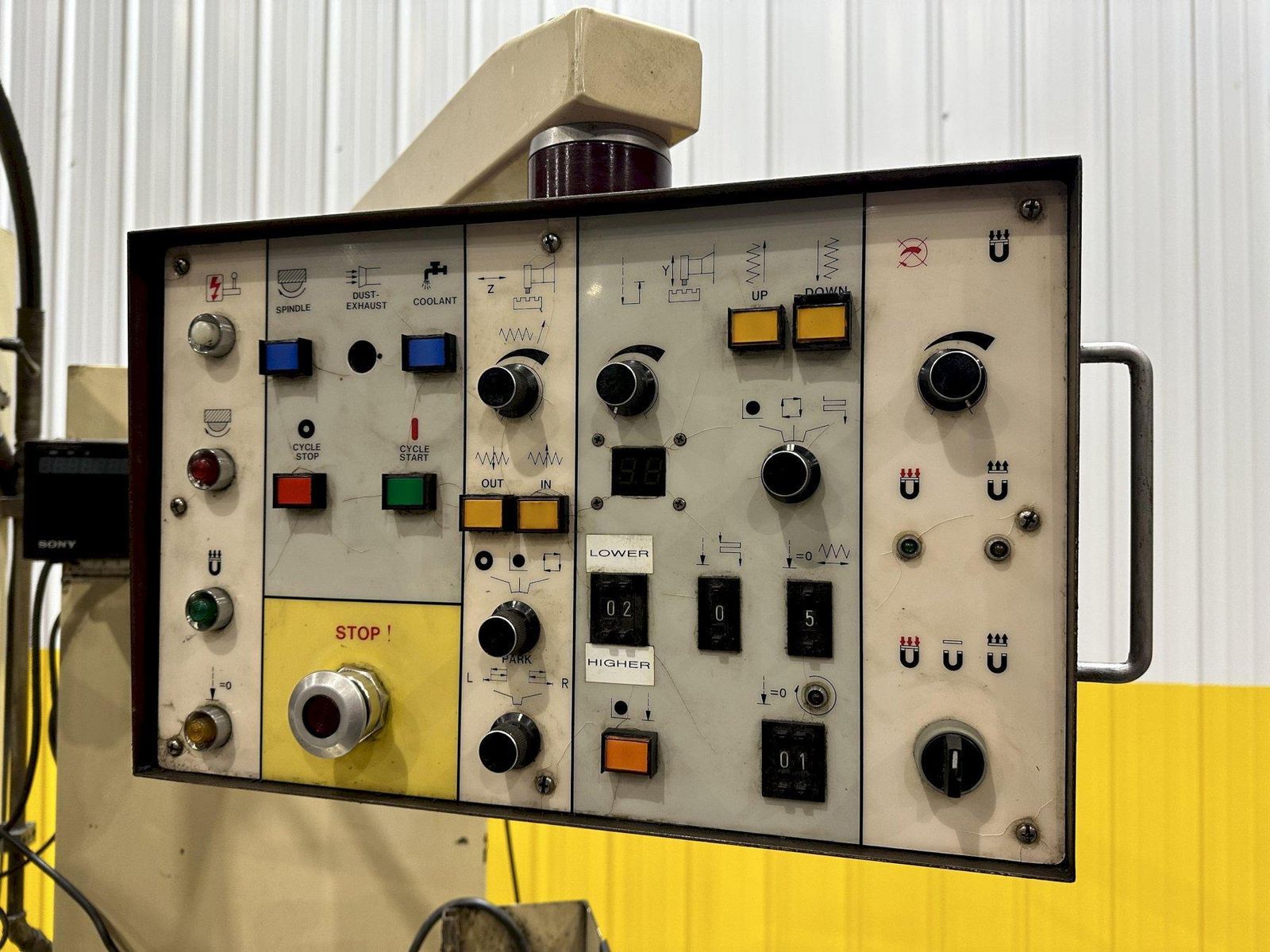

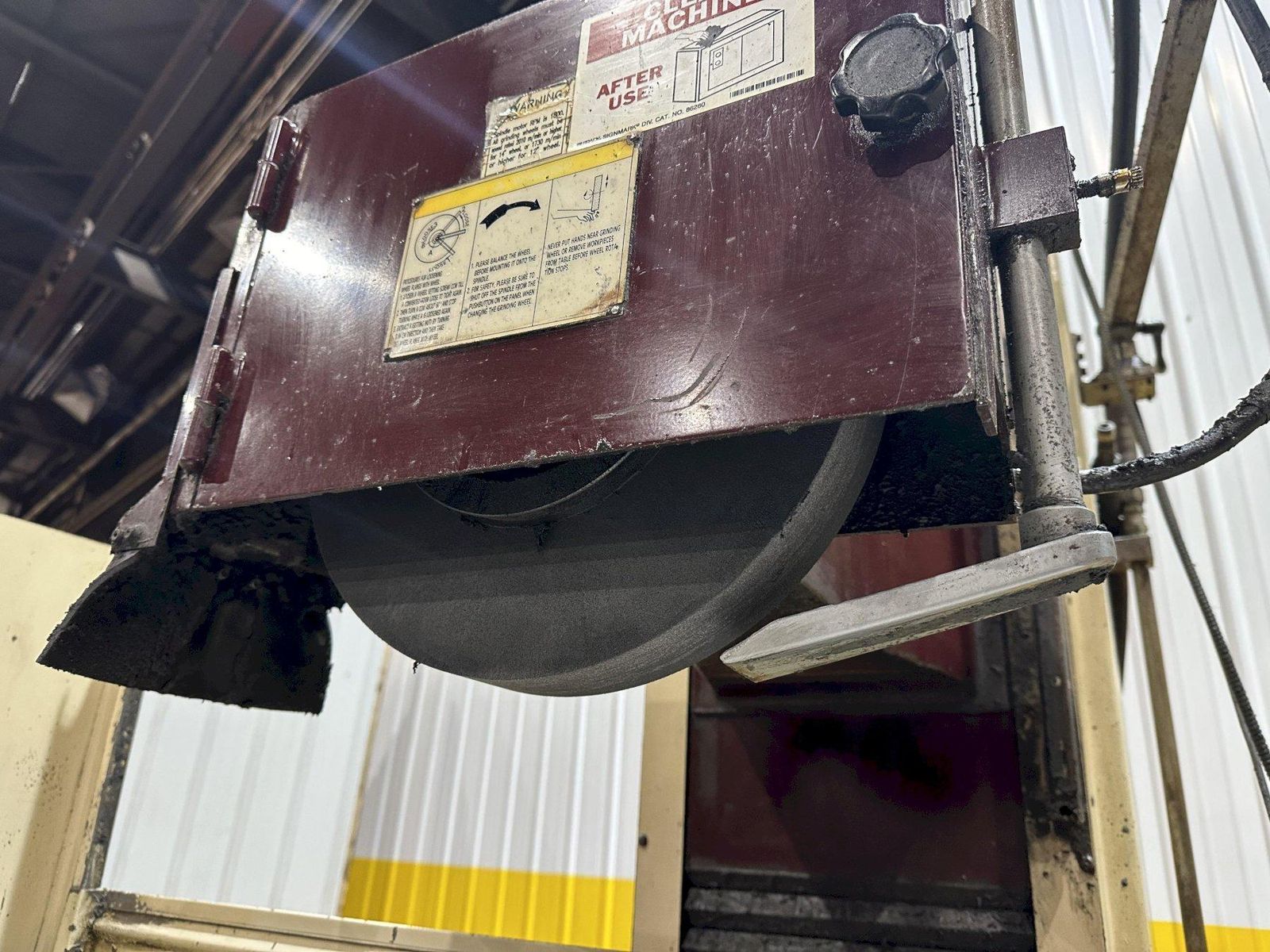

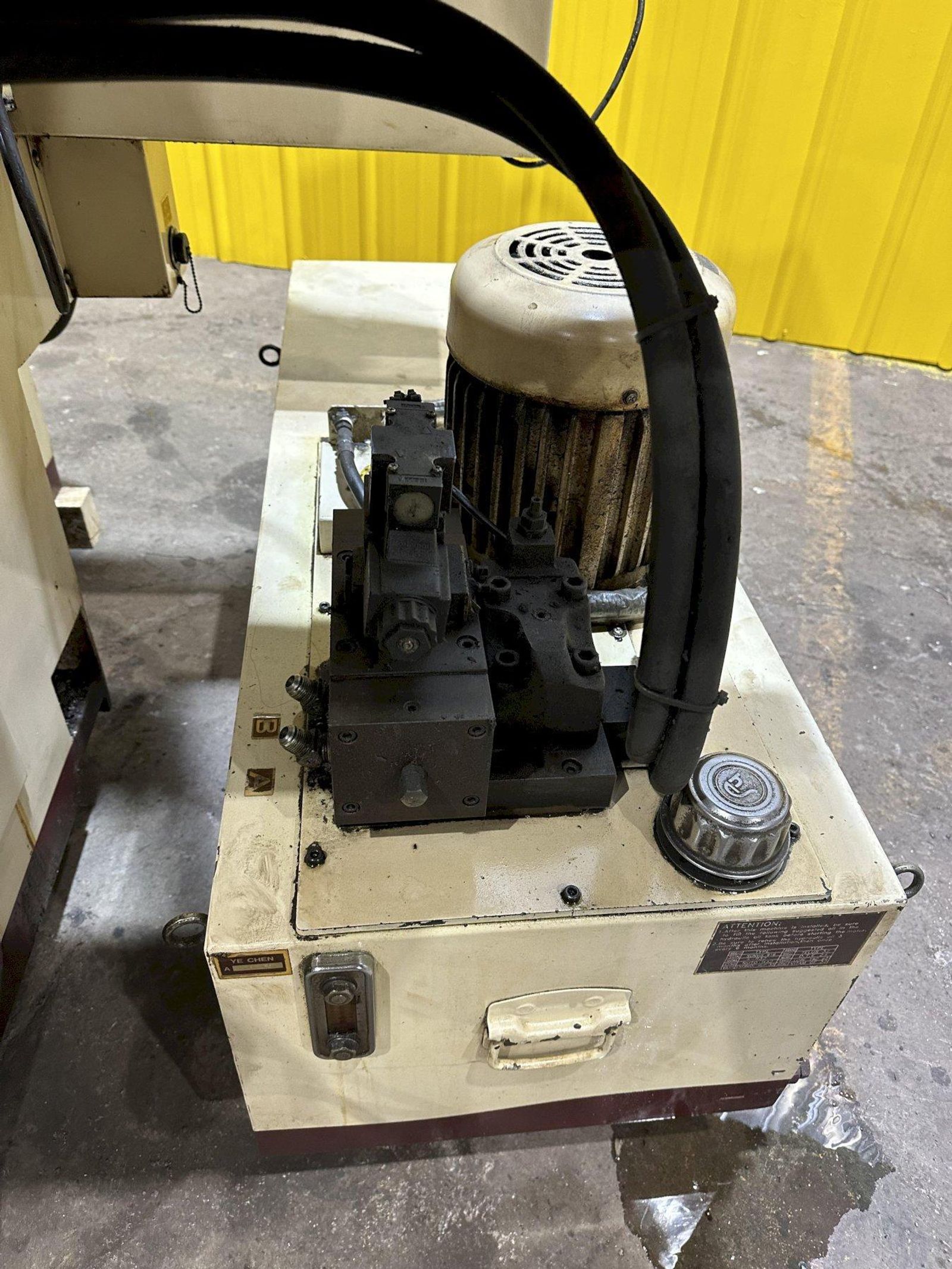

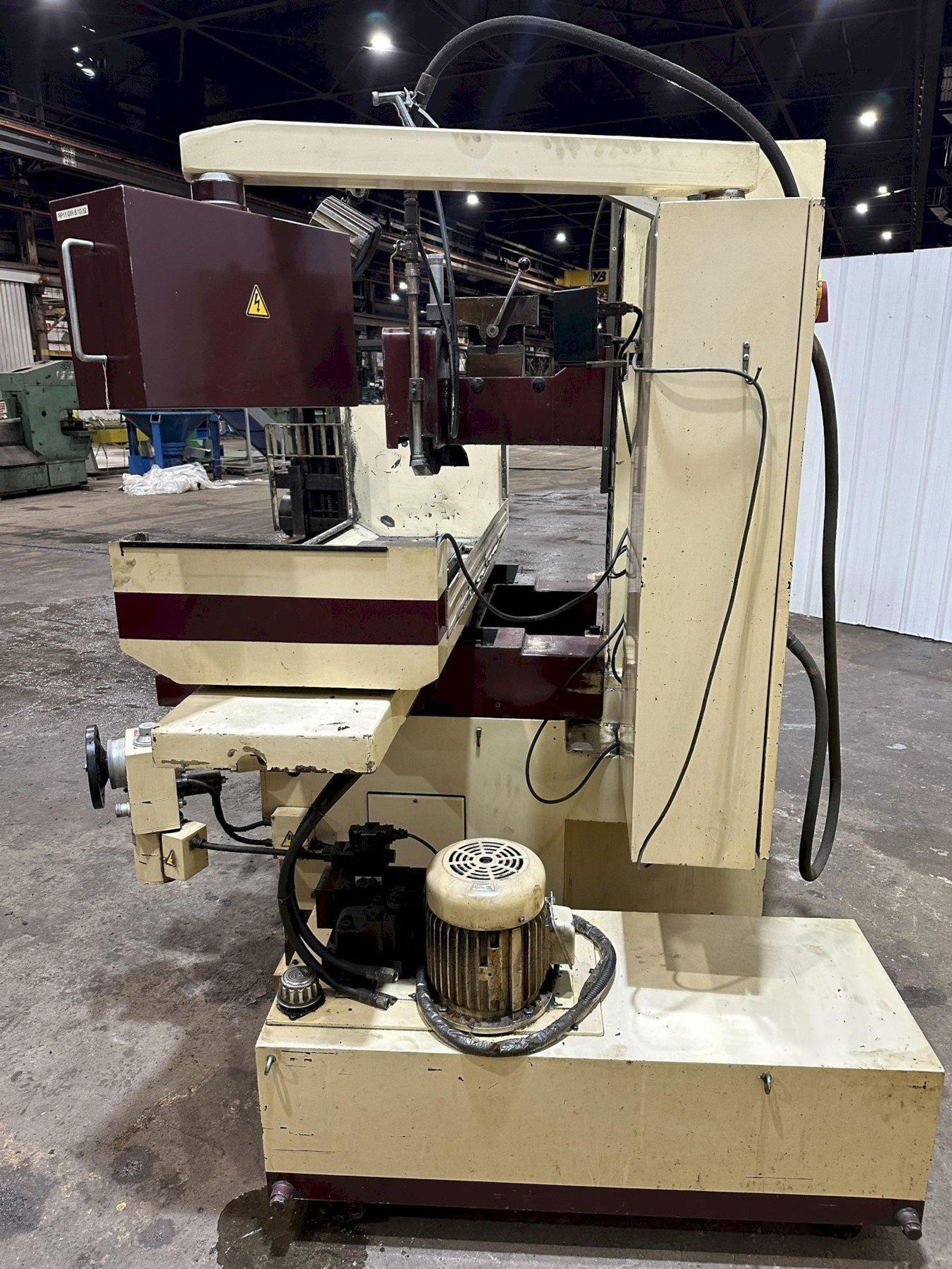

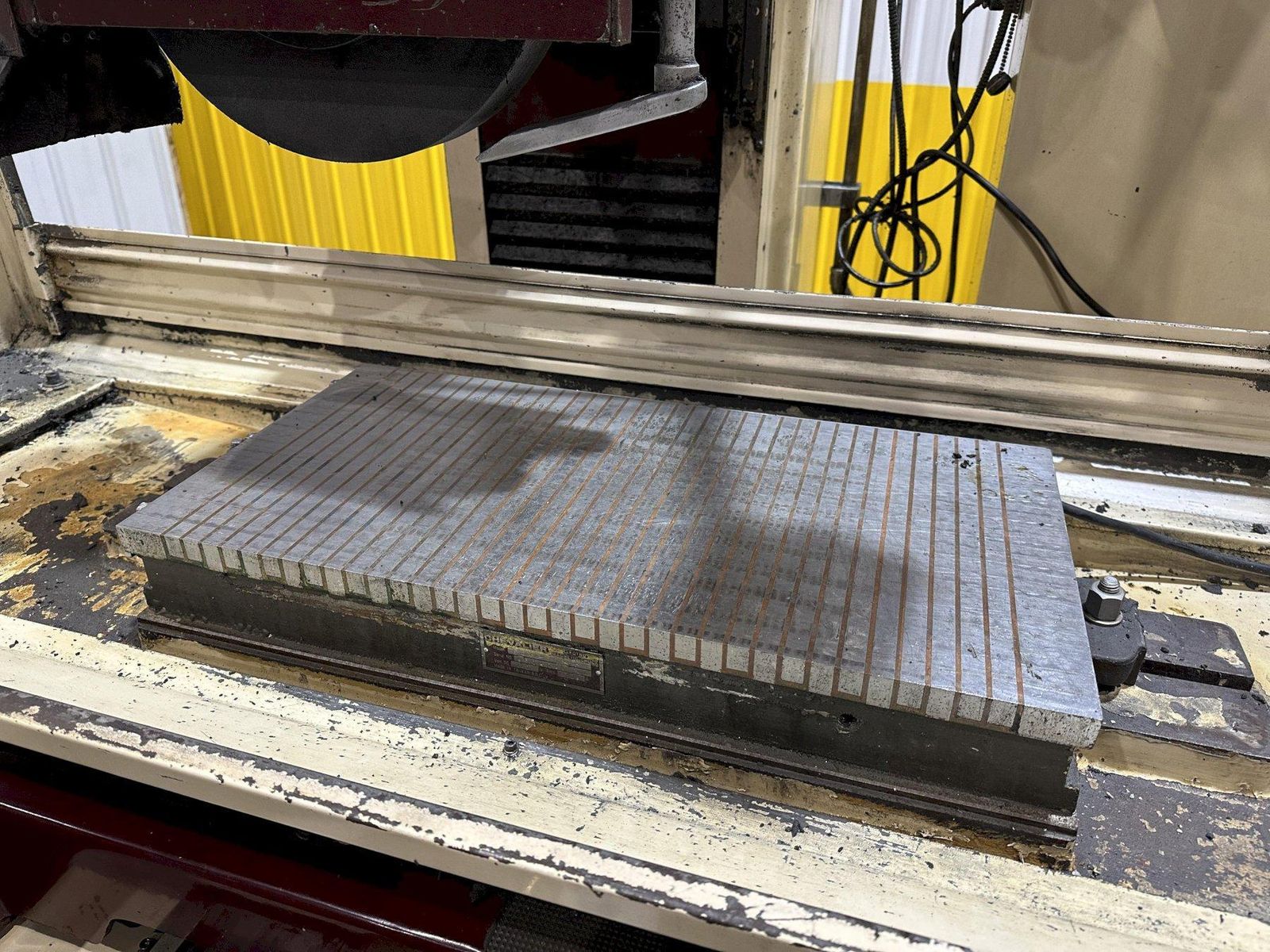

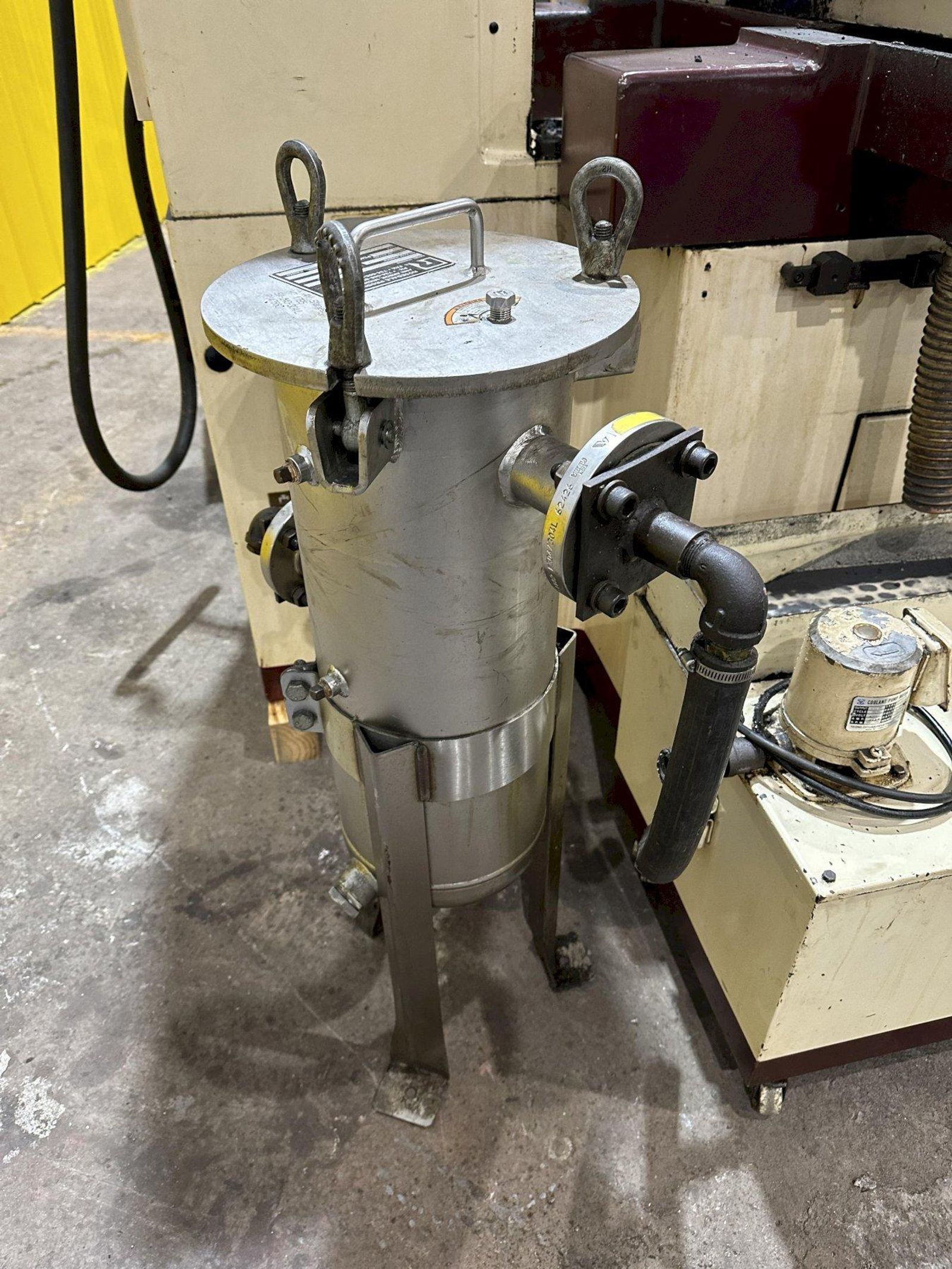

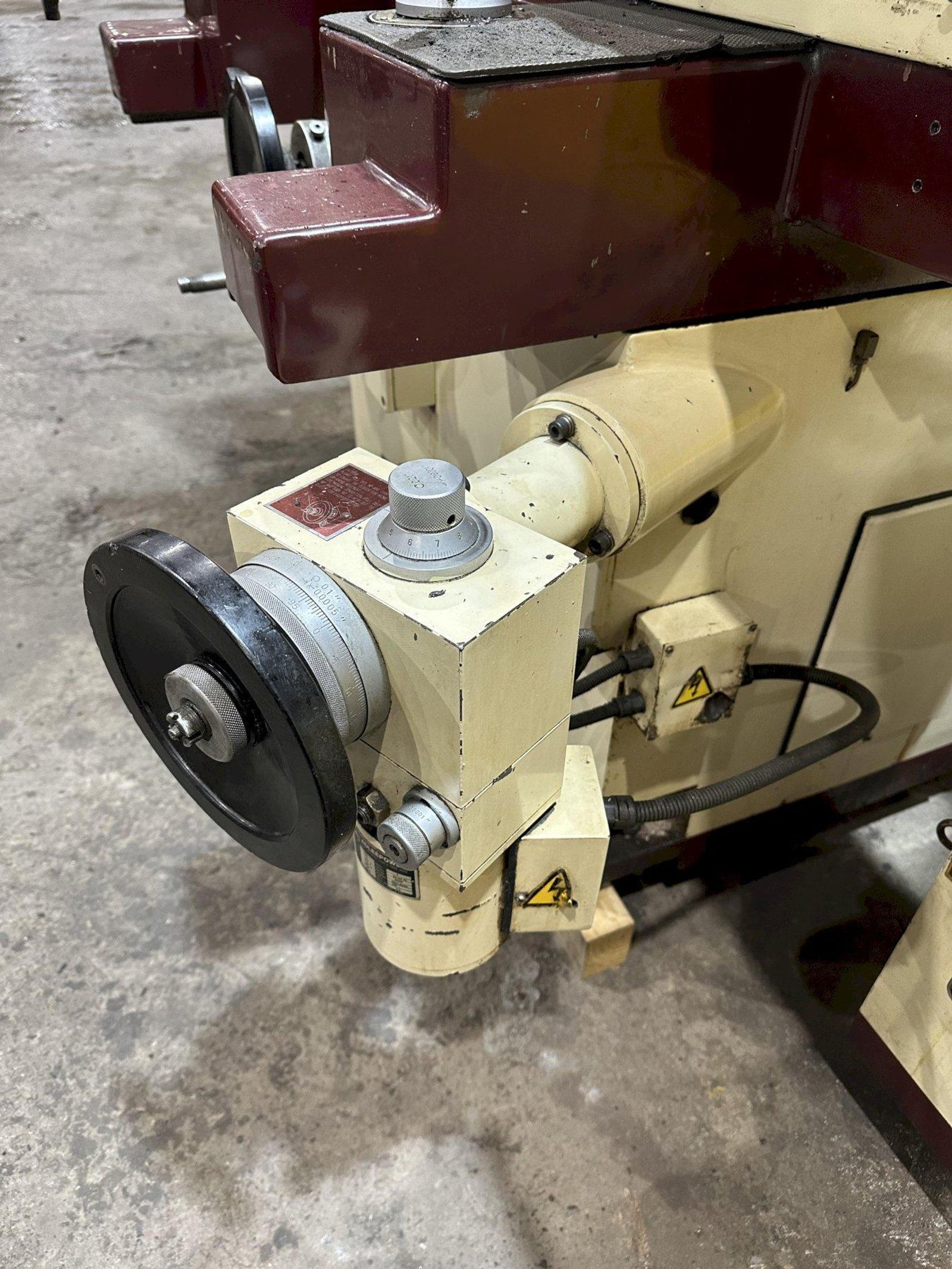

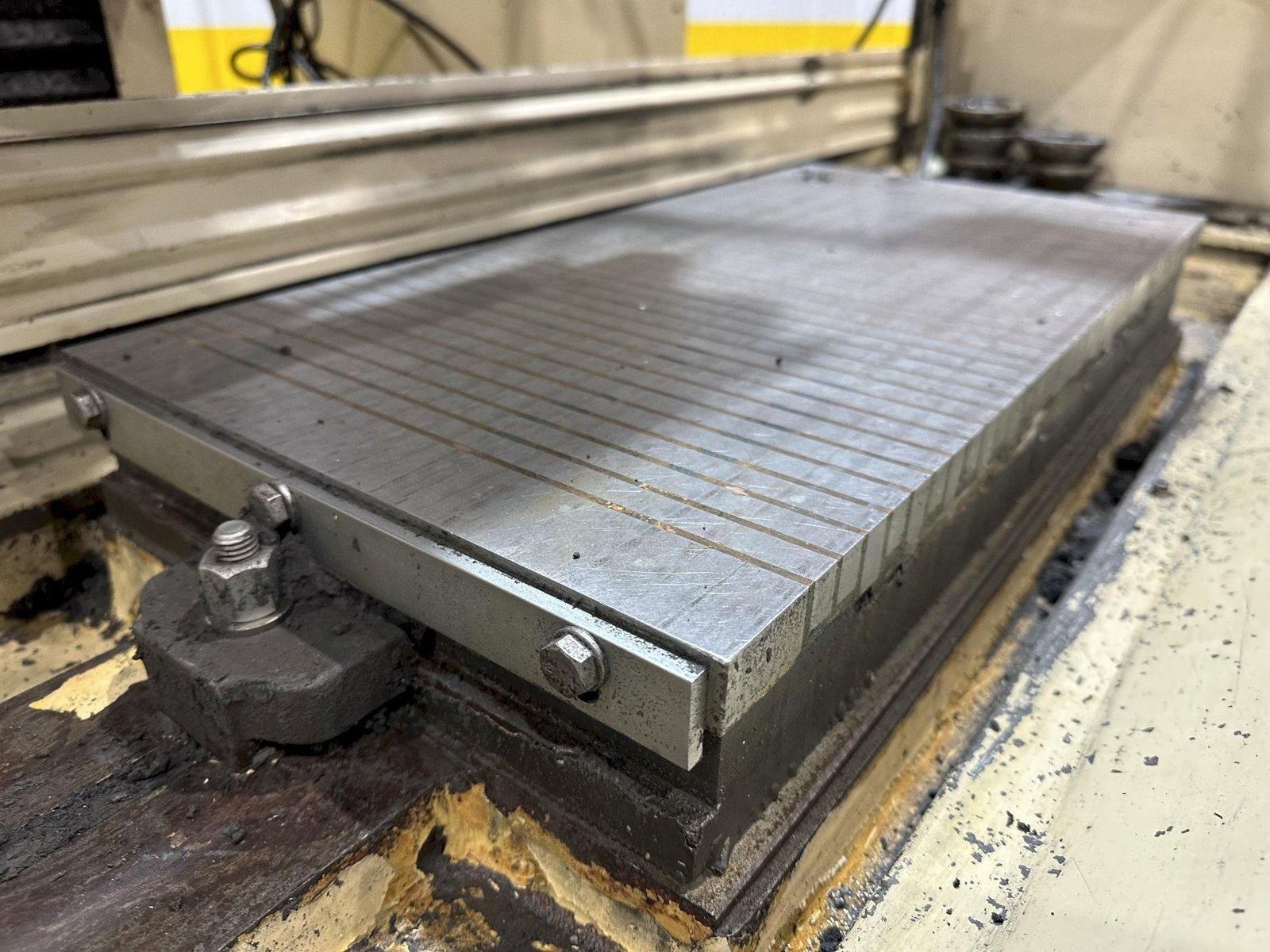

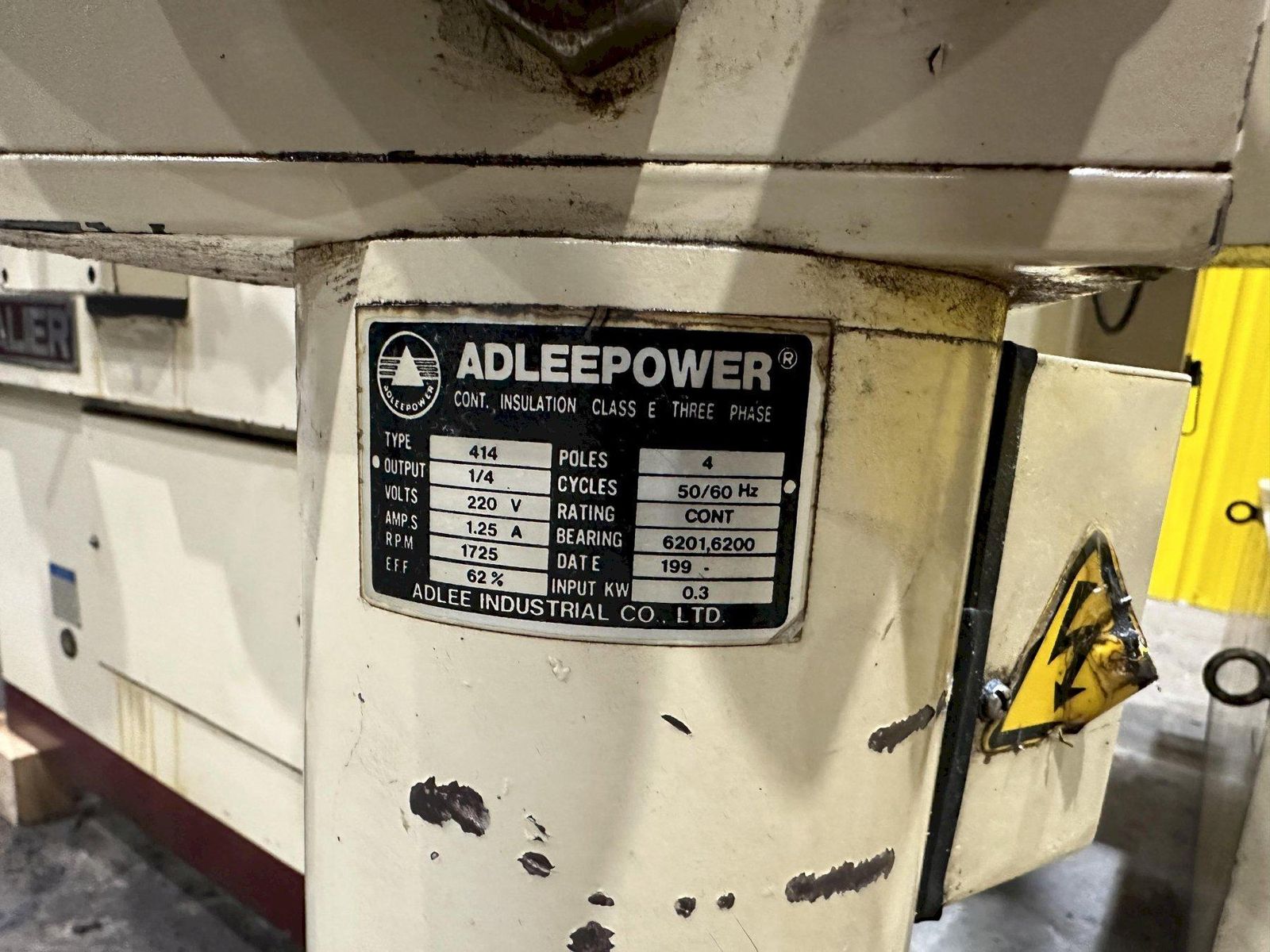

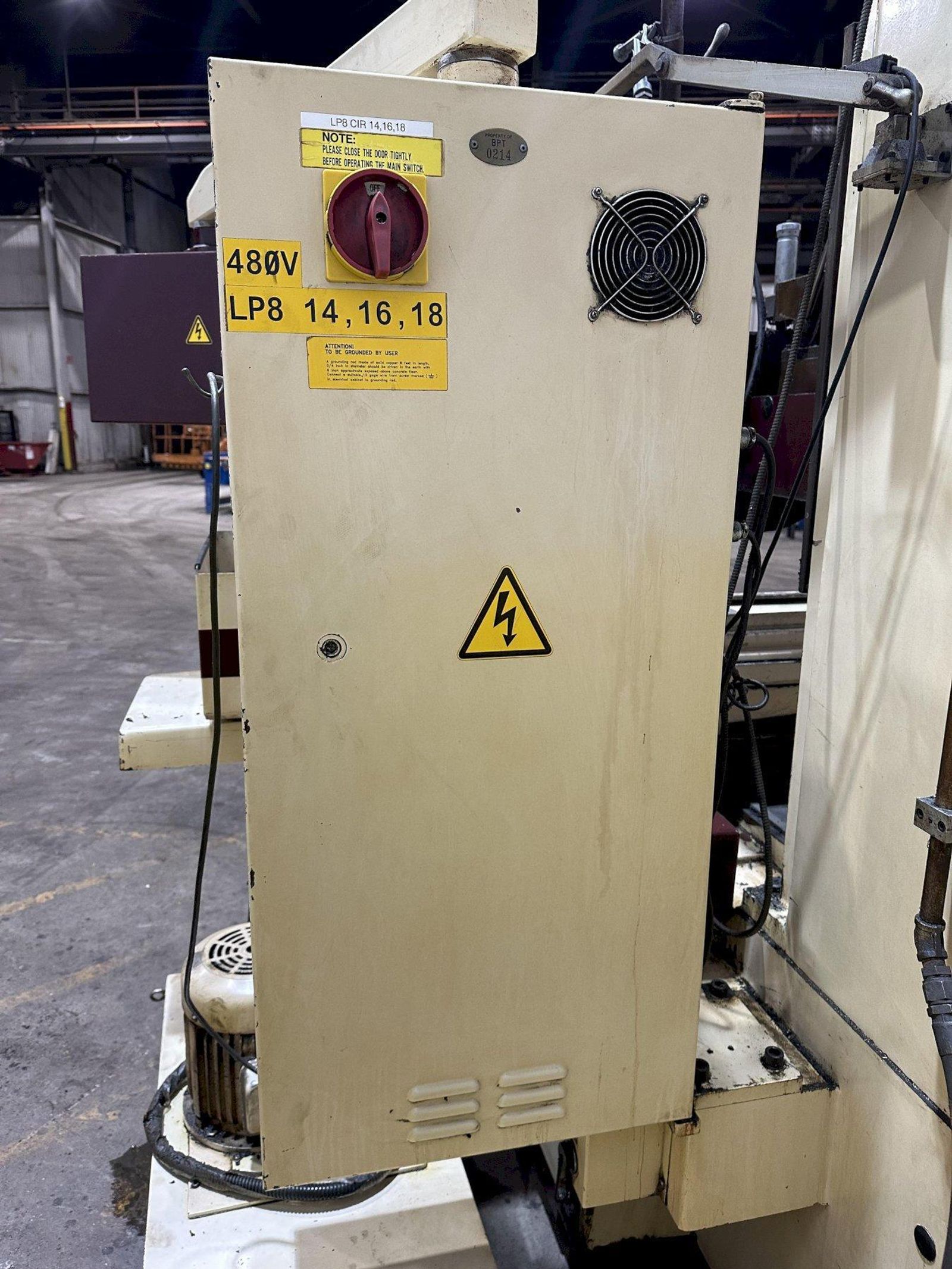

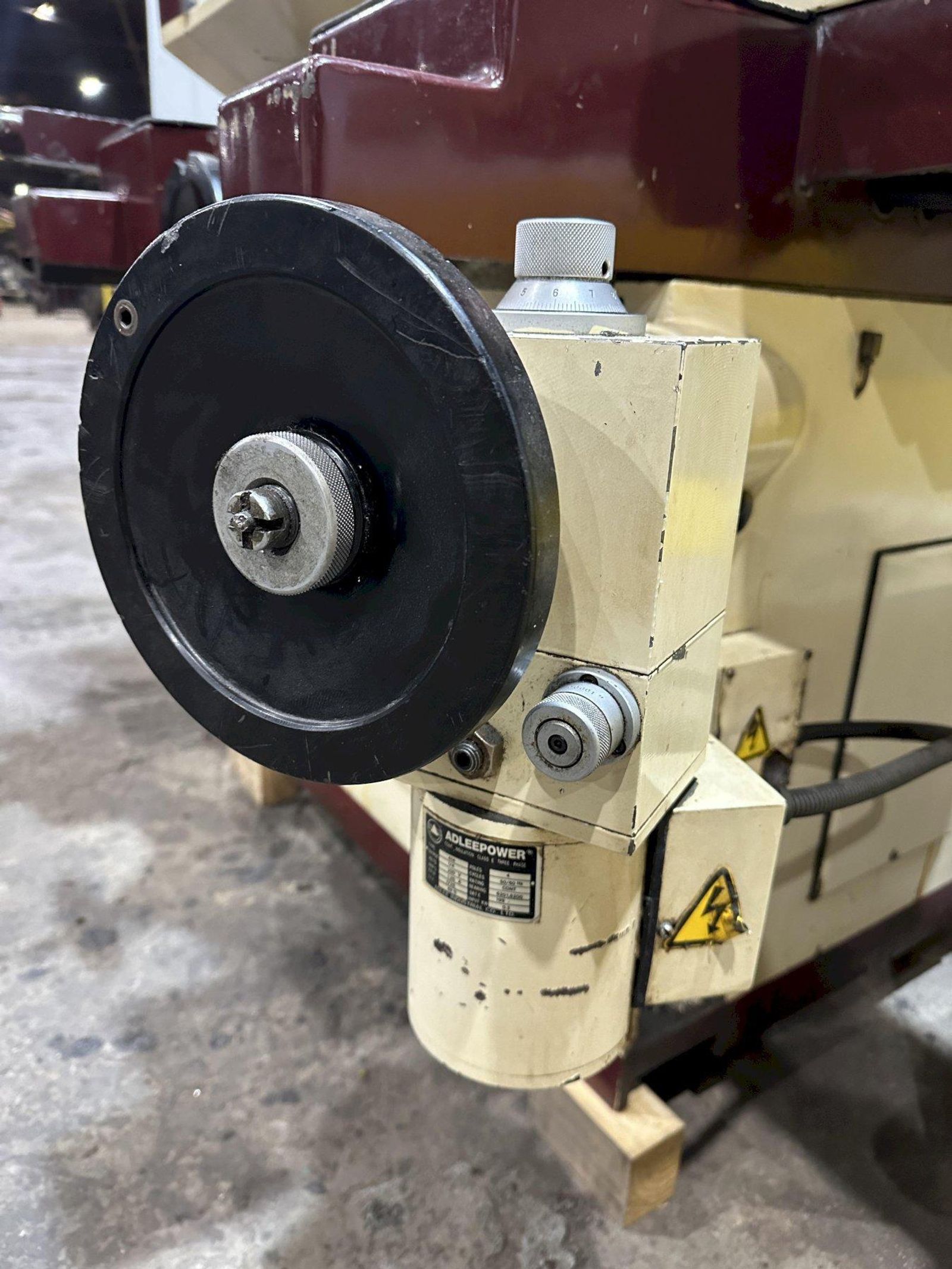

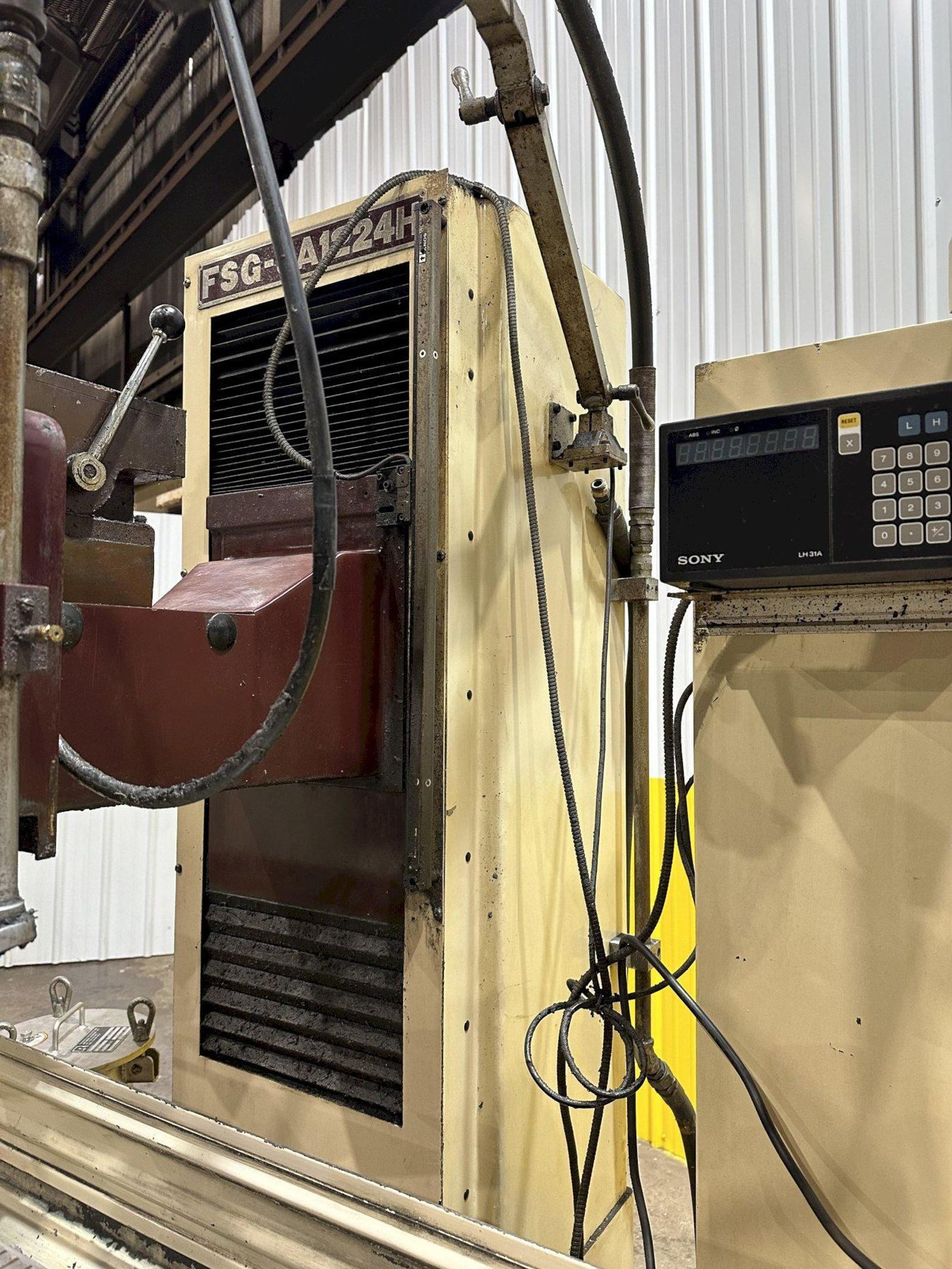

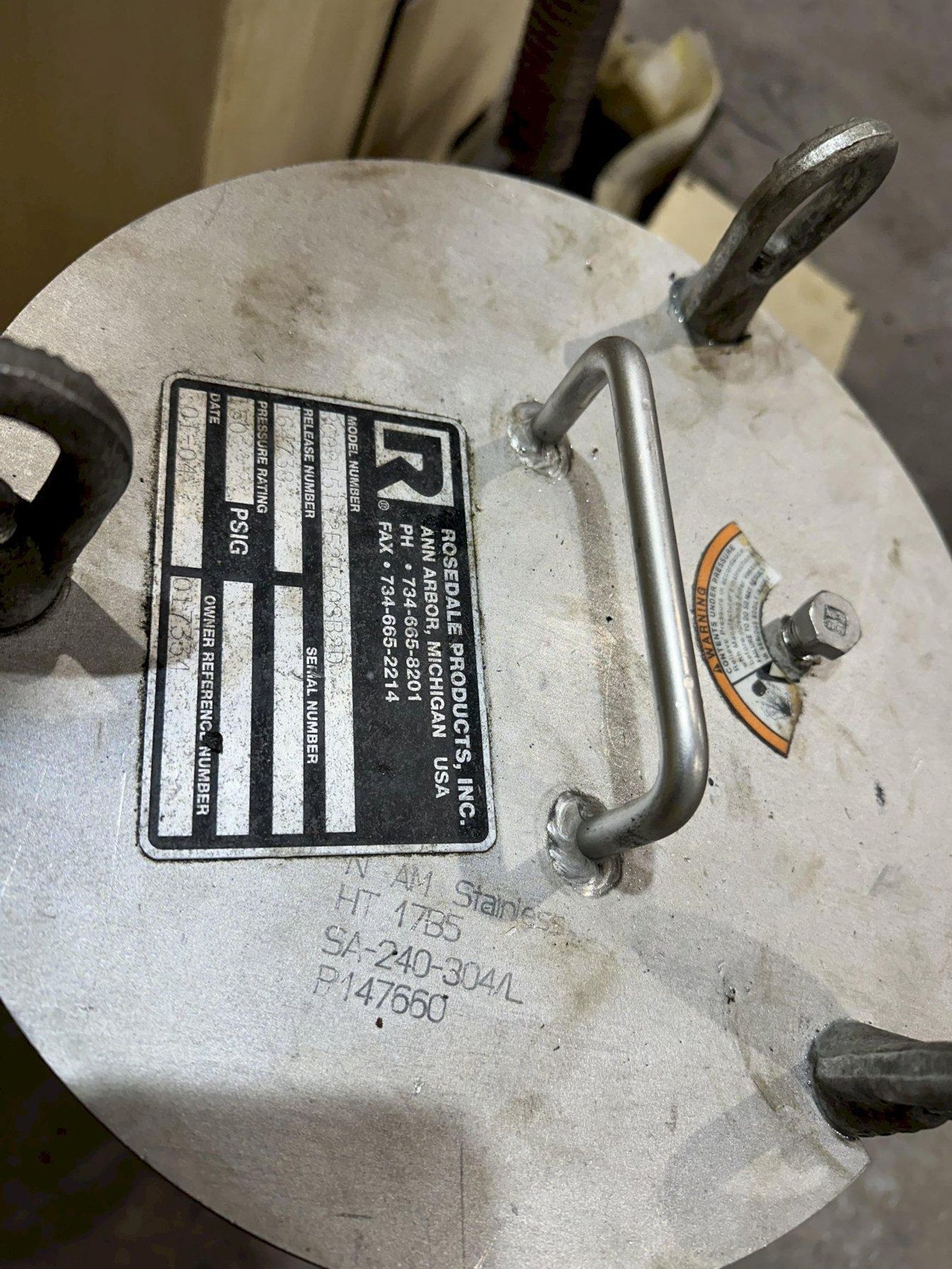

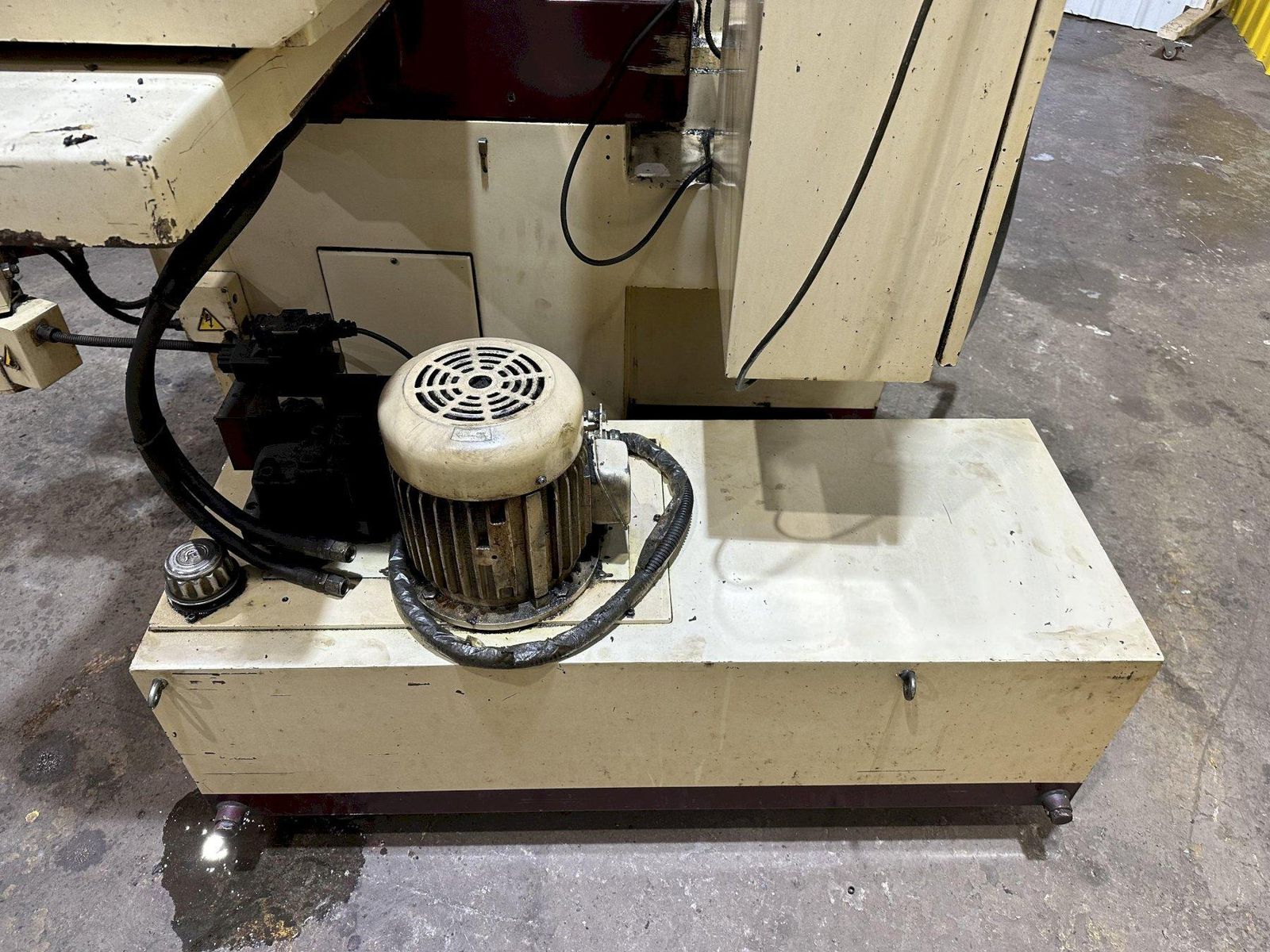

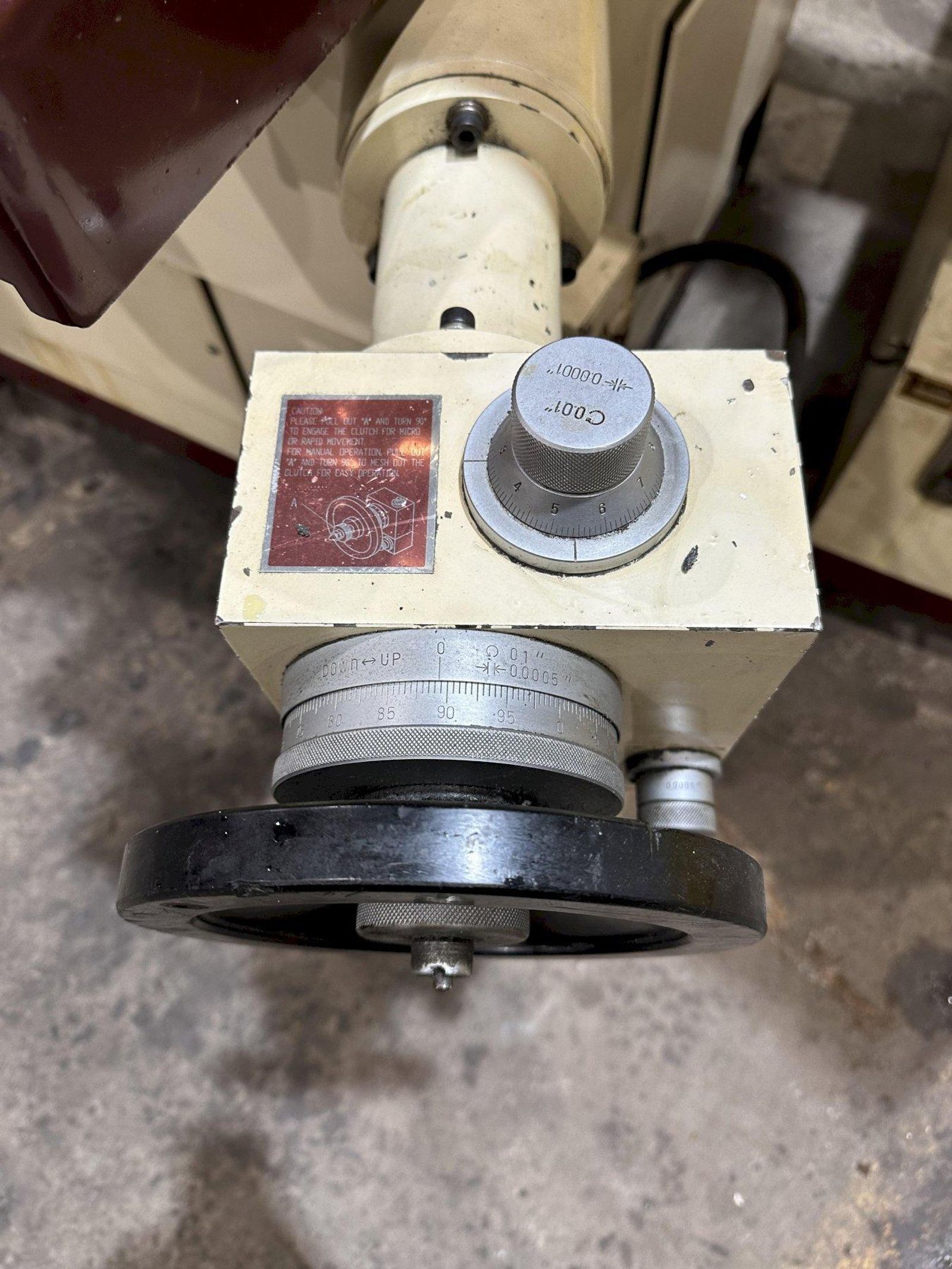

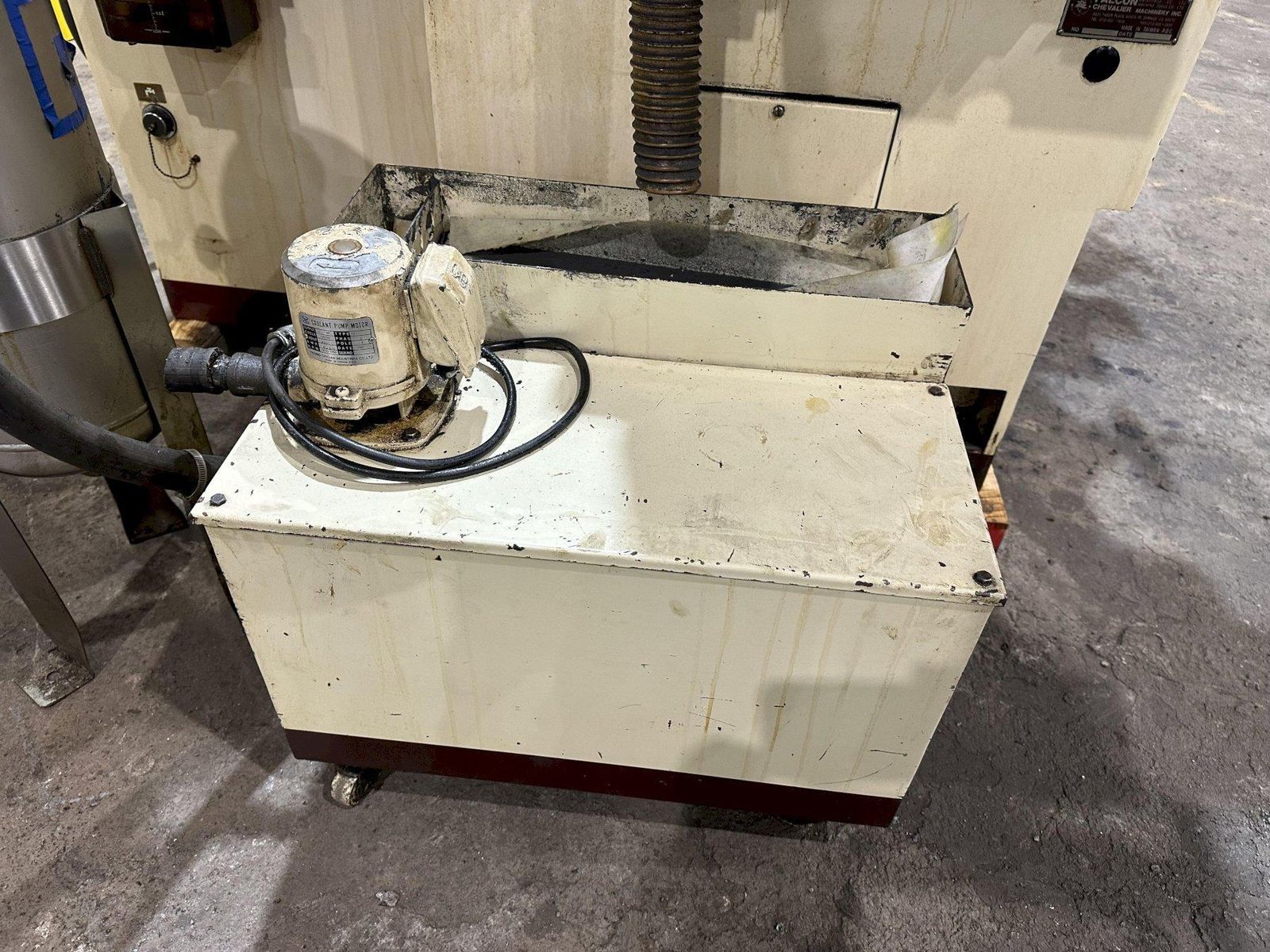

Table Size ................................... 12″ x 24″Max. Distance From Table To Spindle Center ... 24-3/4″Longitudinal Movement ........................ 25-5/8″ (Hydraulic)Max. Travel .................................. 27-1/2″ (Manual)Table Speed .................................. 16 – 82 FPM (Variable)Cross Transverse Travel ......................Rapid Travel ................................. 56 IPMAuto Transverse Increment .................... .04 – .5″Max. Auto Transverse Travel .................. 14-1/8″Max. Manual Transverse Travel ................ 14-1/2″Wheelhead Vertical Infeed ....................Automatic Infeed ............................. 0.0001″ – 0.0002″Hand Wheel / Revolution ...................... 0.1″Hand Wheel / Graduation ...................... 0.0005″Rapid Travel ................................. 13 IPMMicro Feed / Revolution ...................... 0.01″Micro Feed / Graduation ...................... 0.0001″Standard Grinding Wheel ...................... 2″ x 14″ x 5″Standard Features:- High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding- 3-Axis fully automatic with surface and plunge grinding cycles- Separate hydraulic system prevents vibration and reduces heat transference- Saddle travels on Turcite-B coated and hand scraped double V guideways- Meehanite cast iron- Wheel head rises up automatically and table parks at left or right side after cycle is completedMechanical Specifications:Dimensions .................................... 105″ x 72″ x 75″ HWeight ........................................ approx. 4,630 lbs.
