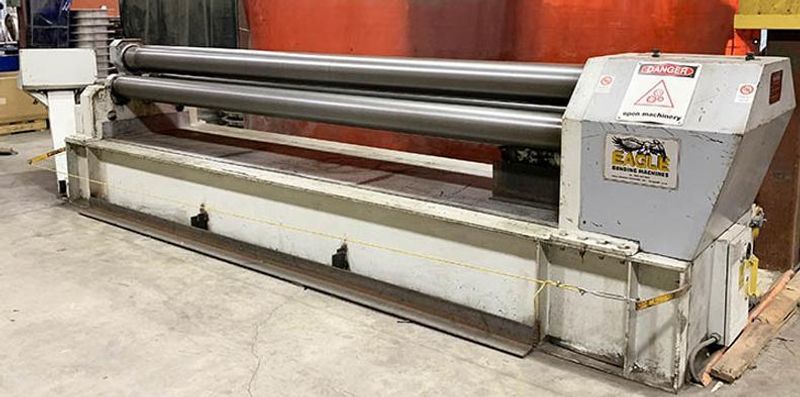

Eagle (Imcar) SIHR 6/7 12' x 11 GA Hydraulic 3 Roll Double Pinch Roll
Serial No. B2417
Year 1997 Roll
Length 12'
Full Length Bending Capacity 11GA
Top Roll Diameter 7.8"
Lateral Roll Diameter 7.1"
Minimum Rolling Diameter 10.9"
Drive Motor 7.5 HP 3/60/480Volt
All Rolls Drive
Hydraulic Drop End
Roll Adjustment from Pedestal Control
Extended Shafts
Cone Rolling attachment
Safety Interlocked Cable
| Specifications | ||
|---|---|---|
| # Rolls | 3 | |
| Hyd/Mech | hydraulic | |
| Power Rear Roll (Yes/No) | no | |
| Power | 7.5 horsepower | |
| Weight | 11880 pounds | |
| Length of Rolls | 144 inches | |
Brand
EAGLE BENDING
Type
Rolls, Plate Bending (incld Pinch)
Stock No.
14420
 |
419-269-2000 |
Stock #: 14420
Eagle (Imcar) SIHR 6/7 12' x 11 GA Hydraulic 3 Roll Double Pinch Roll
Serial No. B2417
Year 1997 Roll
Length 12'
Full Length Bending Capacity 11GA
Top Roll Diameter 7.8"
Lateral Roll Diameter 7.1"
Minimum Rolling Diameter 10.9"
Drive Motor 7.5 HP 3/60/480Volt
All Rolls Drive
Hydraulic Drop End
Roll Adjustment from Pedestal Control
Extended Shafts
Cone Rolling attachment
Safety Interlocked Cable
