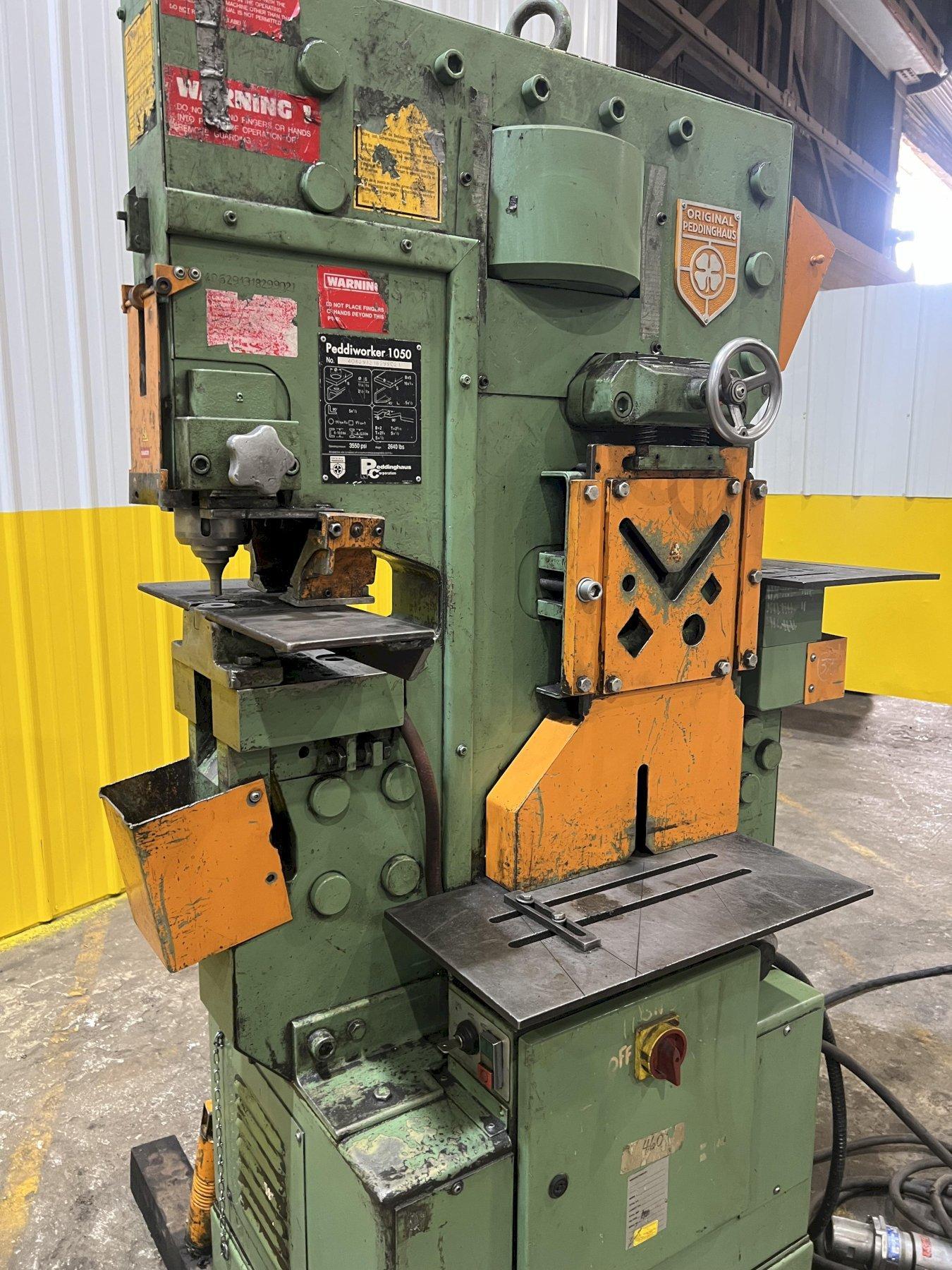

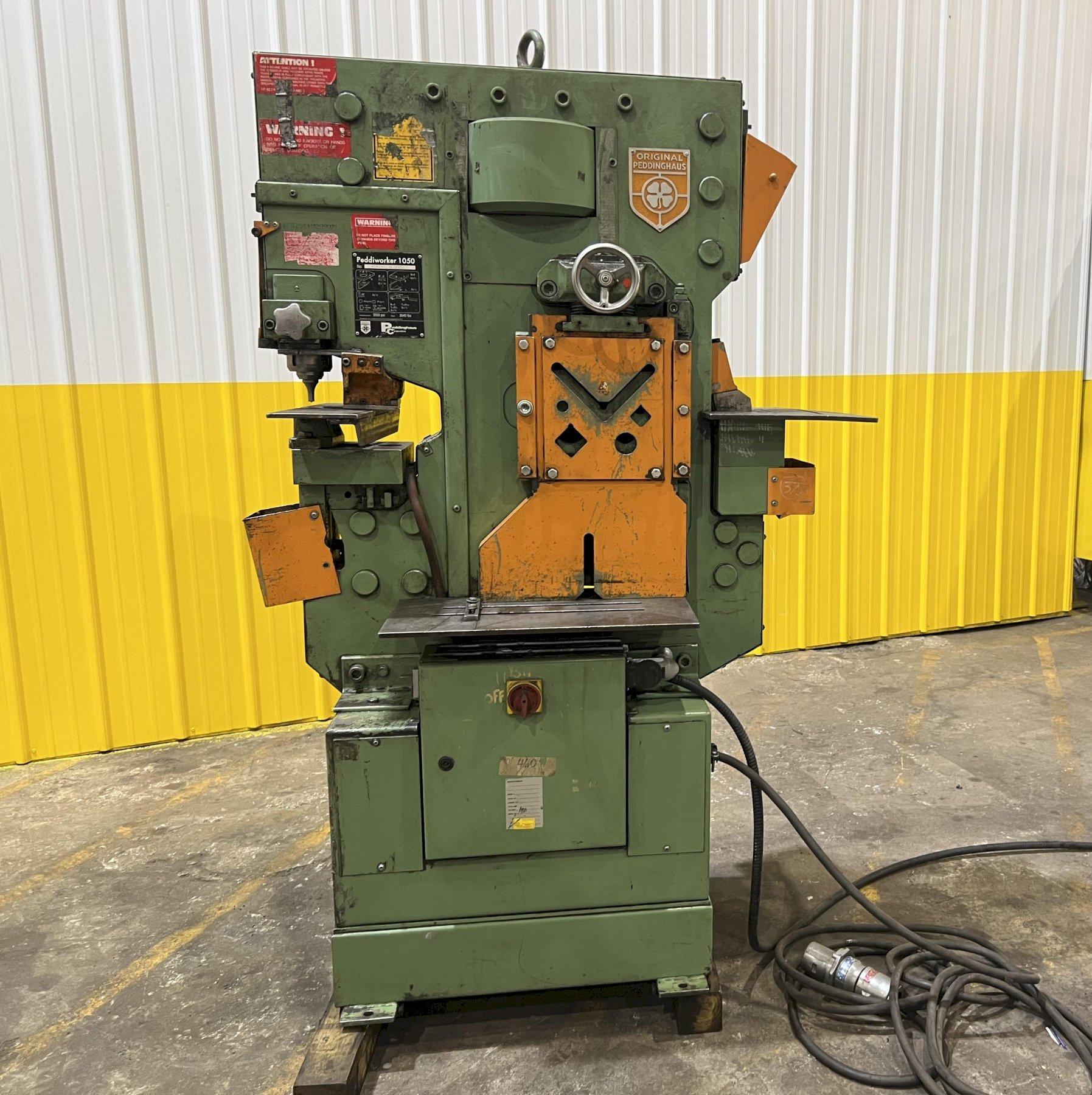

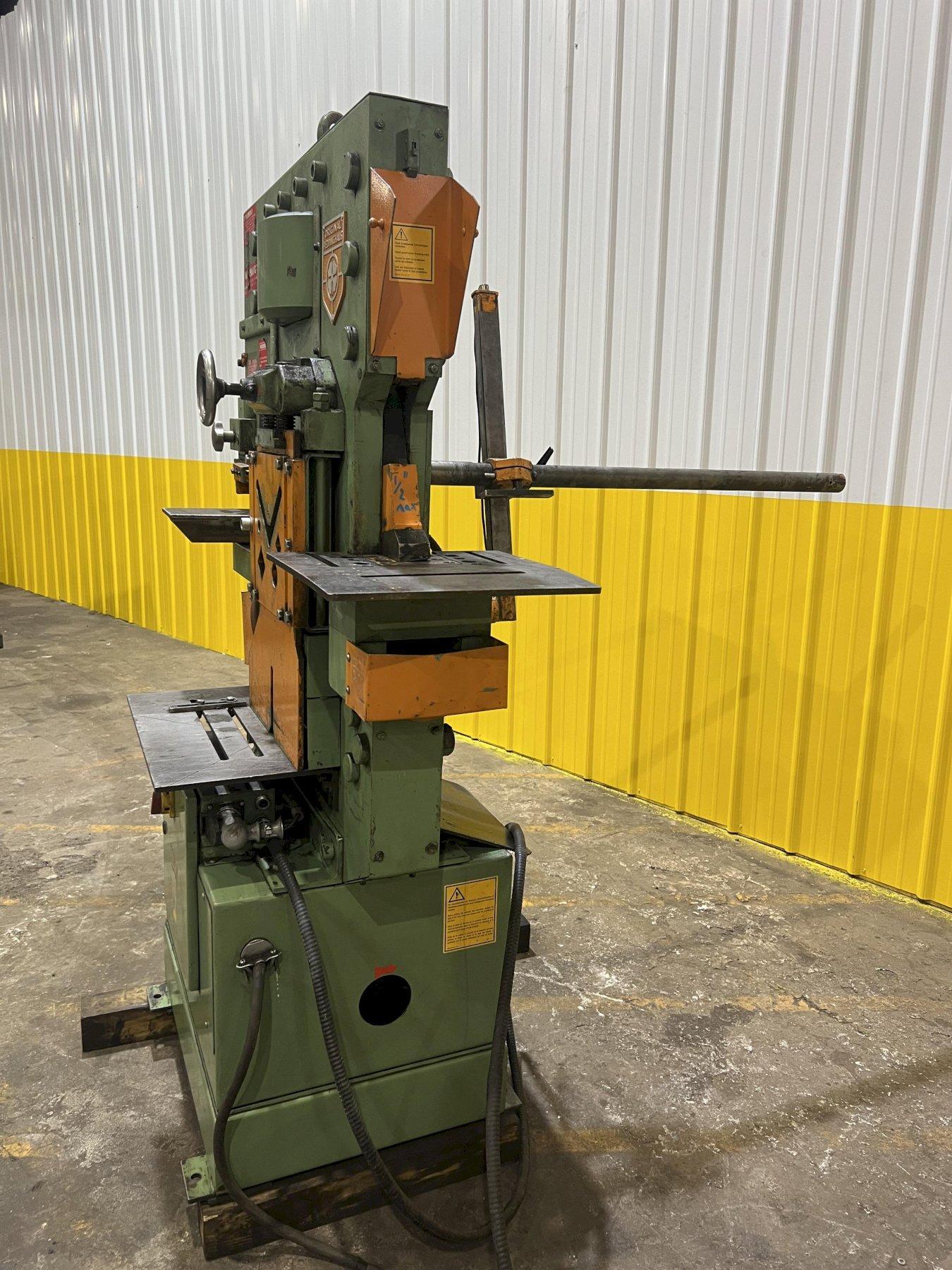

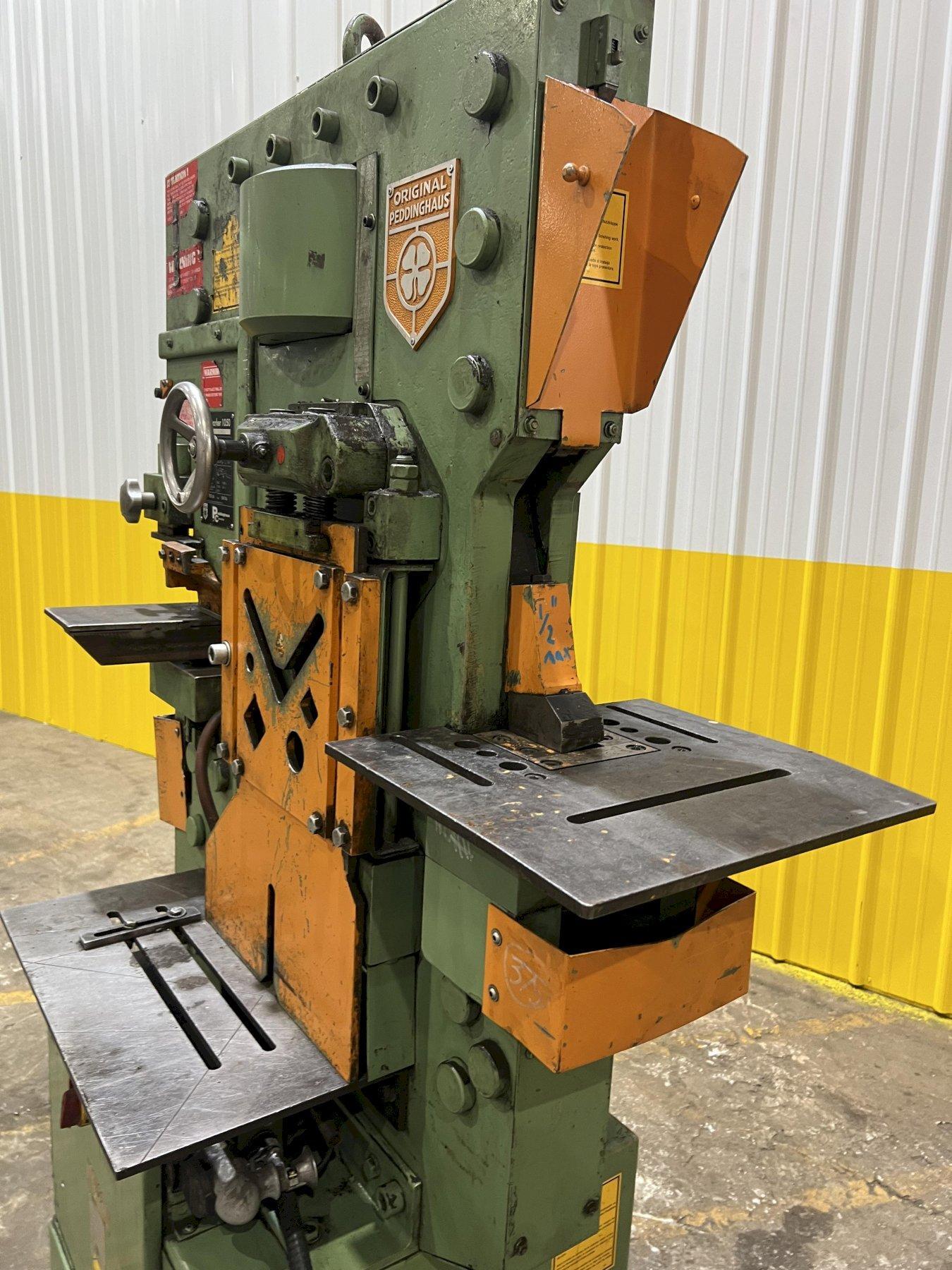

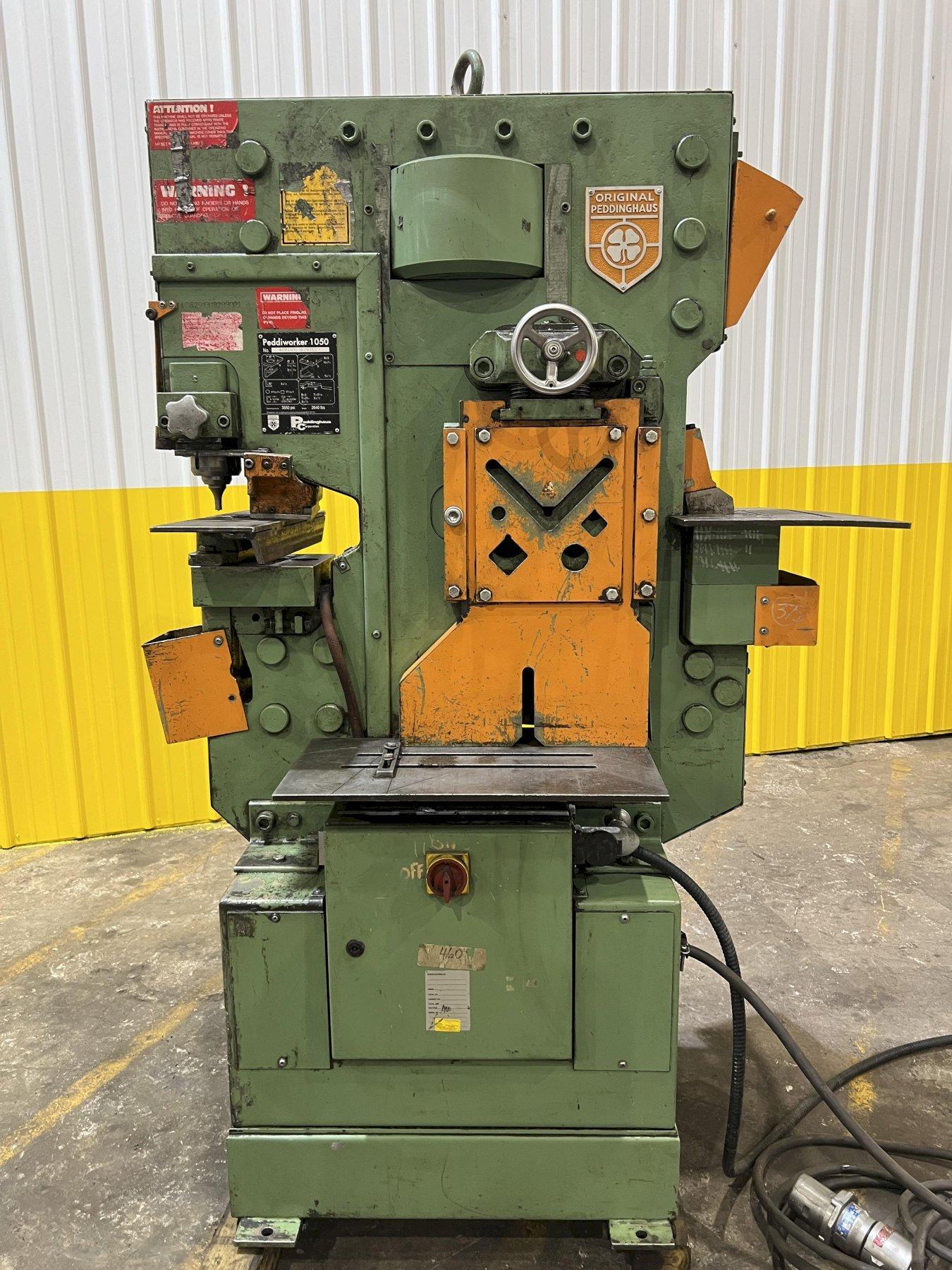

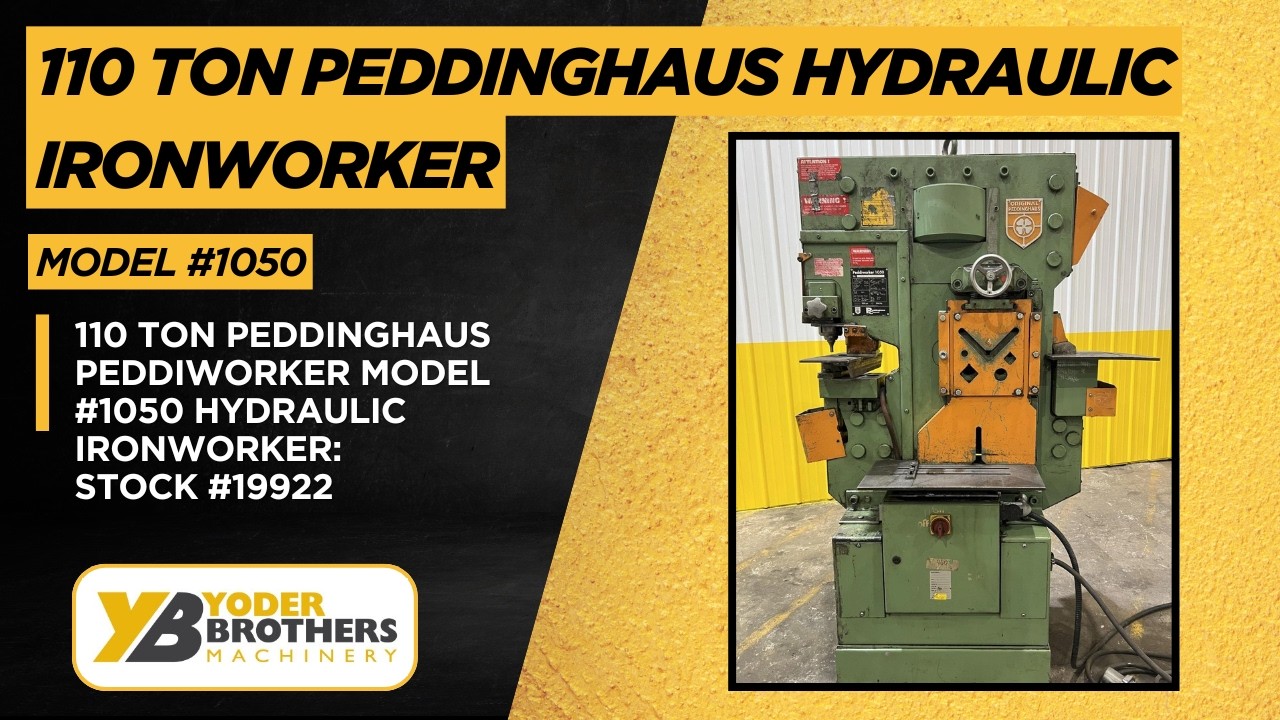

110 TON PEDDINGHAUS PEDDIWORKER MODEL #1050 HYDRAULIC IRONWORKER: STOCK #19922

Overview

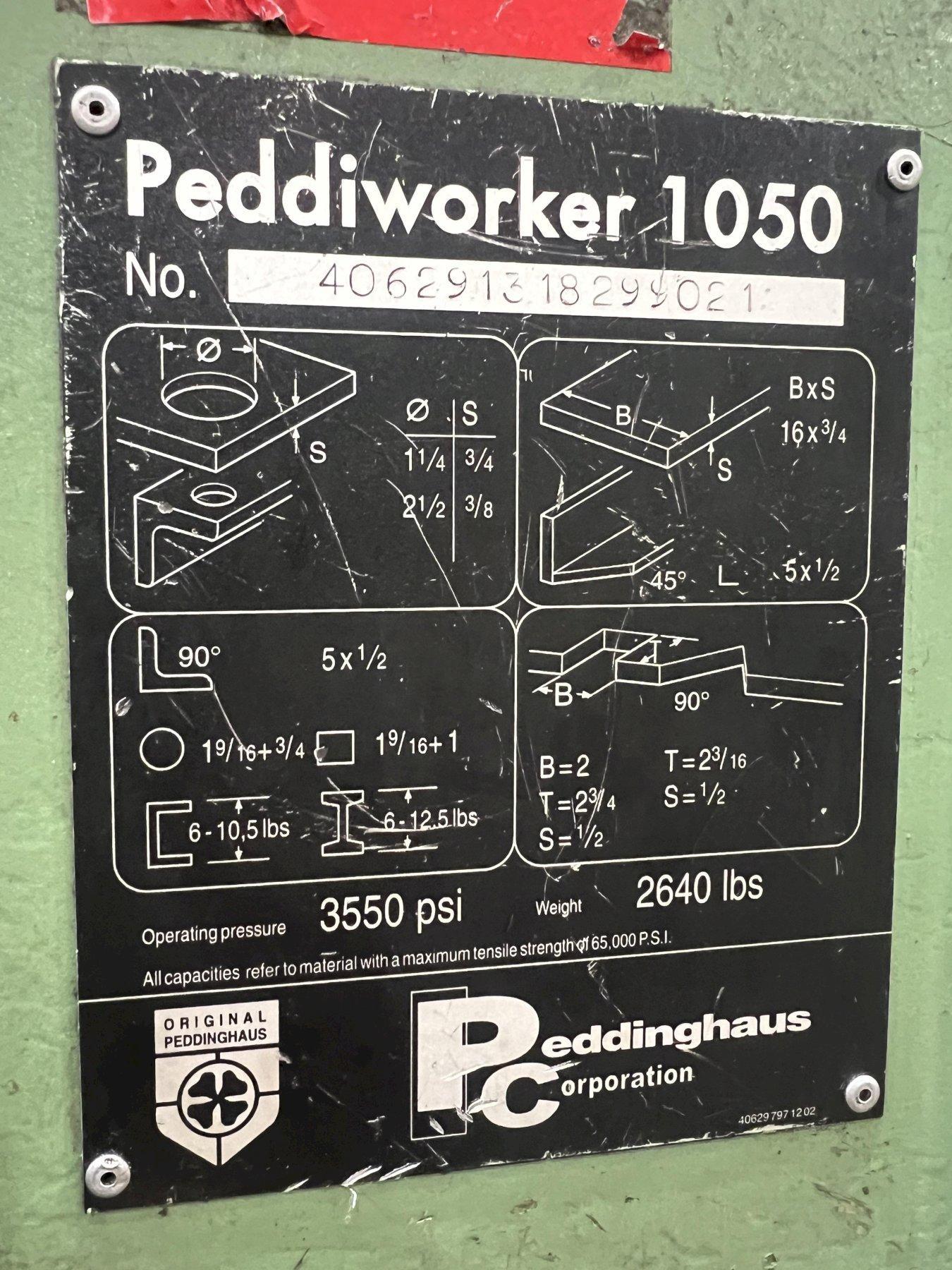

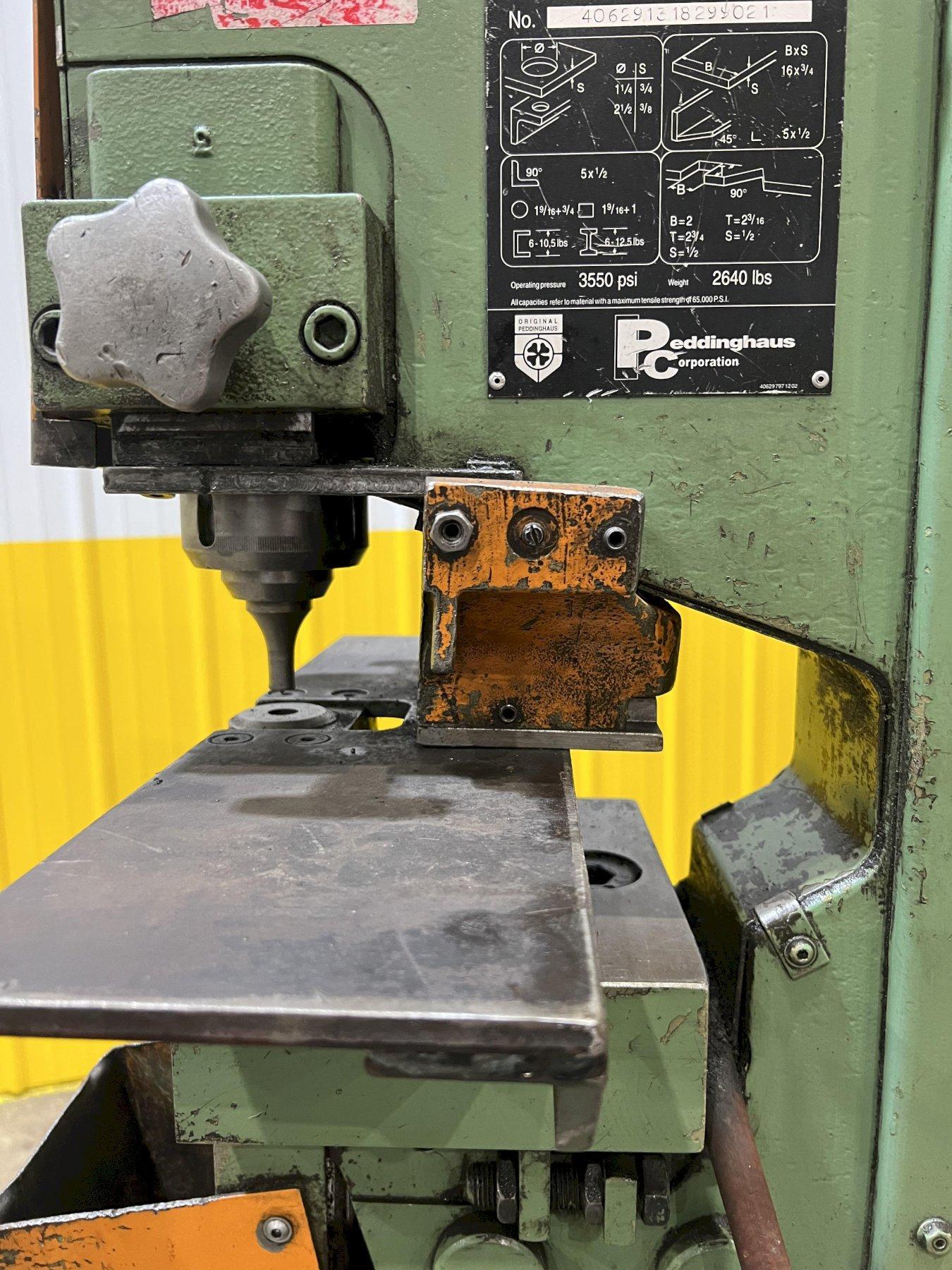

SERIAL ................... 406291218299021

MODEL .................... PEDDIWORKER 1050

STROKES ON PUNCH ......... 17

STROKE ................... 3/8" TO 1-5/8"

MOTOR .................... 5-1/2 HP

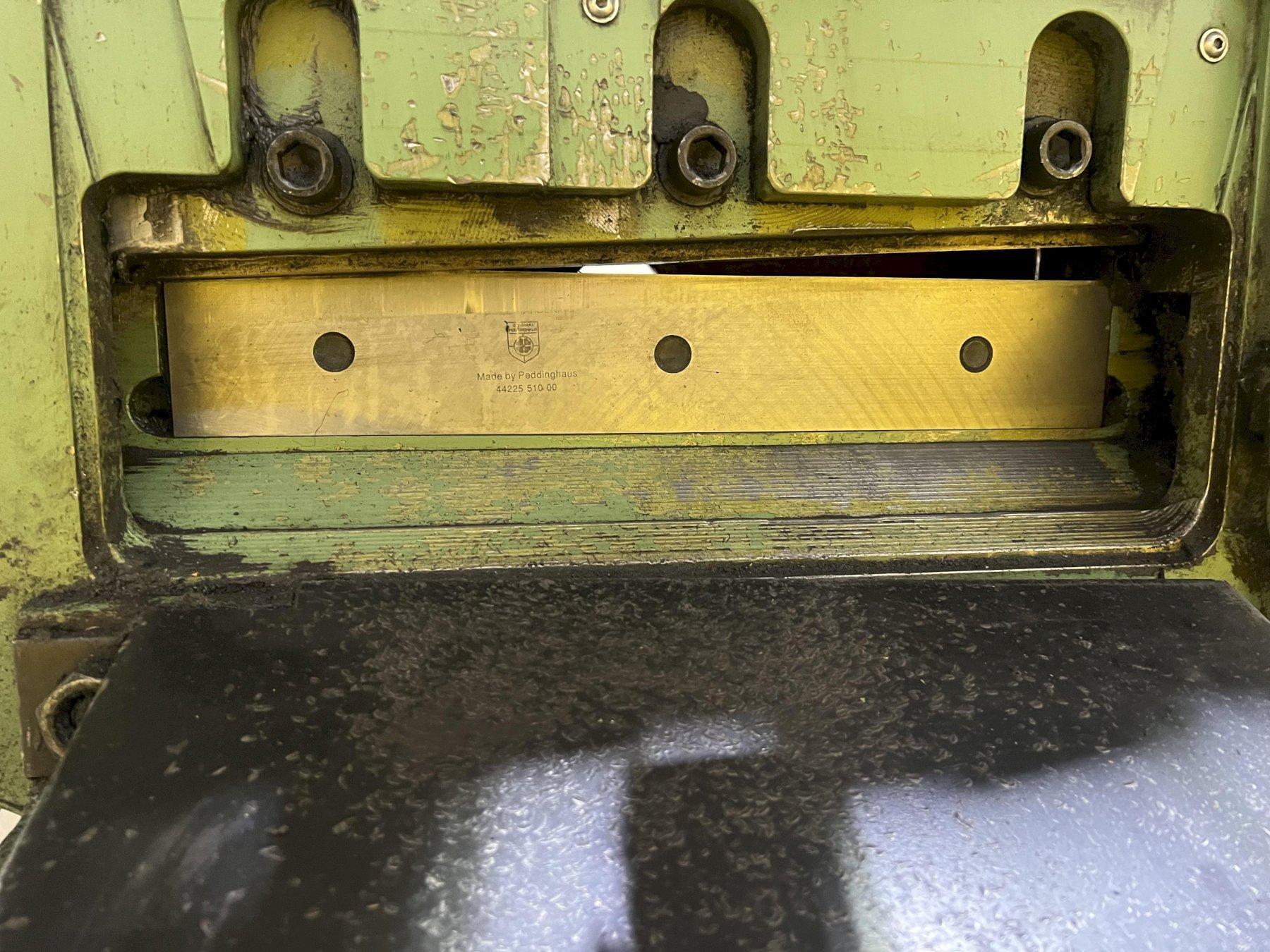

FLAT BAR SHEAR SPECIFICATION:

CAPACITY ................. 16" X 3/4"

12" X 5/8"

12" X 1"

45 DEGREE IRON CAPACITY .. 5" X 3/8"

BLADE CUT LENGTH ......... 16-1/2"

WORKING HEIGHT ........... 30"

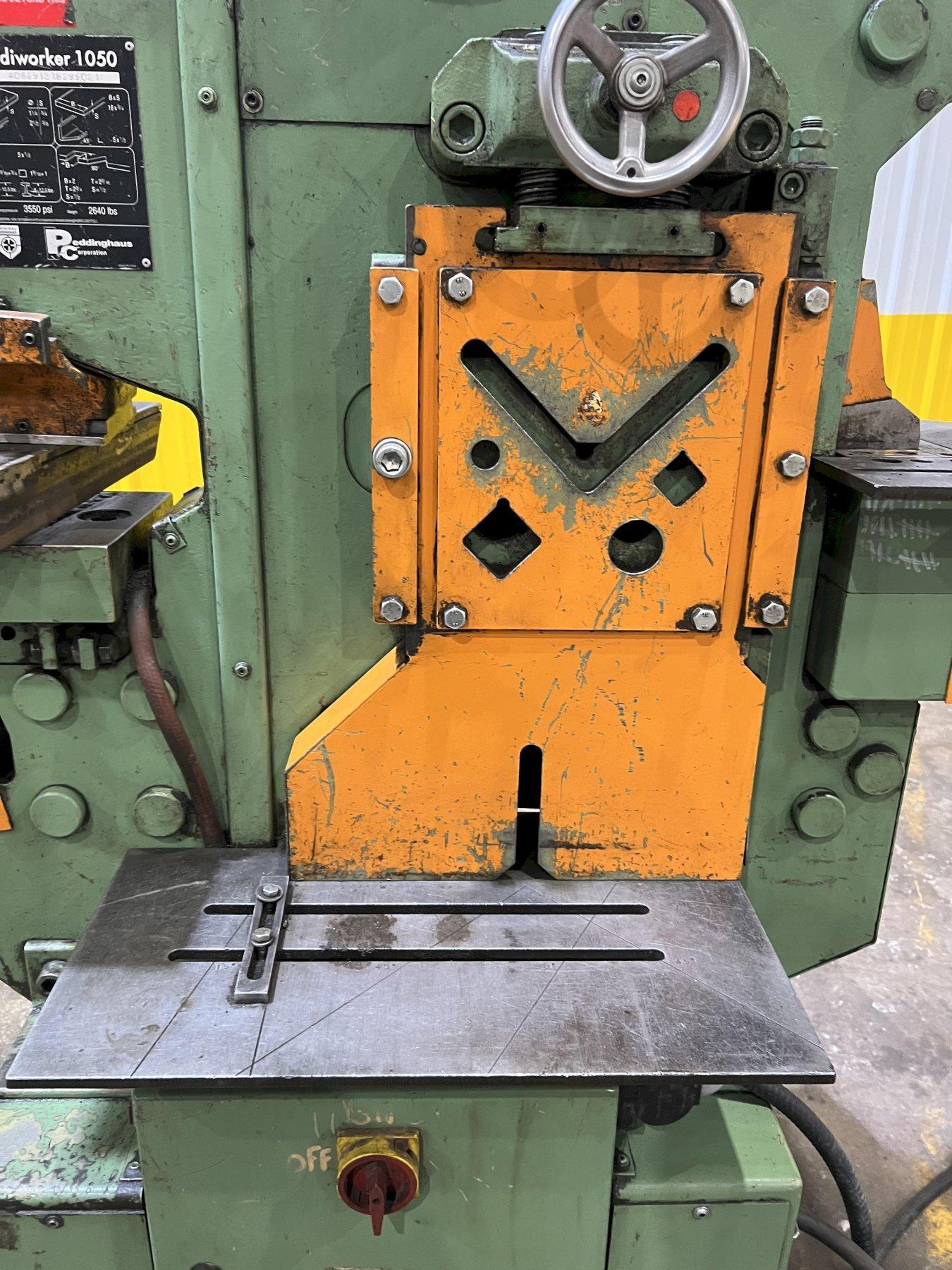

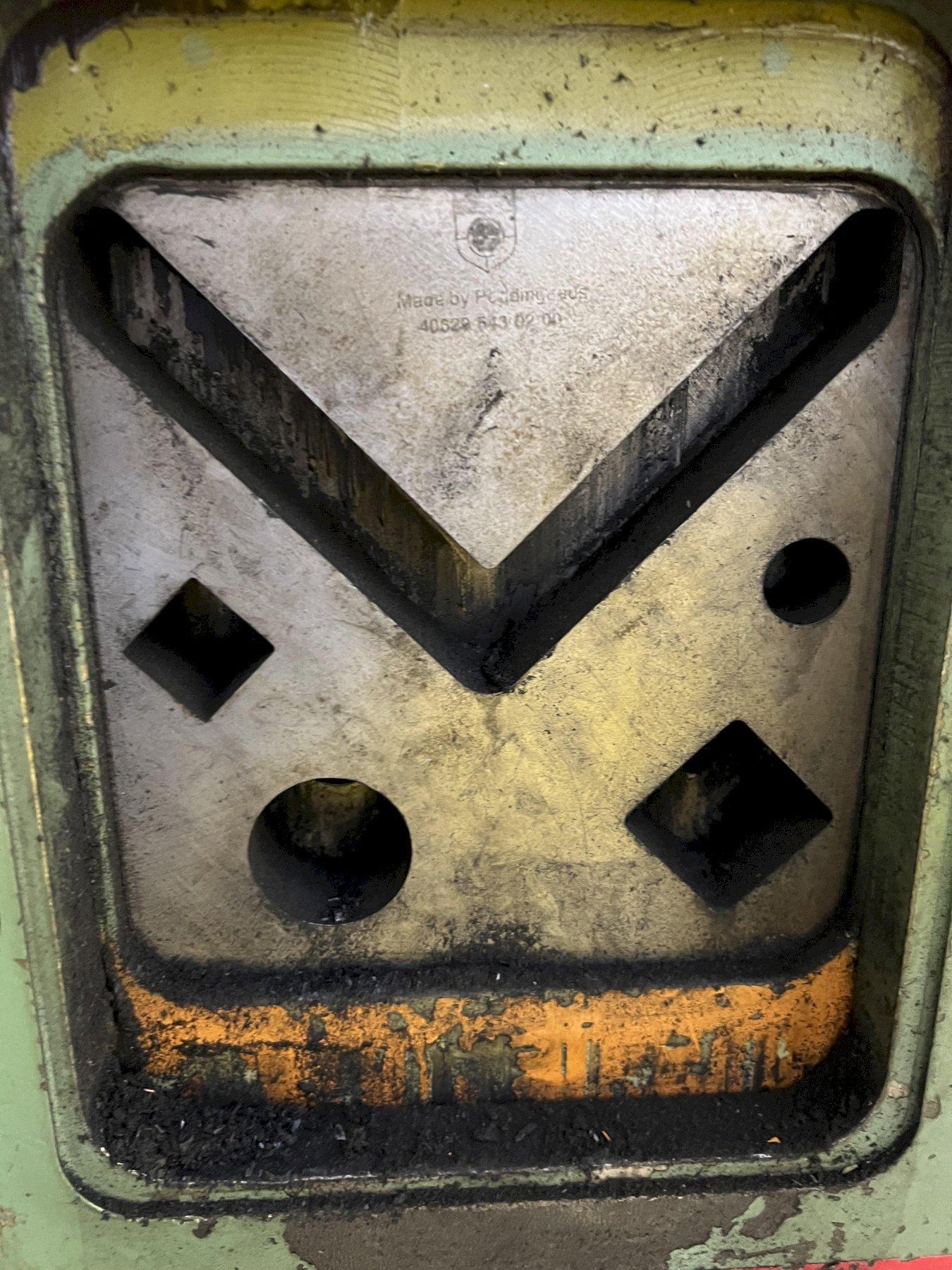

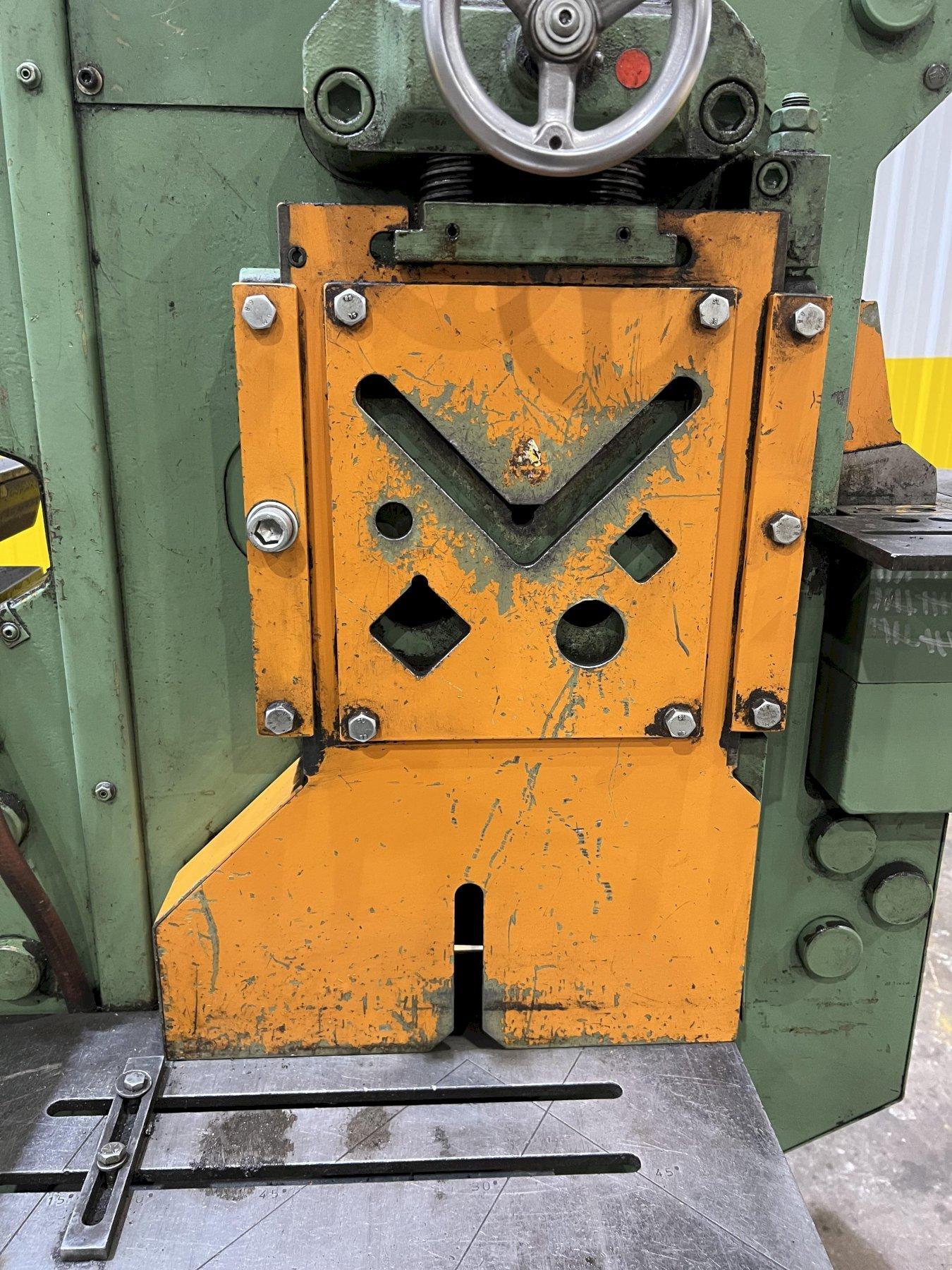

SECTION AND BAR STOCK SHEAR SPECIFICATION:

CROSS SECTION ............ 4-3/4" SQUARED

CUTS WITH STANDARD BLADES SPECIFICATION:

ANGLES, 90 DEGREES ....... 5" X 5" X 1/2"

ROUNDS ................... 1-9/16", 3/4"

SQUARES .................. 1-9/16", 1"

CUTS WITH SPECIAL KNIVES SPECIFICATION:

CHANNELS, 90 DEGREES ..... 6"

WORKING HEIGHT ........... 45-7/8" CENTER OF BLADE

SQUARE NOTCHER SPECIFICATION:

PLATE .................... 1/2"

ANGLES ................... 3" X 3/8"

CHANNELS IN FLANGE ....... 3" TO 5"

NOTCH WIDE ............... 2"

NOTCH DEPTH .............. 2-3/4"

TRIANGULAR NOTCHER SPECIFICATION:

PLATE .................... 1/2"

ANGLES ................... 2-1/2" X 3/8"

NOTCH DEPTH .............. 2-3/16"

WORKING HEIGHT ........... 44-1/4"

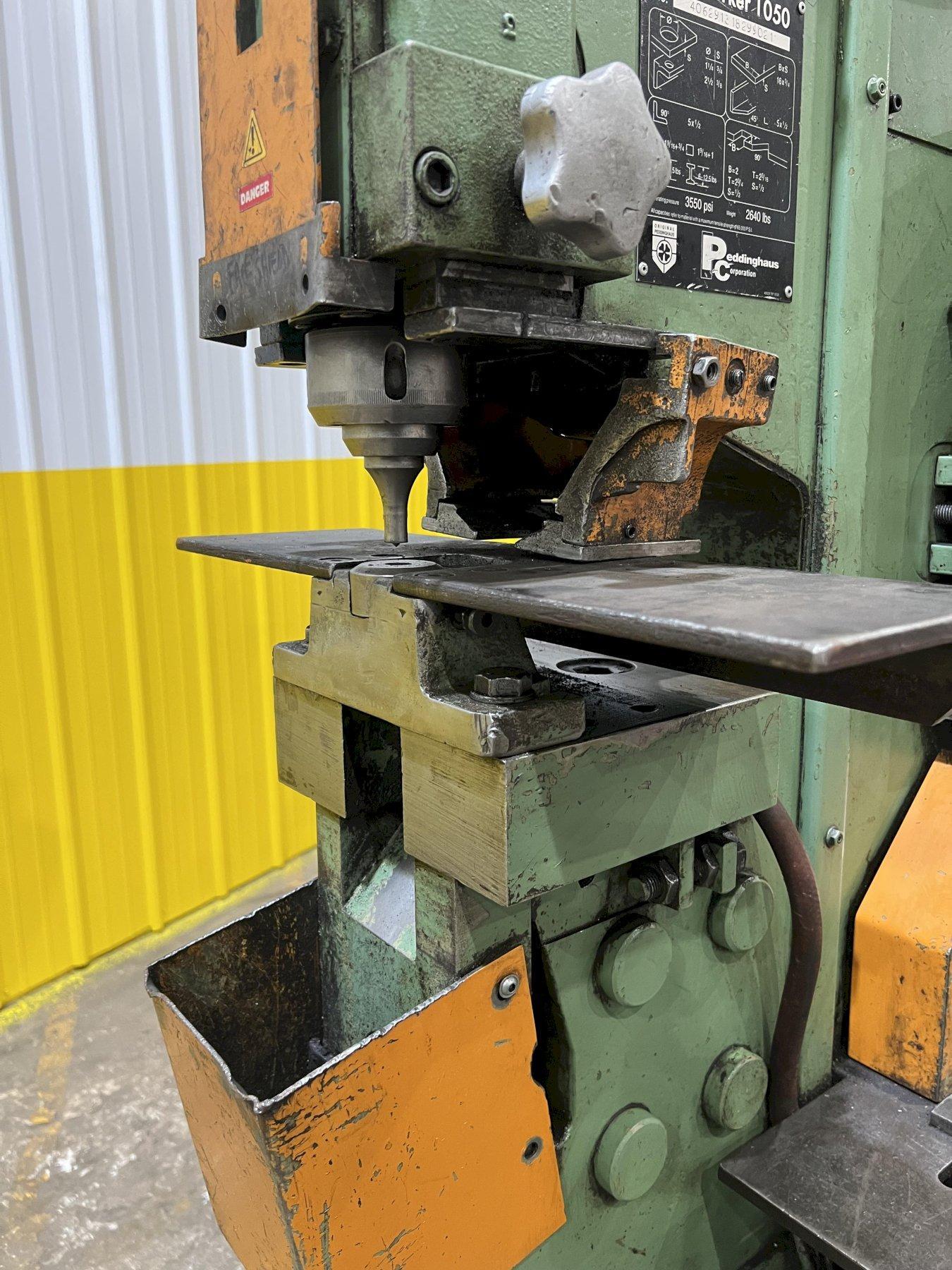

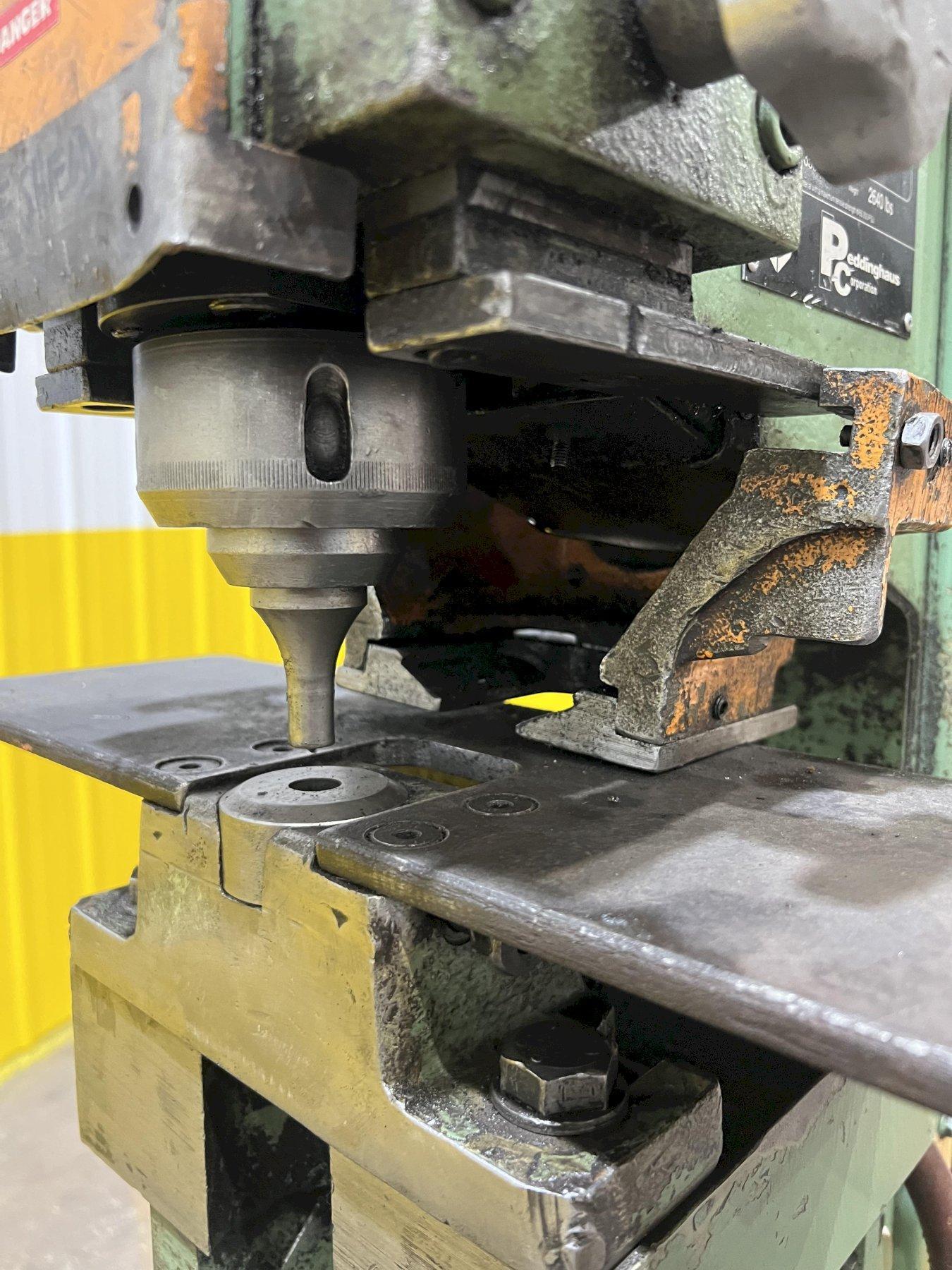

PUNCH UNIT SPECIFICATION:

CAPACITY ................. 105 TONS

PUNCH CAPACITY ........... 1-1/4" IN 3/4"

CHANNELS IN FLANGE ....... 4" TO 15"

CHANNELS IN WEB .......... 4" TO 15"

PUNCH WITH OVERSIZE PUNCHING ATTACHMENT:

UP TO 2-1/2" ............. 2-1/2" X 7/16"

UP TO 3-1/2" ............. 3-1/2" X 11/32"

THROAT DEPTH ............. 10"

WORKING HEIGHT ........... 44-3/4"
