SERIAL:.........................

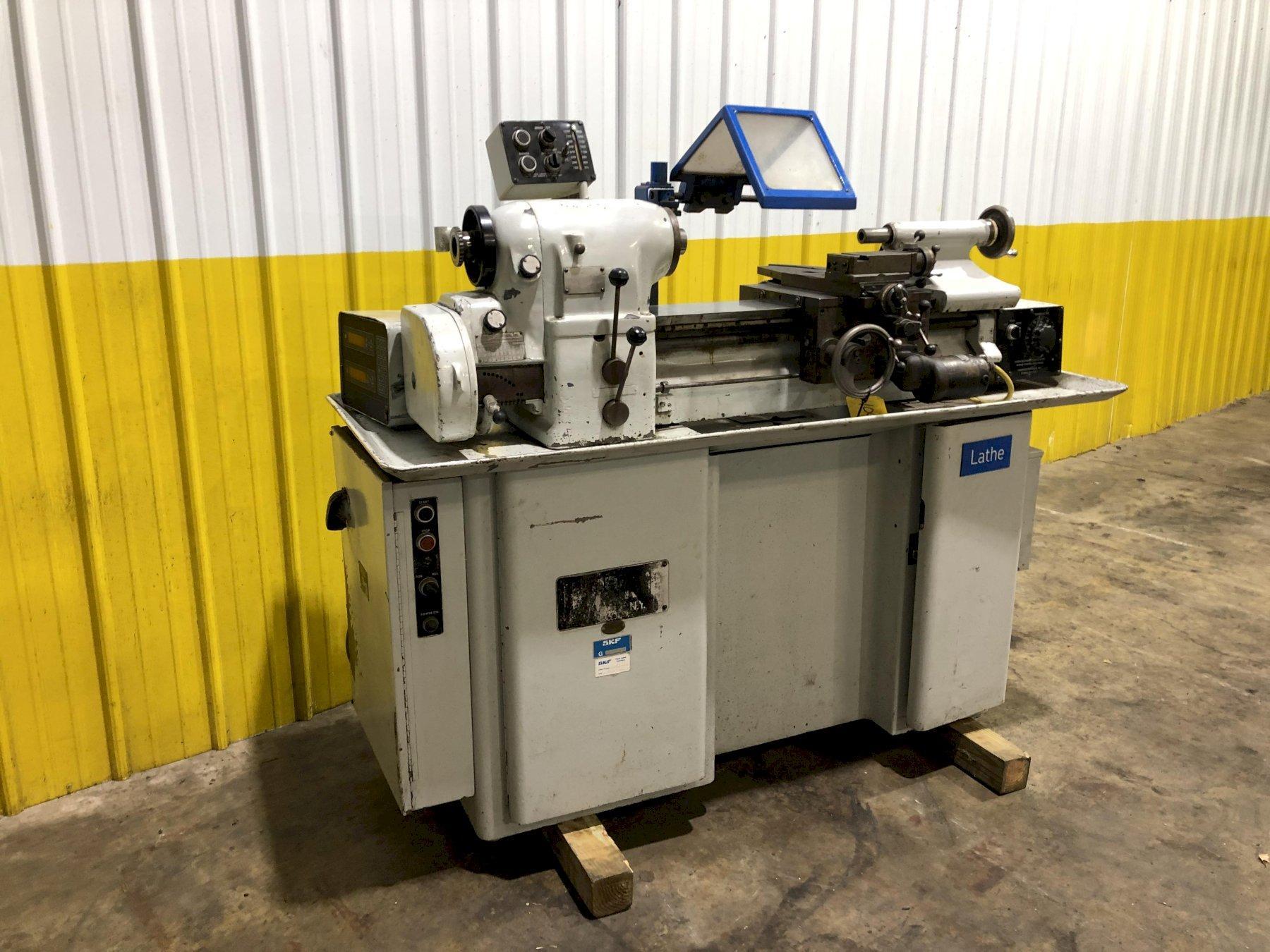

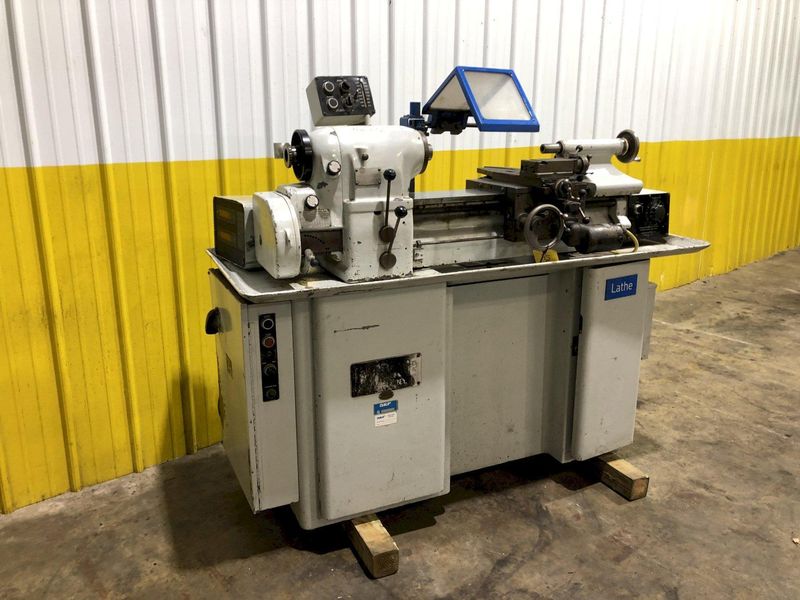

MODEL:.......................... HLV-8
SWING OVER BED:................. 11"
SWING OVER CARRIAGE:............ 9"
SWING OVER CROSS SLIDE:......... 6"
DISTANCE BETWEEN CENTERS:....... 18"
SPINDLE NOSE:................... 5C HARDINGE TAPER NOSE
VARIABLE SPINDLE SPEEDS:........ 125 TO 3000 RPM
HOLE THROUGH SPINDLE:........... 1-1/4"
CARRIAGE POWER FEED RANGE:...... 5/16 TO 7 IPM
CROSSLIDE POWER FEED RANGE:..... 3/16 TO 4 IPM
ENGLISH THREADS (36):........... 11 TO 108 TPI
SPINDLE CAPACITY
WITH ROUND 5C COLLETS:.......... 1-1/16"
WITH HEXAGON 5C COLLETS:........ 7/8"
WITH SQUARE 5C COLLETS:......... 3/4"
WITH STEP CHUCKS:............... 6"
WITH JAW CHUCKS:................ 5"
WITH EXPANDING COLLETS:......... 3"
5C LEVER TYPE COLLET CLOSER
4-WAY TOOLPOST
BACK SPLASH
COOLANT PUMP
| Specifications | ||
|---|---|---|
| Power | 1.5 horsepower | |
| Spindle Speed RPM | 3000 | |
| Main Motor | 1.5 | |
| Swing | 11 inches | |
| Centers | 18 inches | |
| Spindle Bore | 1.25 inches | |
| RPM | 3000 | |
| Swing Over Cross Slide | 6 inches | |
| Dimensions | 72” LR X 29” FB X 62” H | |
| Weight | 1800 pounds | |
Brand
HARDINGE
Type
Lathes, Engine
Stock No.
10051
 |
419-269-2000 |
Stock #: 10051
