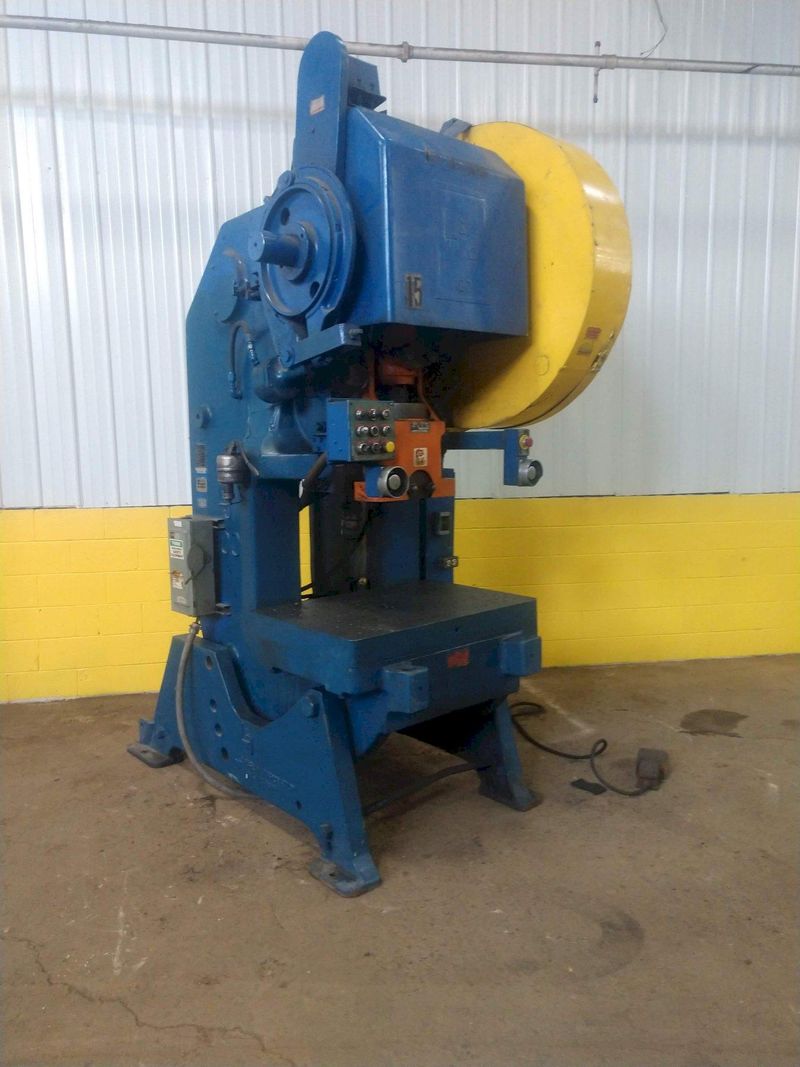

SERIAL ............. 100-267A
MODEL .............. 100
CAPACITY ........... 100 TON
STROKE ............. 5"
RAM ADJUSTMENT ..... 4"
SHUT HEIGHT ........ 18"
BED BOLSTER ........ 42" X 28" X 4" HIGH
RAM SIZE ........... 18" X 12"
PASSLINE ........... 37-3/4"
HOLE IN BACK ....... 19"
RUN MODES .......... INCH / SINGLE
AIR CLUTCH ........ YES
TOP STOP ........... YES
DUAL PALM BUTTON ... YES
FOOT TRIP .......... YES
MOTOR .............. 10 HP
| Specifications | ||
|---|---|---|
| Dimensions | 80" F-B X 72" WIDE X 134" HIGH | |
| Weight | 18000 pounds | |
Brand
L & J
Type
Presses, O.B.I.
Stock No.
12581
 |
419-269-2000 |
Stock #: 12581
SERIAL ............. 100-267A
MODEL .............. 100
CAPACITY ........... 100 TON
STROKE ............. 5"
RAM ADJUSTMENT ..... 4"
SHUT HEIGHT ........ 18"
BED BOLSTER ........ 42" X 28" X 4" HIGH
RAM SIZE ........... 18" X 12"
PASSLINE ........... 37-3/4"
HOLE IN BACK ....... 19"
RUN MODES .......... INCH / SINGLE
AIR CLUTCH ........ YES
TOP STOP ........... YES
DUAL PALM BUTTON ... YES
FOOT TRIP .......... YES
MOTOR .............. 10 HP
