Overview

SERIAL ............... 5352
MODEL ................ PMM2TC

TYPE ................. SEAM WELDER CIRCUMFERENTIAL

ALUMINUM CAPACITY .... 0.020" TO 0.064"

STAINLESS CAPACITY ... 0.020" TO 0.064"

MILD STEEL CAPACITY .. 0.020" TO 0.125"

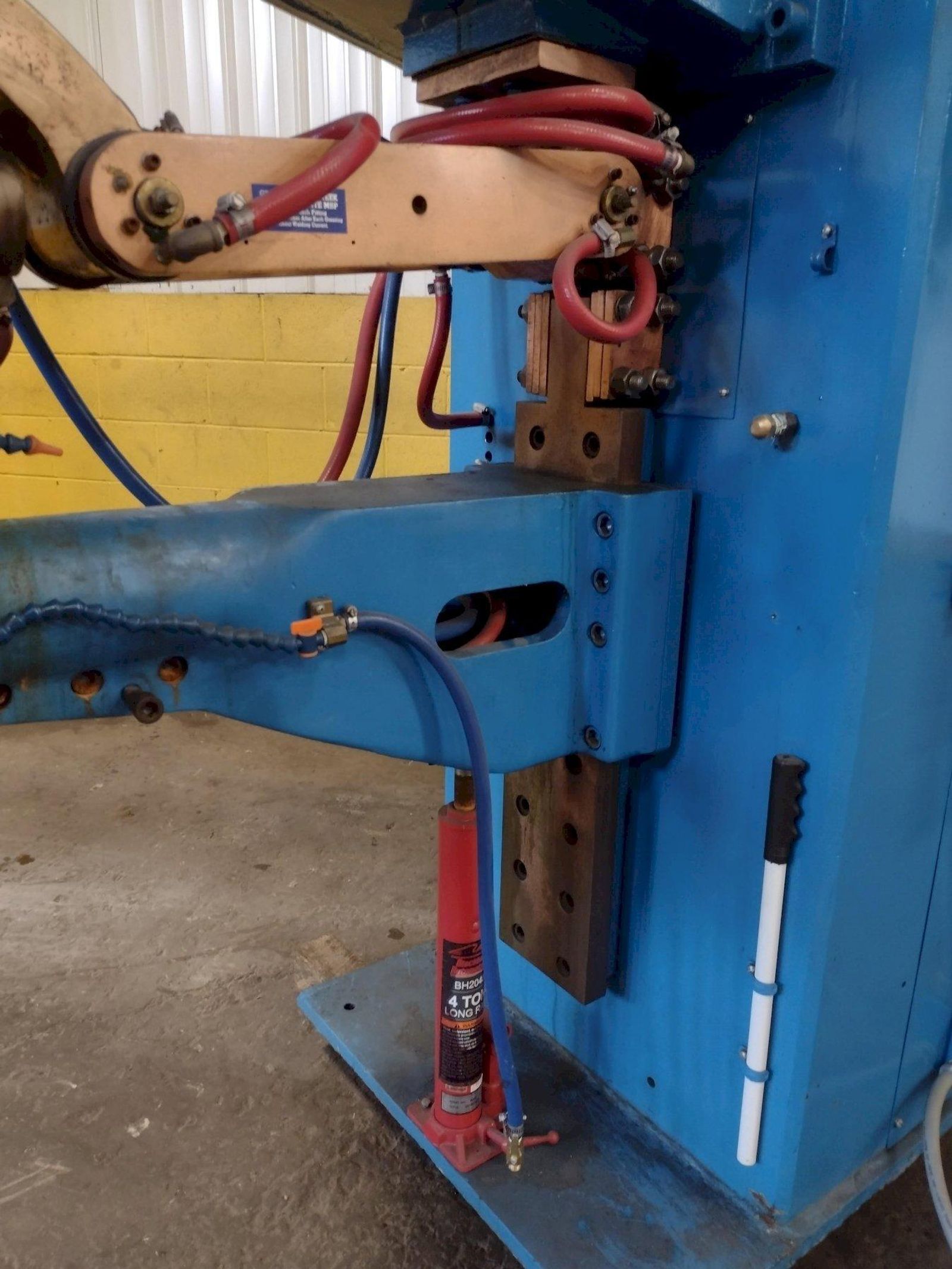

THROAT DIMENSIONS .... 10" X 36"

STROKE ............... 5"

PRIMARY VOLTS ........ 460V / 3PH / 60HZ
FULL LOAD AMPS ....... 100

RATING ............... 100KVA

SECONDARY VOLTS ...... 1.58V TO 3.1V

PEAK SECONDARY AMPS .. 60,000AMPS @ 20 CYCLE PULSE

PRESSURE RATIO ....... 50/1

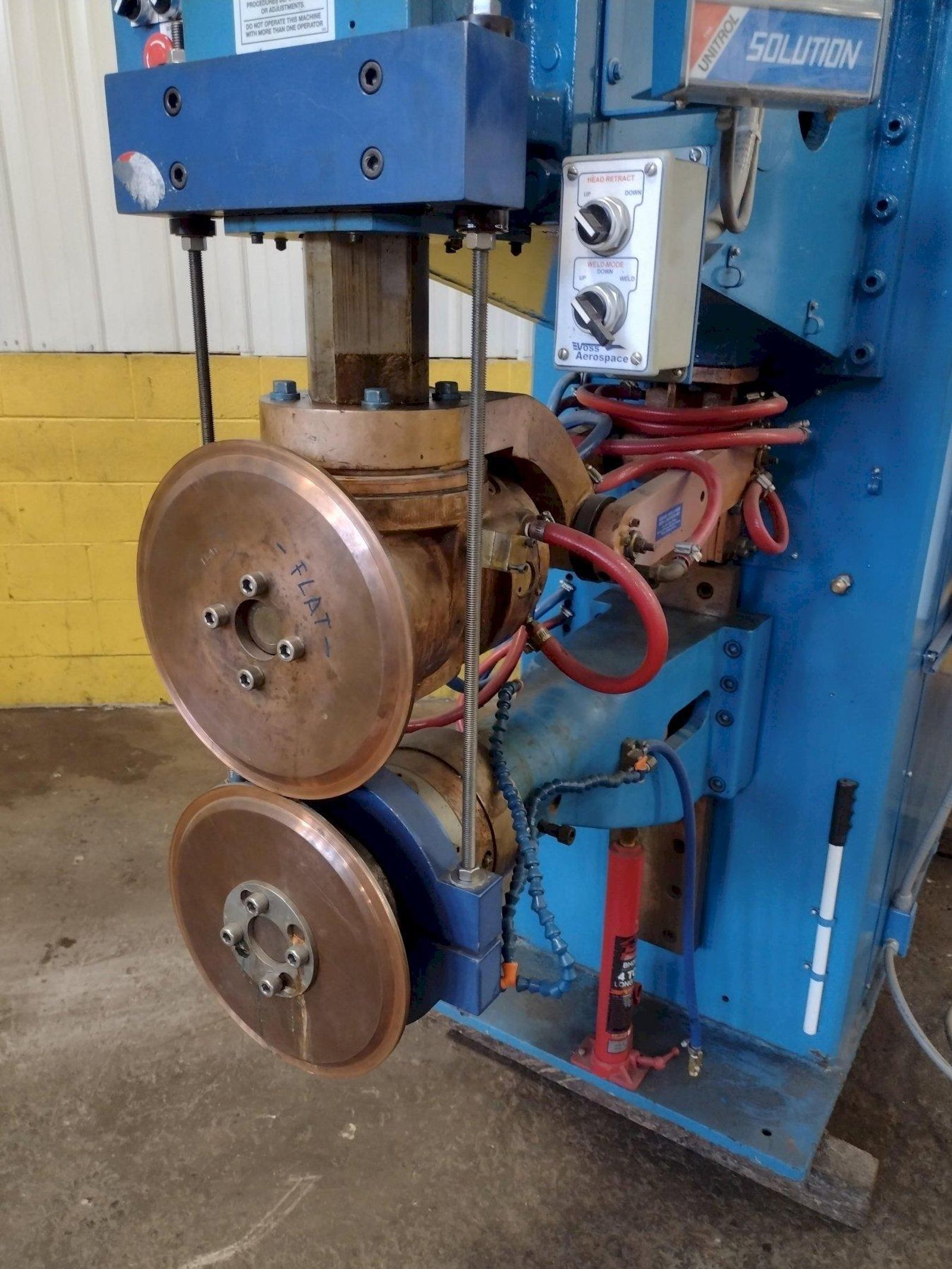

ELECTRODE FORCE ...... 4000 LBS

CYLINDER TYPE RETRACTABLE DIAPHRAGM

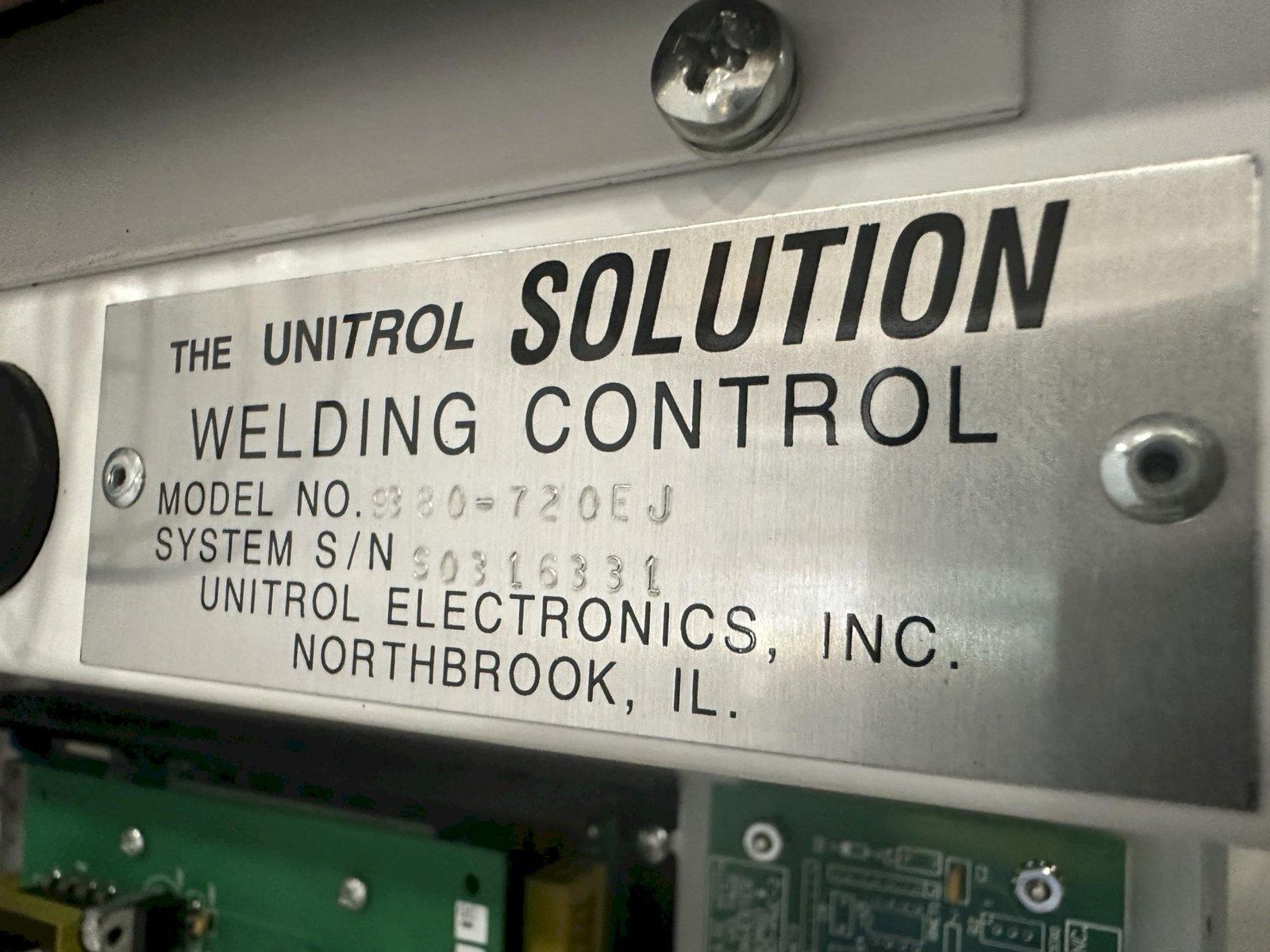

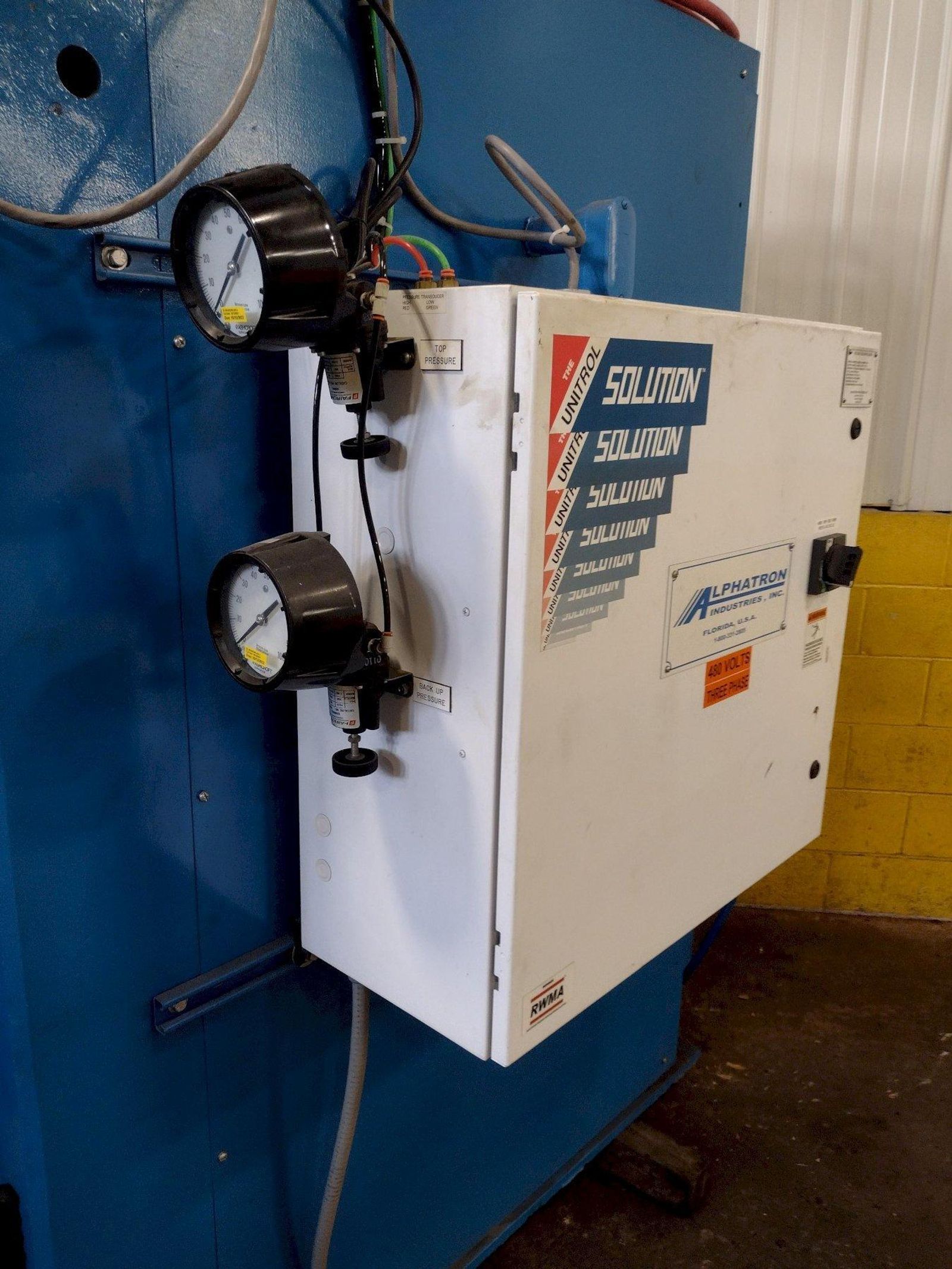

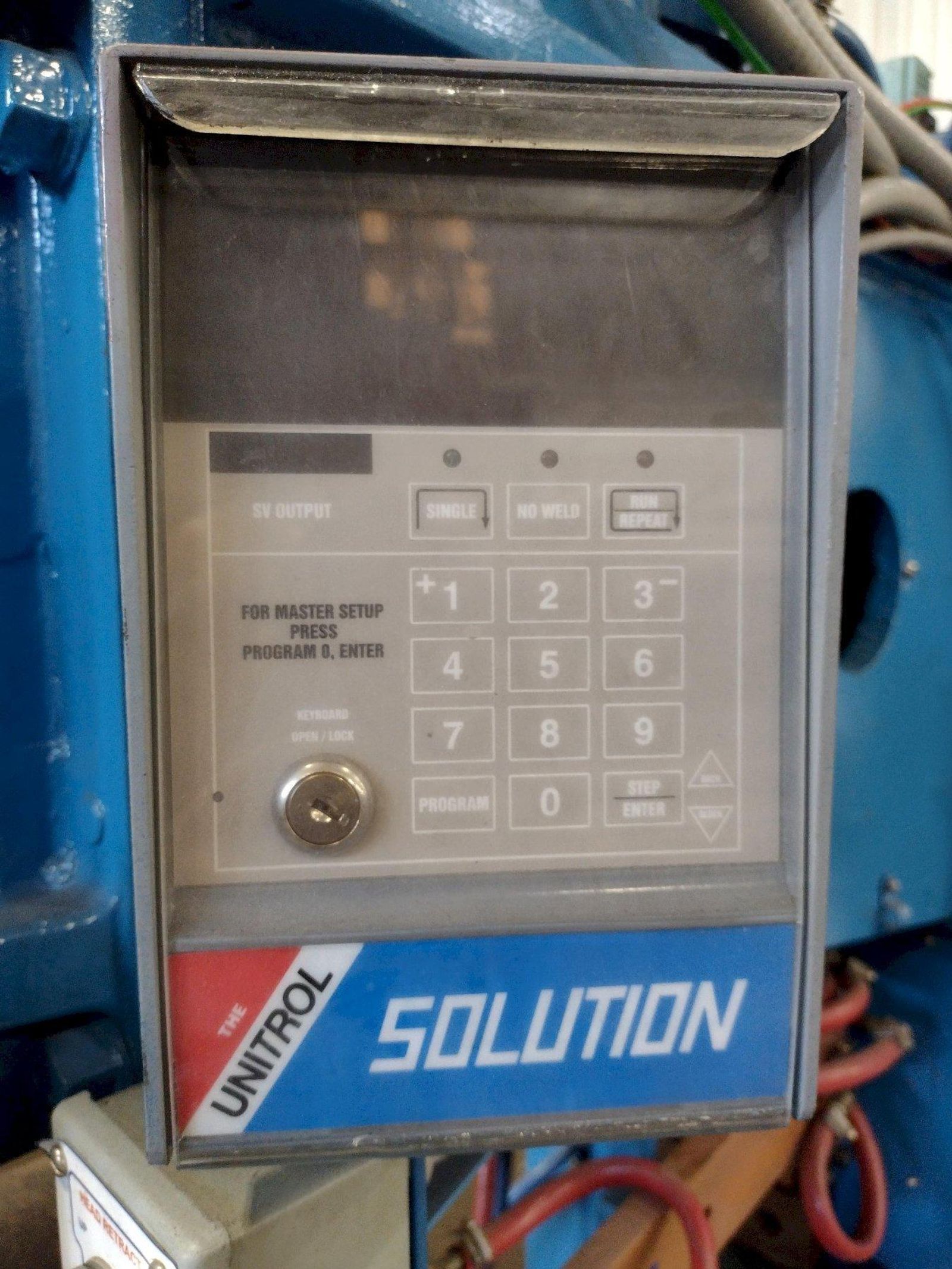

CONTROL INTERTRON MC302A

CONTACTORS SCR, WATER COOLED, 1700 AMPS

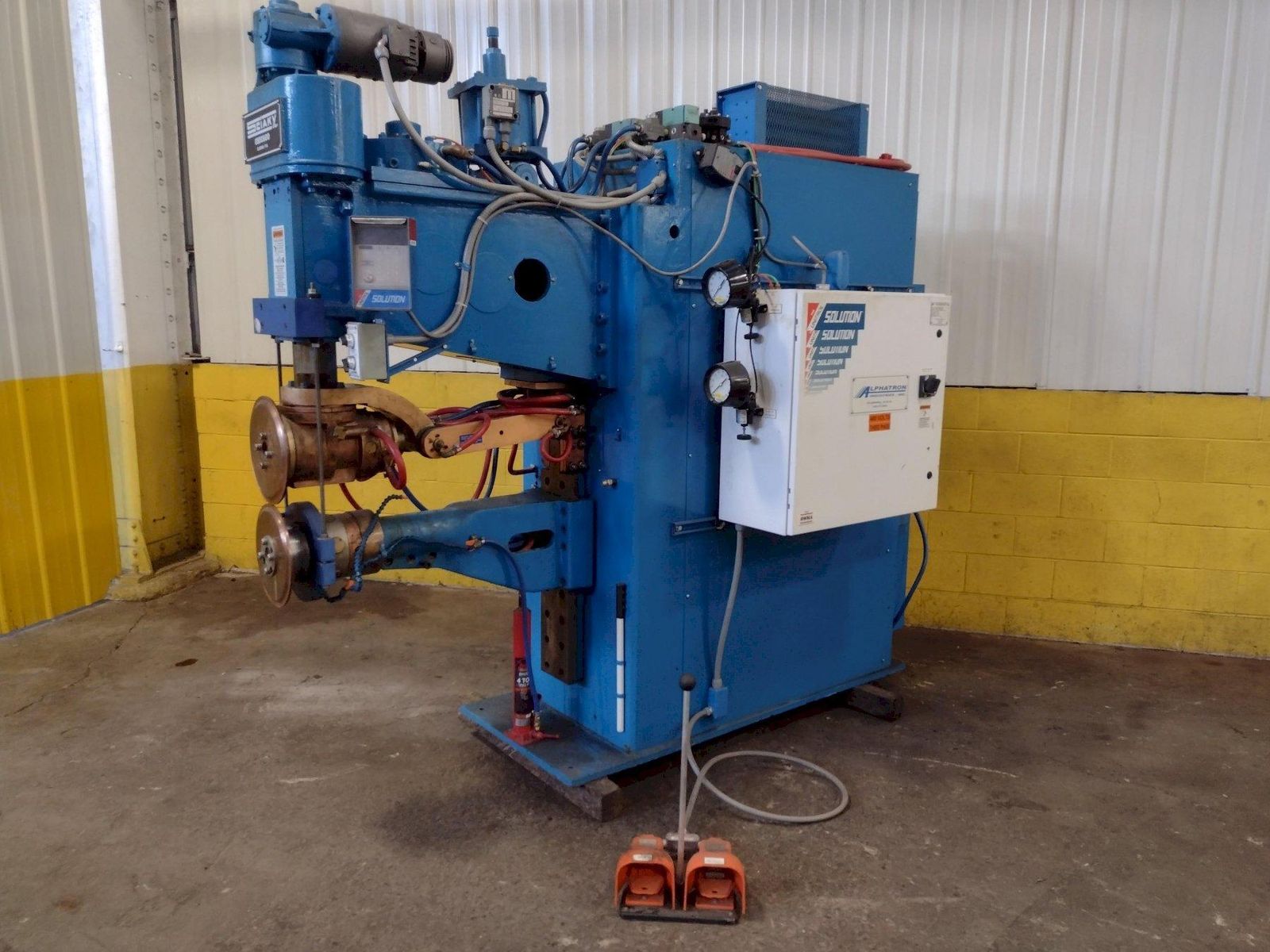

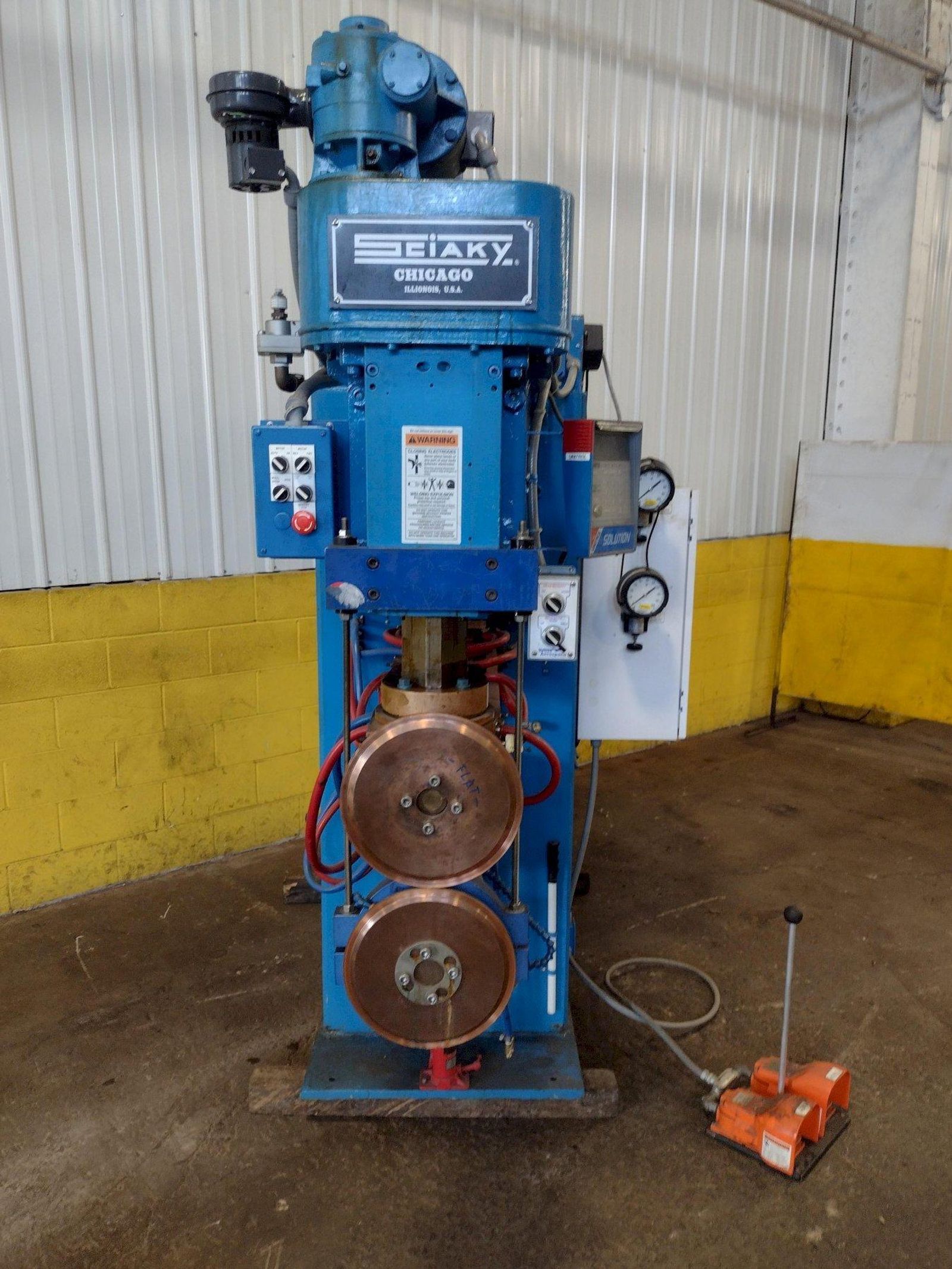

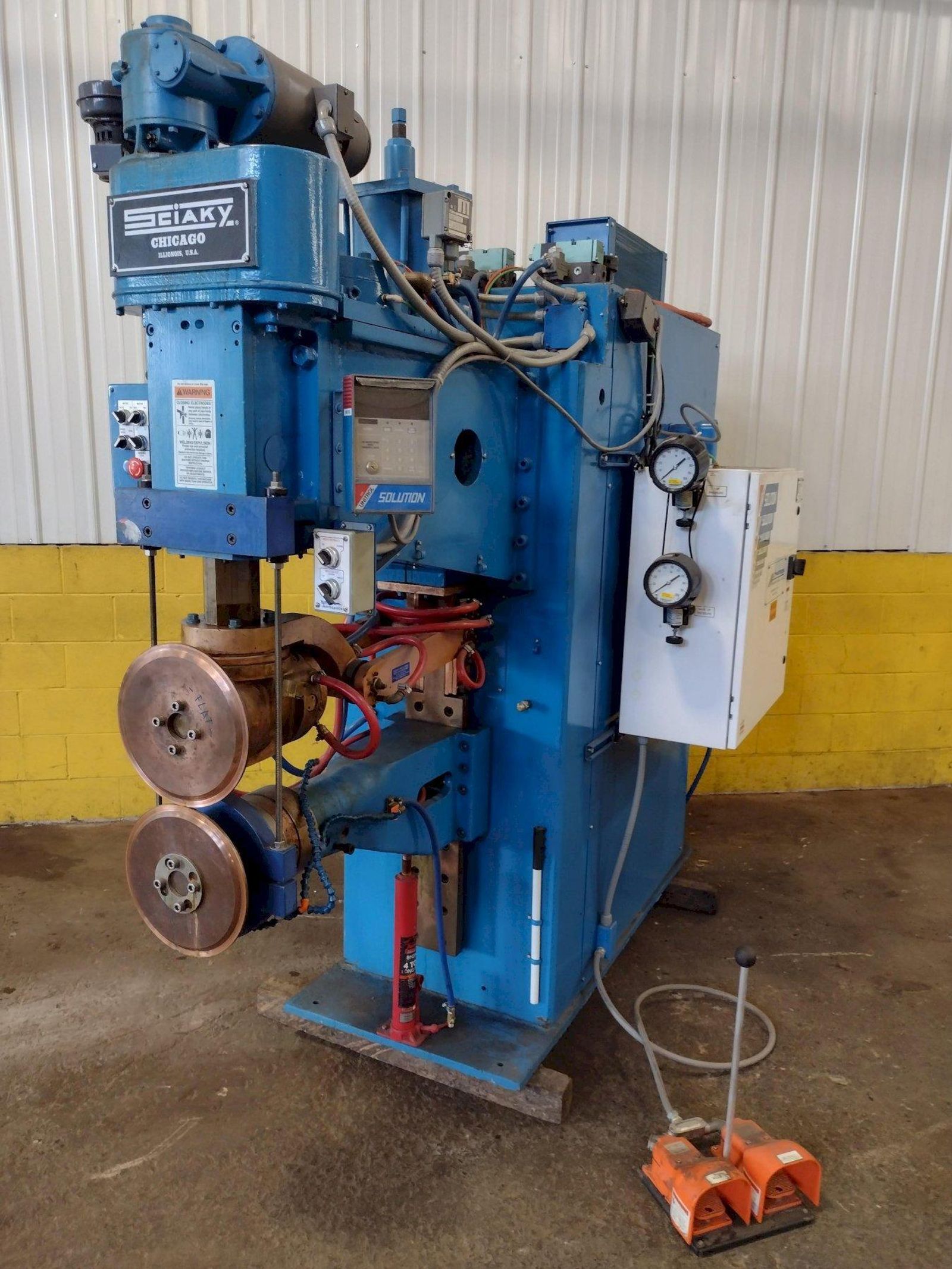

100 KVA SCIAKY MODEL #PMM2TC ROTARY SEAM WELDER: STOCK 17135

Brand
SCIAKY

Type
Welders, Seam

Stock No.
17135

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

100 KVA SCIAKY MODEL #PMM2TC ROTARY SEAM WELDER: STOCK 17135

Stock #: 17135

Equipped With

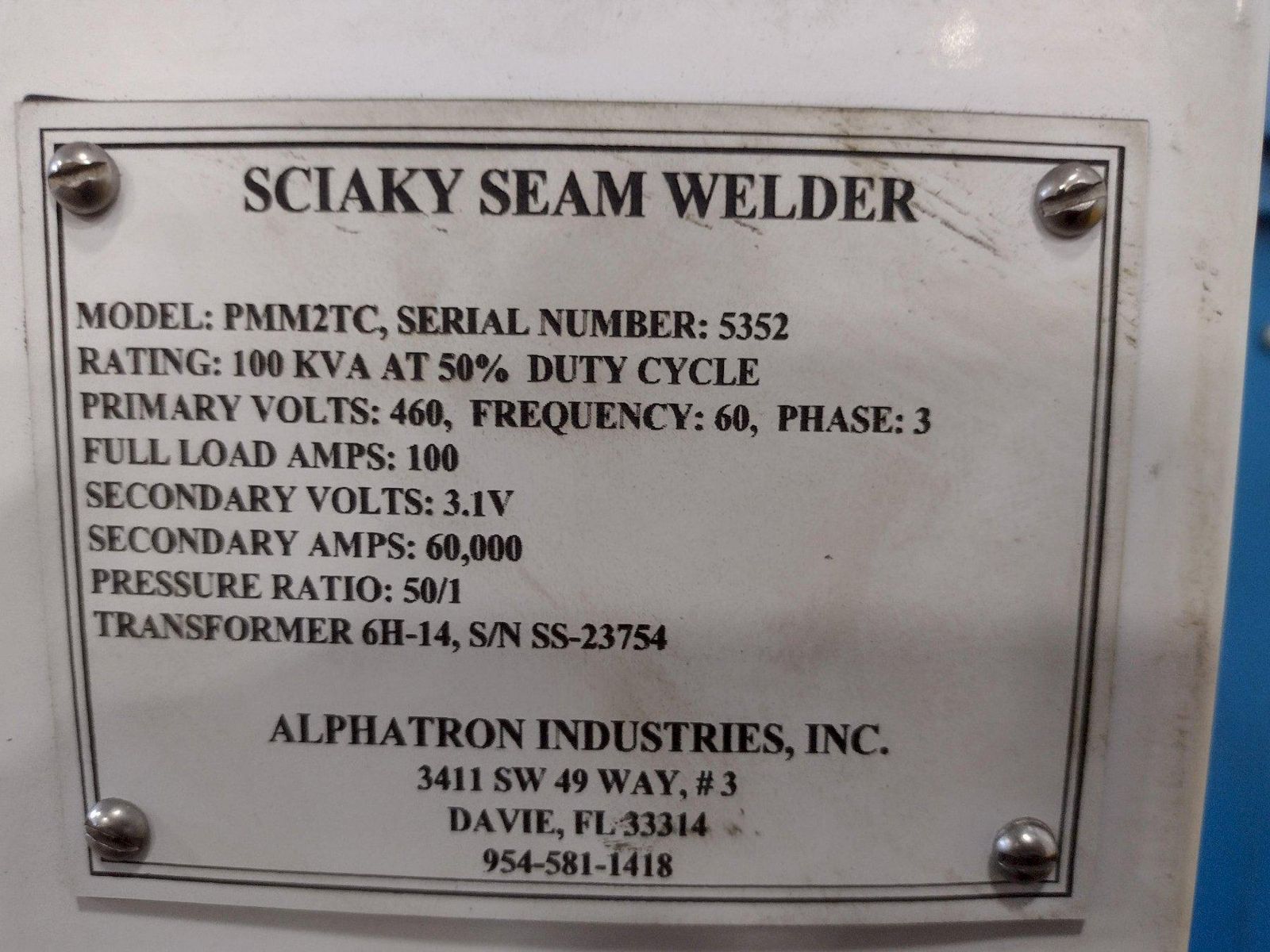

SERIAL ............... 5352
MODEL ................ PMM2TC
TYPE ................. SEAM WELDER CIRCUMFERENTIAL
ALUMINUM CAPACITY .... 0.020" TO 0.064"
STAINLESS CAPACITY ... 0.020" TO 0.064"
MILD STEEL CAPACITY .. 0.020" TO 0.125"
THROAT DIMENSIONS .... 10" X 36"
STROKE ............... 5"
PRIMARY VOLTS ........ 460V / 3PH / 60HZ
FULL LOAD AMPS ....... 100
RATING ............... 100KVA
SECONDARY VOLTS ...... 1.58V TO 3.1V
PEAK SECONDARY AMPS .. 60,000AMPS @ 20 CYCLE PULSE
PRESSURE RATIO ....... 50/1
ELECTRODE FORCE ...... 4000 LBS
CYLINDER TYPE RETRACTABLE DIAPHRAGM
CONTROL INTERTRON MC302A
CONTACTORS SCR, WATER COOLED, 1700 AMPS

Overview

100 KVA SCIAKY MODEL #PMM2TC ROTARY SEAM WELDER: STOCK 17135
