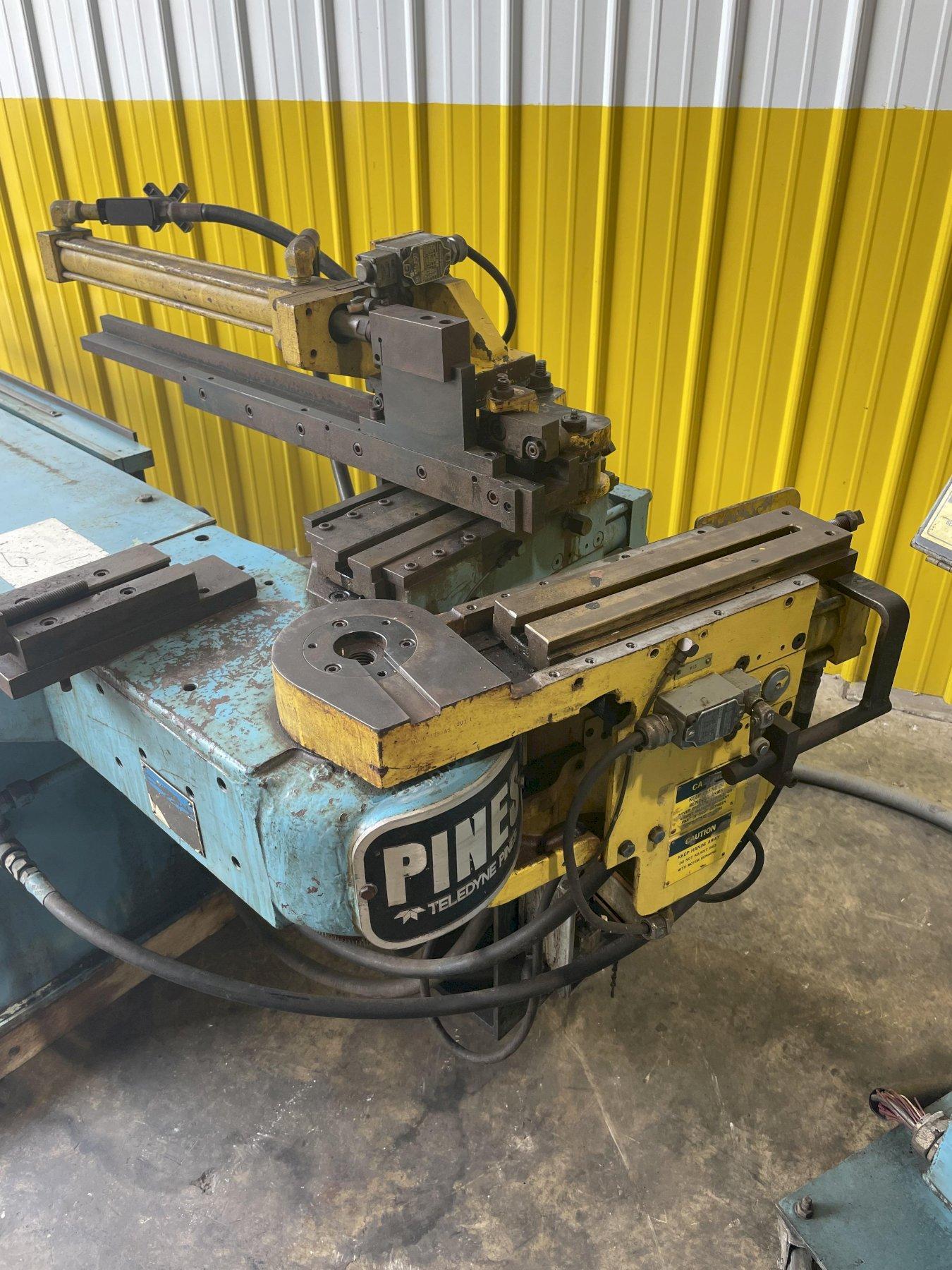

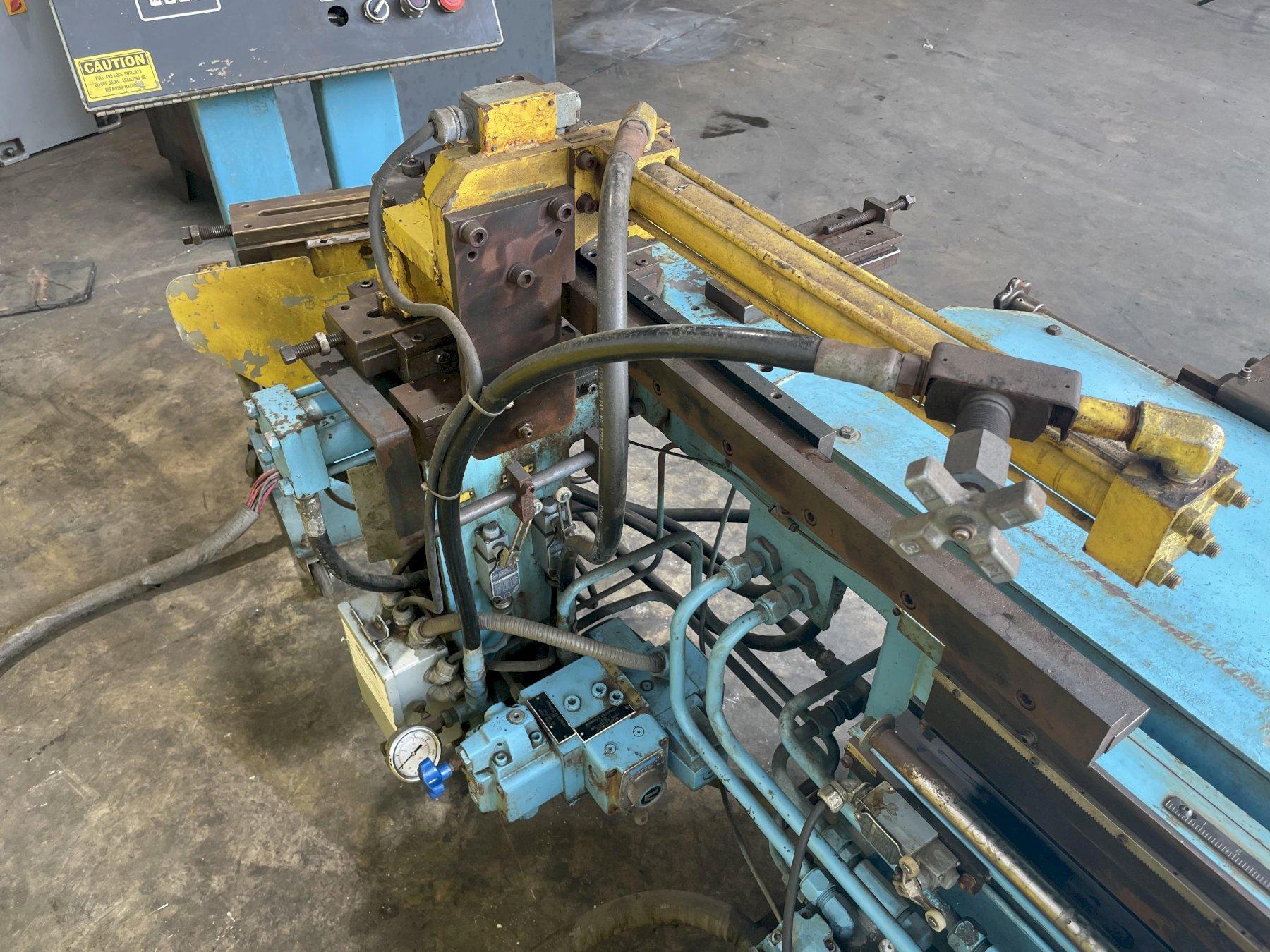

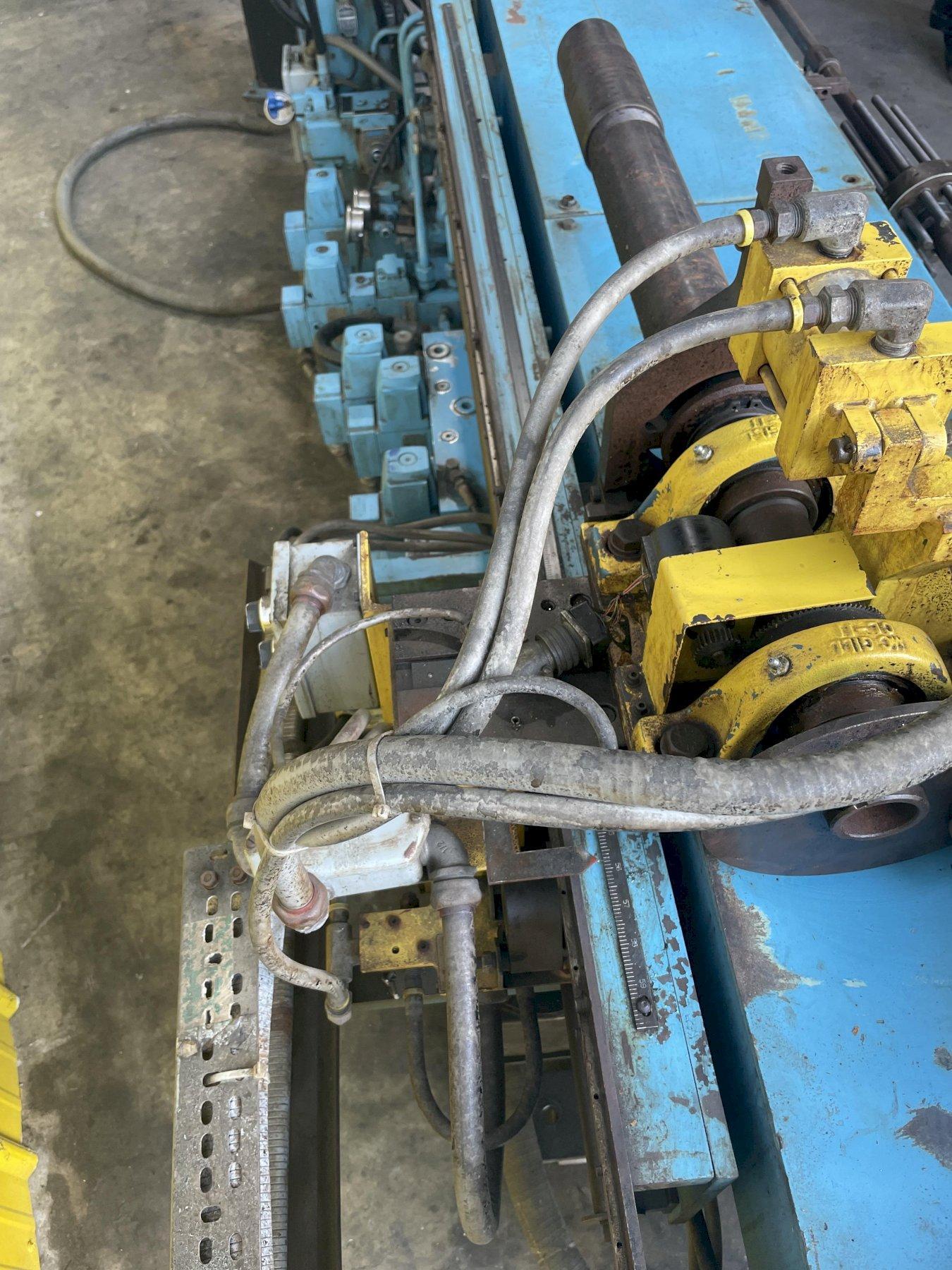

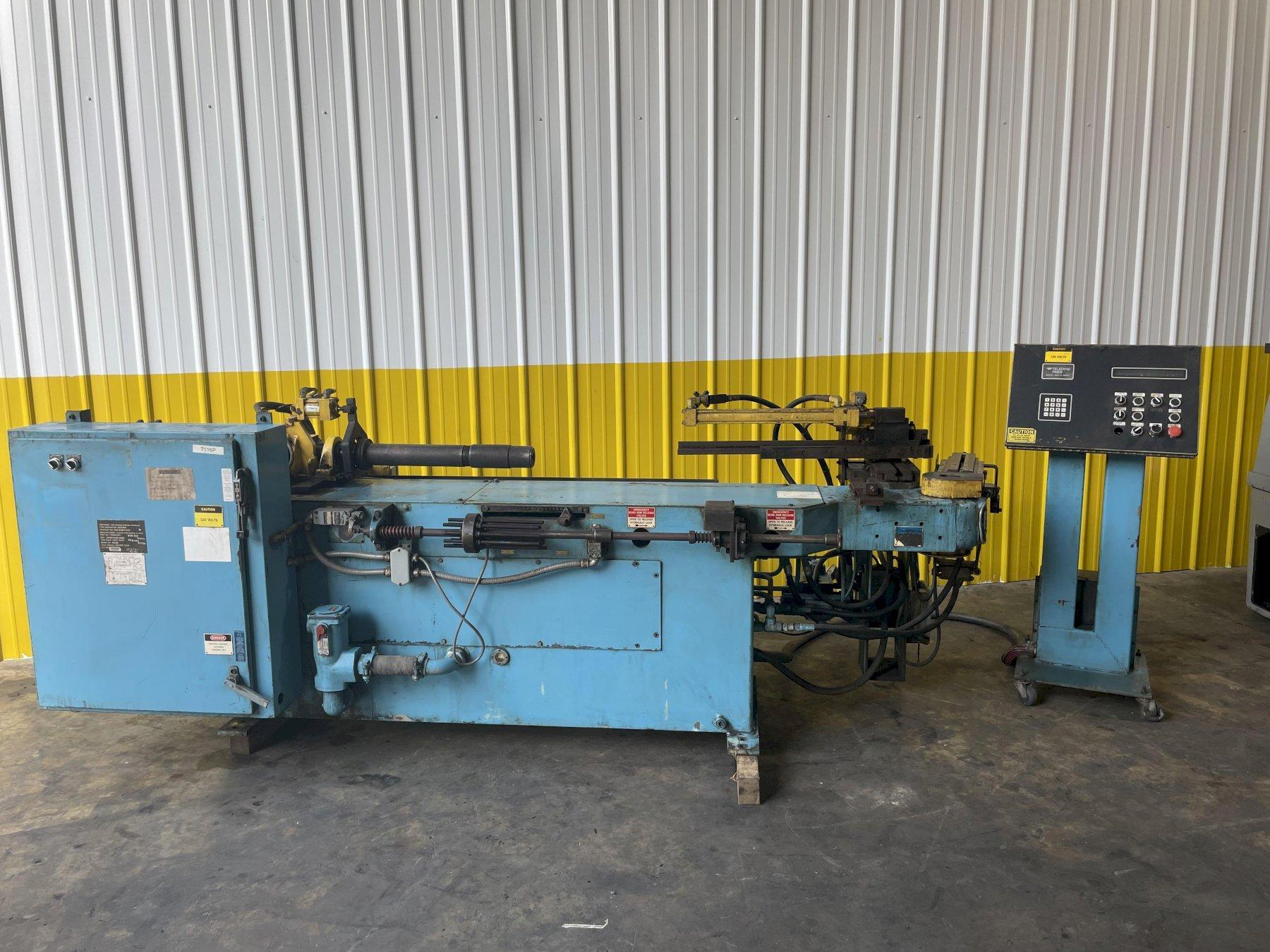

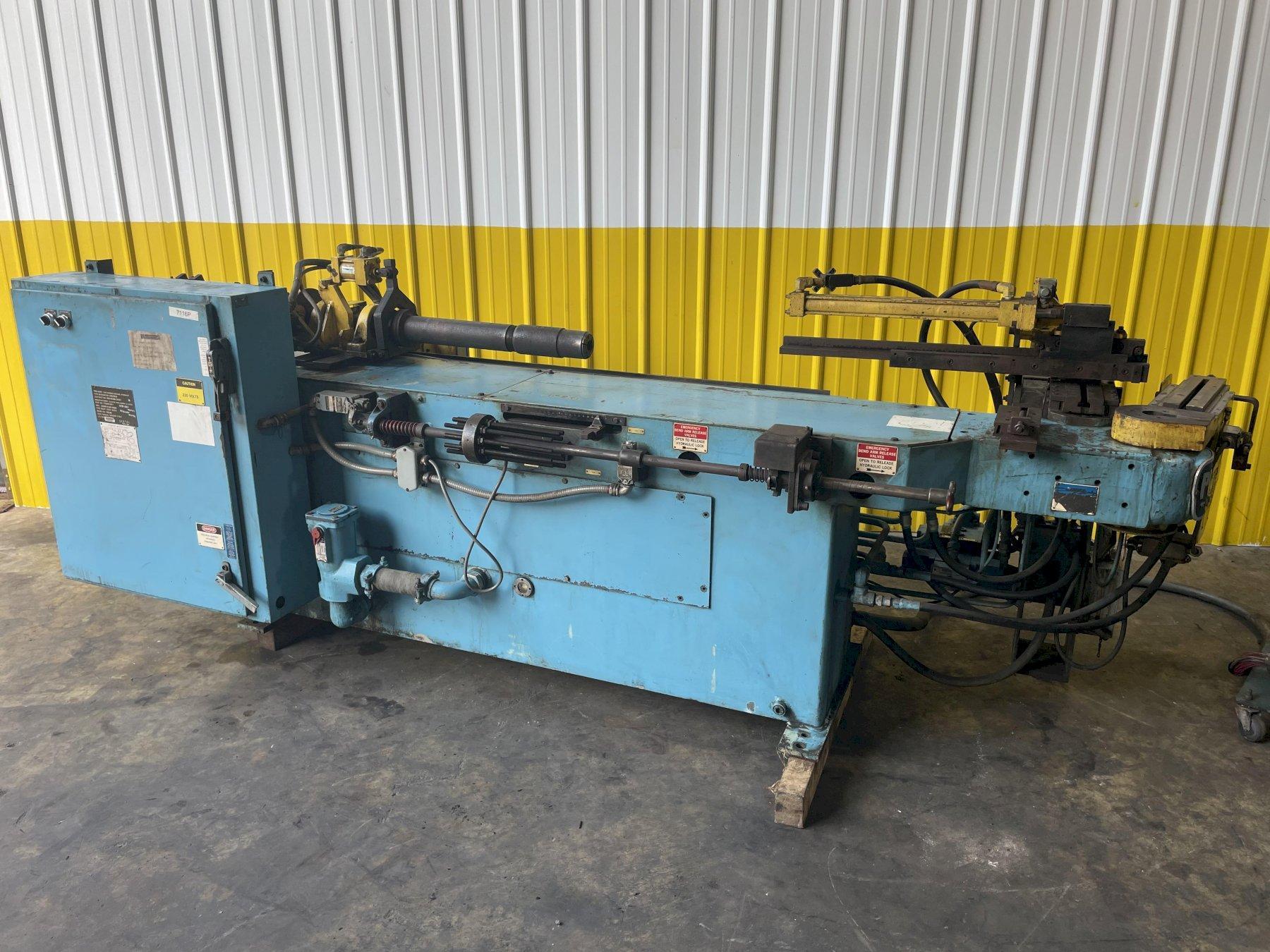

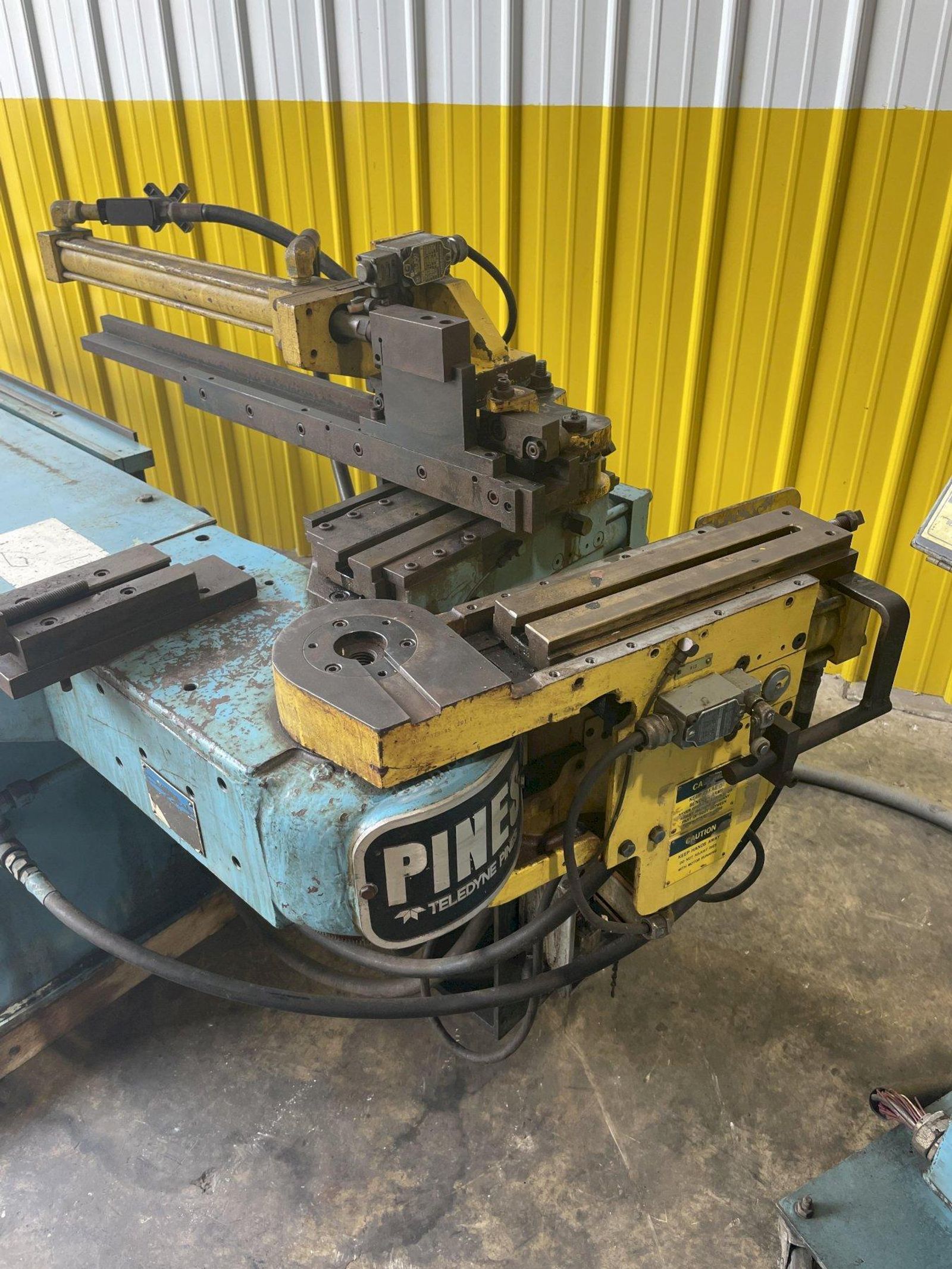

1.5'' X 0.188" PINES HORIZONTAL HYDRAULIC TUBE BENDER: STOCK 15028

Overview

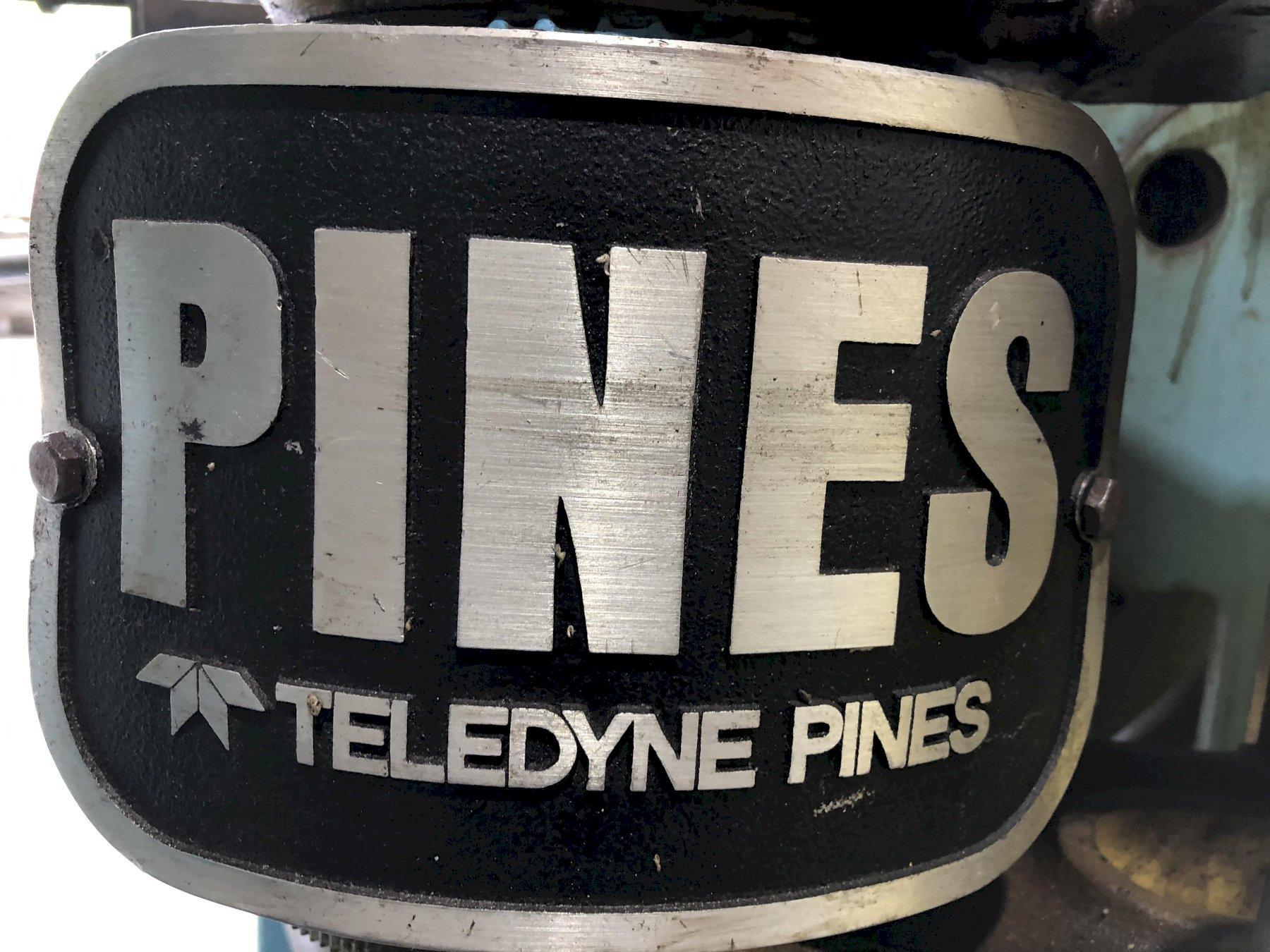

MANUFACTURER .................. PINES
MODEL ......................... #1
CAPACITY:
ROUND TUBING (NON FERROUS) .... 1-1/2" X 0.188" WT
ROUND TUBING (FERROUS) ........ 1-1/2" X 0.109" WT
ROUND TUBING (STAINLESS) ...... 1-3/8" X 0.065" WT
SQUARE TUBING (MILD STEEL) .... 1-1/8" X 0.012" WT
ROUND BAR ..................... 1-1/8"
SQUARE BAR .................... 1"
MAX. BEND ANGLE ............... 180 DEGREES
MAX. RADIUS ................... 10"
BENDING ARM SPEED ............. 5-1/2 RPM
MAX. TUBE LENGTH .............. 96"

EQUIPPED WITH
- PINES DIGITAL DIAL-A-BEND CONTROL
-HYDRAULIC MANDRELL EXTRACTOR

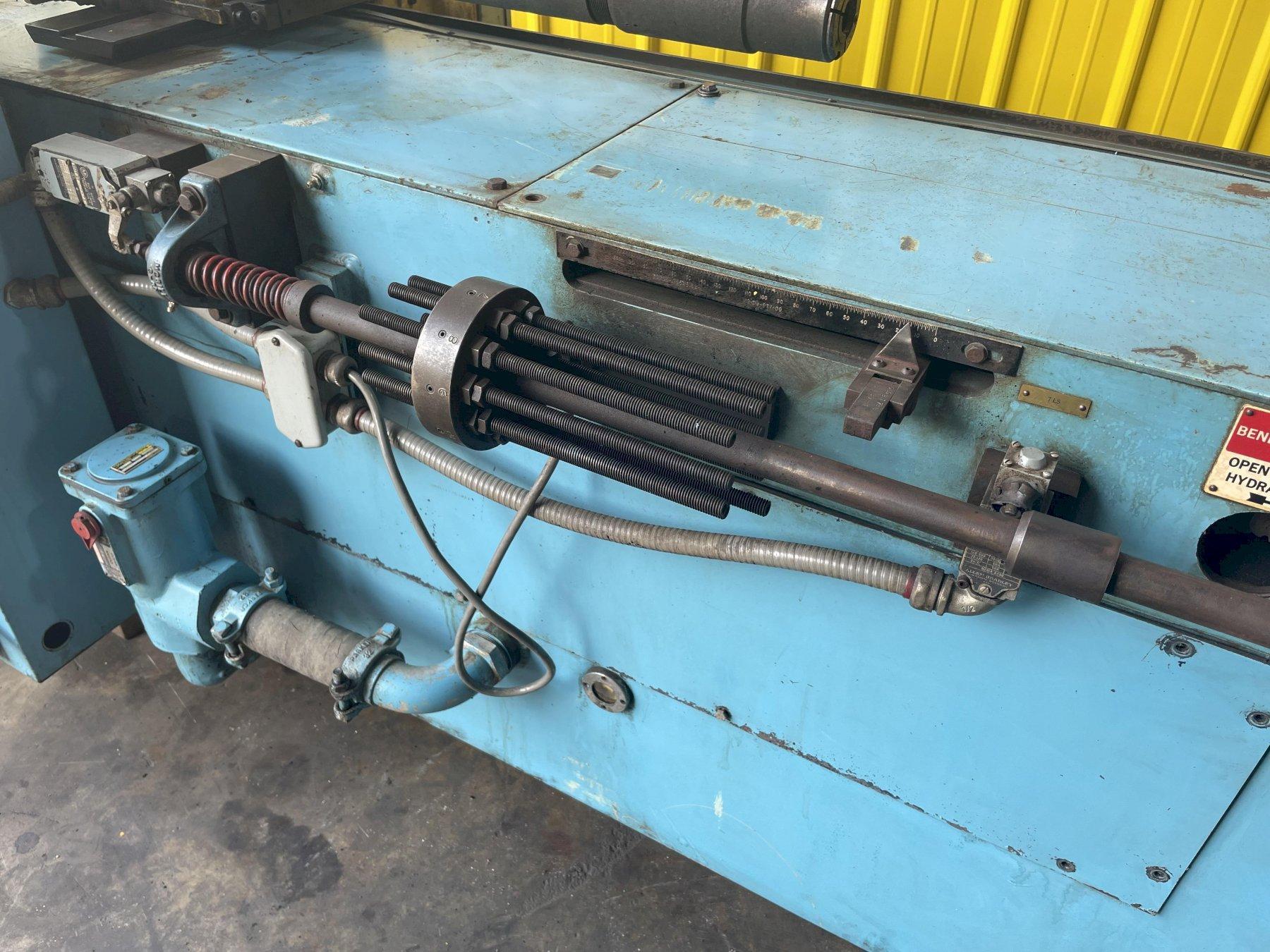

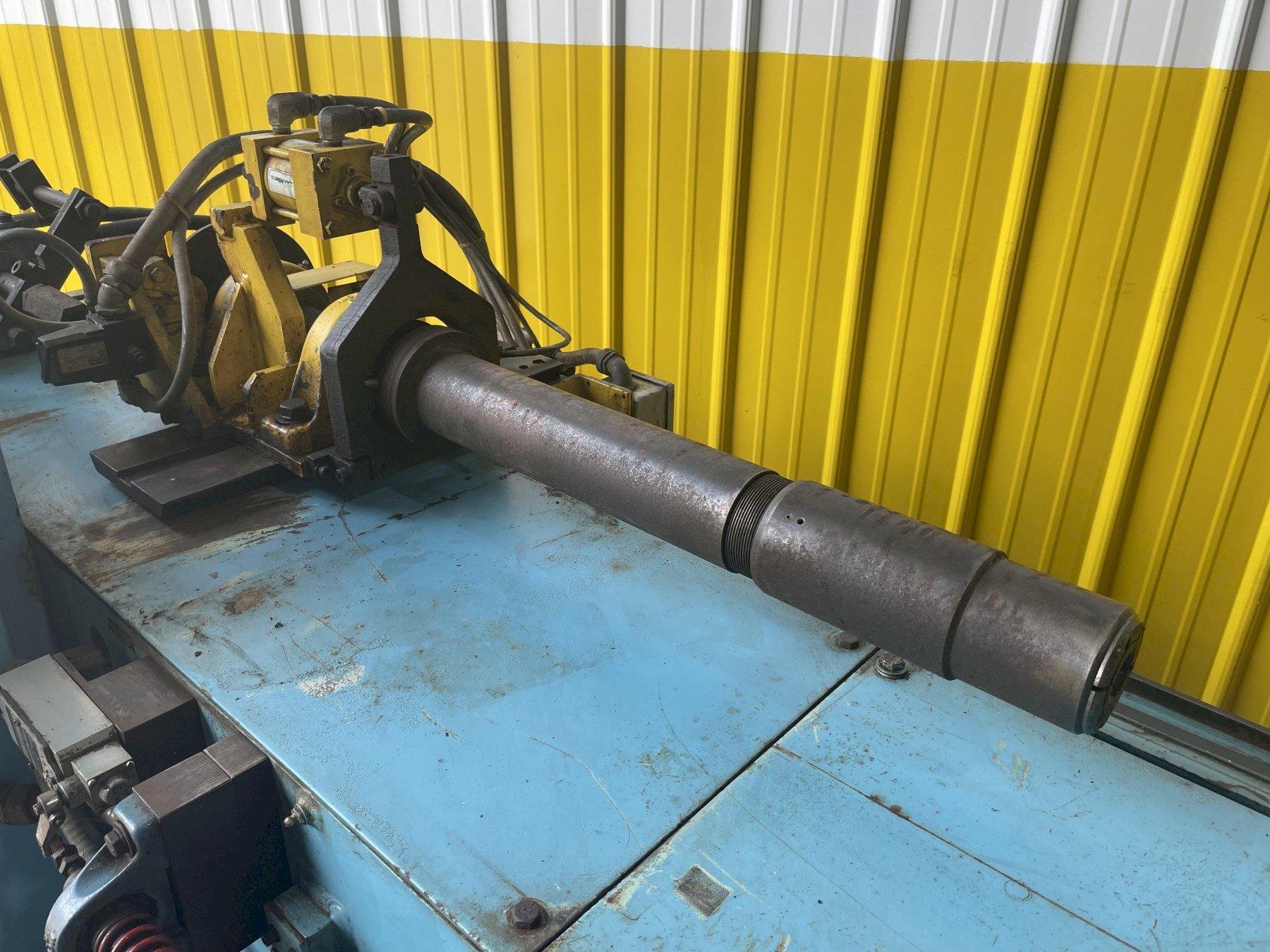

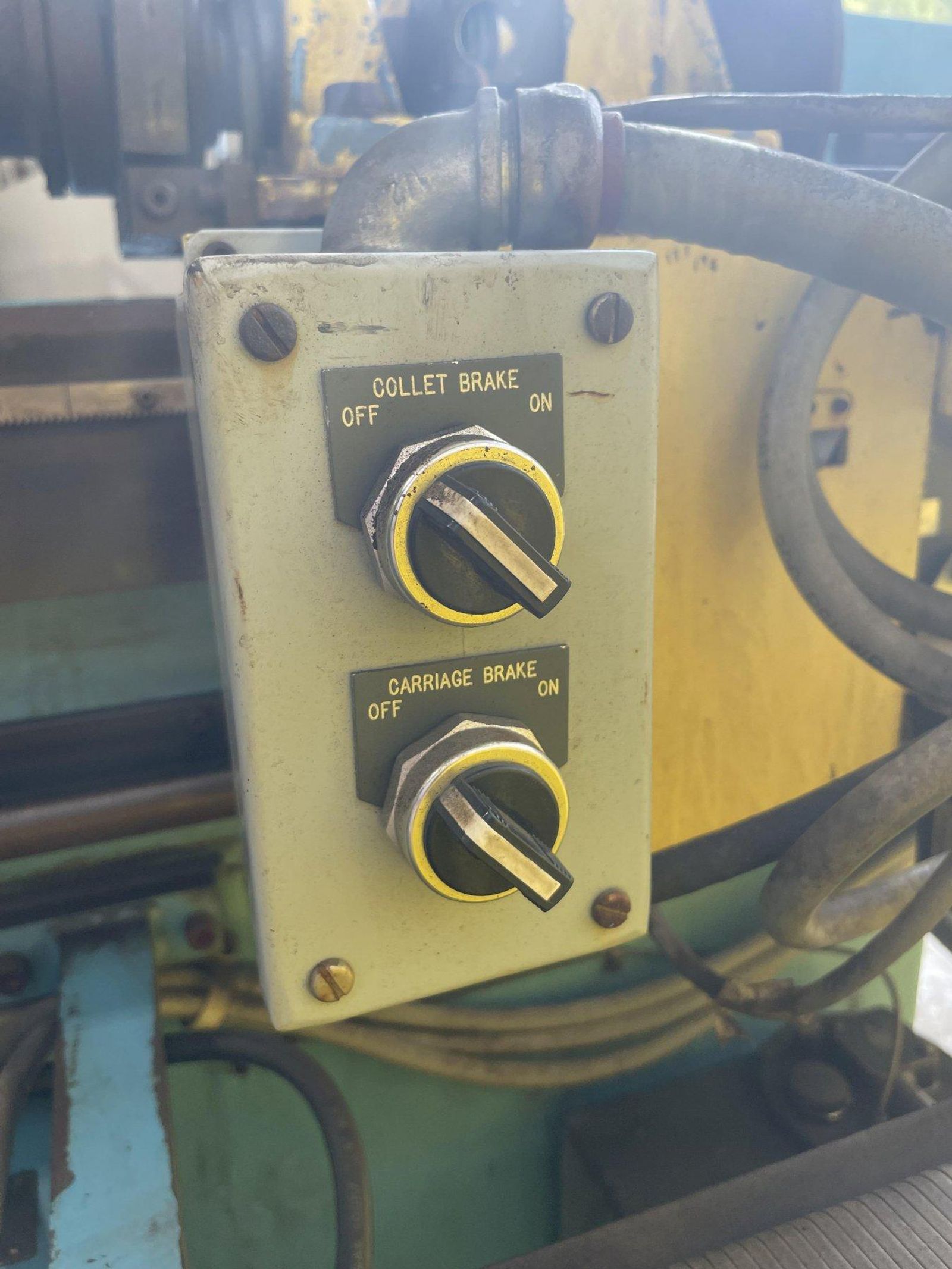

-60" SYNCRO DEGREE OF BEND ATTACHMENT WITH COLLET ATTACHMENT, PLANE- DEGREE- DISTANCE OF BEND

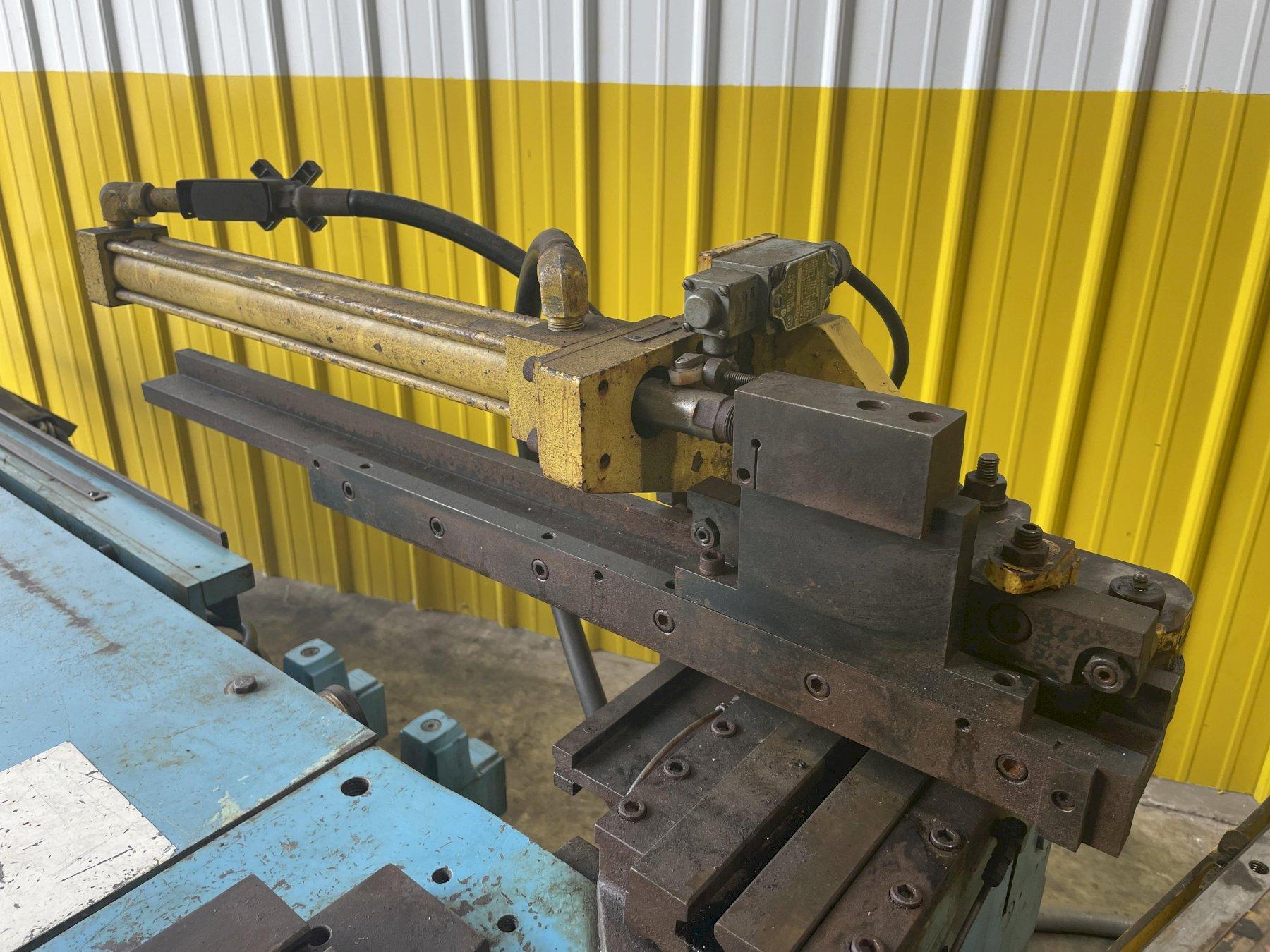

-PRESSURE DIE ASSIST
-TURRET STOP
-AUTO LUBE SYSTEM
-HORSEPOWER: 7 1/2


Specifications
Dimensions 145" x 44" x 43"
Weight 4100 pounds

1.5'' X 0.188" PINES HORIZONTAL HYDRAULIC TUBE BENDER: STOCK 15028

Brand
PINES

Type
Benders, Pipe, Tube & Bar

Stock No.
15028
