| Specifications | ||
|---|---|---|
| Weight | 5082 pounds | |
| Dimensions | 101"L x45"W X 67"H | |
Brand
VICTOR
Type
Lathes, Engine
Stock No.
22262
 |
419-269-2000 |
Stock #: 22262

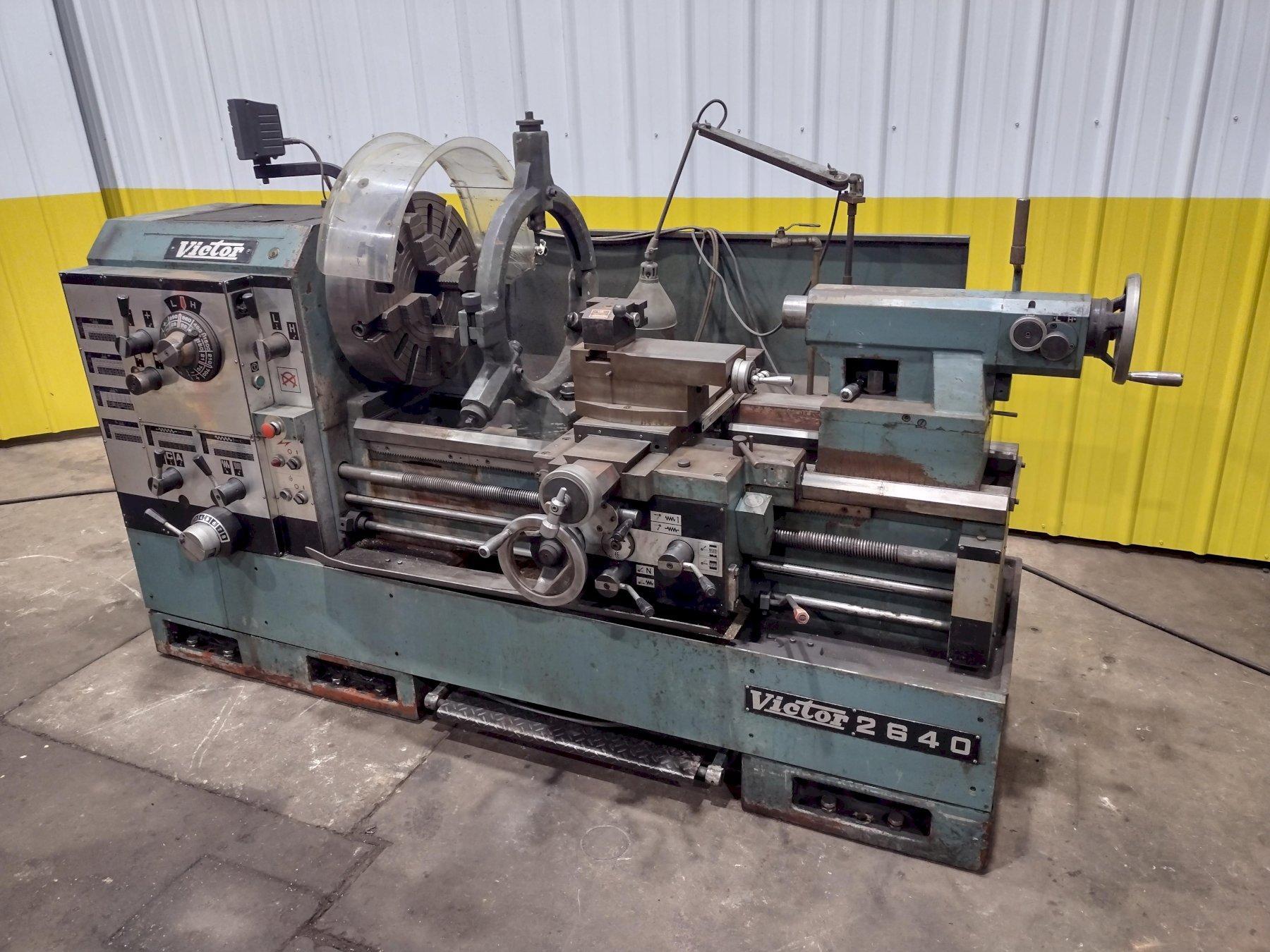

MODEL ........................... 2640SWING OVER BED .................. 26"SWING OVER CROSS SLIDE .......... 18-1/16"SWING OVER GAP .................. 33-1/4"BED WIDTH ....................... 15-3/4"DISTANCE BETWEEN CENTERS ........ 40"SPINDLE BORE DIAMETER ........... 4.13"SPINDLE BORE TAPER .............. M.T. #8TAPER OF CENTER IN SLEEVE ....... M.T. #5SPINDLE NOSE .................... D1-11NUMBER OF SPINDLE SPEEDS ........ 12 StepsRANGE OF SPINDLE SPEEDS ......... 21 TO 1,500 RPMRANGE OF LONGITUDINAL FEEDS ..... 0.0014" ~ 0.0387" /rev.RANGE OF CROSS FEEDS ............ 0.0007" ~ 0.01935"/rev.INCH THREADS .................... 2 ~ 112 TPI x 60 kindsMETRIC THREADS .................. 0.2 ~ 14 mm x 60 kindsCROSS SLIDE TRAVEL .............. 15"COMPOUND SLIDE TRAVEL ........... 10"TAILSTOCK TAPER CENTER .......... M.T. #5TAILSTOCK QUILL TRAVEL .......... 6-5/16"MAIN MOTOR ...................... 15 HP 3 PhaseCOOLANT PUMP .................... 1/8 HP
