Brand
CARLTON
Type
Drills, Radial
Stock No.
22068
 |
419-269-2000 |

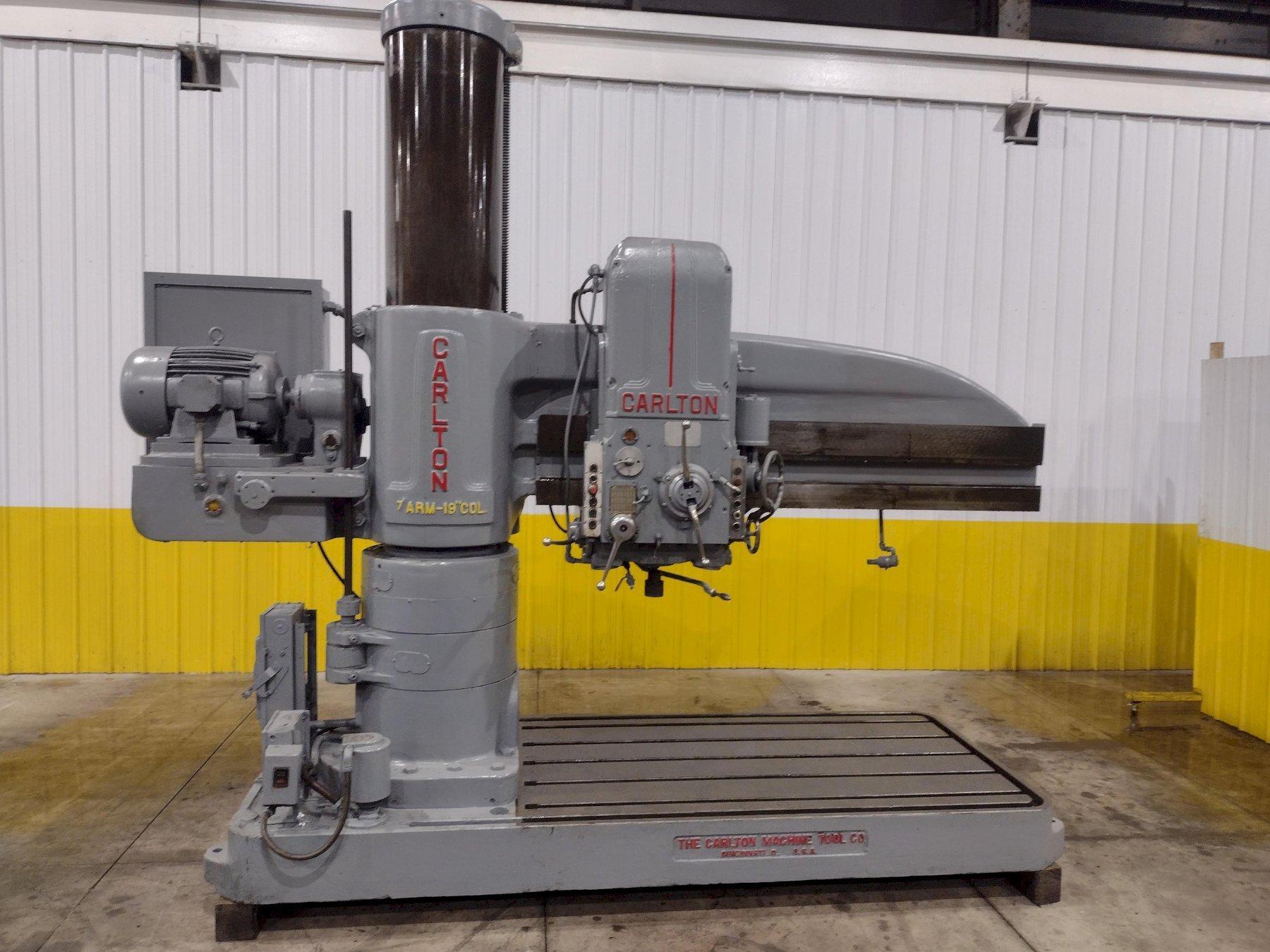

Stock #: 22068
SERIAL ......................... 4A 4979MODEL .......................... 4AARM LENGTH ..................... 7'COLUMN DIAMETER ................ 19"AREA OF BASE (T-SLOTTED) 77" X 50"SPINDLE SPEEDS (36) 12 TO 1200 RPMSPINDLE FEEDS (18) .004 TO .125 IPRTAP LEADS 8 / 11-1/2 / 14 / 18 TPIDISTANCE SPINDLE TO BASE 14-1/2" MINIMUM TO 78" MAXIMUMDISTANCE SPINDLE TO COLUMN 13-1/4" MINIMUM TO 84" MAXIMUMSPINDLE TRAVEL 20"DIAMETER OF SPINDLE 4"TAPER IN SPINDLE #6 MTPOWER CLAMPING YESPOWER ELEVATION YESPOWER HEAD TRAVERSE YESCOOLANT YESMOTOR 20 HORSEPOWER
